Keeping Your Kawasaki FR730V in Peak Condition
The Kawasaki FR730V is a robust and reliable engine, powering a wide range of outdoor power equipment, from zero-turn mowers to garden tractors. To ensure its longevity and optimal performance, understanding its specific needs, particularly regarding lubrication, is crucial. This guide delves into the recommended oils, essential maintenance practices, and key specifications for the FR730V, helping you keep your machinery running at its best.
Understanding the Kawasaki FR730V Engine
The FR730V is a 0.73-litre (726 cc) V-twin, 90° air-cooled, 4-stroke gasoline engine. Known for its vertical shaft design, it's engineered for demanding general-purpose applications. Its construction features include overhead valves (OHV), cast iron cylinder liners for enhanced durability, and a spherical combustion chamber. For efficient operation, it is equipped with an internally vented carburetor with a fuel shut-off solenoid and an electronic spark ignition system. The engine also boasts a high-performance lubrication system and a single-stage air filter, contributing to its reliable operation.
This engine is designed with user-friendliness and durability in mind. It features a bendix-type electric starter with an automatic compression release (ACR) system, simplifying ignition. Optional charge coils of 13A or 20A are available to suit different power requirements. With a bore of 78.0 mm (3.07 in) and a stroke of 76.0 mm (2.99 in), the FR730V offers a compression ratio of 8.2:1. This configuration allows it to produce between 22.6 PS (16.6 kW; 22.2 HP) and 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm, with a maximum torque of 54.3 Nm (5.5 kg·m; 40.0 ft·lb) at 2,000 rpm.

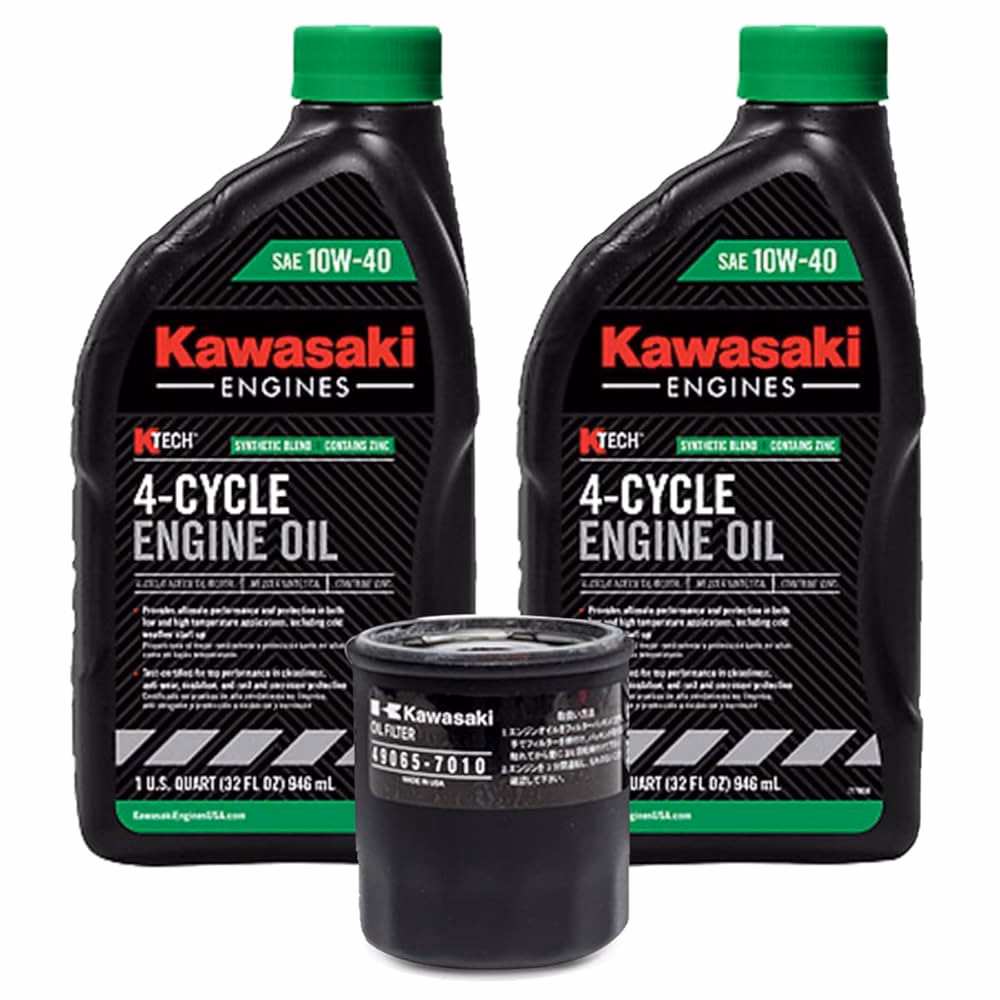

Recommended Engine Oil Specifications
Choosing the correct engine oil is paramount for the health and longevity of your Kawasaki FR730V. Kawasaki's recommendations for oil specifications are based on conventional oils. The manufacturer specifies oils meeting API SF, SG, SH, SJ, or SL ratings. These are older, but still valid, API (American Petroleum Institute) classifications.
Crucially, modern engine oils that meet the latest API SN rating are backward compatible. This means an API SN oil will perform safely and effectively in your FR730V engine. When selecting an oil, look for a viscosity grade that suits your operating conditions. The most commonly recommended viscosity grades for the FR730V are SAE 10W-40 and SAE 10W-30. These grades offer a good balance of protection during cold starts and consistent lubrication at operating temperatures.
Oil Viscosity and Temperature Considerations
The choice between SAE 10W-30 and SAE 10W-40 can depend on the ambient temperature in which you operate your equipment. Generally:
- SAE 10W-30: Suitable for a wider range of temperatures, often performing well in both cooler and moderately warm conditions.
- SAE 10W-40: May offer slightly better protection in warmer operating temperatures due to its slightly higher viscosity at high temperatures.
Always consult your owner's manual for the most precise recommendations based on your specific climate and usage patterns. Using an oil of the incorrect viscosity can lead to increased wear, reduced efficiency, and potential engine damage.
Engine Oil Capacity and Filter Changes
The oil capacity of the Kawasaki FR730V is an important factor during oil changes. When the oil filter is changed concurrently, the engine requires approximately 2.1 litres of oil. If you are performing a service where the oil filter is not replaced, the capacity is slightly lower, around 1.8 litres.
Regularly changing the oil and filter is one of the most effective ways to maintain engine health. Contaminants and degraded oil can accelerate wear on internal components. A good rule of thumb is to change the oil and filter every 100 hours of operation or annually, whichever comes first, but always adhere to the specific intervals recommended in your equipment's manual.

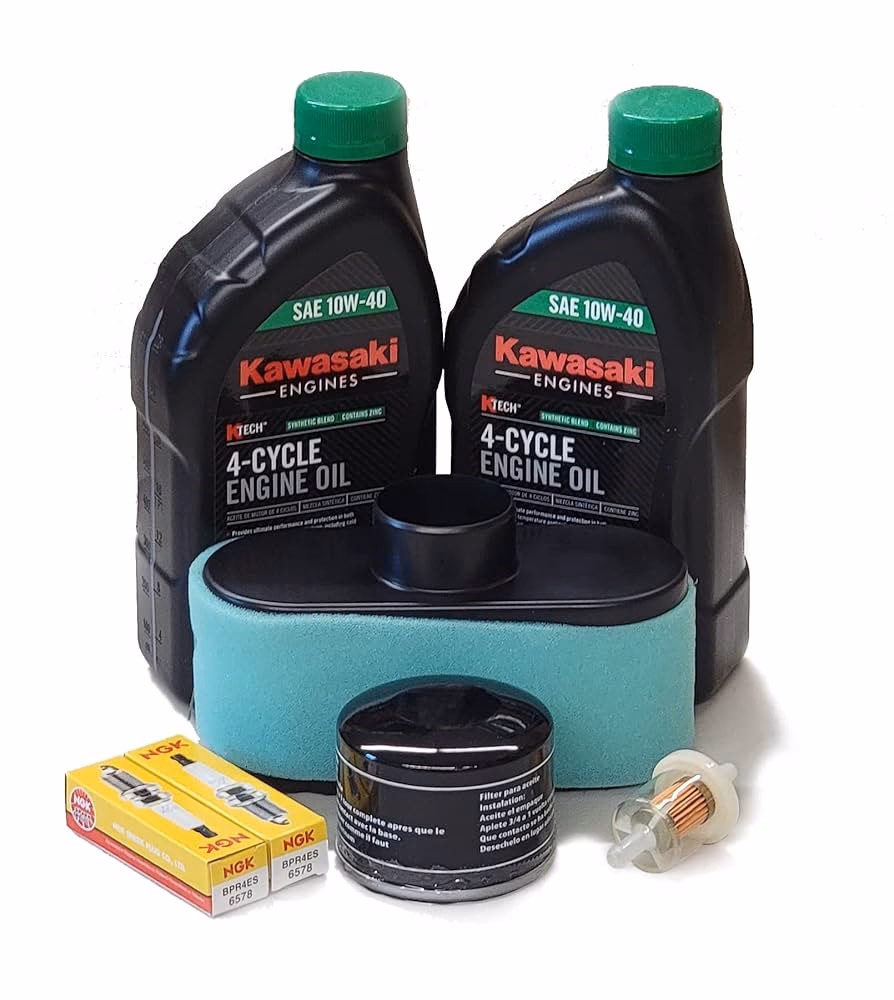

Key Maintenance Intervals and Checks
Beyond oil changes, several other maintenance tasks are vital for the FR730V's performance:
1. Air Filter Maintenance
The engine is equipped with a single-stage air filter. A clean air filter is essential for proper combustion and to prevent dirt and debris from entering the engine. Inspect the air filter regularly, especially if operating in dusty conditions. Clean or replace it as per the manufacturer's recommendations, typically found in your equipment's manual.
2. Spark Plug Service
The correct spark plug for the FR730V is typically an NGK BPR4ES. The spark plug gap should be maintained between 0.7-0.8 mm (0.027-0.031 in). Ensure the spark plug is properly tightened to 22 Nm (2.2 kg·m; 16.2 ft·lb). Regular inspection and cleaning or replacement of the spark plug will ensure efficient ignition and fuel combustion.
3. Valve Clearance Adjustment
Maintaining the correct valve clearance is critical for engine performance and longevity. The recommended clearance for both intake and exhaust valves is 0.10-0.15 mm (0.004-0.006 in). Valve clearance should be checked and adjusted according to the maintenance schedule outlined in your equipment's manual, usually at specific hour intervals.
4. Checking Engine Speed
The maximum engine speed for the FR730V is typically 3500 ± 100 rpm, with an idle speed of 1500 ± 100 rpm. Ensuring the engine operates within these parameters is important for performance and to prevent over-revving, which can cause damage.
Tightening Torque Specifications
When performing maintenance or repairs, adhering to the correct tightening torques is essential to prevent leaks or damage to components. Here are some key torque specifications:
| Component | Torque (Nm) | Torque (kg·m) | Torque (ft·lb) |
|---|---|---|---|
| Cylinder Head | 46 | 4.6 | 33.9 |
| Connecting Rod | 10 | 1.0 | 7.4 |
| Flywheel | 56 | 5.7 | 41.3 |
| Crankcase Cover | 27.5 | 2.75 | 20.3 |
| Intake Manifold | 9 | 0.9 | 6.6 |
| Oil Drain Plug | 7 | 0.7 | 5.2 |
| Valve Clearance Lock Nut | 11 | 1.1 | 8.1 |
Frequently Asked Questions (FAQs)
- Q1: What is the primary recommended oil type for a Kawasaki FR730V?
- A: The primary recommendations are for 4-stroke engine oils meeting API SF, SG, SH, SJ, or SL classifications. Modern API SN oils are backward compatible and also suitable.
- Q2: What are the recommended SAE viscosity grades for the FR730V?
- A: The most commonly recommended viscosity grades are SAE 10W-30 and SAE 10W-40. The specific choice may depend on your operating climate.
- Q3: How much oil does the FR730V engine hold?
- A: With an oil filter change, the capacity is approximately 2.1 litres. Without changing the filter, it's around 1.8 litres.
- Q4: What is the compression ratio of the FR730V?
- A: The compression ratio is 8.2:1.
- Q5: How often should I change the oil and filter?
- A: It's generally recommended to change the oil and filter every 100 hours of operation or annually, whichever comes first. Always refer to your equipment's owner's manual for specific intervals.
By adhering to these guidelines and performing regular maintenance, you can ensure your Kawasaki FR730V engine delivers reliable power and consistent performance for years to come. Regular checks and the use of quality lubricants are the cornerstones of effective engine care.
