Kawasaki Bayou 300: Common Issues & Fixes

The Kawasaki Bayou 300 is a revered name in the world of recreational utility vehicles. Since its introduction in the mid-1980s, this quad bike has carved out a significant niche thanks to its robust features. Boasting hydraulic disc brakes, a substantial 700-lb hauling capacity, and a dual-mode differential, the Bayou 300 established itself as a powerhouse in its segment. Its longevity in the market is a testament to its enduring appeal and capability. However, like any machine that has been around for decades, the Bayou 300 is not immune to its own set of quirks and common problems. Understanding these issues and knowing how to address them can save you time, money, and frustration, ensuring your Bayou continues to provide reliable service for years to come.

Common Kawasaki Bayou 300 Problems and Solutions

While the Bayou 300 is celebrated for its performance, owners often encounter a few recurring challenges. These can range from minor electrical glitches to more involved engine and transmission issues. Let's delve into some of the most frequent problems and their potential fixes, drawing on the collective experience of Bayou owners.

1. Ignition Key Switch Fault

The nature of off-road vehicles means they are often exposed to the elements, and the ignition switch is no exception. Water and dirt ingress can lead to corrosion on the internal springs that maintain contact pressure. This corrosion can impair the function of the ignition switch, potentially affecting the voltage regulator. A faulty voltage regulator can lead to incorrect voltage supply, which might damage sensitive electrical components like light bulbs and wiring harnesses. The fix depends on the severity of the corrosion. For minor rust, a thorough cleaning with a dedicated contact cleaner is often sufficient. Applying a water-repellent grease, such as graffiti grease, to your key before insertion can help prevent future issues. In cases of extensive rust and damage, replacing the entire ignition switch is the most effective solution. Given that this is a mechanical component with no complex electronics, aftermarket replacements can be a cost-effective option.

2. Engine Misfires or Backfires

Engine misfires and backfires are frustrating issues that can significantly impact performance. Several factors can contribute to these problems:

• Improperly Timed Fuel Pump: An incorrectly timed fuel pump can disrupt the engine's fuel delivery, leading to misfires. It's crucial to consult your owner's manual for the specified fuel pump pressure and ensure it's delivering fuel at the correct intervals. Also, check the vacuum valve controlling fuel pump pressure; if it's too tightly screwed in, it can affect performance.
• Poorly Tuned Carburetor or Inaccurate Valve Timing: A carburetor that isn't properly set up or incorrect valve timing can cause the engine to misfire or backfire, sometimes even into the carburetor itself. This can damage the carburetor boot over time. Signs of incorrect valve timing include popping sounds when shifting into fifth gear, releasing the throttle, or at speeds below 20 mph. A rich fuel mixture, indicated by black soot around the carburetor base, often accompanies these symptoms. A common culprit for carburetor issues can be a malfunctioning petcock. Test it by turning it halfway to see if it restricts fuel flow. Many Bayou 300 models use the Keihin CVK carburetor, which has a non-removable float needle jet. For persistent carburetor problems, upgrading to an aftermarket solution like a Mikuni carburetor can be a reliable fix, though it will require adjusting the jetting and potentially changing the throttle cable.
• Unusually Low Idle Screw Setting: An idle screw set too low can cause the carburetor to run rich and lead to backfiring, as it deviates from the factory settings.

How to Adjust Valve Timing on a Kawasaki Bayou 300

Correct valve timing is essential for smooth engine operation. Here's a general guide:

1. Remove the plastic cowling above the fuel tank.
2. Remove the fuel tank and the valve covers, including the exhaust valve cover.
3. Remove the spark plug to gain access to the top dead centre (TDC).
4. With the spark plug removed, slowly pull the starter rope until you locate the 'T' timing mark on the flywheel, aligning it with the TDC mark. Ensure you are on the compression stroke.
5. Use a feeler gauge to measure and adjust the valve clearance. The recommended clearance is typically between 0.10mm to 0.15mm for intake valves and 0.20mm to 0.25mm for exhaust valves, but always refer to your specific model's service manual.
6. Re-check clearances after making adjustments by slowly turning the pull start.
7. Once satisfied, attempt to start the engine. You don't necessarily need to reassemble the fuel tank immediately, as the carburetor should retain enough fuel for a short test run.

Alternative Fixes for Engine Misfires: Beyond the primary causes, improving airflow with a high-flow air filter, installing a Dynojet kit, or upgrading the exhaust snorkel can also help alleviate misfire issues.

3. Engine Knocking Noise

An engine knocking sound can sometimes be linked to a faulty ignition key switch and a damaged voltage regulator. While knocking can indicate serious internal engine problems in other vehicles, on the Bayou 300, it's often a symptom of an electrical issue. The voltage regulator's job is to convert the AC current from the stator into DC current for the battery and electrical systems. To diagnose if the voltage regulator is the cause, you can temporarily remove it and see if the knocking noise subsides. If it does, replacing the voltage regulator is the recommended fix.

4. Stalling Issues

An engine that dies shortly after starting is experiencing stalling. Several factors can cause this:

• Improper or Restricted Fuel Flow: This is a common cause, especially after intense riding. Inspecting and cleaning the spark plugs is a good starting point. The spark plug leads are usually located beneath the handlebars, requiring removal of the fuel tank's plastic covers for access. Loose connections can be secured with electrical tape or cable ties.
• Breaching Fording Depth: The Kawasaki Bayou 300 has a recommended fording depth of approximately eight inches (20cm). Exceeding this limit can allow water to enter crucial components, leading to stalls and potential damage. Always respect the recommended fording depth to prevent moisture ingress.
• Other Causes: A variety of other issues can lead to stalling, including faulty fuel lines, clogged fuel filters, improper vacuum hose connections, a malfunctioning CDI box, or a damaged stator. Regular inspection of these components for signs of wear, rust on connections, or overheating is advisable.

5. Excessive Tire Wear

The 4x4 models, in particular, can suffer from rapid tire wear due to their aggressive pursuit of traction. This means owners should be prepared for regular wheel balancing and potentially more frequent tire replacements. Choosing the right tires for your typical terrain is crucial. Tires with softer compounds offer better grip but wear out faster, while harder compounds offer greater longevity but less traction. Finding a balance between grip and durability is key. Additionally, moderating your throttle inputs can significantly reduce the stress on your tires, extending their lifespan.

6. Low-Powered Engine

The 300cc engine in the Bayou 300 is designed for recreational use and light-duty tasks on flat terrain. It's not intended for heavy hauling or demanding tasks like snow plowing. Attempting to push it beyond its capabilities will lead to disappointment. For those seeking a bit more power, consider these upgrades: installing high-airflow filters to increase air intake, replacing the carburetor needle to allow more fuel flow, or fitting a less restrictive aftermarket exhaust system to improve exhaust gas expulsion.

7. Transmission Challenges

Difficulty in selecting gears or finding neutral is a common complaint among Kawasaki owners. While complex transmission repairs are best left to professionals, a common cause of gear selection issues that can be addressed by the owner is a stuck reverse cable. Disconnecting this cable and testing gear engagement can help diagnose the problem. If the issue resolves, the cable may need rerouting or replacement. Less common causes include worn shift drum springs and cams.

Understanding Bayou 4x4 Drivetrain Maintenance

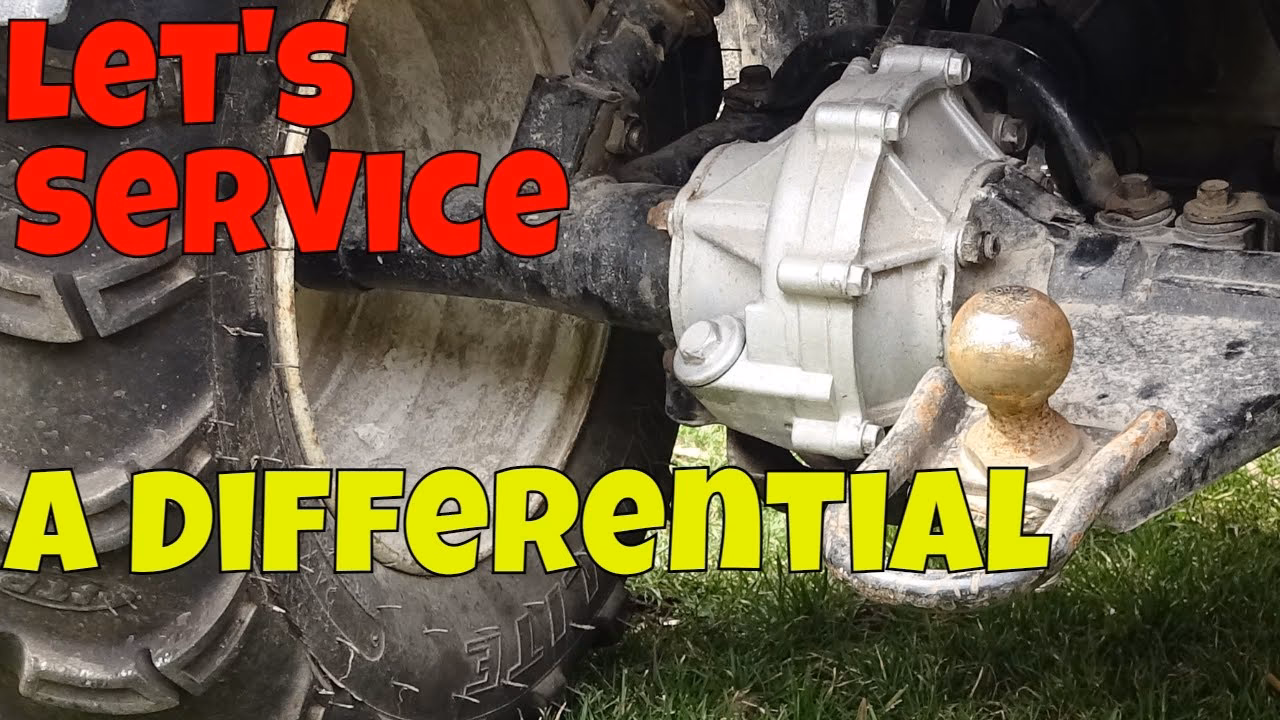

Proper maintenance of the 4x4 drivetrain is essential for longevity and performance. This primarily involves using the correct type of gear oil and adhering to proper lubrication procedures.

Gear Oil Recommendations

The 4x4 Bayou models require specific gear oils for their front and rear differentials. It's crucial to use GL-5 rated hypoid gear oil. For the rear differential, approximately 8 ounces of GL-5 oil is needed. For the front differential, use GL-5 oil with an LSD (Limited Slip Differential) additive, requiring about a pint. The exact fill level is determined by letting the fluid flow out of the fill port.

Fluid Change Procedure

A thorough fluid change involves:

1. Removing both drain and fill plugs for the differentials.
2. Allowing the old fluid to drain completely, which can take around 30 minutes.
3. Reinstalling the drain plugs.
4. Adding approximately 4 ounces of kerosene into each differential.
5. Riding the quad at low speed for about 2 minutes to circulate the kerosene and clean the internal components.
6. Draining the kerosene and allowing it to drip out completely for another 30 minutes.
7. Refilling both differentials with the correct type and amount of gear oil.

Differential Vent Hoses

It's vital to ensure that both differential vent hoses are clear and unobstructed. A blocked vent hose can lead to fluid seepage past the seals during long rides and allow contaminants to be drawn in as the differential cools. Regularly inspect these hoses for blockages.

General Maintenance Tips

Beyond specific component fixes, consistent general maintenance is key to keeping your Bayou 300 in top condition:

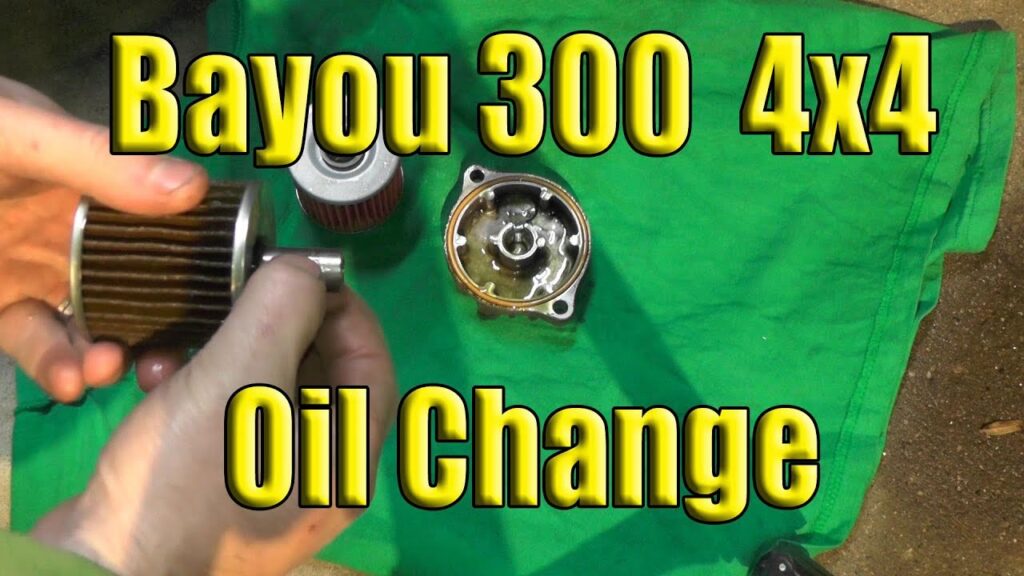

• Oil Changes: Unlike cars, ATVs often require more frequent oil changes. Change the engine oil and filter at least once a year, even if the vehicle hasn't been ridden extensively. Oil degrades over time due to contamination, heat, and age.
• Regular Inspections: Perform visual inspections of all critical components before each ride. Check tire pressure, brakes, lights, and look for any signs of leaks or damage.

By understanding these common issues and implementing a proactive maintenance schedule, you can ensure your Kawasaki Bayou 300 remains a reliable and enjoyable machine for many years to come.
