Why Won't My Diesel Engine Start? UK Guide

Few things are more frustrating for a vehicle owner than a diesel engine that cranks but refuses to start. Known for their robust nature and impressive fuel efficiency, diesel engines are the workhorses of the UK's commercial fleets and a popular choice for many private vehicles. However, even these resilient powerhouses can encounter issues that prevent them from firing up reliably. If you find your diesel engine turning over but stubbornly refusing to burst into life, rest assured, you're not alone. This comprehensive troubleshooting guide is designed to help you pinpoint and address the most common problems that can lead to this exasperating situation, ensuring you understand the mechanics and can potentially resolve the issue or provide valuable information to your mechanic.

Understanding the fundamental requirements for a diesel engine to start is key: it needs adequate compression, a precise injection of clean, atomised fuel, and sufficient heat for ignition. A fault in any of these critical areas can lead to a non-starting engine, even if the starter motor is spinning merrily. Let's delve into the common culprits.

1. Starter System Issues: The Initial Spark

The starter system is your engine's first point of call, tasked with turning the crankshaft to initiate the combustion cycle. If it's not performing optimally, your engine might crank slowly or simply not engage properly, leading to a no-start scenario. It's often the simplest place to begin your diagnostic journey.

1.1. Battery Strength: The Power Source

A weak or completely dead battery is a surprisingly common reason for a diesel engine not starting. While the engine might still turn over, it may not be cranking fast enough, or providing enough consistent voltage to the engine control unit (ECU) and other critical components like the fuel pump or glow plugs. Diesel engines require a significant surge of power to crank due to their high compression ratios. If your battery's voltage drops significantly during cranking (below 10.5 volts), it's likely too weak. You might notice dimming dashboard lights, a slow cranking speed, or even just a click when you turn the key. Check the battery terminals for corrosion and ensure they are clean and tight. A simple voltage test with a multimeter can confirm its state. If low, try charging it; if it doesn't hold a charge, replacement is likely needed.

1.2. Voltage Drop: The Electrical Pathway

Even with a good battery, a significant voltage drop between the battery and the starter motor can indicate issues with the battery cables or connections. Corrosion, loose terminals, or damaged insulation can create resistance, reducing the power reaching the starter. Inspect both the positive and negative cables, tracing them from the battery to the starter and engine block/chassis. Look for fraying, cracks, or excessive corrosion. Clean any dirty connections with a wire brush and tighten all terminals. A voltage drop test, performed while cranking, can pinpoint excessive resistance in specific sections of the circuit.

1.3. Current Draw: The Starter's Appetite

An excessively high current draw from the battery to the starter can suggest a problem with the starter motor itself or an electrical short within the circuit. If the starter is drawing too much power, there might not be enough left for the fuel pump, ECU, or glow plugs, preventing the engine from starting. This can be caused by internal wear within the starter, a short circuit, or even an engine that is mechanically seized or very difficult to turn over. This usually requires specialist diagnostic equipment to measure accurately and often points to a faulty starter that needs replacement.

1.4. Starter Condition: The Cranking Mechanism

Beyond electrical supply, the starter motor itself can fail. If the starter motor is worn, damaged, or its solenoid isn't engaging correctly, it won't be able to generate enough torque to turn the engine over at the necessary speed for combustion. Symptoms can include a grinding noise, a single click without the engine cranking, or the starter spinning freely without engaging the flywheel. Visual inspection might reveal physical damage, but often, internal wear is the culprit. If all electrical checks are fine, and the engine isn't turning over effectively, a faulty starter motor is a strong possibility.

2. Compression and Combustion System Issues: The Heartbeat

For a diesel engine to ignite fuel, it relies on high compression to generate the necessary heat. Without sufficient compression, the air-fuel mixture won't reach ignition temperature, regardless of fuel delivery. These issues are often more serious and may require professional attention.

2.1. Cracks in the Head or Head Gasket: The Sealing Barrier

A cracked cylinder head or a blown head gasket can lead to a significant loss of compression. These components form the seal between the combustion chamber and the cooling/lubrication systems. Symptoms can include white smoke from the exhaust (coolant burning), coolant disappearing without a visible leak, oil in the coolant, or coolant in the oil. A compression test will show low readings in one or more cylinders. This is a major repair, often requiring engine disassembly.

2.2. Intake and Exhaust Valves: The Breathing System

Damaged, bent, or improperly seating intake and exhaust valves can also cause severe compression leaks. Valves that are sticking, burnt, or have worn seats will prevent the cylinder from sealing effectively. This can be due to carbon build-up, overheating, or incorrect valve lash. Symptoms might include a misfire (if it briefly starts), reduced power, and of course, a failure to start due to insufficient compression. Diagnosis often involves a compression test or a leak-down test.

2.3. Pistons or Piston Rings: The Compression Creators

Worn or damaged pistons and piston rings are fundamental to maintaining compression within the cylinders. If these components are excessively worn, cracked, or broken, combustion gases will escape past them, leading to a significant loss of compression. This can result in excessive oil consumption (blue smoke from the exhaust), a noticeable loss of power, and, critically, an inability to build enough pressure for ignition. This is a deep internal engine issue and almost certainly requires a professional mechanic to inspect, diagnose, and repair, typically involving an engine rebuild or replacement.

3. Glow Plug Issues: The Cold Start Aid

Glow plugs are miniature heating elements crucial for starting diesel engines, especially in colder temperatures. They pre-heat the combustion chamber, allowing the diesel fuel to ignite more readily. While their importance is more pronounced in winter, faulty glow plugs can still cause starting difficulties in milder weather, as they aid in smoother, quicker ignition.

3.1. Burned Out Glow Plugs: The Failed Heaters

If one or more glow plugs are burned out or damaged, they won't provide the necessary heat to ignite the fuel. In cold conditions, this will manifest as extreme difficulty starting, prolonged cranking, or rough idling immediately after starting, often accompanied by white smoke from the exhaust. You can test individual glow plugs for resistance with a multimeter; a very high or infinite resistance indicates a burned-out plug. While some engines can start with one or two faulty glow plugs in warmer weather, a complete failure of all glow plugs will almost certainly prevent starting.

3.2. Failed Glow Plug Relay: The Power Controller

The glow plug relay acts as a switch, supplying power to the glow plugs when activated by the engine's ECU. If this relay fails, power won't reach the glow plugs, effectively rendering them useless. Symptoms include the glow plug warning light on your dashboard not illuminating (or staying on too long), and the engine exhibiting the same hard-starting symptoms as burned-out glow plugs. Checking for power at the glow plugs when the relay should be active can help diagnose this issue. Relays can fail due to internal electrical faults or corrosion.

4. Fuel Delivery Issues: The Lifeblood

Without a consistent supply of clean, correctly pressurised diesel fuel, your engine simply won't start. Problems in the fuel system are among the most common reasons for a diesel engine cranking but not firing.

4.1. Clogged Fuel Filters: The Flow Restrictors

Diesel fuel filters are vital for removing contaminants from the fuel before it reaches the sensitive injection system. Over time, these filters can become clogged with dirt, rust, or even biological growth, severely restricting fuel flow. A clogged filter will starve the engine of fuel, leading to hard starting, stalling, loss of power under load, or a complete failure to start. Regular replacement according to your vehicle's service schedule is paramount. If your engine suddenly stops or struggles to start, check the fuel filter first; it's a relatively inexpensive and easy component to replace.

4.2. Air in the Fuel System: The Unwanted Guest

Air in the fuel system is a significant problem for diesel engines because they rely on incompressible fluid (diesel) for injection. Air can enter through loose fuel lines, a faulty fuel pump, a leaky fuel tank, or after running out of fuel. Symptoms include sputtering, misfiring, and an inability to start or restart after stalling. Many modern diesel systems are self-bleeding, but older systems or severe air ingress might require manual bleeding to purge the air. This usually involves loosening bleed screws on the fuel filter housing or injection pump until fuel flows freely without bubbles.

4.3. Contaminated Fuel: The Impurity Problem

Contamination of diesel fuel, whether by water, petrol, or other foreign substances, can quickly render your engine inoperable. Even a small amount of petrol in a diesel tank can damage the fuel pump and injectors. Water, which is heavier than diesel, can sit at the bottom of the tank and be drawn into the fuel system, causing corrosion and preventing ignition. Symptoms include rough running, excessive smoke, and a complete failure to start. If you suspect contaminated fuel (e.g., after misfuelling or filling up at a questionable pump), the best course of action is to drain the fuel tank, replace the fuel filter, and refill with fresh, clean diesel. In severe cases, the fuel lines and injectors may also need flushing or cleaning.

4.4. Fuel Injection Issues: The Precision Delivery

The fuel injection system is the heart of a diesel engine's fuel delivery. Its complexity means problems here can be difficult to diagnose without specialist tools.

4.4.1. Fuel Injection Pressure: The Force of Delivery

Incorrect fuel injection pressure is a common culprit. If the fuel pressure is too low, the injectors won't be able to atomise the fuel effectively, or deliver enough of it, preventing ignition. This can be caused by a failing fuel pump (lift pump or high-pressure pump), a faulty pressure regulator, or leaks in the high-pressure system. Conversely, excessively high fuel pressure can damage components and lead to over-fuelling, causing excessive soot, black smoke, and potential damage to the exhaust system. Diagnosis often requires a diagnostic scanner to read live fuel pressure values.

4.4.2. Stuck Fuel Injector: The Blocked Nozzle

A stuck fuel injector, either open (leaking) or closed (blocked), will severely impact combustion. A leaking injector will drip fuel into the cylinder, leading to poor combustion, white or black smoke, and difficulty starting. A blocked injector will prevent fuel from reaching the combustion chamber entirely, leading to a misfire or failure to start on that cylinder. Injectors can become stuck due to carbon build-up, corrosion, or internal electrical/mechanical failure. Testing injectors often requires specialist equipment to check their spray pattern and flow rate, or a simple 'leak-off' test for common rail systems.

5. Injector Issues: The Fine Tuners

While covered broadly under fuel delivery, the injectors themselves warrant specific attention due to their critical role and susceptibility to problems.

5.1. Incorrect Injector Timing: The Precision Factor

The timing of fuel injection is paramount in a diesel engine. If the injectors spray fuel into the combustion chamber too early or too late, it will severely disrupt the combustion process, making the engine difficult or impossible to start. Incorrect timing can be caused by a faulty crank or camshaft position sensor, a worn timing chain/belt (mechanical issues), or an issue with the ECU's control of the injection pump. A diagnostic scan tool is essential to check and adjust injector timing, as it's a precise electronic calibration.

5.2. Dirty or Leaky Injectors: The Compromised Spray

Dirty injectors, often due to poor fuel quality or extended use, can lead to a compromised spray pattern, resulting in inefficient combustion. This can manifest as rough idling, reduced power, increased fuel consumption, and difficulty starting. Leaky injectors, on the other hand, can cause fuel to drip into the cylinder when it shouldn't, leading to excess smoke, poor idle, and potentially hydrostatic lock if enough fuel accumulates. Both conditions can prevent the engine from starting effectively. Ultrasonic cleaning or professional reconditioning might resolve minor issues, but often, replacement is the only reliable solution for badly worn or damaged injectors.

6. Bacterial Contamination: The Unseen Invader

Diesel fuel, especially modern biodiesel blends, can be an ideal breeding ground for bacteria, fungi, and yeasts. This biological growth, often referred to as 'diesel bug,' forms a slimy sludge that can clog fuel filters, lines, and even damage fuel pumps and injectors. You might notice a sulfuric (rotten egg) odour, dark particulate matter, or a slimy black or green coating inside your fuel tank or filter housing. If suspected, the fuel tank needs to be drained and thoroughly cleaned, and a biocide treatment applied to kill any remaining organisms. Replacing the fuel filter is also essential. Prevention involves using a good quality biocide fuel additive regularly, especially if the vehicle is stored for extended periods.

7. Mechanical Issues: The Internal Failures

Beyond the fuel and electrical systems, internal mechanical problems can also prevent a diesel engine from starting. These are typically more serious and require professional diagnosis and repair.

7.1. Worn Timing Chain/Belt: The Synchroniser

A worn, stretched, or broken timing chain or belt will cause the engine's camshaft (which controls valve timing) to fall out of sync with the crankshaft (which controls piston movement). This means the valves will open and close at the wrong time relative to the pistons, leading to a complete loss of compression and an inability to start. In interference engines, a broken timing belt can cause catastrophic damage to the valves and pistons. A rattling noise from the engine's front might indicate a worn chain. This is a critical component that needs immediate professional attention if suspected.

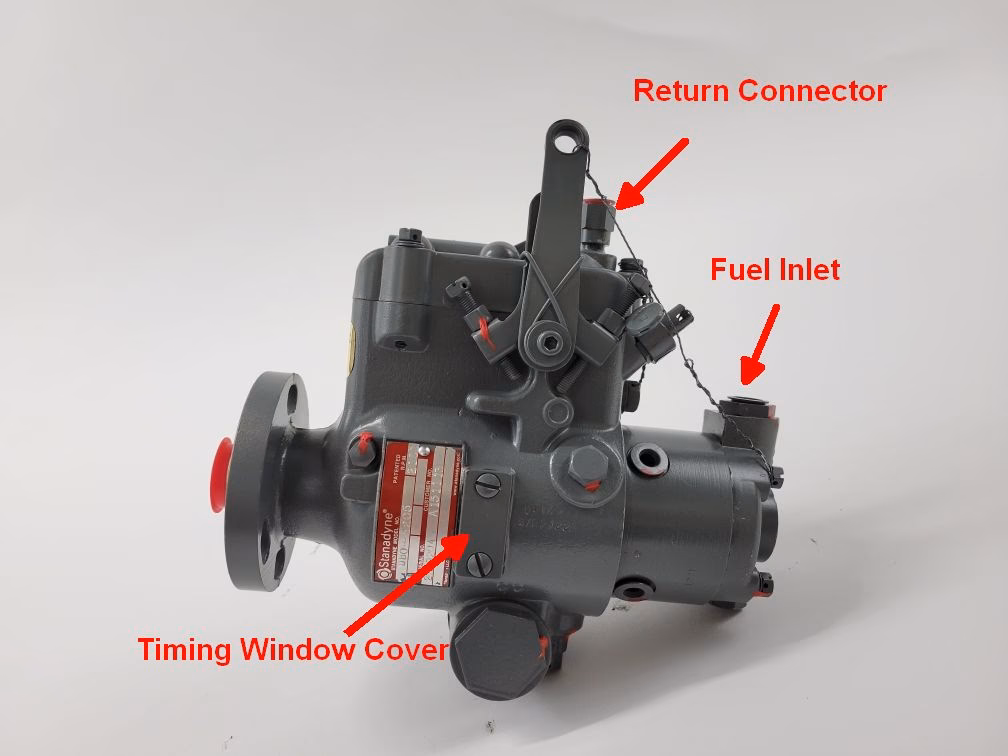

7.2. Faulty Injection Pump: The High-Pressure Heart

The injection pump (or high-pressure fuel pump in common rail systems) is responsible for delivering fuel at extremely high pressures to the injectors. If this pump fails, it won't be able to generate the necessary pressure, or deliver the correct volume of fuel, preventing the engine from starting. Symptoms can include a complete lack of fuel pressure, a loud whining noise from the pump, or diagnostic trouble codes related to fuel pressure. Injection pump failures are costly to repair or replace and typically require specialist tools and expertise.

8. Cold Weather Issues: The Environmental Factor

While the initial information mentioned cold weather, it's worth expanding on specific challenges diesel engines face when temperatures plummet, even if you're experiencing issues outside of deep winter.

8.1. Summer-Grade Fuel in Cold Weather: The Gelling Problem

Diesel fuel contains paraffin waxes that can solidify or 'gel' in extremely cold temperatures, turning the fuel into a cloudy, viscous substance. This gelled fuel cannot pass through the fuel filter or lines, effectively starving the engine. Summer-grade diesel has a higher cloud point (temperature at which wax crystals begin to form) than winter-grade diesel. Always ensure you are using appropriate winter-grade fuel during colder months, or consider adding an anti-gelling fuel additive if you anticipate extreme cold.

8.2. Thick, Cold Oil: The Lubrication Drag

Engine oil becomes thicker and more viscous in cold temperatures. This increased viscosity creates more drag on the engine's internal components, making it significantly harder for the starter motor to turn the engine over at the necessary speed for combustion. Using the correct viscosity engine oil for your climate, as specified in your vehicle's manual, is crucial. For extreme cold, a block heater can pre-warm the engine and oil, making starting much easier.

Troubleshooting Summary Table

Here's a quick reference table for common issues, their symptoms, and potential solutions:

Frequently Asked Questions (FAQs)

Q1: My diesel engine cranks but sounds weak, what's the first thing I should check?
A1: The very first thing to check is your vehicle's battery. A weak battery is the most common reason for slow or weak cranking. Ensure the terminals are clean and tight, and if possible, test the battery's voltage. If it's low, try charging it or consider a replacement if it's old.

Q2: I've replaced my fuel filter, but my diesel still won't start. What's next?
A2: After replacing a fuel filter, it's crucial to ensure there's no air trapped in the fuel system. Air can prevent the fuel pump from building sufficient pressure. Many modern diesel systems are self-bleeding, but some may require manual bleeding. Consult your vehicle's manual for the correct procedure. If bleeding doesn't help, investigate the fuel pump itself for proper operation and pressure.

Q3: My diesel engine starts fine when it's warm, but struggles significantly in the cold. What could be the issue?
A3: This is a classic symptom of failing glow plugs or a faulty glow plug relay. In cold weather, glow plugs are essential to pre-heat the combustion chambers for ignition. Test your glow plugs individually for resistance, and check the relay to ensure power is reaching them. Also, ensure you are using appropriate winter-grade diesel fuel, as summer-grade fuel can gel in low temperatures.

Q4: How can I tell if my diesel fuel is contaminated with water or petrol?
A4: Water in diesel can sometimes be seen as droplets or a cloudy appearance in the fuel filter bowl (if transparent). If it's severe, the engine will run very rough, misfire, or not start at all. Petrol contamination usually results in a distinct petrol smell and can cause immediate damage to the fuel system components, leading to rough running, excessive smoke, and a failure to start. If you suspect contamination, it's best to drain the tank and refill with fresh fuel.

Q5: When should I seek professional help for my non-starting diesel?
A5: If you've checked the basic items like battery, fuel filter, and visible connections, and the engine still won't start, it's time to consult a professional mechanic. Issues involving compression, fuel injection pumps, timing components, or internal engine problems often require specialist diagnostic tools and expertise to pinpoint accurately and repair safely. Attempting complex repairs without the right knowledge can lead to further damage and higher costs.

9. Expert Help: When to Call in the Professionals

While this guide provides a comprehensive overview of common issues, diagnosing and repairing a non-starting diesel engine can be complex. Many modern diesel engines rely heavily on sophisticated electronic control units (ECUs) and high-pressure fuel systems that require specialist diagnostic tools and training to properly assess. If you're unable to identify or fix the problem yourself after reviewing these points, or if you suspect a major mechanical failure, it's always the wisest course of action to consult a qualified professional diesel mechanic. They possess the expertise and equipment to accurately diagnose the root cause and ensure your vehicle is repaired safely and effectively, getting you back on the road with minimal fuss.
