Honda K20C1: Engine, Transmission & Care

The Honda K20C1 engine stands as a true marvel of modern engineering, a turbocharged four-cylinder powerhouse that has become synonymous with the thrilling performance of the Honda Civic Type R. Renowned for its impressive output and robust reliability, this engine delivers an exhilarating driving experience that enthusiasts crave. But beyond its raw power, understanding the intricate details of its configuration, the specific transmission it employs, and the vital maintenance required is key to appreciating its full potential and ensuring its longevity.

The Heart of Engagement: K20C1 Transmission

One of the most defining characteristics of the Honda K20C1 engine, particularly in its primary application within the Honda Civic Type R, is its dedicated transmission. The K20C1 is exclusively mated to a precise and engaging six-speed manual transmission. This choice is far from arbitrary; it's a deliberate engineering decision that underscores Honda's commitment to driver involvement and a pure, unadulterated performance experience. In an era where automatic and dual-clutch transmissions are increasingly prevalent, the retention of a manual gearbox for such a high-performance vehicle speaks volumes about its intended audience.

The six-speed manual transmission allows drivers unparalleled control over the engine's impressive power band. It facilitates precise gear selections, enabling the driver to extract every ounce of performance, whether navigating winding B-roads or tackling a challenging track day. The mechanical connection and feedback provided by a manual transmission foster a deeper connection between the driver and the machine, enhancing the sense of engagement and making every shift a deliberate act. This setup is crucial for the Civic Type R's character, reinforcing its reputation as a driver's car first and foremost.

Unpacking the K20C1 Engine Configuration

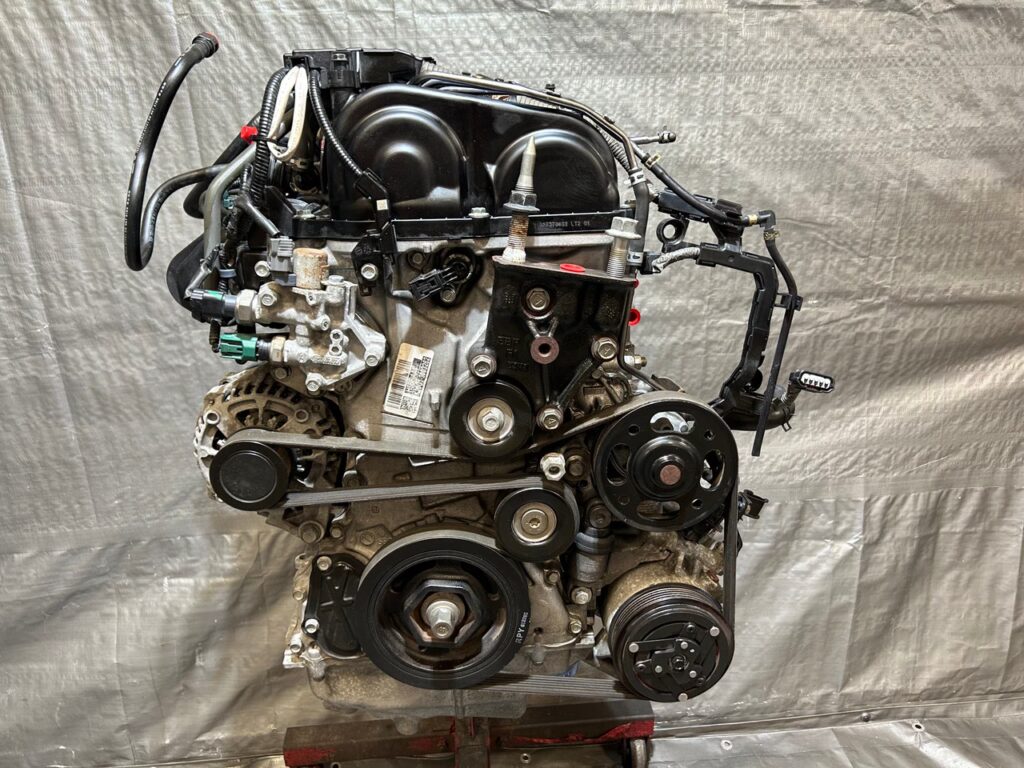

The Honda K20C1 is a 2.0-litre, inline-four, turbocharged engine that boasts a formidable 306 horsepower and 295 lb-ft of torque. Its design incorporates advanced technologies to achieve this impressive output while maintaining Honda's legendary reliability. At its core, the engine features a lightweight die-cast aluminium open-deck cylinder block, fortified with cast iron cylinder sleeves and reinforced main bearing caps for enhanced durability under high stress. The cylinder walls benefit from plateau honing, a process that optimises oil retention and reduces friction for smoother piston movement.

Internally, the K20C1 is built for performance. It houses a lightweight forged steel crankshaft with micro-polished journals, meticulously designed to minimise friction. Heat-forged, high-strength steel connecting rods connect to lightweight pistons that feature cavity-shaped crowns. These pistons are treated with a low-friction molybdenum coating, applied in a dot pattern to further reduce internal resistance. Crucially for a high-output turbocharged engine, the pistons incorporate internal cooling oil channels, often referred to as a "cooling gallery," which helps to manage temperature in the critical piston ring area. Additionally, oil jets located within the cylinder block spray oil onto the underside of the pistons, providing further cooling.

The engine's lightweight aluminium cylinder head is an integral component, with the exhaust manifold cast as a single unit. This integrated design, along with a two-piece water jacket and water-cooled exhaust ports, helps to reduce the temperature of exhaust gases and allows the engine to reach optimal working temperatures more quickly. Like other modern Honda engines, the K20C1 features 16 valves (four per cylinder) and dual overhead camshafts (DOHC). These camshafts are thin-walled and hollow, driven by a low-friction timing chain, a robust solution designed for the life of the engine, typically not requiring replacement like older timing belts.

A cornerstone of Honda's engine technology, the K20C1 incorporates Variable Valve Timing Control (VTC) for both intake and exhaust. Furthermore, it features the highly advanced Variable Valve Timing and Lift Electronic Control, known as i-VTEC. On the K20C1, i-VTEC specifically alters the valve lift, timing, and duration of the exhaust valves. This ingenious system is engineered to reduce turbo lag by increasing exhaust pressure at lower RPMs, ensuring a more immediate and responsive power delivery across the rev range. The cylinder head also utilises sodium-filled exhaust valves for enhanced heat dissipation and small M12 spark plugs, optimised for the engine's combustion characteristics.

Fuel delivery is handled by a direct injection system, which is pivotal for the K20C1's high fuel efficiency and low emissions. It employs high-pressure (20 MPa) multi-hole fuel direct injectors that deliver fuel precisely into each cylinder. The design of the intake ports and piston crowns has been meticulously optimised to generate a strong tumble flow, promoting a consistent and efficient fuel mixture within the cylinder for optimal combustion.

The K20C1 engine for the Civic Type R utilises a low inertia mono (single) scroll MHI TD04 turbocharger with an electric wastegate, producing a substantial 22.8 PSI (1.57 bar) of boost pressure. To manage the heat generated by the turbocharger, each vehicle equipped with a K20C engine includes a high-capacity air-to-air intercooler, cooling the charged air before it enters the engine. A drive-by-wire throttle system replaces the traditional mechanical link between the accelerator pedal and the throttle valve, offering precise control and responsiveness.

Essential Fluids: Engine Oil Specifications

Maintaining the performance and extending the lifespan of your Honda K20C1 engine hinges significantly on using the correct engine oil. Honda explicitly recommends a fully synthetic 0W-20 engine oil for this high-performance unit. The "0W" in the viscosity rating signifies excellent flow characteristics in cold temperatures, ensuring optimal lubrication even during cold starts, which is crucial for protecting engine components from wear. The "20" denotes its viscosity at operating temperature, providing a balance of protection and efficiency.

Beyond the viscosity, it is absolutely paramount to use engine oil that meets the Honda HTO-06 specification. This specific standard indicates that the oil has been rigorously tested and approved by Honda to meet the unique demands and characteristics of their turbocharged engines, ensuring compatibility, optimal performance, and long-term protection against wear and deposits. Using oil that does not meet this specification can compromise lubrication, lead to increased engine wear, and potentially void warranty claims. Always consult your owner's manual for the most precise and up-to-date recommendations.

Keeping It Running Smooth: K20C1 Service Intervals

Regular and diligent maintenance is the cornerstone of keeping your Honda K20C1 engine performing at its peak and ensuring its long-term reliability. Adhering to Honda's recommended maintenance schedule, typically found in your vehicle's owner's manual, is vital. Here are some key service intervals to be aware of:

• Oil Change: The engine oil should be replaced every 5,000 to 7,500 miles, or as indicated by your vehicle's maintenance minder system. Regular oil changes are crucial for removing contaminants, maintaining proper lubrication, and preserving the oil's protective properties. Given the high-performance nature of the K20C1, consistent oil changes are non-negotiable.
• Air Filter Replacement: The engine air filter should be inspected regularly and replaced as needed. A clean air filter is essential for ensuring proper airflow to the engine, which directly impacts performance, fuel efficiency, and prevents abrasive particles from entering the combustion chambers.
• Spark Plug Replacement: Spark plugs are critical for the combustion process. For the K20C1, these small M12 spark plugs should typically be replaced every 60,000 to 100,000 miles, depending on driving conditions. Worn-out spark plugs can lead to misfires, reduced power, decreased fuel economy, and potentially damage other engine components.
• Coolant Flush: The engine coolant should be flushed and replaced approximately every 100,000 miles, or as recommended by the maintenance schedule. This helps to prevent overheating, protects the engine from corrosion, and ensures the cooling system operates efficiently.
• Timing Chain Inspection: Unlike some older engines that use timing belts requiring periodic replacement, the Honda K20C1 engine utilises a durable, low-friction timing chain. These chains are designed to last the lifetime of the engine under normal operating conditions and typically do not have a specified replacement interval. However, it's prudent to have the chain and tensioner system inspected during major service intervals to ensure there are no signs of wear or stretch, although issues are rare.

The K20C Family: Where to Find These Powerhouses

The K20C engine family, particularly the K20C1 variant, gained significant recognition for its role in high-performance Honda vehicles. While the K20C1 is most famously associated with the Honda Civic Type R, the broader K20C series has found its way into other models, albeit with different modifications and power outputs. Understanding which vehicles utilise these engines helps to appreciate the versatility and engineering prowess of Honda.

• Honda Civic Type R: The K20C1 engine became available for the Honda Civic Type R starting in 2015, defining its character and performance. It has been the exclusive engine for the FK2, FK8, and FL5 generations of the Type R, cementing its status as a performance icon.
• Honda Accord: From 2017 onwards, the less exotic but equally impressive Honda Accord also received a 2.0-litre turbo engine, specifically the K20C4. This modification offers a less powerful, but still robust, output tailored for the Accord's more conventional driving dynamics.
• Honda Avancier (Chinese Market): For the Chinese market, the Honda Avancier, an SUV, features the K20C3 engine. This variant also offers a distinct power output, showcasing how Honda adapts the core K20C architecture for various vehicle types and regional markets.

K20C Engine Variants: A Power Comparison

While sharing the same fundamental architecture, the different K20C engine variants are tuned to deliver varying levels of power and torque, reflecting their intended vehicle applications. Below is a comparative table highlighting the key performance figures for the main K20C versions:

Frequently Asked Questions About the K20C1

What kind of transmission does a Honda K20C1 have?

The Honda K20C1 engine is exclusively paired with a six-speed manual transmission, particularly in its primary application in the Honda Civic Type R. This choice is made to provide an engaging and precise driving experience, offering the driver full control over the engine's power delivery.

Which Honda Civic has a K20C1 engine?

The Honda Civic Type R, starting from its 2015 model year (FK2 generation) and continuing through the FK8 and FL5 generations, is equipped with the K20C1 engine. This engine is a cornerstone of the Type R's high-performance identity.

How much power does a Honda K20C3 have?

The Honda K20C3 engine, found in the Honda Avancier for the Chinese market, produces 272 horsepower (203 kW) at 6,500 rpm and 273 lb-ft (370 Nm) of torque at 4,200 rpm. It uses a smaller MHI TD03 turbocharger compared to the K20C1.

What engine oil does a Honda K20C1 take?

Honda recommends using a fully synthetic 0W-20 engine oil that meets the Honda HTO-06 specification for the K20C1 engine. This ensures optimal lubrication, protection, and performance, especially during cold starts and under high-performance driving conditions.

Is the Honda K20C1 engine reliable?

Yes, the Honda K20C1 engine is widely regarded for its impressive reliability, a hallmark of Honda engineering. When properly maintained with the correct fluids and adherence to service intervals, it is designed to deliver consistent high performance for many years and miles.

What is i-VTEC on the K20C1 engine?

On the K20C1, i-VTEC (Intelligent Variable Valve Timing and Lift Electronic Control) specifically adjusts the lift, timing, and duration of the exhaust valves. This system is crucial for reducing turbo lag by increasing exhaust pressure at lower engine speeds, providing a more immediate and linear power delivery across the rev range.

In conclusion, the Honda K20C1 engine is a truly remarkable piece of automotive technology, delivering exhilarating performance and proving to be a highly reliable powerplant. Its pairing with a dedicated six-speed manual transmission underscores its driver-focused philosophy, offering an unparalleled level of engagement. By understanding its sophisticated engineering, adhering to the specified fully synthetic 0W-20 engine oil requirements, and diligently following the recommended service intervals—including appreciation for its robust timing chain—owners can ensure that this exceptional engine continues to deliver its full potential, providing countless miles of thrilling driving in their Type R.
