K03 vs K04 Turbos: A Deep Dive

The Audi A3 8P, produced between 2003 and 2013, is a highly regarded model on the PQ35 platform, celebrated for its significant improvements over its predecessor, the 8L. It offered a more spacious interior, refined handling, and impressive acceleration. For many enthusiasts, the allure of tuning this versatile platform is undeniable, with turbocharger upgrades being a cornerstone of performance enhancement. When delving into the world of forced induction for the A3 8P, two names frequently surface: the K03 and the K04. Understanding the distinctions between these turbochargers is crucial for anyone looking to maximise their vehicle's potential. This article will provide a comprehensive breakdown of the K03 and K04 turbos, detailing their specifications, performance characteristics, and how they fit into the Audi A3 8P tuning landscape.

Understanding Turbocharger Basics

Before we dive into the specifics of the K03 and K04, it's essential to grasp the fundamental role of a turbocharger. A turbocharger, or 'turbo', is a forced induction system that uses exhaust gases to spin a turbine, which in turn drives a compressor. This compressor forces more air into the engine's cylinders, allowing for more fuel to be combusted, ultimately leading to increased power and torque output. The efficiency and performance of a turbocharger are heavily influenced by its size, design, and the materials used in its construction. Key components include the turbine housing, compressor housing, turbine wheel, and compressor wheel. The 'K' designation, followed by a number, often refers to a specific series or family of turbochargers developed by manufacturers like BorgWarner (who acquired KKK, a major turbo manufacturer).

The K03 Turbocharger: The Foundation

The K03 turbocharger is a smaller, more compact unit that was widely adopted by Volkswagen Audi Group (VAG) for many of its turbocharged engines, particularly in the earlier years of the A3 8P's production. It was commonly found on engines like the 1.8T AGU and later iterations. The K03 is designed for a balance of performance and efficiency, providing a noticeable boost in power over naturally aspirated engines without significantly compromising fuel economy or introducing excessive turbo lag. Its smaller size allows for quicker spool-up times, meaning the turbo starts to generate boost at lower engine RPMs.

K03 Specifications and Performance

The K03 typically features a smaller compressor wheel and turbine housing. Historically, the K03 had eleven blades on its turbine wheel. While specific power outputs can vary depending on the engine and manufacturer's calibration, a stock K03 on an engine like the 1.8T often produced around 150-180 horsepower. With modifications such as ECU remapping, an uprated panel air filter, and a less restrictive exhaust system (often referred to as Stage 1 tuning), the K03 can often safely handle an increase to around 190-210 horsepower. Pushing beyond this safely requires more significant upgrades and can reduce the turbo's lifespan.

K03s: An Evolution

The K03s is an evolution of the K03, offering slight improvements. A key difference often cited is the number of blades on the compressor wheel; the K03s typically has eight blades compared to the K03's eleven. This design change, along with other internal refinements, allows the K03s to generate more boost and deliver slightly higher performance. For engines equipped with the K03s, such as some AUM variants, the stock power output might be closer to 180 horsepower. With Stage 1 tuning, the K03s can typically achieve around 215-225 horsepower. Pushing it further, towards 250 horsepower, is possible but usually at the expense of turbo longevity.

The K04 Turbocharger: Stepping Up the Game

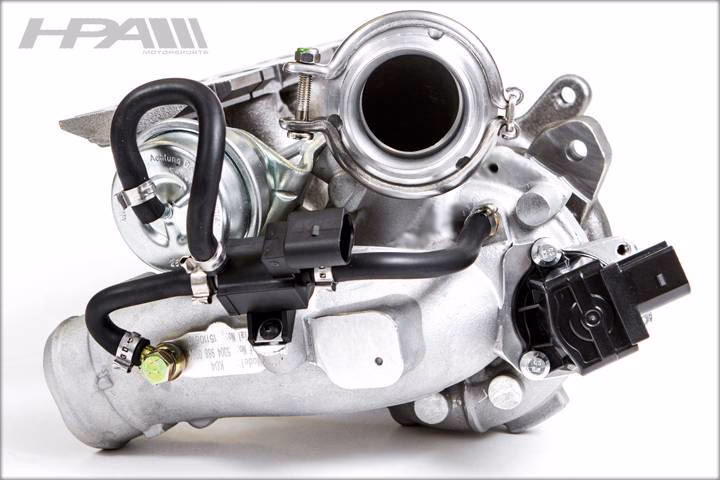

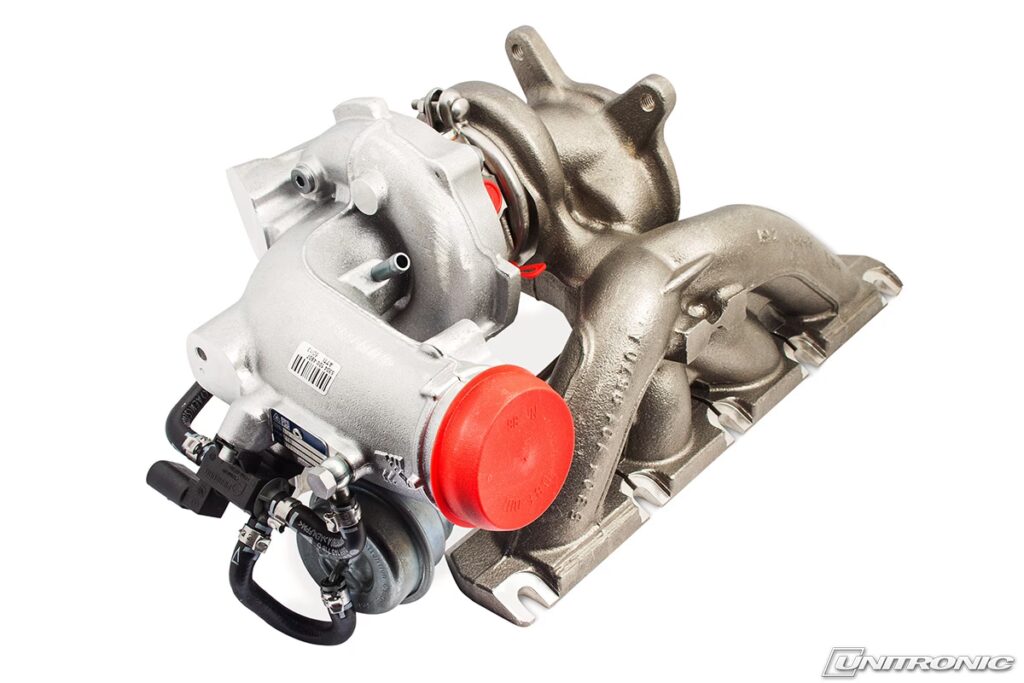

The K04 turbocharger represents a step up in performance from the K03 and K03s. It is a larger turbocharger with a more robust design, capable of moving more air and supporting higher power outputs. The K04 is often found in more performance-oriented variants of Audi models, including the Audi S3 8P, which featured a higher-output 2.0 TFSI engine (BHZ/CDLA engine codes) producing 265 PS (261 bhp). The K04 is designed to provide a more significant power increase, particularly in the mid to top end of the RPM range, though it may introduce a touch more turbo lag compared to the smaller K03.

K04 Specifications and Performance

The K04 features larger compressor and turbine wheels, allowing it to generate higher boost pressures and flow more air. The safe, reliable power limit for a K04 is generally considered to be around 220-240 horsepower. However, with appropriate supporting modifications, such as a larger front-mount intercooler (FMIC), upgraded fuel injectors, a high-flow fuel pump, and aggressive ECU remapping (often termed Stage 2 or Stage 3 tuning), the K04 can support power figures up to 300-350 horsepower. It's important to note that achieving these higher figures will significantly stress the turbo and other engine components, potentially requiring further upgrades like a stronger clutch and improved drivetrain.

Direct Comparison: K03 vs. K04

The fundamental difference between the K03/K03s and the K04 lies in their size and airflow capacity, which directly translates to their performance potential. Here's a comparative look:

**Note: 'Safe' power figures refer to levels generally achievable without significantly compromising turbo longevity. 'Modified' figures indicate potential with supporting hardware and tuning, often with a reduced lifespan.

Pros and Cons of K04 Turbochargers

The K04 offers distinct advantages but also comes with considerations:

Pros:

• Higher Power Ceiling: Capable of supporting significantly more power than the K03/K03s.
• Improved Mid-Range and Top-End Power: Delivers a more potent punch as the revs climb.
• Better Flow Characteristics: More efficient at higher boost levels.
• Stronger Internals: Generally built to handle higher stresses.

Cons:

• Increased Turbo Lag: The larger size means it takes longer for the turbo to reach optimal boost pressure.
• Higher Cost: K04 units and associated installation are typically more expensive.
• Requires Supporting Modifications: To achieve its full potential, often necessitates upgrades to the intercooler, fuel system, and exhaust.
• Potential for Traction Issues: Significantly increased power on a front-wheel-drive A3 8P can lead to traction problems, potentially requiring drivetrain upgrades like a limited-slip differential or even a switch to a quattro system.

Tuning Your A3 8P with Turbo Upgrades

When considering a turbo upgrade for your Audi A3 8P, it's crucial to have a clear plan and understand the 'stages' of tuning:

• Stage 1: Typically involves ECU remapping, a performance panel air filter, and a cat-back exhaust system. This is often sufficient to extract good performance from the stock K03/K03s.
• Stage 2: Builds upon Stage 1 with a larger downpipe (often with a sports catalytic converter), an upgraded intercooler, and potentially uprated spark plugs. This is where a K04 upgrade starts to shine, or where a K03/K03s is pushed closer to its limits.
• Stage 3: Involves more extensive modifications, including a larger K04 or even an aftermarket turbo (like a Garrett or Precision turbo), full exhaust system, upgraded fuel injectors, a higher-flow fuel pump, and a robust ECU tune. This stage is for those seeking maximum power.

Important Considerations for Turbo Upgrades:

• Remapping is Essential: Any turbo upgrade or significant performance modification necessitates an ECU remap to ensure the engine runs correctly, safely, and efficiently.
• Cooling is Key: As boost pressure increases, so does the temperature of the intake air. An upgraded intercooler is vital to keep intake air temperatures down, preventing detonation and maximising power.
• Fueling: More air requires more fuel. Ensure your fuel pump and injectors can supply the necessary fuel volume for your power goals.
• Exhaust Flow: A less restrictive exhaust system, particularly the downpipe, allows the turbo to spool more efficiently and reduces backpressure.
• Drivetrain Limitations: As power increases, particularly beyond 220-230 bhp on a FWD A3, the stock clutch and gearbox may become weak points. Traction control also becomes a significant factor.

Turbocharger Lifespan and Maintenance

Regardless of whether you have a K03 or a K04, proper maintenance is key to longevity. After spirited driving or a long journey, it's advisable to let the engine idle for a minute or two before switching it off. This allows the turbo's oil supply to cool down, preventing oil coking within the turbo's bearing housing. Regular oil changes with high-quality synthetic oil are also paramount, as the turbo relies heavily on clean, fresh lubrication.

Frequently Asked Questions

Can I fit a K04 to an engine that came with a K03?

Yes, this is a common and popular upgrade path. However, it's not a simple bolt-on. You will typically need a new downpipe, oil and coolant lines, and potentially modifications to intake piping and the intercooler. Crucially, an ECU remap tailored for the K04 is absolutely essential.

What is the safe power limit for a K03s turbo?

The K03s is generally considered safe up to around 215-225 bhp. Pushing beyond this can lead to premature failure, especially if supporting modifications like intercoolers and proper tuning are not in place.

Is a K04 worth the upgrade over a K03?

For those seeking a significant power increase, yes, the K04 is often worth the upgrade. It offers a higher performance ceiling and better airflow characteristics for more substantial tuning. However, if your goals are more modest, a well-tuned K03s can still provide a very enjoyable performance boost.

What are the risks of pushing a turbo beyond its safe limits?

Pushing a turbo beyond its designed limits can lead to several issues: reduced lifespan, bearing failure, oil seal leaks (causing blue smoke from the exhaust), compressor surge, and ultimately, catastrophic turbo failure. Such failures can sometimes cause further damage to the engine if debris enters the intake or exhaust system.

In conclusion, the choice between a K03 and a K04 for your Audi A3 8P tuning project depends entirely on your performance aspirations, budget, and willingness to undertake supporting modifications. The K03 and K03s offer a solid foundation for noticeable gains, while the K04 opens the door to more substantial power increases, albeit with greater complexity and cost. Whichever path you choose, remember that proper tuning, cooling, and maintenance are the keys to unlocking your A3 8P's full potential safely and reliably.
