JTech Suspension: A Deep Dive into Toe Adjustment and Alignment Quirks

When it comes to caravan suspension, particularly the JTech system found on many Jayco models, understanding the intricacies of alignment can be a source of considerable frustration for owners. The question of whether JTech suspension offers independent toe adjustment is a common one, often arising from premature tyre wear or a general unease about the vehicle's handling. This article aims to demystify the JTech alignment system, explore the common issues reported by users, and discuss the methods available for adjustment, highlighting the limitations and potential workarounds.

The JTech System: What is it and How Does it Work?

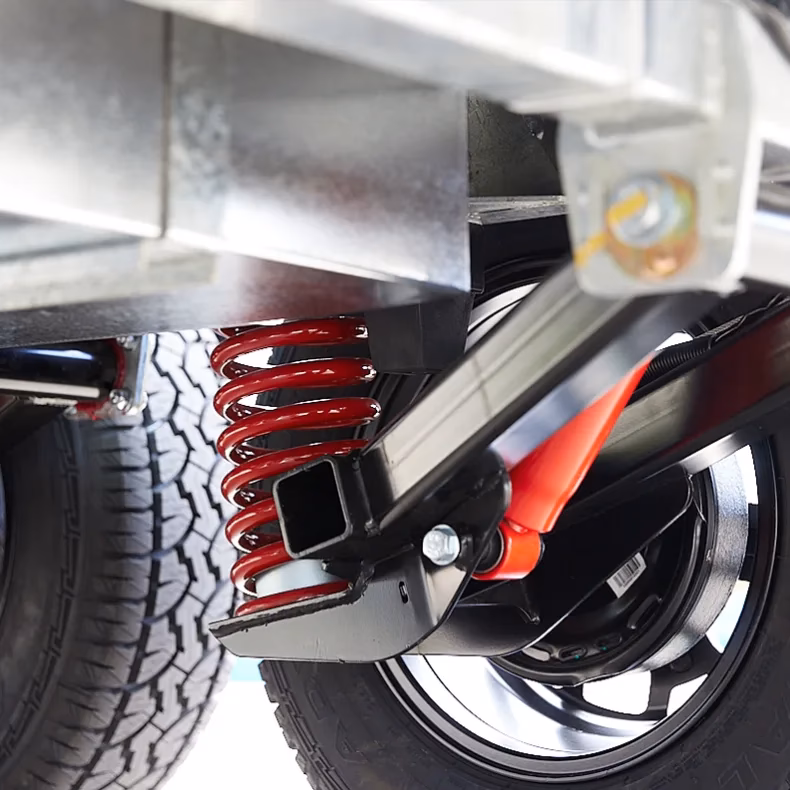

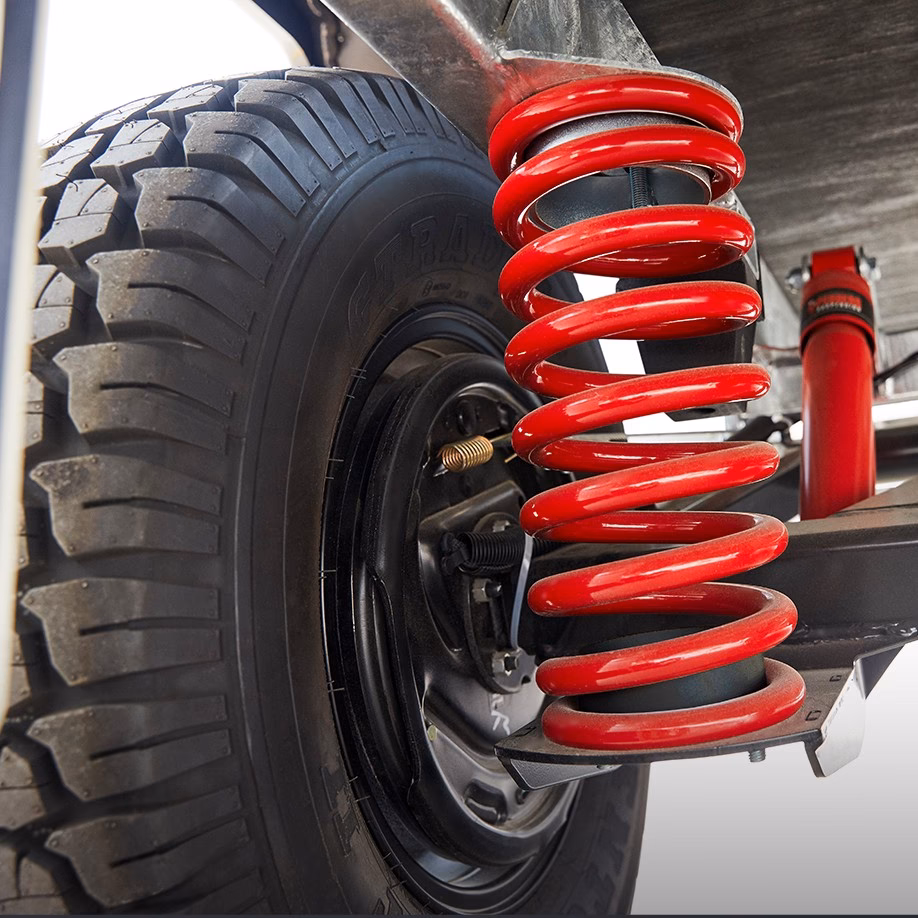

Jayco's JTech suspension is an independent suspension system designed to offer a smoother ride and better handling compared to traditional leaf spring setups. It typically features trailing arms that pivot from a central point on the chassis, with the stub axle and wheel assembly attached to the end of the arm. The adjustment mechanism, or lack thereof, is where much of the debate and concern stems from. Unlike many aftermarket or automotive suspension systems that offer a full suite of alignment adjustments (camber, caster, and toe), the JTech system, as commonly found, is reported to have a more limited adjustment capability.

Toe Adjustment: The Core of the Problem

Toe, in automotive alignment, refers to the angle of the wheels relative to the vehicle's longitudinal axis. When viewed from above, if the front of the wheels are closer together than the back, it's called toe-in. If the back of the wheels are closer together, it's toe-out. Incorrect toe settings are a primary cause of tyre wear, often manifesting as feathering or a scalloped pattern on the tread.

Many JTech owners report that their suspension, out of the box, exhibits incorrect toe settings. This can be due to manufacturing tolerances, issues with the jig setup during production, or even minor impacts during transit. The critical question is: can it be adjusted?

According to user feedback and technical discussions, the JTech system primarily relies on an eccentric bush or cam mechanism at the pivot point of the trailing arm. This eccentric allows for adjustment of the toe angle. However, a significant point of contention is the *range* and *ease* of this adjustment, and crucially, whether it can independently adjust toe without significantly affecting camber.

Camber and Caster: The Intertwined Adjustments

It appears that on many JTech setups, the adjustment point that controls toe also has an effect on camber. Camber is the inward or outward tilt of the wheel when viewed from the front. Negative camber means the top of the wheel is tilted inwards, while positive camber means it's tilted outwards.

Some users have experienced issues where the trailing arms are not perfectly horizontal, leading to an inherent camber angle. The concern is that adjusting the toe using the eccentric cam might inadvertently alter the camber angle, or vice-versa. This lack of independent adjustment is a significant departure from more sophisticated alignment systems and is often cited as a design flaw or a cost-saving measure by Jayco.

Caster, the angle of the steering axis when viewed from the side, is another alignment parameter. While some users mention caster adjustment, it seems to be a less commonly adjusted or problematic aspect of the JTech system for most. The method described for caster adjustment by some dealers – using a tape measure and a piece of ply – is considered highly rudimentary and lacking precision.

Diagnosing Tyre Wear: Toe vs. Camber

Understanding how to diagnose the cause of tyre wear is crucial:

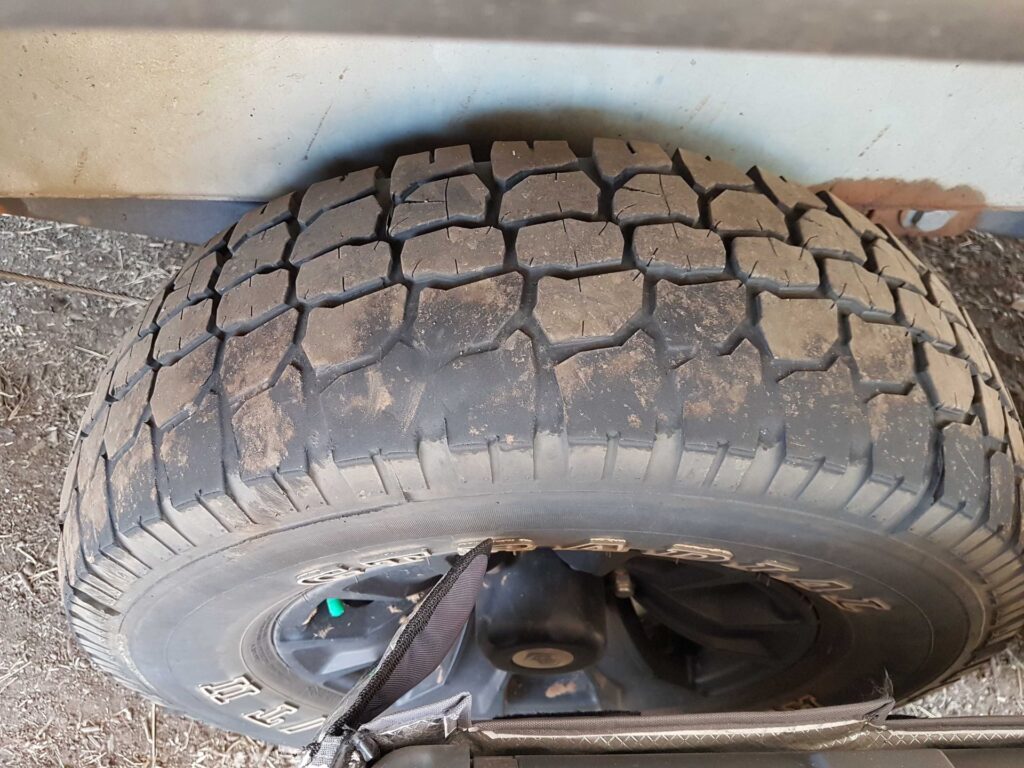

• Toe-in/Toe-out Wear: This typically results in feathering on the edges of the tread ribs, often on one side of the tyre more than the other, or a general scrubbing appearance. If the toe is significantly out, the tyre is constantly being dragged sideways.
• Camber Wear: Excessive negative camber will cause wear on the outside edge of the tyre. Excessive positive camber will cause wear on the inside edge of the tyre.

As one user noted, the feathering on the inner edges of tread ribs is a strong indicator of a toe problem, distinct from camber-induced wear on the outer edges.

User Experiences and DIY Adjustments

Many caravan owners have taken matters into their own hands due to the perceived difficulty and cost of professional JTech alignment. The process often involves:

1. Visual Inspection: Looking for obvious signs of tyre wear (feathering, edge wear).
2. Measurement Tools: Using a straight edge laid across the tyre sidewall (avoiding lettering and bumps) and measuring the distance from each end of the straight edge to the chassis.
3. Adjustment: Locating the eccentric cam at the trailing arm pivot, loosening the retaining bolt, rotating the cam to adjust the toe (and potentially camber), and then retightening the bolt.

Some users have reported success with this DIY approach, achieving a reasonable degree of accuracy. However, it's a process that requires patience, precision, and an understanding of the potential interplay between toe and camber. The accuracy of the DIY method is often verified using more sophisticated laser alignment tools, which have shown it to be surprisingly effective.

The Debate on Precision vs. Practicality

There's an ongoing discussion about whether the high level of alignment precision found in automotive applications is truly necessary or achievable for caravans, especially those with dual axles. The inherent scrubbing effect of dual-axle setups on turns, coupled with the often less-than-perfect road surfaces encountered by caravanners, leads some to believe that minor alignment deviations might not have a catastrophic long-term effect on tyre wear.

However, the evidence of premature and uneven tyre wear on many JTech-equipped caravans suggests that these deviations can indeed be significant and detrimental. The fact that many new vans exhibit out-of-horizontal trailing arms, indicating incorrect camber from the factory, points to systemic issues in the manufacturing or setup process.

Table: Common Tyre Wear Patterns and Potential Causes

Frequently Asked Questions

Q1: Does JTech suspension have independent toe adjustment?
While the JTech system has an adjustment mechanism, it often affects both toe and camber simultaneously, meaning it's not truly independent. The primary adjustment point influences toe, but camber can also be altered.

Q2: How can I check if my JTech suspension needs an alignment?
Look for uneven tyre wear, particularly feathering on the tread ribs or excessive wear on one edge of the tyre. You can also attempt DIY measurements using a straight edge and a tape measure.

Q3: Can I adjust JTech suspension myself?
Yes, many owners do it themselves using basic tools. It involves loosening the eccentric cam at the trailing arm pivot, adjusting it, and retightening. However, precision is key, and it's advisable to research the process thoroughly.

Q4: What is the difference between toe wear and camber wear?
Toe wear typically appears as feathering on the tread ribs, while camber wear is more pronounced on the very edge of the tyre (outside for negative camber, inside for positive camber).

Q5: Are there alternatives to the standard JTech system?
Some owners opt for aftermarket suspension solutions or modifications to achieve better alignment adjustability. However, these can be costly.

Conclusion: Navigating JTech Alignment

The JTech suspension system, while offering independent wheel movement, presents challenges regarding alignment adjustability. The interconnectedness of toe and camber adjustments, coupled with potential factory setup errors, means that owners often need to be proactive in monitoring and correcting their caravan's alignment. While professional alignment can be expensive and may not always yield satisfactory results if the workshop isn't familiar with the nuances of JTech, DIY methods offer a viable alternative for those willing to invest the time and effort. Ultimately, ensuring proper tyre wear and safe handling often requires a hands-on approach to understanding and managing your JTech suspension's alignment parameters.
