What to Do If You Overfill Your Hydraulic Oil Reservoir

Maintaining the correct hydraulic oil level in your machinery is absolutely crucial for optimal performance and longevity. The hydraulic system is a complex network, and even seemingly small errors, like overfilling the reservoir, can lead to significant problems if not addressed promptly. This guide will walk you through what to do if you find yourself in this situation, explaining the potential risks and the proper procedures to follow.

Why a Proper Hydraulic Oil Level is Essential

A sufficient quantity and quality of hydraulic oil are not just about smooth operation; they are vital for the proper functioning of critical components. This includes ensuring full lift cylinder action, reliable drive and steering, and, most importantly, protection against severe damage to hydrostatic pumps, the charge pump, control valves, and hydraulic pump motors. Using the correct oil, such as John Deere HY-GARD or its low-viscosity variant for cold weather, based on expected air temperatures, is a fundamental step in preventative maintenance.

The Dangers of Overfilling

The warning is clear: Do not overfill the hydraulic oil reservoir. If overfilled, excess oil can be expelled from the dipstick tube and potentially sprayed into the engine area. This can lead to several issues:

• Fire Hazard: Hot engine components coming into contact with sprayed hydraulic oil can create a serious fire risk.
• Component Damage: Over-pressurisation within the system due to excess fluid can strain seals, pumps, and other hydraulic components, leading to premature wear and failure.
• Contamination: When oil is forced out, it can carry dirt and debris with it, potentially contaminating the system.
• Inaccurate Readings: An overfilled reservoir will give false readings on the dipstick, making future checks unreliable.

Checking the Hydraulic Reservoir Oil Level

Before we discuss rectifying an overfill, it's important to reiterate the correct procedure for checking the level. This ensures accuracy and safety:

1. Park the machine safely according to the manufacturer's instructions.

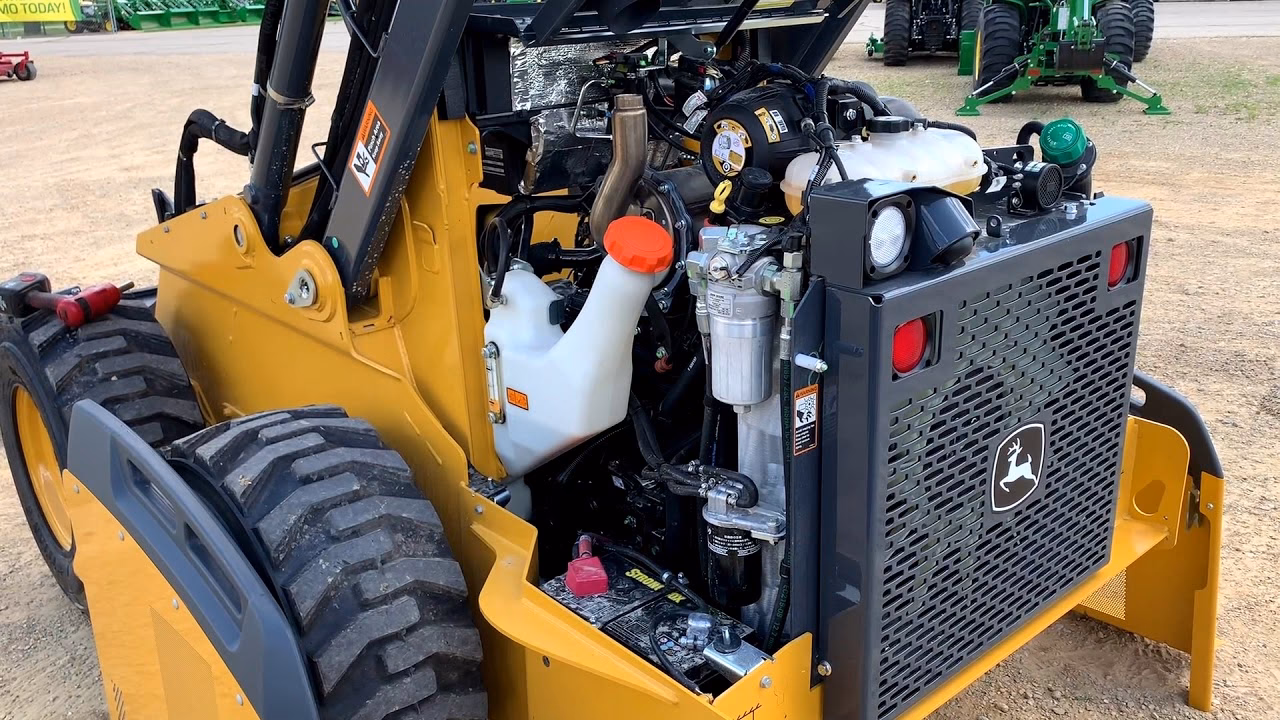

2. Open the engine cover and remove the relevant side panel to access the reservoir.
3. Ensure the hydraulic oil is cold for an accurate reading.
4. Make sure the boom is down and the boom and bucket cylinders are fully retracted.
5. Carefully remove the dipstick. Be vigilant to prevent dirt or debris from entering the reservoir or the dipstick tube.
6. The oil level should ideally be at the maximum mark (B) on the dipstick. If the level is slightly above the lower mark (C), you might only need to add less than a quart of oil.

What to Do If You Have Overfilled

If you've realised you've added too much hydraulic oil, don't panic. Here’s a step-by-step approach to rectify the situation:

1. Stop Adding Oil Immediately: The first and most crucial step is to cease adding any more fluid.
2. Allow the System to Stabilise: If the machine has been running, it's best to let it cool down and allow the oil level to stabilise.
3. Identify the Excess: Re-check the dipstick level. You'll likely see the oil significantly above the maximum mark.
4. Drain the Excess Oil: This is the most direct method. You will need a suitable container to collect the drained oil and a way to remove it from the reservoir. The method for draining can vary depending on the machine's design:
   • Via the Dipstick Tube: If the dipstick tube is easily accessible and positioned correctly, you might be able to use a clean fluid extractor or a syphon pump to carefully remove the excess oil directly through the dipstick opening. This requires precision to avoid drawing in air or contaminating the oil.
   • Via a Drain Plug/Port: Some hydraulic reservoirs have a dedicated drain plug or port. If yours does, this is the preferred method. Ensure the machine is stable and place a large enough container underneath. Remove the plug and allow the excess oil to drain until the level is correct. Remember to replace the drain plug securely once the level is satisfactory.
   • Via the Hydraulic Temperature Sender: In some models, like the John Deere 326D, the hydraulic temperature sender can be removed to drain oil. As per the procedure for changing hydraulic oil, you would remove the sender, position a container, and drain until the correct level is reached. This requires extreme caution to avoid damaging the sender or its wiring, and ensuring it is reinstalled correctly.
5. Re-check the Level: After draining, carefully re-insert the dipstick and check the oil level. Aim for the oil to be at or just below the maximum mark (B). It is better to be slightly under than over at this stage.
6. Clean Up: Any oil that has spilled during the draining process should be cleaned up thoroughly to prevent slips and potential contamination.
7. Replace Components: If you removed a drain plug or the temperature sender, ensure they are reinstalled correctly and tightened to the manufacturer's specifications.
8. Dispose of Excess Oil Responsibly: Used hydraulic oil is a hazardous waste and must be disposed of in an environmentally responsible manner. Contact your local waste disposal services or recycling centres for guidance.

Preventative Measures and Best Practices

The best approach to an overfilled reservoir is to prevent it from happening in the first place. Here are some tips:

• Check the Level Before Adding: Always check the existing oil level before adding any more, even if you think it's low.
• Add Oil Gradually: When adding oil, do so in small increments. Wait a few minutes for the oil to settle in the reservoir and then re-check the level.
• Use the Correct Dipstick/Indicator: Ensure you are using the correct dipstick for your machine model and that it is properly seated when checking the level.
• Understand Your Machine's Capacity: Be aware of the total hydraulic oil capacity of your machine, but more importantly, understand how much oil is needed to raise the level from its current state to the 'full' mark. For example, in a John Deere 326D, while the total capacity might be around 6.2 gallons (23.5 L), you might only need to add a quart or two if the level is slightly low.
• Read the Manual: Always refer to your machine's operator's manual for specific instructions on checking and filling hydraulic fluid, including the correct type of oil and any specific procedures for your model.
• Cleanliness is Key: When checking or filling, always clean the area around the dipstick tube or filler cap to prevent dirt from entering the system. Dirt is the enemy of hydraulic systems.

Comparison: Common Hydraulic Oil Capacities (Example)

While specific capacities vary greatly by model, here's a general idea. Always consult your owner's manual for exact figures.

Frequently Asked Questions (FAQs)

Q1: Can I drive my machine if the hydraulic oil is overfilled?

A1: It is not recommended. Driving with an overfilled reservoir increases the risk of component damage and potential system failure. It's best to correct the level before operating the machine.

Q2: How much oil should I drain if it's overfilled?

A2: Drain only enough oil to bring the level back down to the maximum mark on the dipstick. It's better to err on the side of slightly underfilling than overfilling again. You can always add a small amount later if necessary.

Q3: What happens if I don't fix an overfilled hydraulic reservoir?

A3: Continued operation with an overfilled reservoir can lead to increased pressure within the system, potentially causing leaks, seal failures, pump damage, and a higher risk of fire due to oil spray.

Q4: Is it okay to mix hydraulic oil brands?

A4: It is generally best practice to use the manufacturer-recommended hydraulic oil (e.g., John Deere HY-GARD). While some oils may be compatible, mixing can sometimes lead to unpredictable performance or reduced protective qualities. Always check compatibility or stick to the recommended brand.

Q5: How often should I check my hydraulic oil level?

A5: It’s good practice to check the hydraulic oil level regularly, ideally before each day's operation, especially if you are performing demanding tasks. Also, check it after any maintenance work involving the hydraulic system.

By understanding the importance of the correct hydraulic oil level and knowing how to safely rectify an overfill situation, you can significantly contribute to the reliable and safe operation of your machinery.
