John Deere L130: A Comprehensive Service Guide

Maintaining Your John Deere L130 Lawn Tractor

The John Deere L130 is a robust and reliable lawn tractor, part of the popular 100 series, manufactured between 2003 and 2005. Known for its powerful Kohler CV23S engine and user-friendly hydrostatic transmission, this 2WD tractor is ideal for tackling larger lawns. Like any hardworking machine, regular maintenance is key to ensuring its longevity and optimal performance. This guide will walk you through the essential service points, common replacement parts, and provide you with the knowledge to keep your L130 in top condition.

Remember, common sense is your best ally in maintaining your machine. If you frequently operate in extreme heat, dusty conditions, or challenging terrain, you'll need to increase the frequency of your servicing intervals. Investing a little time in upkeep will save you from more significant repairs down the line and ensure your tractor continues to serve you well for years to come.

Understanding Your L130's Service Schedule

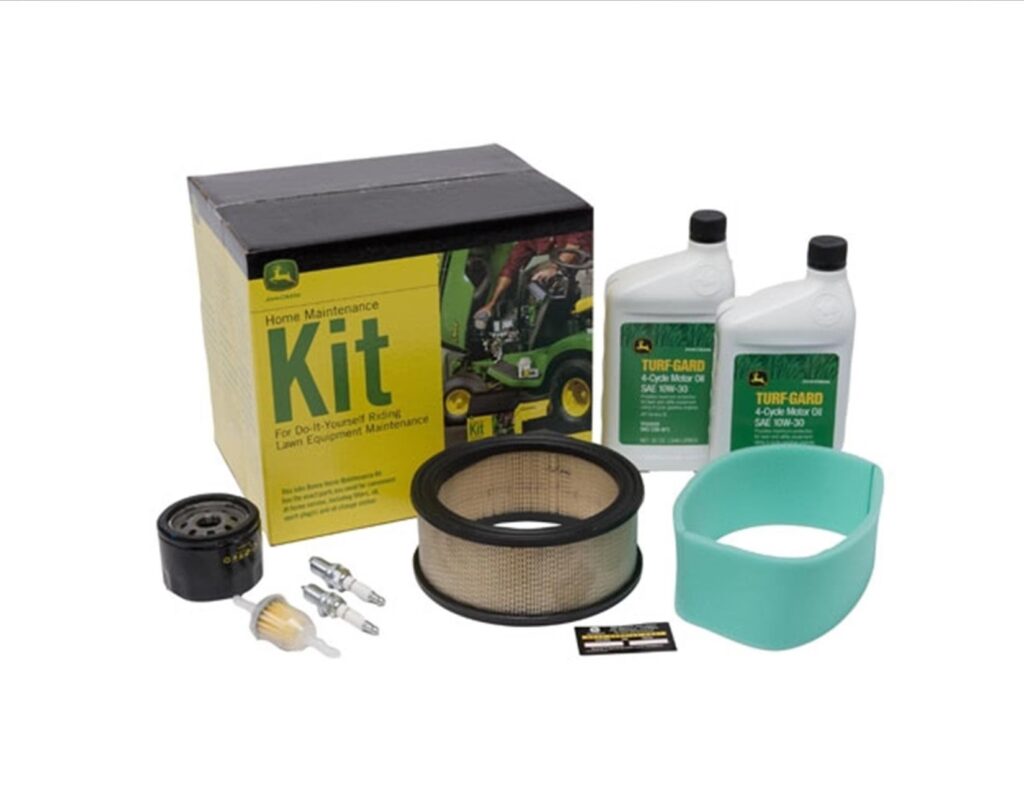

While your John Deere L130 is built with quality components, these parts have a finite lifespan. Fortunately, you can easily perform most maintenance tasks yourself. You can opt for a John Deere maintenance kit or purchase the specific parts needed. Here are the key components that require regular attention:

Important Note: Availability of specific part numbers can vary. Always consult your owner's manual or a reputable John Deere parts dealer to confirm the correct part for your L130 model year.

Essential Checks and Routine Maintenance Tasks

Beyond the scheduled part replacements, there are several routine checks you should perform to keep your L130 running smoothly:

• Engine Oil Level: Check the oil level before each use, especially if operating in demanding conditions. Low oil can lead to severe engine damage.
• Air Filter: The L130 uses a dual-state air filtration system. Regularly inspect and clean or replace the air filter (often as a kit, e.g., GY20576) to ensure proper airflow to the engine. A clogged filter significantly reduces power and efficiency.
• Tyre Pressure: Ensure your tyres are inflated to the correct pressure. The L130 typically uses 16x6.5-8 tyres on the front and 22x9.5-12 on the rear. Proper inflation is crucial for stability and cut quality.
• Grease Points: Locate and lubricate all grease points on the tractor, particularly around the steering components, deck spindles, and drive shafts.
• Belts: Inspect all belts, including the traction drive belt (GX20006) and mower deck belts, for signs of fraying, cracking, or excessive wear. Replace them if any damage is evident.
• Mower Deck: Keep the mower deck clean, especially the underside, to prevent grass build-up which can affect cutting performance and lead to rust. Check the blade sharpness and balance. Replace worn or damaged blades (e.g., GX20250 for standard, GX20819 for mulch) promptly. A balanced blade is essential for a clean cut and to prevent vibration.
• Fuel System: Use fresh, clean fuel. If the tractor has been stored for a long time, consider using a fuel stabiliser. Check fuel lines for any leaks or damage.
• Battery: Ensure the battery terminals are clean and free of corrosion. Check the battery charge, especially after periods of inactivity. The L130 has a 16-amp alternator to keep the battery charged.

Commonly Needed Parts for Repairs and Upkeep

Outside of the regular service intervals, you might need parts for unexpected repairs or minor upgrades. While this isn't an exhaustive list of every single part available for the L130, these are frequently purchased items:

John Deere L130: Key Specifications and Features

Understanding the specifications of your John Deere L130 can help you appreciate its capabilities and maintenance requirements:

• Engine: Kohler CV23S, 23 horsepower, 2-cylinder, air-cooled, V-twin gasoline engine. It features full pressure lubrication and a spin-on oil filter.
• Transmission: Belt-driven hydrostatic transmission (Tuff Torq HD K46) with infinite forward and reverse gears, operated by a two-pedal system for easy speed control and braking. Maximum forward speed is 8.9 km/h (5.5 mph), and reverse speed is 5.2 km/h (3.2 mph).
• Dimensions: 1,525 mm (60 in) long, 910 mm (35.8 in) wide, 980 mm (38.6 in) high. Weight: 241 kg (531 lbs).
• Fuel Tank: 7.9 litres (2.1 US gal.; 1.7 Imp) capacity, located at the rear.
• Mower Deck: Mid-mount 48-inch (1,210 mm) John Deere mower deck with 3 blades. Can be used for mulching or bagging.
• Attachments: Compatible with a 48-inch John Deere snowplow and a 42-inch (1,070 mm) two-stage snowblower.
• Operator Comfort: Features include floor mats for grip, a comfortable 15-inch high seat with back support, a convenient tool tray, cupholder, and headlights for extended operating hours.
• Maneuverability: A low turning radius of just 0.46 m (18 inches) allows for easy navigation around obstacles.
• Cruise Control: Standard cruise control allows for consistent speed on long, straight runs.

Troubleshooting Common Issues

While the L130 is generally reliable, some common issues might arise:

• Engine Backfiring: This can sometimes occur when shutting off the engine. Ensure the engine is properly warmed up before shutting it down, and check the ignition timing if the problem persists.
• Loss of Power: This is often due to a clogged air filter, dirty fuel filter, incorrect oil level, or worn belts. Check these components first.
• Cutting Performance Issues: Ensure mower blades are sharp, balanced, and correctly installed. Check for grass build-up under the deck and ensure tyre pressure is correct.
• Transmission Slipping: This could indicate a worn drive belt or a problem with the transmission fluid level or condition. Consult your manual or a technician.

Identifying Your Tractor's Manufacturing Date

To find your tractor's manufacturing date, locate the serial number. This is typically found on the frame above the left rear wheel. The serial number provides a code for the year of manufacture:

• 2003: Starts with 010001
• 2004: Starts with 060001
• 2005: Starts with 130001

Conclusion

The John Deere L130 is a powerful and versatile lawn tractor that, with proper and consistent maintenance, will provide years of reliable service. By understanding its key components, adhering to the recommended service intervals, and performing regular checks, you can ensure your tractor operates at its peak efficiency. Whether you're mowing vast expanses of grass, tackling winter snow, or performing other yard tasks, a well-maintained L130 is an invaluable asset to any property owner. Always refer to your owner's manual for specific instructions and torque values relevant to your machine.
