John Deere 2320: Your Ultimate Technical Manual Guide

The Essential John Deere 2320 Technical Manual Explained

For any owner or operator of a John Deere 2320 Compact Utility Tractor, understanding its inner workings is crucial for optimal performance and longevity. While this robust machine has been a reliable workhorse, its discontinuation means that access to detailed technical information is more important than ever. This is where the John Deere 2320 technical manual, specifically the Repair Technical Manual – TM2388, becomes an invaluable resource. This manual is not just a collection of diagrams; it's a comprehensive guide designed to empower you with the knowledge to perform maintenance, diagnose issues, and carry out repairs effectively.

Deciphering the Technical Manual Structure

The TM2388 manual is meticulously organised to provide a clear and logical approach to understanding the John Deere 2320. It's broadly divided into two primary sections: the maintenance manual and the operational principle and test manual. The maintenance section focuses on the 'how-to' of repairing various machine parts, offering step-by-step instructions. Complementing this, the operational principle and test manual serves as a rapid reference for diagnosing and resolving common faults. This dual approach ensures that whether you're a seasoned mechanic or a new owner, you can efficiently tackle any challenge.

Chapter Breakdown for Comprehensive Coverage

Within these two main sections, the manual further dissects the tractor into its core components. Each chapter is dedicated to a specific system, ensuring that all relevant information is grouped together. Before diving into repairs, each chapter helpfully lists the necessary basic tools and repair equipment, followed by essential working materials, recommended repair parts, precise technical specifications, wear tolerances, and critical torque values. This detailed preparation ensures that you have everything you need before commencing any work, minimising the risk of errors and maximising efficiency.

What's Under the Hood? The John Deere 2320 Engine

At the heart of the John Deere 2320 lies a powerful and reliable engine, a testament to John Deere's collaboration with Yanmar. The 2320 is powered by the Yanmar 3TNV76, a robust 3-cylinder, liquid-cooled diesel engine. This engine boasts a displacement of 1.1 litres (68 cubic inches) and is capable of producing a respectable 24.1 horsepower (18.0 kW). Its efficient design, coupled with a 3.4-quart oil capacity and a 3.4-quart coolant capacity, ensures consistent performance. The dry, dual-element air cleaner is vital for maintaining engine health in various operating conditions.

Key Specifications at a Glance

To truly appreciate the capabilities of the John Deere 2320, understanding its specifications is key. Here’s a summary of its vital statistics:

Power Train and Transmission: Smooth Operation

The transmission system of the John Deere 2320 is designed for ease of use and smooth power delivery. It features a hydrostatic transmission with infinite forward and reverse gears, offered in a 2-range system. This means operators can seamlessly adjust speed and direction without the need for manual gear shifting, making operation in tight spaces or complex terrain significantly easier. The transmission oil capacity is 10.4 quarts (9.8 L), ensuring proper lubrication and cooling.

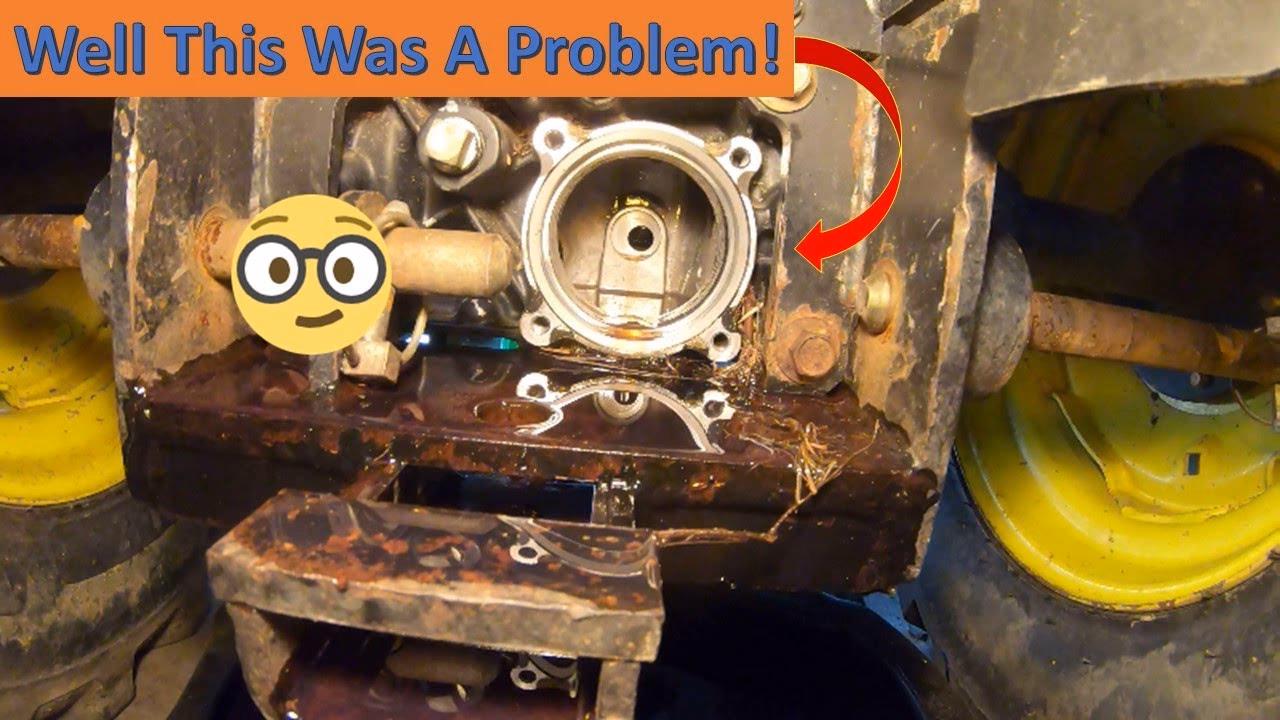

Hydraulics: The Backbone of Versatility

The hydraulic system is vital for operating various attachments. The John Deere 2320 features an open-centre hydraulic system with a capacity of 2.6 gallons (9.8 L). Operating at a pressure of 2421 psi (166.9 bar), it utilises multiple valves to control functions. The pump delivers a flow of 3.4 gallons per minute (12.9 lpm), with a total system flow of 5.6 gallons per minute (21.2 lpm). The steering system receives its own dedicated flow of 2.2 gallons per minute (8.3 lpm), ensuring responsive and precise steering.

Electrical System and Battery Requirements

The tractor's electrical system is a negative-ground setup, featuring an alternator that provides a 20-amp charging current. A single 12-volt battery, with a cold-cranking amperage of 500, powers the electrical components. Proper maintenance of the charging system and battery is essential for reliable starting and operation.

Steering, Brakes, and Chassis Details

Maneuverability is a key strength of the 2320. It is equipped with power steering for effortless control. The braking system utilizes reliable wet disc brakes, known for their durability and effectiveness, even in dusty or wet conditions. The chassis is a 4x4 MFWD (Mechanical Front Wheel Drive) 4WD system, providing excellent traction and stability. The tractor has a shipping weight of 1660 lbs (752 kg), and its dimensions, including a 63-inch wheelbase and a hood height of 53.3 inches, contribute to its compact yet capable profile.

PTO Capabilities: Powering Attachments

The John Deere 2320 offers both rear and mid Power Take-Off (PTO) capabilities. The rear PTO is independent and operates at a standard 540 RPM, making it compatible with a wide range of implements. The mid PTO operates at 2100 RPM, useful for specific mid-mounted attachments. The rear PTO is rated to deliver approximately 18 horsepower (13.4 kW), ensuring sufficient power for common tasks.

Attachments: Enhancing Functionality

While the 2320 is a compact utility tractor, it can be significantly enhanced with attachments. The most common attachment mentioned is the John Deere 200CX loader. This loader features a pin height of 78.5 inches and a breakout force of 2239 lbs, capable of lifting 902 lbs to full height. Its quick raise and dump times contribute to efficient material handling.

Maintenance and Troubleshooting: Common Questions

Q1: How often should I change the engine oil in my John Deere 2320?
Refer to the maintenance section of your TM2388 manual for the specific oil change intervals based on operating hours and conditions. Generally, it's recommended after the initial break-in period and then every 100-200 operating hours.

Q2: What are the recommended lubricants for the John Deere 2320?
The manual will detail specific fluid types for the engine, hydraulic system, and transmission. Using the correct specifications is vital for component health. Typically, John Deere's own range of oils and lubricants are recommended.

Q3: My tractor is running rough. Where should I start troubleshooting?
Begin by checking the fuel system (filters, fuel quality), air intake system (air filter), and the engine's cooling system. The diagnostics and troubleshooting sections of the TM2388 manual will provide a systematic approach to identifying and resolving engine-related issues.

Q4: How do I check the hydraulic fluid level?
Locate the hydraulic fluid reservoir dipstick or sight glass, typically found on or near the main hydraulic pump or reservoir. Ensure the tractor is on level ground and the engine is off. Consult the manual for the precise location and procedure.

Q5: What is the torque specification for the wheel lug nuts?
Torque specifications are critical for safety. The manual will list the precise torque values for the wheel lug nuts in the relevant chassis or wheel section. Overtightening or undertightening can lead to serious problems.

Conclusion: Keeping Your John Deere 2320 in Peak Condition

The John Deere 2320 Compact Utility Tractor, though no longer in production, remains a capable machine for a variety of tasks, from property maintenance to light agricultural work. Owning and operating this tractor effectively hinges on having the right information. The TM2388 technical manual is your indispensable companion, providing the detailed insights needed for maintenance, repair, and troubleshooting. By familiarising yourself with its contents and following the recommended procedures, you can ensure your John Deere 2320 continues to operate reliably and efficiently for years to come.
