DIY Brake Service: 2001 WJ Akebono Conversion

For any Jeep Grand Cherokee WJ owner, especially those with the upgraded Akebono front brake conversion, maintaining your braking system is paramount. Whether you're navigating urban streets or tackling challenging off-road trails, reliable stopping power is non-negotiable. This guide will walk you through the process of replacing your front brake pads and rotors, specifically tailored for the 2001 WJ models already featuring the superior Akebono setup. We'll explore the benefits of quality components like Napa Premium Rotors and Wagner Thermoquiet pads, and provide a detailed, step-by-step walkthrough to ensure a successful and safe DIY brake service.

The Akebono brake conversion is a significant upgrade over the original Teves system found on many WJs, offering enhanced performance and durability. If you've already made this switch, you're ahead of the game, enjoying better modulation and reduced fade. For those still running the Teves system, consider the Akebono upgrade; it truly transforms the vehicle's braking capabilities. With the right parts and a methodical approach, you can restore your WJ's braking to peak condition, ensuring confidence on every journey.

Choosing Your Braking Components: A Winning Combination

When it comes to brake components, quality makes all the difference. For this particular service on a 2001 WJ with Akebono fronts, a tried-and-tested combination has proven to be highly effective: Napa Premium Rotors and Wagner Thermoquiet pads. This pairing offers a remarkable blend of performance, longevity, and, crucially, quiet operation.

Napa Premium Rotors are known for their robust construction and excellent heat dissipation properties. This is vital for a vehicle like the WJ, which might be subjected to heavy loads, towing, or demanding driving conditions. Good heat management prevents warping and ensures consistent braking performance, even under stress. Always remember to thoroughly clean new rotors with brake cleaner to remove any protective oils before installation, as these can contaminate your new pads and compromise performance.

Wagner Thermoquiet pads, as their name suggests, are engineered for quiet operation. In practice, they often exhibit a unique bedding-in characteristic: initially quiet, followed by a period of slight noise for a couple of hundred miles, then settling into complete silence. This makes them a fantastic choice for those who value a serene driving experience. Beyond the quiet, these pads deliver exceptional stopping power. Owners have reported the ability to easily engage the ABS on dry pavement and maintain strong braking performance even when towing a substantial 5,000lb boat. This level of performance provides immense confidence, knowing your brakes won't be the weak link in an emergency situation.

The synergy between high-quality rotors and advanced ceramic pads like the Wagner Thermoquiet ensures not just effective stopping, but also reduced brake dust and extended component life, making them a wise investment for your WJ.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient:

• Hydraulic jack and at least one sturdy jack stand
• Wheel chocks (for the rear wheels)
• Wheel wrench or appropriate socket for your lug nuts
• Brake cleaner (several cans recommended)
• PB Blaster or similar penetrating oil (for stubborn bolts)
• Socket set (including 1/2-inch drive for caliper slide pins, 18mm for caliper bracket bolts)
• Breaker bar (especially for the 18mm caliper bracket bolts)
• Torque wrench (recommended for proper bolt tightening)
• C-clamp or brake piston compression tool
• Flathead screwdriver (for prying)
• Wire brush (for cleaning hub mating surface)
• Pliers (for pad slide clips)
• Brake parts lubricant (silicone-based, for slide pins)
• Anti-squeal compound (optional, but can provide extra peace of mind)
• Clean rags or paper towels
• Bucket or strong wire/bungee cord (to support the caliper)
• Safety glasses and gloves

Step-by-Step Guide: Replacing Your WJ's Front Brakes

1. Preparation and Prioritising Safety

Safety is paramount when working on your vehicle's braking system. Begin by parking your WJ on a flat, level surface and engaging the parking brake. Chock the rear wheels to prevent any unwanted movement. Using your hydraulic jack, lift one side of the front axle. Once sufficiently raised, place a sturdy jack stand directly under the axle for support. For an extra layer of safety, once the wheel is removed, you can slip it underneath the uniframe rail of the body. This provides an additional fail-safe in the unlikely event of a jack stand failure.

2. Accessing and Removing the Caliper

With the wheel off, you'll need better access to the caliper. Rotate the steering wheel fully to the side you are working on (e.g., turn left for the left wheel). This will angle the caliper outwards, making it much easier to reach the bolts.

Before touching any bolts, give the caliper and surrounding area a thorough cleaning with brake cleaner. This removes accumulated dust, grime, and old brake fluid, making for a cleaner work environment and reducing the chance of contaminants entering the system. If your caliper slide pin bolts appear rusty or stubborn, give them a good spray with PB Blaster and let it soak for a few minutes. If you're not replacing the rotors, be careful not to overspray the braking surface.

Now, locate the two caliper slide pin bolts – one at the top and one at the bottom – identifiable by their rubber boots. Using a suitable socket (often 1/2-inch drive), break these bolts free and remove them entirely.

Next, carefully open the fluid cap for the master brake fluid reservoir under the bonnet. This prevents a vacuum from forming as you compress the caliper pistons. Using a C-clamp, gently compress the caliper pistons a small amount. This will push the pads back slightly, making it easier to wiggle the caliper off the rotor. It's highly recommended to have a buddy keep an eye on the brake fluid level in the reservoir during this step, as it will rise. Brake fluid is corrosive and can damage your vehicle's paintwork if it overflows.

With the bolts out and pistons slightly compressed, carefully wiggle the caliper free from the rotor. You might need to use a flathead screwdriver to gently pry between the caliper and its bracket. As the caliper comes off, DO NOT let it hang by the brake line. This can damage the hose and lead to a catastrophic brake failure. Support the caliper on a sturdy bucket, or tie it up securely to the suspension components with strong wire or a bungee cord.

3. Old Pads Out, New Rotors On (If Applicable)

Once the caliper is off, you can easily pop the old brake pads out of the caliper bracket. Take note of their orientation, especially the clips. If you're only replacing pads, you can skip ahead to the caliper bracket service. However, if your rotors are worn (e.g., showing grooves, discolouration, or below minimum thickness), it's highly advisable to replace them simultaneously for optimal performance.

To remove the rotor, you first need to unbolt the caliper bracket. This bracket is held on by two large bolts, typically requiring an 18mm socket. These bolts can be incredibly tight, often requiring a 1/2-inch drive breaker bar to get them to budge. Once the bolts are removed, the caliper bracket will come off. Now the old rotor should simply slide off the hub. If it's stuck due to rust, a few firm taps with a hammer around the hub area (avoiding the stud threads) should free it.

Before installing your new Napa Premium Rotors, they must be thoroughly cleaned. New rotors come with a protective oil coating that must be removed. Spray them down generously with brake cleaner and wipe them clean with paper towels. Avoid touching the braking surface with your bare hands, as the oils from your skin can leave deposits that cause noise or hot spots later on. While the rotor is off, take a wire brush to the mating surface of the wheel bearing hub. This ensures that the new rotor sits perfectly flat and flush, which is critical for preventing run-out and vibrations.

Carefully slide the new, clean rotor onto the hub, ensuring it sits fully flush against the hub face. You can press it firmly around the lug studs to confirm it's seated correctly.

4. Caliper Bracket and Slide Pin TLC

With the caliper bracket removed (or if you're just doing pads, with the caliper supported), it's time for some important maintenance. Use pliers or a screwdriver to remove the old pad slide clips from the bracket. Pay close attention to how they are oriented, as the new ones will need to be installed in the same fashion.

Next, inspect your caliper slide pins. These pins allow the caliper to move freely, ensuring even pad wear. It's common for them to become dirty, dry, or corroded. Pull them out, clean them thoroughly with brake cleaner and a rag, then apply a generous amount of high-quality brake parts lubricant. This grease should be specifically designed for brake components and be silicone-based to withstand high temperatures and prevent rubber degradation. Slide the lubricated pins back into their bores, ensuring the rubber boots are properly seated around the divots.

Now, install the new pad slide clips onto the caliper bracket. You'll recall the orientation from when you removed the old ones. Sometimes, due to manufacturing tolerances, these clips might not seat perfectly by hand. Use your pliers to gently but firmly clamp them into place, ensuring they sit snugly in their indentations.

5. Installing New Pads and Re-assembling the Caliper

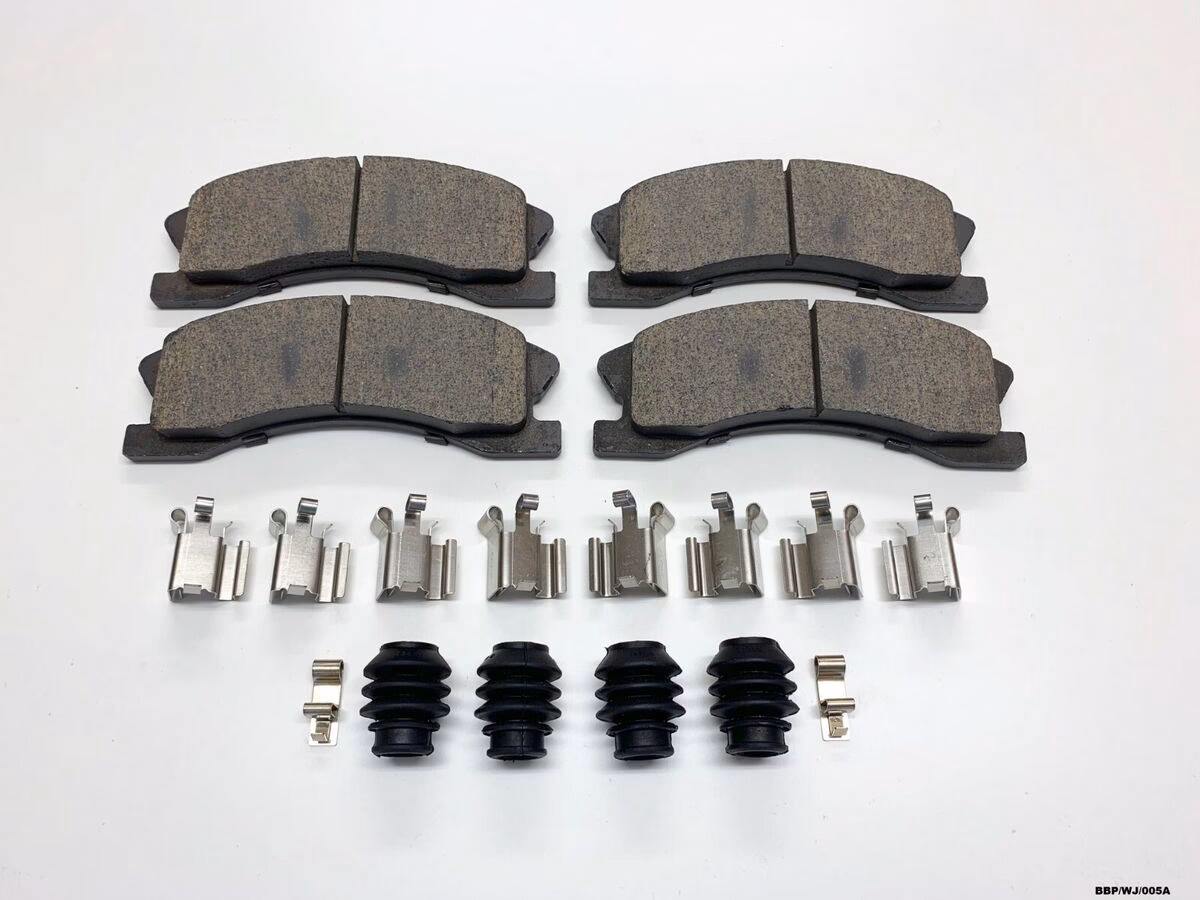

With the bracket serviced, you can now install your new Wagner Thermoquiet pads. Simply slide them into place within the new pad clips on the caliper bracket. While Wagner Thermoquiet pads often don't require anti-squeal compound on the backing plates, some mechanics prefer to apply a thin layer on the pad slide arms or contact points as an extra measure, which has proven effective for thousands of miles without issues.

Before putting the caliper back on, give it a good clean with brake cleaner and paper towels to remove any old dust or grime. Now, using your C-clamp (or piston compression tool), fully compress each caliper piston. This is crucial to make space for the thicker new pads. Again, have someone monitor the brake fluid reservoir to prevent overflow.

Carefully guide the caliper back into position over the new pads and rotor. You might find it hangs up on the lubricated slide pins; simply push these pins in gently as you seat the caliper. Once aligned, re-thread the two caliper slide pin bolts. While specific torque specifications exist for these bolts, tightening them firmly (often referred to as 'bubba tight' in some circles, though a torque wrench is always preferred) is generally sufficient. Conduct a visual inspection of your work to ensure everything is seated correctly and all bolts are tightened.

6. The Other Side and Final Checks

Repeat the exact same procedure for the other front wheel. Once both sides are complete, double-check that all bolts are tightened, the brake lines are not twisted or pinched, and all components are correctly installed.

Reinstall your wheels and tighten the lug nuts to the manufacturer's specified torque. Don't forget to replace the brake fluid reservoir cap!

The Crucial Bedding-In Procedure

After installing new pads and rotors, a proper bedding-in procedure is absolutely essential. This process transfers a thin, even layer of pad material onto the rotor surface, optimising performance, reducing noise, and extending the life of your components. While specific procedures can vary slightly between pad manufacturers, a general guideline involves:

1. Several moderate stops from approximately 30-40 mph (50-65 km/h) down to about 10 mph (15 km/h). Avoid coming to a complete stop.
2. Allow the brakes to cool down by driving for a few minutes without heavy braking.
3. Several firmer stops from 50-60 mph (80-95 km/h) down to about 10 mph (15 km/h). Again, avoid full stops.
4. Allow the brakes to cool completely, ideally with minimal braking, for about 15-20 minutes.

Refer to the instructions provided with your specific Wagner Thermoquiet pads for their recommended bedding-in process to ensure maximum longevity and optimal stopping power. With these Wagner pads and Napa rotors, along with your rear brakes also being in good order, you should be able to easily lock up your tyres and kick in the ABS on dry pavement, providing excellent emergency stopping capability and confidence, even when towing a significant load.

Post-Installation Experience and Troubleshooting

When you first start your Jeep after the brake service, don't be alarmed if the brake pedal initially goes to the floor a couple of times. This is normal, as you've compressed the pistons, creating a gap that needs to be filled. Simply pump the brake pedal a few times, and you should feel the pressure gradually return and the pedal firm up. If it doesn't, or if you notice any spongy or excessively soft pedal feel after a few drives and the bedding-in process, you might have a problem. Immediately check for any signs of leaking brake fluid around the calipers, lines, or master cylinder. This is unlikely if you were careful, but always worth a thorough inspection. If no leaks are present and the pedal still feels unsatisfactory, consider getting the brakes professionally bled to remove any trapped air from the system.

Chosen Components at a Glance

Frequently Asked Questions (FAQs)

Do I absolutely need to replace my rotors with every pad change?

Not always, but it's highly recommended, especially if the rotors show signs of wear like deep grooves, discolouration, or if they are below the manufacturer's minimum thickness specification. Replacing both simultaneously ensures optimal performance and prevents premature wear of your new pads.

My brake pedal feels soft after the service, even after pumping. What should I do?

First, re-check for any leaks around the calipers, brake lines, and master cylinder. If no leaks are found, it's likely air trapped in the system. The brakes will need to be bled to remove this air and restore a firm pedal feel. If you're unsure, it's best to have a qualified mechanic perform this.

Is anti-squeal compound truly necessary for the Wagner Thermoquiet pads?

Wagner Thermoquiet pads are designed for quiet operation due to their friction material. While not always strictly necessary, applying a thin layer of anti-squeal compound to the back of the pads where they contact the caliper or on the slide arms can provide an extra layer of protection against noise, especially in specific vehicle applications.

How often should I check my brake fluid level?

It's good practice to check your brake fluid level as part of your regular maintenance routine, perhaps every time you check your oil or every few months. A low fluid level can indicate a leak or severely worn pads, requiring investigation.

Can I use different brands of pads and rotors together?

Generally, yes, as long as they are designed for your specific vehicle and caliper type (Akebono in this case). However, pairing components from reputable brands that are known to work well together, like the Napa Rotors and Wagner Thermoquiet pads, can often yield superior and more predictable results in terms of performance and quiet operation.

Congratulations! By following these steps, you've successfully serviced your 2001 WJ's front brakes, saving money and gaining invaluable experience. Enjoy the enhanced stopping power and peace of mind on your future adventures.
