Jeep Wrangler Transmission Fluid: Your Ultimate Guide

Understanding Jeep Wrangler Transmission Fluid: A Crucial Maintenance Task

The transmission fluid in your Jeep Wrangler is a vital component, often overlooked but critical for the smooth operation and longevity of your vehicle. Many Jeep owners, especially those with higher mileage models, might not realise the importance of regular transmission fluid changes. This article aims to demystify transmission fluid, explain why it needs changing, and provide a comprehensive guide for Jeep Wrangler owners on when and how to perform this essential maintenance task.

Why is Transmission Fluid So Important?

Think of your transmission fluid as the lifeblood of your Jeep's gearbox. Its primary functions are to cool, lubricate, and clean the intricate gears, bearings, and other moving parts within the transmission. As your Jeep drives, the meshing of gear teeth generates significant pressure, leading to the gradual wear of metal components. This wear results in microscopic metal shavings, which are collected by a magnet typically found on the differential cover. This collected debris, along with dirt and other contaminants, can degrade the fluid over time, reducing its effectiveness. Without proper lubrication and cooling, these metal particles can cause excessive wear, leading to poor shifting, overheating, and ultimately, costly transmission damage.

How Often Should Jeep Wrangler Transmission Fluid Be Changed?

Jeep manufacturers generally recommend changing your transmission fluid every 30,000 miles or every 2 years, whichever comes first. This recommendation is particularly important for the initial fluid change. During the first 30,000 miles, the differential gears and internal components undergo a 'break-in' period. This process naturally sheds small metal particles as the gears mesh and settle. Changing the fluid after this initial period helps remove these early wear particles, preventing them from circulating and causing premature wear.

However, this interval can vary based on your driving habits. If you frequently engage in off-roading, towing heavy loads, or drive in harsh conditions (e.g., extreme heat or stop-and-go traffic), you may need to change your transmission fluid more often. Conversely, if you drive primarily on highways in mild conditions, you might be able to extend the interval slightly, but always consult your owner's manual for the most accurate guidance.

Identifying Transmission Fluid Issues

Several signs can indicate that your Jeep Wrangler's transmission fluid needs attention:

• Strange Noises: Whining, clunking, or grinding sounds coming from the transmission, especially during gear changes.
• Shifting Problems: Difficulty engaging gears, delayed shifts, or a noticeable 'slipping' sensation.
• Fluid Leaks: Wet oil patches underneath your Jeep, particularly on the driveway or parking spot.
• Warning Lights: The 'Check Engine' light or a specific transmission warning light illuminating on your dashboard.
• Fluid Appearance: If you check the fluid level and it appears dark, burnt, or has a gritty texture, it's a strong indicator that it needs changing.

Choosing the Right Transmission Fluid for Your Jeep Wrangler

Using the correct type of transmission fluid is paramount. Jeep Wranglers come with either manual or automatic transmissions, each requiring specific fluid types. It's crucial to consult your owner's manual for the exact specifications for your model year and transmission type. Here's a general guide:

Jeep Wrangler Transmission Fluid Types by Model:

Note: The fluid types listed are general guidelines. Always verify the exact fluid specification for your specific Jeep Wrangler model and year in your owner's manual.

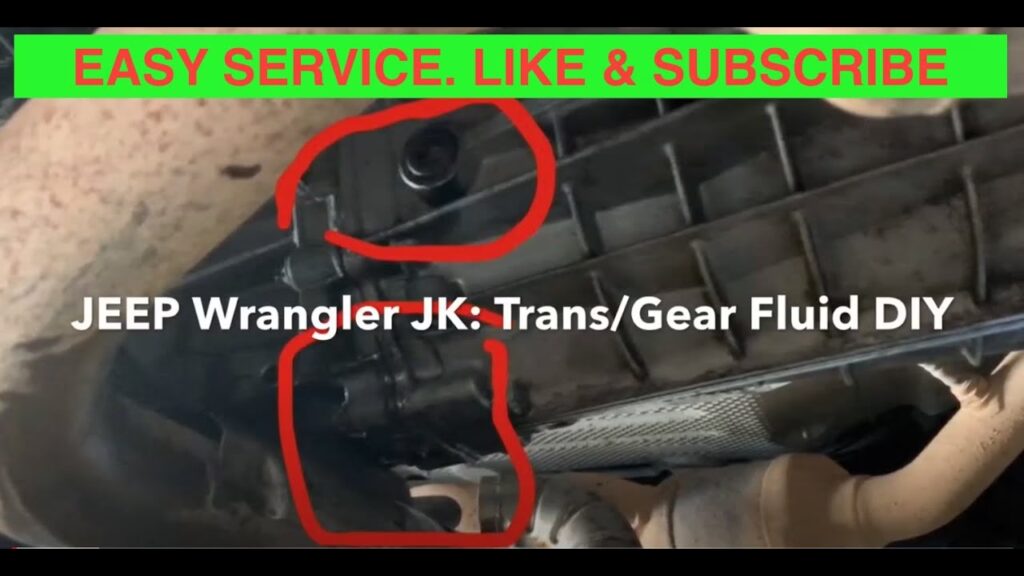

How to Change Your Jeep Wrangler Transmission Fluid (DIY Guide)

Changing your transmission fluid is a manageable DIY task for many owners. You'll typically need around 4 quarts of fluid, but always confirm the capacity for your specific Jeep. Never overfill the transmission.

Materials You'll Need:

• Correct type and quantity of transmission fluid
• New transmission filter and gasket (highly recommended)
• Socket wrench set
• Drain pan
• Funnel
• Gasket scraper or razor blade
• Brake cleaner or solvent
• Compressed air (optional but helpful)
• Torque wrench
• Gloves and safety glasses

Step-by-Step Procedure:

1. Prepare the Vehicle: Park your Jeep on a level surface. For safety, engage the parking brake and consider using wheel chocks. It's best to perform this task when the transmission fluid is slightly warm (not hot) to ensure it drains easily.
2. Locate the Transmission Pan: Crawl underneath your Jeep and find the transmission pan. It's a large, usually rectangular metal pan at the bottom of the transmission.
3. Drain the Old Fluid: Position your drain pan beneath the transmission pan. Loosen the bolts holding the pan, starting from one side and working your way around. Leave one bolt at the top loosely in place to control the fluid flow and prevent the pan from dropping suddenly. Once most of the fluid has drained, carefully remove the remaining bolts and lower the pan.
4. Clean the Pan and Magnet: Carefully remove the transmission pan and its gasket. Inside the pan, you'll likely find a magnet designed to catch metal shavings. Remove the magnet and clean it thoroughly, along with the inside of the pan, using a solvent or brake cleaner. Ensure all old gasket material, oil residue, and metal flakes are removed.
5. Replace the Filter and Gasket: Locate the transmission filter inside the transmission housing. It's usually held in place by clips or bolts. Remove the old filter and install the new one, ensuring it's properly seated. Clean the mating surface on the transmission housing where the pan gasket sits. Install the new gasket onto the transmission pan.
6. Reinstall the Pan: Carefully reattach the transmission pan with the new gasket. Tighten the bolts evenly in a star pattern to ensure a good seal. Refer to your service manual for the correct torque specifications (typically around 15 ft-lbs).
7. Refill with New Fluid: Locate the transmission fluid dipstick tube (often near the oil dipstick, check your manual). Insert a funnel and carefully add the specified amount of new transmission fluid. Do not overfill. Start with slightly less than the recommended capacity and check the level.
8. Check Fluid Level: Start the engine and let it idle for a few minutes. While the engine is running and the Jeep is in 'Park' (with the parking brake still engaged), check the transmission fluid level using the dipstick. Add fluid as needed, checking frequently, until the level reaches the 'Full' mark.
9. Test Drive: Take your Jeep for a short test drive, shifting through all gears (including reverse). Listen for any unusual noises and feel for smooth gear changes. Check for any leaks after the drive.
10. Proper Disposal: Dispose of the old transmission fluid responsibly. Many auto parts stores and local recycling centres accept used automotive fluids. Never pour it down drains or onto the ground.

Transmission Fluid Leaks: What to Look For and Potential Causes

Transmission fluid leaks can manifest in various ways and indicate underlying issues. Common leak points include:

• Axle Seals: Leaks where the axle shafts enter the transmission.
• Shift Solenoid Gasket: Leaks around the solenoid, often due to worn gaskets.
• Speed Sensor Case: Leaks near the speed sensor, sometimes caused by fluid overflow in the transfer case.
• Front Pump Seal: Particularly common in high-mileage Jeeps due to wear from heat and friction.
• Transmission Cooler and Hoses: Wear and tear on cooler lines or clamps can lead to leaks.
• Torque Converter: Damage to internal components can cause leaks, often requiring replacement of the entire unit.

If you suspect a leak, it's crucial to address it promptly. Driving with low transmission fluid can severely damage the transmission. Minor seal leaks might cost $150-$600 to repair, while more significant issues like a torque converter replacement can cost upwards of $1,000.

Frequently Asked Questions (FAQs)

Q1: Can I use a universal transmission fluid?
It's strongly advised against using universal fluids. Always use the specific type recommended in your Jeep Wrangler's owner's manual to ensure compatibility and prevent potential damage.

Q2: My Jeep Wrangler is over 100,000 miles. Is it too late to change the transmission fluid?
No, it's generally not too late. While very old, degraded fluid can sometimes cause issues when disturbed, changing it is usually beneficial. If you're concerned, consult with a trusted mechanic about the best approach.

Q3: Does changing the transmission fluid improve fuel economy?
Yes, clean and properly functioning transmission fluid contributes to optimal transmission performance, which can indirectly improve fuel efficiency.

Q4: How can I check my Jeep Wrangler's transmission fluid level?
With the engine running and the Jeep in Park or Neutral (check your manual), locate the transmission dipstick. Remove it, wipe it clean, reinsert it fully, and then pull it out again to check the fluid level. Ensure it's within the 'Full' or 'Hot' range.

Conclusion

Regularly changing your Jeep Wrangler's transmission fluid is a cornerstone of effective vehicle maintenance. By understanding the importance of this fluid, adhering to the recommended service intervals, and knowing how to perform the change or when to seek professional help, you can significantly extend the life of your transmission and ensure your Jeep continues to tackle any adventure you throw at it. Don't neglect this vital fluid – your Jeep will thank you for it!
