DIY Jeep JK Wrangler Oil Change & Reset Guide

Maintaining your Jeep JK Wrangler is key to its longevity and performance, and one of the most fundamental tasks is a regular engine oil change. While it might seem tempting to leave this to a professional, performing the task yourself offers unparalleled peace of mind, knowing the job has been completed to your exacting standards. This guide provides a detailed, step-by-step process for changing the engine oil and, crucially, resetting the oil service indicator on your 2007 to present JK Jeep Wrangler. With a few common tools and a bit of dedication, you'll not only save a trip to the garage but also gain immense satisfaction from handling your own vehicle's upkeep.

Engine oils are the lifeblood of your vehicle, diligently working to reduce engine wear by lubricating the myriad of friction surfaces within its complex internal components. Beyond mere lubrication, modern engine oils are formulated with numerous detergents and dispersants designed to combat the formation of harmful sludge and keep the engine pristine. However, even the most advanced oils degrade over time and with use, losing their protective qualities. This necessitates regular maintenance intervals. While some manufacturers advocate for extended drain intervals with synthetic oils, many enthusiasts and mechanics firmly believe that a traditional 3,000 to 5,000-mile interval remains optimal, especially for Jeeps frequently operated in severe driving conditions, such as off-roading or heavy towing. If you're ready to roll up your sleeves and ensure your Jeep receives the best care, follow these comprehensive instructions.

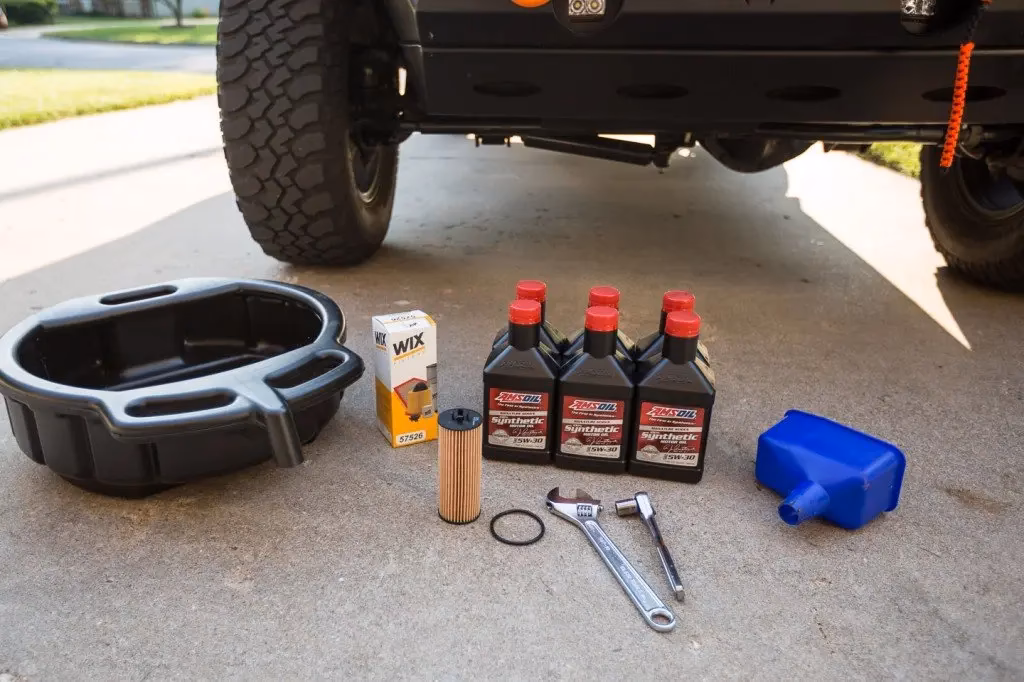

Essential Tools and Materials

Before you begin, gather all necessary items to ensure a smooth and efficient oil change. Having everything on hand will prevent unnecessary interruptions.

• 13mm and 24mm sockets
• Ratchet and extension
• Torque wrench
• Two oil catch pans (one for draining, one for potential spills)
• Funnel
• Plenty of shop rags or old towels
• 6 quarts of the manufacturer-recommended engine oil
• New oil filter (ensure it's correct for your engine type)
• Oil filter wrench (optional, but highly recommended for spin-on filters)
• Floor jack and jack stands (optional, for improved access)

Preparing for the Oil Change

For optimal drainage, it's best to perform an oil change when the engine oil is warm. This allows the oil to flow more freely and helps suspend any deposits, ensuring they drain out rather than remaining in tight crevices. Start your Jeep and let it run for about 5-10 minutes, then shut it off before you begin.

Park your Jeep on a level surface. While not strictly required, some individuals prefer to lift their Jeep for better access to the underside of the vehicle. If you opt for this, ensure you use a reliable floor jack and securely place jack stands under the vehicle's frame for safety. Never work under a vehicle supported solely by a jack.

Step 1: Drain the Engine Oil

Once your Jeep is safely positioned, locate the engine oil pan beneath the vehicle. Position your primary oil catch pan directly underneath the oil pan drain plug.

1. Using a 13mm socket and ratchet, carefully remove the oil pan drain plug. Be prepared for the oil to start draining immediately.
2. Allow the engine oil to drain completely into the catch pan. This process can take several minutes.
3. While the oil is draining, you can proceed with replacing the oil filter.

Pro Tip: It's often beneficial to remove the oil filter while the drain plug is still out. This can allow an additional amount of oil to drain through the pan drain hole that might otherwise remain if you reinstall the drain bolt before changing the filter.

Step 2: Replace the Oil Filter

The location and type of oil filter vary depending on your Jeep JK Wrangler's engine. It's crucial to identify which engine your vehicle has to ensure you follow the correct procedure.

For 3.6L Pentastar V6 Engine (2012+)

The oil filter for this engine is conveniently located on the topside of the engine, nestled under the engine cover. This design makes it a relatively clean and straightforward task.

1. Carefully remove the engine cover. Typically, you can do this by lifting the front edge and then pulling the entire cover forward and upward. Set the cover aside in a safe place.
2. Locate the oil filter cap. Using a 24mm socket, ratchet, and an extension, loosen and remove the oil filter cap. Have a small catch pan or some rags ready, as a small amount of oil may drip when the cap is removed.
3. With a catch pan handy, gently lift the oil filter cap and the attached filter element from the filter housing.
4. Replace the O-ring on the oil filter cap with the new one provided with your new filter. Also, replace the filter element itself; it simply pops into place on the cap. Apply a light coat of fresh oil to the new O-ring before re-installing it to ensure a proper seal and prevent pinching.
5. With the new filter element and O-ring in place, carefully re-install the filter cap. Hand-tighten it first, then use your torque wrench to tighten the filter cap to approximately 18 ft/lbs. Do not over-tighten, as this can damage the housing.

For 3.8L EGH V6 Engine (2007-2011)

The oil filter for this engine is a traditional spin-on canister type, located on the lower front side of the engine, next to the crank pulley, typically on the passenger's side. It's often best accessed from the topside of the engine bay, reaching down.

1. Position a catch pan directly below the oil filter. Even if you've drained the pan, more oil will spill from the filter.
2. Using an oil filter wrench (recommended), loosen and remove the old filter. If you don't have a wrench, a large set of pliers might work, or you might be able to loosen it by hand if it's not too tight.
3. Once the old filter is off, clean the mounting surface on the engine block to ensure no debris will interfere with the new seal.
4. Apply a small amount of fresh oil to the rubber seal of the new oil filter. This lubrication helps create a good seal and prevents the filter from sticking when it's time for the next change.
5. Carefully spin the new filter onto the engine block. Hand-tighten the filter until it bottoms out (you feel resistance), then give it an additional 1/4 to 1/2 turn. This 'snug plus a quarter turn' rule of thumb helps prevent both over-tightening and potential damage to the filter housing, as well as under-tightening which could lead to leaks.
6. With the new filter in place, clean any oil that may have spilled onto the front axle or other components.

Step 3: Fill Engine with Fresh Oil

With the old oil fully drained and the new oil filter securely in place, it's time to replenish your engine with fresh, clean oil.

1. Re-install the oil pan drain plug. Ensure it's clean and the washer (if applicable) is in good condition. Torque the drain plug to 20 ft/lbs. Do not over-tighten, as this can strip the threads in the oil pan.
2. Locate and remove the oil filler cap on top of the engine.
3. Using a funnel, carefully pour approximately six quarts of your preferred engine oil into the filler neck. Always refer to your owner's manual for the exact oil capacity and recommended viscosity (e.g., 5W-20, 5W-30) and API rating for your specific engine.
4. Once all the oil has been added, replace the oil filler cap securely.

Step 4: Start Engine and Inspect for Leaks

This critical step ensures that oil circulates properly and that there are no leaks from your newly installed components.

1. Start the engine. The oil pressure warning light on your dashboard should extinguish within a few seconds as oil pressure builds. If it stays on, shut off the engine immediately and investigate.
2. While the engine is running, carefully inspect the oil pan drain bolt and the oil filter/filter housing for any signs of leaks. Look for drips or puddles forming underneath the vehicle.
3. Allow the engine to run for several minutes to circulate the new oil thoroughly throughout the engine.
4. Shut the engine off and let it sit for at least five minutes. This allows the oil to settle back into the oil pan.
5. After five minutes, pull the engine oil dipstick, wipe it clean, re-insert it fully, and then pull it out again to check the engine oil level. It should be between the 'min' and 'max' marks. Add a small amount of oil if necessary, but be careful not to overfill.

Step 5: Reset the Oil Service Indicator

After successfully changing your oil, the last step is to reset the oil service indicator light on your dashboard. This light reminds you when an oil change is due and needs to be manually reset after each service.

1. Turn the ignition switch to the ON position. Do not start the engine. All dashboard lights should illuminate.
2. With the ignition switch in the ON position, fully depress the accelerator pedal three times within 10 seconds. Ensure you press the pedal all the way to the floor each time.
3. Turn the ignition switch to the OFF position.
4. Start the engine. The oil service indicator light should now be off.

Pro Tip: If the oil service indicator is still present the next time the vehicle is started, it means the reset procedure was not properly completed. Simply repeat the steps above, ensuring the accelerator pedal is fully depressed three times within the specified timeframe.

Understanding Engine Oil and Its Importance

Engine oil is more than just a lubricant; it's a complex fluid vital for your engine's health. Its primary functions include reducing friction and wear between moving parts, helping to cool the engine by transferring heat away from critical components, and cleaning the engine by suspending dirt, sludge, and contaminants. Over time, heat, friction, and combustion by-products cause oil to break down, lose viscosity, and become less effective at its job. This is why regular oil changes are non-negotiable for engine longevity. Using the correct type and viscosity of oil, as specified in your Jeep's owner's manual, is equally important. Most JK Wranglers typically use a 5W-20 or 5W-30 synthetic blend or full synthetic oil, adhering to specific API (American Petroleum Institute) or ACEA (European Automobile Manufacturers' Association) standards.

Comparative Table: Engine Oil Filter Locations

Understanding where your oil filter is located is the first step in a successful filter change. Here's a quick comparison for the two common JK Wrangler engines:

Frequently Asked Questions (FAQs)

Q: How often should I change the oil in my Jeep JK Wrangler?

A: For most JK Wranglers, the manufacturer recommends an oil change every 7,500 to 10,000 miles or every 6-12 months, whichever comes first, especially if using synthetic oil. However, if you frequently drive in severe conditions (e.g., off-roading, towing, extreme temperatures, dusty environments, or short trips), many experts recommend reducing this interval to every 3,000-5,000 miles to ensure optimal engine protection.

Q: What type of oil should I use for my Jeep JK?

A: Always consult your owner's manual for the precise oil type and viscosity recommended for your specific engine and model year. Generally, the 3.8L V6 often uses 5W-20, while the 3.6L Pentastar V6 typically uses 5W-20 or 5W-30, usually a synthetic blend or full synthetic, meeting specific Chrysler material standards (e.g., MS-6395).

Q: Can I use conventional oil instead of synthetic?

A: If your owner's manual specifies synthetic or synthetic blend, it's best to stick with that. While conventional oil might be cheaper, it doesn't offer the same level of protection, especially in modern engines with tighter tolerances and higher operating temperatures. Using an incorrect oil type can potentially lead to increased wear and reduced engine lifespan.

Q: What should I do with the old engine oil?

A: Old engine oil is a hazardous waste and must be disposed of properly. Do not pour it down drains or onto the ground. Most auto parts stores, quick lube shops, and local recycling centres accept used motor oil for recycling free of charge. Store it in a sealed container, such as the old oil bottles, until you can dispose of it.

Q: What if the oil light doesn't reset after following the procedure?

A: If the oil service indicator light remains on after your first attempt, repeat the reset procedure carefully. Ensure the ignition is in the ON position (engine not running), and that you fully depress the accelerator pedal three times within 10 seconds. If it still doesn't reset after multiple attempts, there might be an underlying issue that requires professional diagnosis, though this is rare for a simple reset failure.

Q: Is it necessary to use a torque wrench for the drain plug and filter cap?

A: While many DIY mechanics might skip it, using a torque wrench is highly recommended. Over-tightening can strip threads or crack housings, leading to costly repairs. Under-tightening can cause leaks. A torque wrench ensures fasteners are tightened to the manufacturer's precise specifications, providing peace of mind and preventing future problems.

Conclusion

Performing an oil change on your Jeep JK Wrangler is a rewarding experience that puts you in control of your vehicle's maintenance. By following these detailed steps, you can ensure your engine receives the fresh oil it needs to operate efficiently and reliably. Remember, regular maintenance is the cornerstone of vehicle longevity, and mastering this fundamental task is a significant step towards becoming a more confident and capable Jeep owner. Enjoy the satisfaction of a job well done, and happy trails in your well-maintained Wrangler!
