DIY Brake Pad & Rotor Replacement Guide

Maintaining your vehicle's braking system is paramount for your safety and the safety of others on the road. While it might seem like a daunting task, changing your brake pads and rotors can be a straightforward DIY job, saving you a significant amount of money on garage labour costs. This comprehensive guide will walk you through the process, ensuring you have the knowledge and confidence to tackle this essential maintenance task with precision and care. Remember, proper braking system maintenance is key to reliable stopping performance.

Why and When to Change Your Brakes

Brake pads and rotors are wear items, meaning they are designed to gradually wear down over time and use. Their degradation is a natural part of the braking process. Recognising the signs of wear is crucial for timely replacement and preventing more severe issues.

Signs of Worn Brakes:

• Squealing or Chirping: Often, brake pads come with a small metal wear indicator that makes a high-pitched squealing sound when the pads are worn down to a certain point. This is your first warning sign.
• Grinding Noise: If you hear a harsh, metallic grinding sound when braking, it means your pads are completely worn, and the metal backing plate is making direct contact with the rotor. This can rapidly damage your rotors and is a serious safety concern.
• Reduced Braking Performance: Your car might take longer to stop, or the brake pedal might feel spongy or require more effort to achieve the same stopping power.
• Vibration or Pulsation: A pulsating feeling through the brake pedal or steering wheel when braking, especially at higher speeds, typically indicates warped brake rotors.
• Visual Inspection: You can often visually inspect your brake pads through the wheel spokes. If the friction material looks very thin (typically less than 3mm), it's time for replacement. Rotors might show deep grooves, rust, or uneven wear.

It's generally recommended to inspect your brakes at least once a year or every 12,000 miles. Many manufacturers suggest replacing brake pads every 30,000 to 70,000 miles, but this can vary greatly depending on driving style and conditions.

Essential Tools and Materials

Before you begin, gather all the necessary tools and new components. Having everything ready will make the process smoother and safer.

Tools You'll Need:

• Jack and Jack Stands: Absolutely essential for safely lifting and supporting your vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the car from rolling.
• Lug Nut Wrench/Socket: For removing your wheel nuts.
• Socket Set and Ratchet: For various bolts, including caliper mounting bolts.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specified torque settings, preventing over or under-tightening.
• C-Clamp or Brake Caliper Piston Compressor Tool: To push the caliper piston back into its bore.
• Wire Brush: For cleaning rust and debris from mounting surfaces.
• Brake Cleaner: To clean off brake dust, grease, and residue.
• Gloves and Eye Protection: For personal safety.
• Bungee Cord or Sturdy Wire: To support the brake caliper once removed.
• Flat-Head Screwdriver or Pry Tool: For removing anti-rattle clips or freeing stuck pads.
• Suction Gun/Syringe (Optional but Recommended): To remove excess brake fluid from the master cylinder reservoir.

Materials You'll Need:

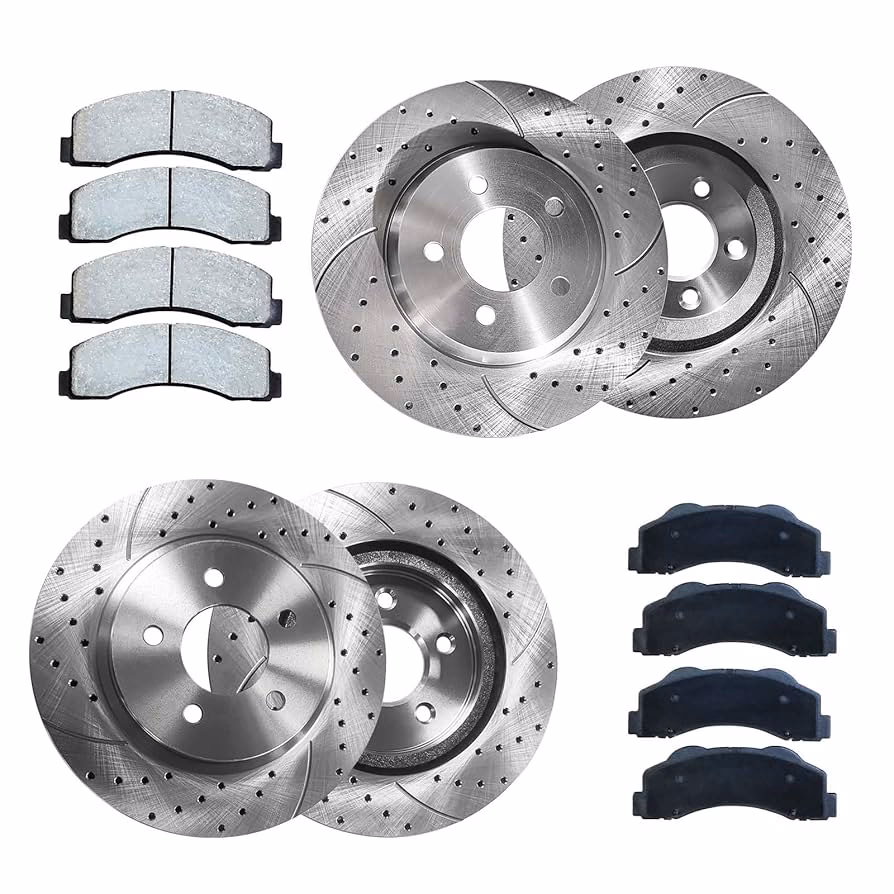

• New Brake Pads: Ensure they are the correct type and fit for your specific vehicle.
• New Brake Rotors: It's highly recommended to replace rotors when changing pads, especially if there's any sign of wear or warping.
• Brake Fluid: Have some fresh, correct-specification brake fluid on hand for topping up.
• High-Temperature Grease (Brake Lube): For caliper slide pins and contact points.

Safety First: Crucial Precautions

Working on your vehicle requires strict adherence to safety protocols. Brakes are a critical system, so take no chances.

• Always work on a flat, level surface.
• Engage the parking brake.
• Use wheel chocks on the wheels that remain on the ground.
• Always use jack stands to support the vehicle after lifting it with a jack. Never rely solely on the jack.
• Wear appropriate personal protective equipment, including gloves and eye protection.
• Never allow the brake caliper to hang by the brake hose; this can damage the hose and lead to brake failure.
• Be mindful of hot components if the car has recently been driven.

Step-by-Step Brake Pad and Rotor Replacement

This procedure focuses on front brakes, but the principles are largely similar for rear brakes, though some rear systems may incorporate a handbrake mechanism within the caliper or rotor assembly.

Preparation:

1. Loosen Wheel Nuts: While the vehicle is still on the ground, use your lug nut wrench to slightly loosen the wheel nuts on the wheel you'll be working on. Don't remove them yet.
2. Raise and Support Vehicle: Position your jack under the vehicle's designated jacking point. Lift the vehicle until the wheel is off the ground. Place jack stands securely under the vehicle's frame or designated support points, then slowly lower the vehicle onto the jack stands. Remove the jack, or keep it loosely under a jacking point as a redundant safety measure.
3. Remove Wheel and Tyre Assembly: Fully remove the loosened wheel nuts and carefully take off the wheel. Set it aside safely.
4. Address Brake Fluid Reservoir: This is a critical step often overlooked. The master cylinder reservoir cap is vented, so there's no need to remove it. However, if you've ever topped up your brake fluid reservoir when your pads were worn, the fluid level would have been high. When you push the caliper piston back in, this will cause the reservoir to overflow, creating a significant mess and potentially damaging your vehicle's paint. To prevent this, use a clean suction gun or syringe to drain a small amount of fluid from the master cylinder reservoir. Aim to bring the fluid level down to about halfway between the 'Min' and 'Max' marks.

Removing Old Components:

5. Remove Caliper Mounting Bolts: Locate the two caliper mounting bolts, usually on the back side of the caliper. These are often slide pins. Use the appropriate socket and ratchet to remove them.
6. Compress Caliper Piston and Remove Caliper: With the bolts removed, the caliper will be loose. Gently wiggle the caliper to free it from the rotor. If it's tight, use a flat-head screwdriver to gently pry between the rotor and the inboard pad to create some space. Once loose, carefully remove the caliper assembly. Do not let it hang by the brake hose! Use your bungee cord or sturdy wire to secure the caliper to a nearby suspension component (e.g., the coil spring or shock absorber) ensuring the brake hose is not under any strain.
7. Remove Anti-Rattle Clips and Old Pads: The brake pads will now be exposed. Note their orientation. Remove the anti-rattle clips (sometimes called pad retention clips) from the brake caliper adapter. Then, slide out the old inboard and outboard brake pads from the caliper adapter.
8. Remove Brake Rotor: The rotor might be held on by a small retaining screw (often a Phillips head) or simply be seized onto the hub by rust. If there's a screw, remove it. If it's rusted on, you might need to tap the rotor with a rubber mallet or even a regular hammer (on the hub mounting surface, not the braking surface) to break it free. Once loose, slide the old rotor off the wheel studs.

Cleaning and Preparation:

9. Clean Hub and Caliper Adapter: This is a crucial step for proper brake function. Use a wire brush to thoroughly clean all rust, dirt, and debris from the wheel hub surface where the rotor mounts. Any unevenness here can lead to rotor run-out and brake pulsation. Also, clean the anti-rattle clip mounting surfaces on the brake caliper adapter. Apply a thin layer of high-temperature grease to the caliper slide pins (if they are separate from the bolts) and ensure they move freely.

Installing New Components:

10. Install New Brake Rotor: Slide the new rotor onto the wheel studs, aligning any retaining screw holes if applicable. If there was a retaining screw, re-install it now.
11. Install New Anti-Rattle Clips: Install the new anti-rattle clips (they usually come with new pads) into the brake caliper adapter. Ensure they are seated correctly and securely.
12. Install New Brake Pads: Carefully slide the new inboard and outboard brake pads into the caliper adapter. Make sure they are oriented correctly (some pads are specific to inboard/outboard, or left/right sides). A thin layer of brake grease on the metal backing plate contact points can help prevent squealing.
13. Compress Caliper Piston (if not done earlier): Before re-installing the caliper, you'll need to push the caliper piston back into its bore to make space for the thicker new pads. Use your C-clamp or piston compressor tool. Place an old brake pad or a piece of wood against the piston to protect it and compress it slowly and steadily until it's fully retracted. This is where draining some fluid earlier prevents overflow.
14. Install Caliper on Caliper Adapter: Carefully slide the caliper back over the new pads and rotor, aligning it with the caliper adapter.
15. Install Caliper Slide Pin Bolts: Insert the caliper slide pin bolts and hand-tighten them. Then, use your torque wrench to tighten them to the specified torque of 44 N·m (32 ft. lbs.). Do not overtighten.

Final Steps:

16. Install Wheel and Tyre Assembly: Place the wheel back onto the studs, hand-tighten the wheel nuts.
17. Remove Support and Lower Vehicle: Raise the vehicle slightly with the jack to remove the jack stands. Slowly lower the vehicle to the ground.
18. Torque Wheel Nuts: Once the vehicle is on the ground, use your torque wrench to tighten the wheel nuts to the manufacturer's specified torque (usually between 100-140 N·m for most passenger cars, but check your owner's manual). Tighten in a star pattern to ensure even pressure.
19. Pump Brake Pedal: Before driving, get into the car and pump the brake pedal repeatedly until a firm pedal is obtained. This action pushes the caliper pistons out and seats the new brake pads against the rotors. The first few pumps will feel soft or go to the floor – this is normal. Keep pumping until it feels firm.
20. Fill Brake Fluid: Check the brake fluid level in the master cylinder reservoir. Top it up to the 'Max' line with the correct specification brake fluid if necessary. Replace the reservoir cap.

Bedding-In New Brakes

After installing new brake pads and rotors, it's crucial to 'bed them in'. This process transfers a thin, even layer of friction material from the pads to the rotors, optimising braking performance and preventing noise and judder. Failure to properly bed in new brakes can lead to reduced effectiveness, premature wear, and noise.

Bedding-In Procedure:

Find a safe, open road with no traffic. Perform about 10-15 moderate stops from around 60 mph down to 10 mph. Do not come to a complete stop during these runs. Allow a few seconds between stops for the brakes to cool slightly. After this, drive for several miles without applying the brakes much to allow them to cool down completely. Avoid harsh braking or extended heavy braking for the first 100-200 miles.

Common Questions About Brake Replacement

Q: Do I always need to replace the rotors when I change brake pads?

A: It's highly recommended. While it's possible to just replace pads if rotors are within specification and show no signs of warping or deep grooves, new pads need a perfectly flat and smooth surface to bed into effectively. Old rotors, even if within thickness limits, often have irregular wear patterns that can cause noise, pulsation, and reduced stopping power with new pads. For optimal performance and longevity, replacing both is best practice.

Q: How long does a brake pad and rotor replacement take?

A: For a DIY enthusiast, it can take anywhere from 1 to 3 hours per axle (both front or both rear wheels), depending on your experience level and how easily the bolts come off. The first time will always take longer.

Q: Can I just replace the brake pads on one wheel?

A: No. Brake pads and rotors should always be replaced in pairs across an axle (i.e., both front wheels or both rear wheels). Replacing only one side would lead to uneven braking force, potentially causing the vehicle to pull to one side when braking, which is a significant safety hazard.

Q: What if my brake pedal feels spongy after the replacement?

A: If the pedal feels spongy even after pumping it repeatedly, it might indicate air in the brake lines. This usually happens if a brake line was opened, or if the master cylinder reservoir ran dry. You may need to bleed the brake system to remove any trapped air. If you're unsure, consult a professional mechanic.

Q: Should I use anti-squeal compound on the back of the pads?

A: Some brake pads come with pre-applied shims or noise-dampening material. If not, a thin layer of high-temperature brake grease or anti-squeal compound on the metal backing plate (where it contacts the caliper piston and caliper bracket) can help prevent noise. Do NOT get any grease on the friction material itself.

By following these steps and paying close attention to detail, you can successfully replace your brake pads and rotors, ensuring your vehicle remains safe and reliable on the road. Remember, proper torque settings and the bedding-in process are critical for optimal performance and longevity of your new brake components. Drive safely!
