Fuel Pump Connection on Your Jeep: A Step-by-Step Guide
Connecting a fuel pump to your Jeep is a critical task for ensuring your engine receives a consistent supply of fuel. While the process might seem daunting, with the right guidance, it becomes a manageable DIY project. This guide will walk you through the essential steps, focusing on the wiring aspects, and will also touch upon the advantages of modern fuel injection systems for your beloved Jeep.
Understanding the Fuel Pump Wiring
The fuel pump, typically located within the fuel tank, requires a power source and a ground connection to operate. Modern aftermarket fuel pumps often come with a wiring harness designed for straightforward installation. The key is to correctly identify and connect the power and ground wires to your Jeep's electrical system. Generally, you'll be looking for specific coloured wires within the harness. For instance, the power wire is often a green wire with a black stripe, which needs to be connected to a suitable 12-volt switched power source. The ground wire, typically a black wire with an orange stripe, should be connected to a clean, unpainted metal surface on the Jeep's chassis for a solid ground connection. It's crucial to ensure these connections are secure and protected from the elements to prevent corrosion and electrical issues down the line.
Routing the Harness
Once the connections are identified, the next step is to properly route the wiring harness. The harness should be routed along the frame rail towards the rear of the Jeep. Strategic placement is essential to prevent the harness from being pinched, chafed, or exposed to excessive heat or moisture. Use the provided tie wraps to secure the harness at various points along its length. This not only keeps the wiring tidy but also protects it from damage during driving. Avoid routing the harness near moving parts like the driveshaft or exhaust system, as these can cause significant damage.
Securing the Connections
All electrical connections should be made using appropriate crimp connectors or solder and heat shrink tubing for a durable and weather-resistant finish. A poor connection can lead to intermittent fuel delivery or complete failure. Double-check that all connections are tight and insulated. If you're unsure about making these connections, consulting a wiring diagram specific to your Jeep model or seeking advice from a qualified mechanic is highly recommended.
Benefits of Computer-Controlled Fuel Injection

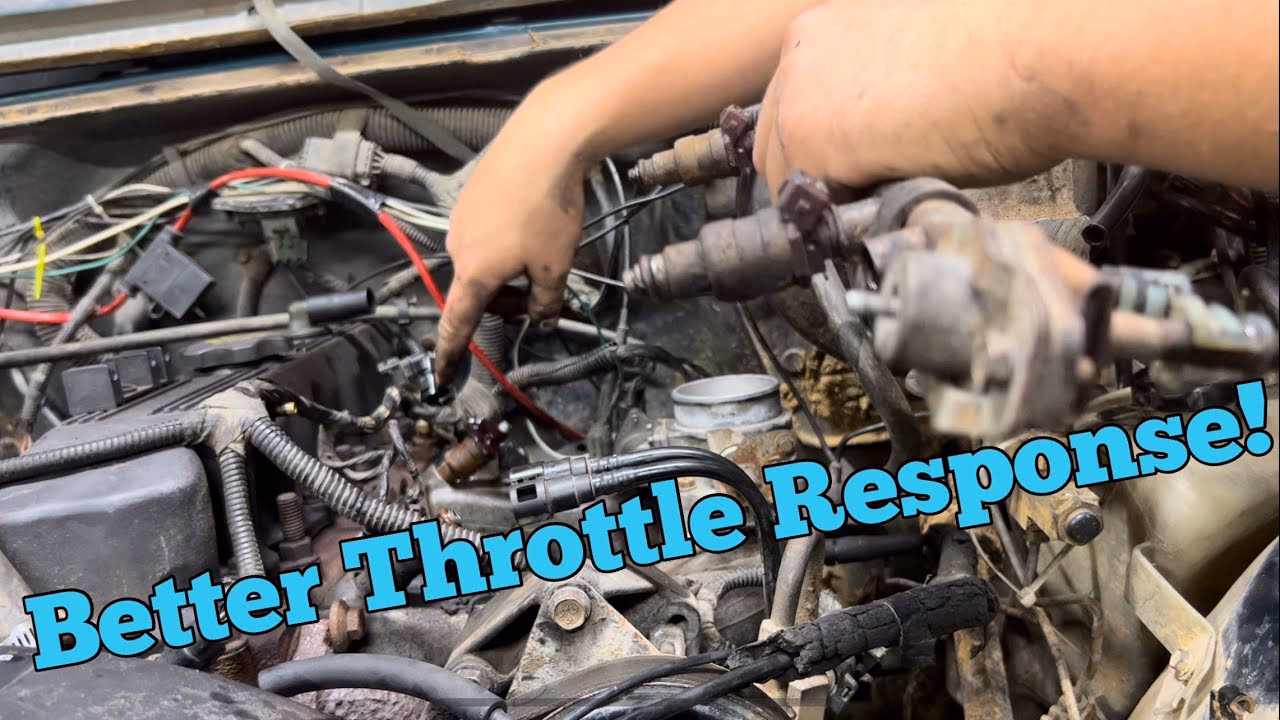

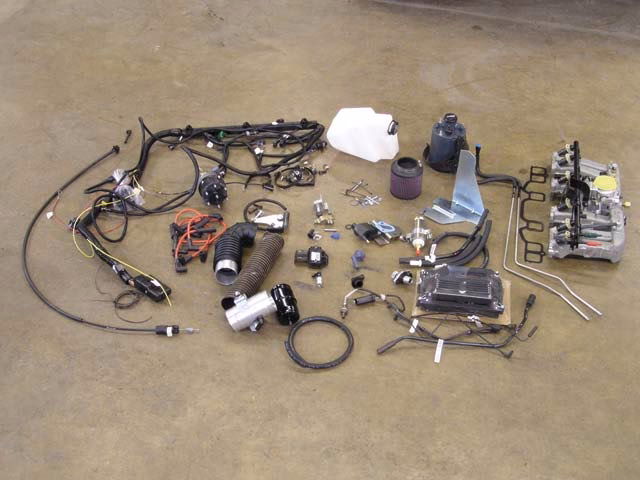

For older Jeeps, particularly those originally equipped with carburettors, upgrading to a computer-controlled fuel injection system, such as throttle body injection (TBI), can offer significant advantages. As one Jeep owner noted, the transition from a carburettor to TBI was a revelation. The process of removing old wiring and installing the new system can indeed be time-consuming, often taking several days, but the results are well worth the effort.
Improved Performance and Reliability
Fuel injection systems offer several benefits over traditional carburettors. They provide a more precise fuel-air mixture, leading to:
- Better Fuel Economy: The computer precisely controls the amount of fuel injected, optimising it for varying engine loads and conditions.
- Enhanced Power Output: A more efficient fuel burn can translate to increased horsepower and torque.
- Smoother Idle and Drivability: Fuel injection eliminates the tuning issues often associated with carburettors, resulting in a smoother idle and more responsive acceleration.
- Improved Cold Starts: Fuel injection systems are far more reliable in cold weather, eliminating the need for manual choke adjustments.
- Increased Reliability: With fewer moving parts and less susceptibility to vibration and temperature changes, fuel injection systems are generally more reliable and require less maintenance than carburettors.
A Real-World Example

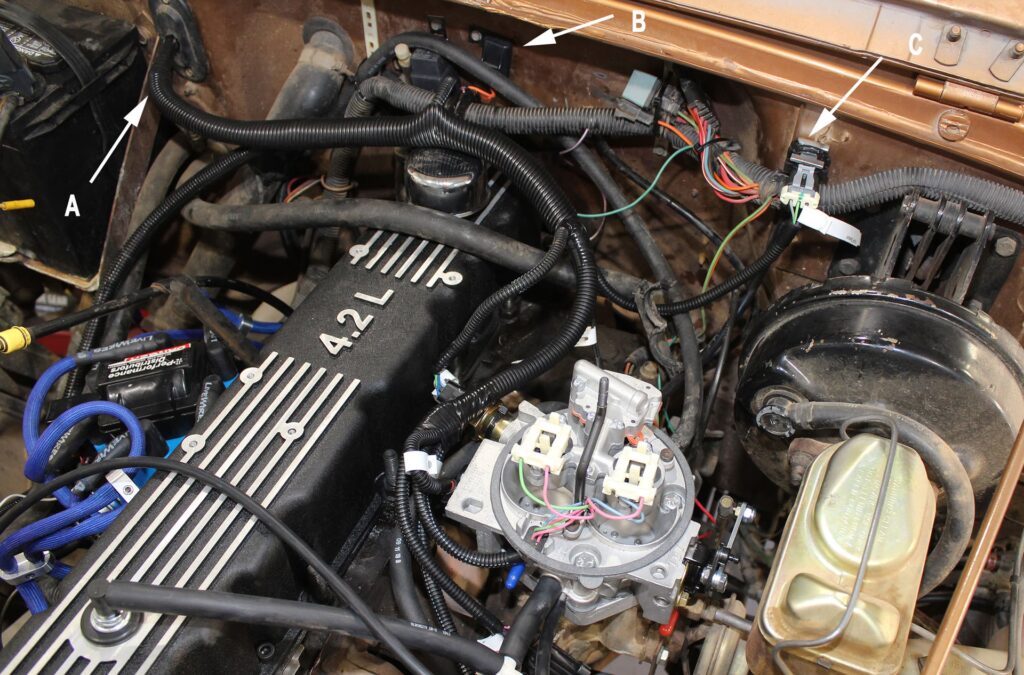

One owner of a 1988 YJ with the 258 engine shared their positive experience after upgrading to TBI. After carefully pulling the old wiring and meticulously rewiring their Jeep, they found it to be the best modification they had made. Having previously installed a Davis HEI distributor, they confirmed that the throttle body injection was vastly superior to the old carburettor setup. After two years of running the TBI system, they reported no problems and excellent reliability, highlighting the transformative impact of this upgrade.
Common Challenges and Troubleshooting
While the wiring itself might seem straightforward, there are a few common pitfalls to be aware of:
| Potential Issue | Possible Cause | Solution |
|---|---|---|
| Fuel pump not running | Loose or faulty ground connection | Ensure the ground wire is securely fastened to a clean metal surface. Check for continuity. |
| Intermittent fuel delivery | Poor electrical connection at the pump or harness | Inspect all crimp connections and splices. Ensure they are tight and insulated. |
| Fuel pump blows fuse | Short circuit in the wiring or faulty pump | Check the wiring for any signs of damage or exposed wires. Test the pump separately if possible. |
| Check engine light (if applicable to upgrade) | Incorrect sensor wiring or faulty sensor | Refer to the specific TBI kit's wiring diagram for sensor connections. Test sensors for proper resistance or voltage output. |
Frequently Asked Questions
Q1: What gauge wire should I use for the fuel pump?
A1: The gauge of wire required depends on the amperage draw of your specific fuel pump. Always refer to the fuel pump manufacturer's recommendations. Typically, a 12 or 14 gauge wire is suitable for most aftermarket fuel pumps, but it's best to confirm.
Q2: Where is the best place to get switched 12V power for the fuel pump?
A2: A good source for switched 12V power is often the ignition switch harness or a dedicated accessory circuit. It's important to tap into a circuit that is only live when the ignition is on to prevent the pump from draining your battery.
Q3: Do I need a relay for the fuel pump?
A3: Yes, it is highly recommended to use a relay for the fuel pump. The relay allows a lower amperage circuit (from your ignition switch) to control a higher amperage circuit (directly from the battery via a fuse) that powers the fuel pump. This protects your ignition switch and wiring from the higher current draw of the pump.
Q4: How do I know if my fuel pump is working?
A4: When you turn the ignition key to the 'on' position (without starting the engine), you should typically hear a faint humming or buzzing sound from the fuel tank area. This indicates the fuel pump is priming the system. You can also use a multimeter to check for voltage at the pump connector when the ignition is on.
Q5: Can I use the original fuel pump wiring if it's still in good condition?
A5: If you are replacing an existing fuel pump with a similar one and the original wiring is in excellent condition, you might be able to use it. However, if you are upgrading to a higher-performance pump or converting to fuel injection, it's often safer and more reliable to run new, appropriately sized wiring as per the new system's requirements.
In conclusion, correctly wiring your Jeep's fuel pump is a vital step in maintaining its performance and reliability. By following these guidelines and understanding the benefits of modern fuel systems, you can ensure your Jeep runs smoothly for many miles to come. Always prioritise safety and consult professional resources if you are in any doubt.
