For owners of the venerable 1993 Jeep Cherokee XJ, understanding the intricacies of its fuel system is paramount to maintaining its legendary reliability. Among the most critical components is the fuel injector wiring schematic. This often-overlooked network of wires is the lifeline that ensures your engine receives the precise amount of fuel it needs to operate efficiently. Without a clear grasp of how these wires are laid out and what their purpose is, diagnosing and repairing fuel delivery issues can quickly become a frustrating ordeal. This comprehensive guide aims to demystify the 1993 XJ 4.0L injector wiring, providing you with the knowledge and steps necessary to troubleshoot and rectify common problems, keeping your beloved XJ on the road where it belongs.

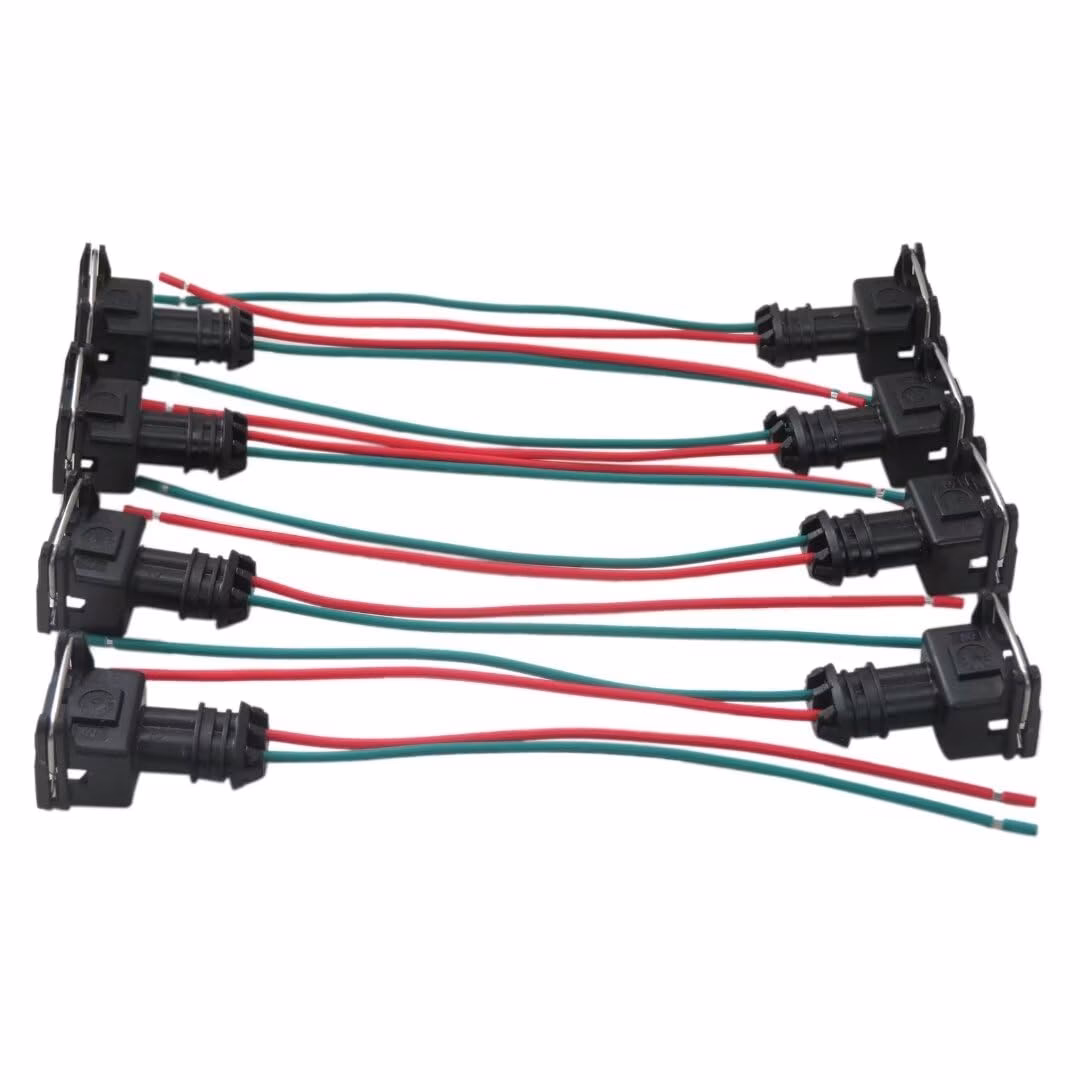

Why isn't my fuel injector harness working?
The voltage between the pins on the #2 connector is 13.47 volts, indicating stray voltage is getting into that circuit. Upon inspecting the fuel injector harness loom, I found melted wires exposing the conductors.

At the heart of any modern internal combustion engine, including the robust 4.0-litre inline-six found in the 1993 Jeep XJ, is the fuel injection system. Unlike older carburettor setups, fuel injection precisely atomises and delivers fuel directly into the engine's intake manifold or cylinders. This precision is controlled by the Powertrain Control Module (PCM), the vehicle's central computer, which constantly monitors various sensors to determine the optimal fuel delivery. The fuel injectors themselves are essentially electronically controlled valves that open and close rapidly to spray fuel. Their operation relies entirely on a sophisticated electrical signal received via the wiring harness. Any interruption or corruption in this signal can lead to a myriad of performance issues, from rough idling and misfires to a complete no-start condition. Therefore, comprehending the electrical pathways that feed these vital components is not merely helpful, but absolutely essential for effective diagnosis and repair.

The Heart of the System: Fuel Injectors and Their Electrical Connection

Each fuel injector on your 1993 XJ's 4.0L engine requires two distinct electrical connections to function. The first is a constant 12-volt power supply, which is typically provided to all injectors from a common source, often via a relay controlled by the ignition switch. This ensures that the injectors always have power readily available when the engine is running or being cranked. The second, and arguably more complex, connection is the ground signal. Unlike a traditional switched ground, this ground is pulsed rapidly by the PCM. The duration of this ground pulse, known as the "pulse width," determines how long the injector stays open and, consequently, how much fuel is delivered. This precise control allows the PCM to finely tune fuel delivery based on engine load, RPM, temperature, and other factors. Understanding this dual wire setup – a constant power feed and a pulsed ground – is fundamental to diagnosing injector circuit issues.

Deciphering the 1993 XJ Injector Wiring Schematic: Key Wires and Their Functions

While a complete, detailed wiring diagram would be extensive, focusing on the core wires for the fuel injectors in your 1993 XJ 4.0L can significantly aid troubleshooting. Generally, each injector will have two wires. One wire will be common to all injectors, supplying the constant 12-volt power. The other wire, unique to each injector, will carry the ground pulse from the PCM. Identifying these specific wires is crucial for pinpointing faults. Based on common configurations for this era of Jeep Cherokee, you'll often find a consistent colour for the 12-volt supply wire across all injectors.

What is the 1993 XJ injector wiring schematic?
The 1993 XJ 4.0 Injector Wiring Schematic is a critical component for any mechanic or DIYer attempting to diagnose and repair the fuel system on an XJ model Jeep. This wiring schematic provides step-by-step instructions for connecting and troubleshooting the injector wiring harness, ensuring that all components are functioning properly.

For instance, a common wire colour for the 12-volt power supply to the injectors on a 1993 XJ 4.0L is Dark Green/Light Green. This wire provides the necessary constant power when the ignition is on. If this wire is damaged or loses continuity, all injectors downstream from the fault will likely cease to function, leading to a no-start or severe misfire. Conversely, the individual wires that carry the ground pulse from the PCM to each specific injector will typically have unique colours, allowing the PCM to control each injector independently. For example, the user information indicates that the wire for the #2 injector driver is often Tan. Each of the six injectors will have its own dedicated control wire leading back to the PCM.

To summarise the general wiring principle for each injector:

Wire TypeTypical FunctionCommon Colour (1993 XJ 4.0L Example)Source/Destination
Power SupplyProvides constant 12-volt positive (+) feed to the injector when ignition is on.Dark Green / Light GreenFuel Injector Relay / PCM (via relay)
Control SignalCarries the pulsed ground (-) signal from the PCM to activate the injector.Varies per injector (e.g., Tan for #2 injector)Powertrain Control Module (PCM)

It is paramount to consult a specific service manual or a verified wiring diagram for your exact vehicle's trim and production date, as wire colours can sometimes vary slightly, though the fundamental two-wire principle remains consistent.

Common Issues and Why Your Injector Harness Might Fail

The fuel injector wiring harness in your 1993 XJ is constantly exposed to engine heat, vibrations, and sometimes even the elements, making it susceptible to various forms of degradation. Understanding these common failure points is key to effective diagnosis:

  • Physical Damage: Wires can become chafed, cut, or crushed due to rubbing against engine components, sharp edges, or improper routing. Rodent damage, where wires are chewed through, is also a surprisingly common culprit.
  • Corrosion: Over time, moisture and contaminants can lead to corrosion at the terminals within the injector connectors or where wires are spliced. This corrosion increases resistance, impeding the flow of electrical current and weakening the signal to the injector.
  • Short Circuits: This is a particularly problematic issue. A short circuit occurs when a live wire makes unintended contact with another wire, a ground point (like the engine block), or a power source. For instance, if the individual injector control wire (e.g., the Tan wire for injector #2) shorts to a 12-volt power source, it can prevent the PCM from effectively pulsing the ground signal, leading to that injector not firing. Worse, a short to power on a PCM-controlled ground wire can potentially damage the PCM itself, as the module expects to switch a ground, not handle a constant positive voltage.
  • Open Circuits: An open circuit means there's a break in the wire, preventing any current flow. This can happen internally due to fatigue, or externally due to a complete cut. An open circuit in the 12-volt supply will affect multiple injectors, while an open circuit in an individual control wire will only affect that specific injector.
  • Connector Degradation: The plastic connectors themselves can become brittle and crack, leading to loose connections. The pins inside the connectors can also become bent, pushed out, or corroded, resulting in intermittent or complete loss of signal.

When diagnosing, always consider the history of the vehicle. Has any recent work been done that might have disturbed the harness? Are there any visible signs of wear and tear?

Diagnostic Steps for Injector Wiring Problems

Before diving into complex electrical tests, always begin with the basics. Safety first: disconnect the battery's negative terminal before working on electrical components to prevent accidental shorts or damage.

What is the 1993 XJ injector wiring schematic?
The 1993 XJ 4.0 Injector Wiring Schematic is a critical component for any mechanic or DIYer attempting to diagnose and repair the fuel system on an XJ model Jeep. This wiring schematic provides step-by-step instructions for connecting and troubleshooting the injector wiring harness, ensuring that all components are functioning properly.
  1. Visual Inspection: Carefully inspect the entire fuel injector wiring harness, from the injectors back towards the PCM. Look for obvious signs of damage: frayed wires, melted insulation, rodent chew marks, or corroded connectors. Pay close attention to areas where the harness might rub against the engine or chassis.
  2. Check for 12V Power: With the ignition on (engine off, or cranking if testing during a no-start), use a multimeter set to DC volts. Connect the black lead to a known good ground (e.g., battery negative terminal or engine block). Probe the power supply wire (e.g., Dark Green/Light Green) at each injector connector. You should see approximately 12 volts. If not, trace this wire back towards the fuel injector relay and fuse box, checking for voltage at each point to isolate the break.
  3. Check for PCM Ground Pulse: This is slightly more complex. While cranking the engine, connect your multimeter's positive lead to the 12V power supply wire at the injector (the one you just verified). Connect the negative lead to the individual injector control wire (e.g., Tan for #2 injector). You should see a fluctuating voltage, typically from 0V to 12V, indicating the PCM is pulsing the ground. A more definitive test involves using a noid light, which is specifically designed to plug into the injector connector and flash when a pulse is detected. If there's no pulse, the issue could be an open circuit in the control wire, a faulty PCM, or a problem with the PCM's input sensors (e.g., crankshaft position sensor not sending a signal).
  4. Continuity Checks: With the battery disconnected and the PCM connector unplugged (consult a service manual for PCM connector location and pinout), use your multimeter set to continuity (ohms). Connect one lead to the injector control wire at the injector connector and the other lead to the corresponding pin at the PCM connector. You should read very low resistance (close to 0 ohms), indicating good continuity. Repeat for the 12V supply wire, tracing it back to its source. High resistance or an open circuit (OL or infinity) indicates a break in the wire.
  5. Resistance Check on Injectors: While not strictly a wiring schematic test, a faulty injector can mimic a wiring problem. With the injector unplugged, measure its resistance across its two terminals. Consult a service manual for the specified resistance range for your 1993 XJ's injectors (typically 12-16 ohms). An injector with significantly higher or lower resistance, or an open circuit, is likely faulty.

Repairing Damaged Wiring

When you've identified damaged wires, repairing them correctly is paramount for long-term reliability. Simply twisting wires together and taping them is a recipe for future failure due to corrosion and poor conductivity. The best practice involves:

  1. Cutting out the Damaged Section: Trim back the wires to expose clean, uncorroded copper.
  2. Soldering: For the most robust connection, solder the new wire segment in place. Use rosin-core electrical solder.
  3. Heat Shrink Tubing: After soldering, slide heat shrink tubing over the soldered joint and apply heat to shrink it, providing insulation and protection from moisture and abrasion.
  4. Proper Connectors: If a connector itself is damaged, consider replacing the entire connector and its pigtail. Avoid simply bypassing connectors if possible, as they are designed for specific electrical loads and environmental protection.
  5. New Wire Run: If damage is extensive or deeply embedded within the harness, running a new, dedicated wire from the injector directly to the PCM (after cutting out the old, problematic section from both ends) can be a more efficient and reliable solution than trying to patch multiple breaks. Ensure the new wire is of the correct gauge and routed away from heat sources and moving parts.

Always ensure your repairs are neat, secure, and properly insulated to prevent future short circuits or open circuits. A quality repair will ensure consistent performance and prevent recurring diagnostic headaches.

The Role of the Powertrain Control Module (PCM)

The PCM is the brain behind the fuel injection system. It processes inputs from various sensors (crankshaft position, throttle position, oxygen sensors, etc.) to calculate the precise timing and duration of the fuel injector pulses. Each injector's control wire leads directly back to a specific pin on the PCM. The PCM then grounds that pin for a calculated period to fire the injector. This precise control allows for optimal fuel economy and emissions. It's crucial to understand that the PCM provides the ground for the injector, not the 12-volt power. If an injector control wire, which the PCM is designed to ground, accidentally touches a constant 12-volt source, it can send an unexpected surge of voltage back into the PCM's delicate internal circuitry. This can potentially damage the driver circuit within the PCM responsible for that specific injector, or even more widespread damage. Therefore, when diagnosing shorts to power, it's vital to isolate the wire completely before re-testing, as continued shorting could exacerbate the problem and lead to a much more costly PCM replacement.

Prevention and Maintenance Tips

Proactive measures can significantly extend the life of your XJ's wiring harness and prevent future fuel system headaches:

  • Regular Visual Inspections: Periodically check the visible parts of the wiring harness for signs of wear, chafing, or corrosion, especially when performing other engine bay maintenance.
  • Proper Routing: Ensure all wiring harnesses are correctly secured in their clips and away from hot engine components, sharp edges, and moving parts like belts or fan blades.
  • Rodent Deterrence: If you live in an area prone to rodents, consider using ultrasonic deterrents or applying rodent-repellent sprays to the engine bay, as they are notorious for chewing through wiring.
  • Keep Connectors Clean and Dry: When working on the engine, avoid getting water or chemicals into electrical connectors. If they do get wet, ensure they are thoroughly dried before reconnecting.
  • Use Dielectric Grease: A small amount of dielectric grease on electrical connector pins can help prevent corrosion and ensure good electrical contact.
  • Avoid Over-Stressing Wires: When disconnecting components, pull on the connector body, not the wires themselves, to prevent pulling pins out or breaking internal wire strands.

Frequently Asked Questions (FAQs)

What tools do I absolutely need to diagnose injector wiring issues?
An essential tool is a multimeter capable of measuring DC voltage and resistance (ohms). A noid light kit is also highly recommended for quickly testing injector pulse signals. Additionally, basic hand tools like wire strippers, crimpers, and a soldering iron (if you plan to make robust repairs) will be invaluable.
Can I repair a damaged harness myself, or should I take it to a professional?
Many common wiring issues, such as chafed or corroded wires, can be successfully repaired by a DIY enthusiast with basic electrical knowledge and the right tools. However, complex issues, such as internal PCM damage or widespread harness degradation, might be best handled by a qualified automotive electrician. Always prioritise safety and your comfort level.
How do I test an injector itself, separate from the wiring?
You can test the injector's internal resistance using a multimeter set to ohms, across its two electrical terminals. Compare the reading to the manufacturer's specification (typically 12-16 ohms for 1993 XJ 4.0L injectors). An injector can also be flow-tested by a specialist shop, or a basic "click test" can be done by applying 12V power and ground to see if it audibly clicks, though this doesn't guarantee proper spray pattern or flow.
What if my PCM is damaged due to a wiring short?
If you suspect PCM damage (e.g., no pulse for a specific injector despite good wiring to the PCM), further diagnosis by a professional is recommended. PCM repair or replacement can be costly and may require programming. Ensure all wiring issues are resolved before installing a new PCM to prevent immediate re-damage.
Is the 1993 XJ fuel injector wiring schematic different from other XJ years?
While the fundamental principles of fuel injector operation (12V power + PCM ground pulse) remain consistent across many years, specific wire colours, connector pinouts, and harness routing can vary between model years and even different production runs. This article specifically addresses the 1993 XJ 4.0L. Always verify with a year-specific service manual or wiring diagram for your exact vehicle.

Mastering the 1993 XJ fuel injector wiring schematic is a significant step towards becoming proficient in maintaining your Jeep Cherokee. By understanding the roles of the power and control wires, knowing how to test them, and recognising common failure points, you can confidently diagnose and repair many fuel delivery issues that might otherwise lead to costly garage visits. Remember, patience, systematic troubleshooting, and a good multimeter are your best allies in keeping your XJ's engine running smoothly and reliably for years to come. With this knowledge, you're not just fixing wires; you're preserving a piece of automotive history.
