ECU Mapping: The Ultimate Guide

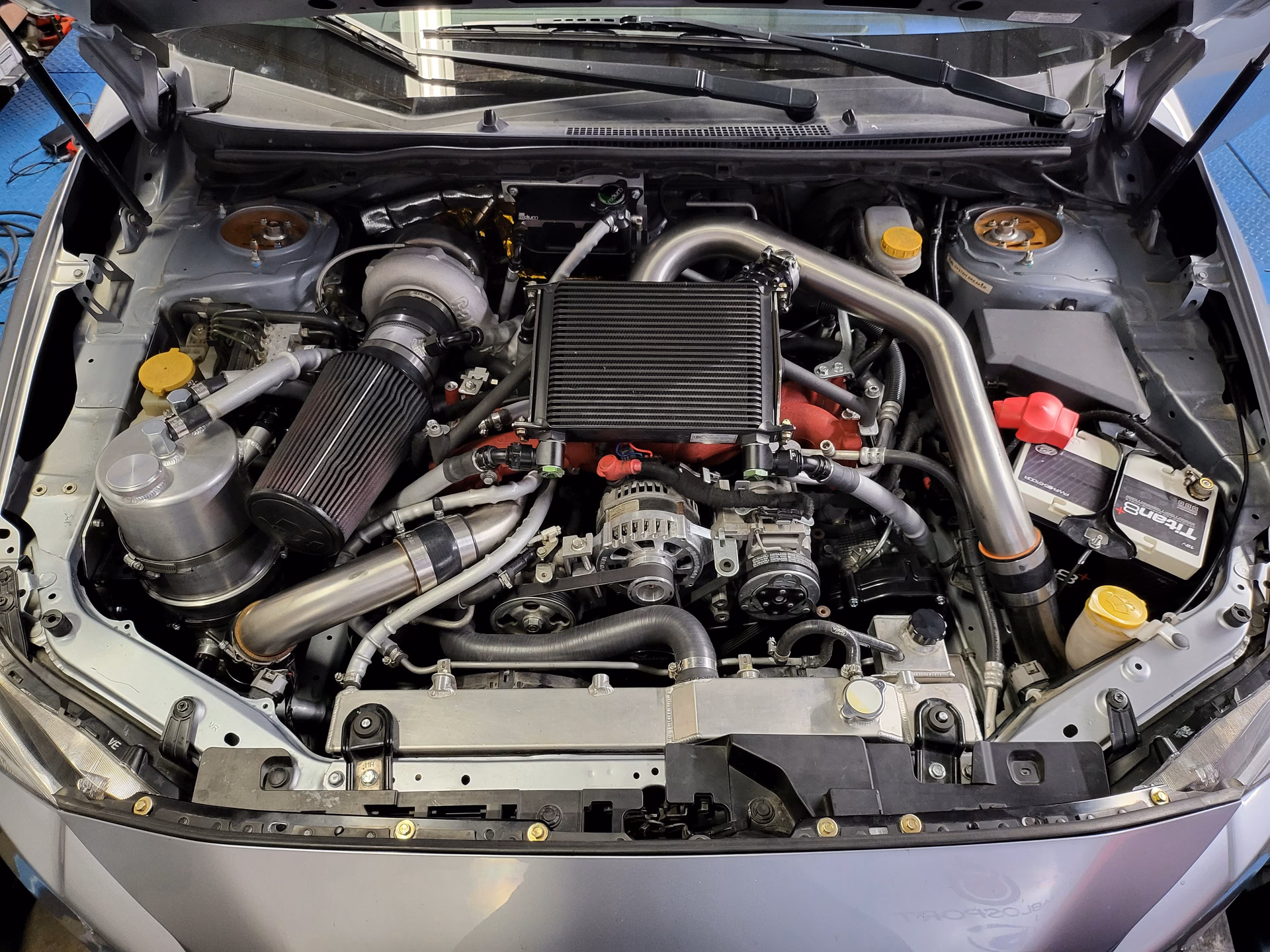

Understanding Advanced ECUs and ECU Mapping

In the realm of automotive performance, the term 'ECU mapping' often surfaces, accompanied by related phrases like 'car chip,' 'chip tune,' and 'piggyback ECU.' At its core, ECU mapping refers to the process of modifying the software within a vehicle's Engine Control Unit (ECU) to alter its performance characteristics. This can range from optimising fuel efficiency to extracting maximum power. While various solutions exist, a common approach involves an additional piece of hardware that interfaces with the existing vehicle architecture. This often leaves the original ECU intact, allowing for the removal of the 'chip' or hardware module at any time. Such hardware frequently works in conjunction with a pre-selected range of aftermarket parts, enabling owners to incorporate upgrades like improved intakes or turbochargers. Brands like COBB are prominent in this sector.

The Mechanics of ECU Mapping

The ECU is essentially the brain of your car, a sophisticated computer that manages a multitude of engine functions. It receives data from various sensors throughout the vehicle – such as those monitoring air intake temperature, engine speed, throttle position, and oxygen levels – and uses this information to calculate the optimal settings for fuel injection, ignition timing, and boost pressure (in turbocharged engines). ECU mapping involves reprogramming these parameters to achieve a desired outcome. This can be done through various methods, including:

• Direct ECU Reprogramming: This involves directly accessing and altering the original ECU's software. It's often considered the most comprehensive approach.
• Piggyback ECUs: As mentioned, these are separate modules that intercept signals between the original ECU and its sensors, or directly influence the ECU's output. They are typically easier to install and remove than direct reprogramming.
• Performance Chips: These are often small hardware devices that plug into the ECU's circuitry, modifying specific parameters.

Why Some Opt for Chip Tuning

Chip tuning, often synonymous with the 'piggyback' or 'performance chip' approach, has gained popularity for several reasons. Its perceived advantages often include:

• Accessibility and Ease of Installation: Many chip tuning solutions are designed for straightforward installation, often requiring minimal mechanical knowledge.
• Reversibility: The ability to easily remove the aftermarket hardware means that a vehicle can be returned to its factory settings, which can be beneficial for warranty purposes or when selling the vehicle.
• Cost-Effectiveness: Compared to full custom tuning, some chip tuning solutions can be more budget-friendly upfront.
• Compatibility with Modifications: As noted, these systems are often designed to work with specific sets of aftermarket parts, allowing users to tailor their performance upgrades.

Our Stance: Why We Don't Utilise Chipping at EKS

While chip tuning offers certain conveniences, at EKS, we believe it falls short of providing the optimal and safest performance enhancement for your vehicle. Our decision not to utilise this technology stems from a fundamental understanding of engine dynamics and the inherent limitations of pre-programmed solutions. Simply put, these off-the-shelf packages cannot account for every eventuality that a specific engine might present.

Every car, even when in stock condition, possesses its own unique set of characteristics. These nuances, often subtle, are critical and must be respected when making any performance adjustments. Furthermore, it's common for customers to be unaware of existing modifications made to their vehicle before purchasing a performance chip. This lack of complete knowledge means they may not fully understand the specific requirements of their engine map, leading to potential mismatches and suboptimal performance.

The Unforeseen Variables in Engine Tuning

Consider the example of a vehicle with a forged or closed-deck engine. The true nature of such an engine, including the specific materials and brands of internal components like pistons, can often only be definitively identified upon disassembly. While there might be some tell-tale signs, relying on visual inspection alone to ascertain these crucial details is inherently risky. Without precise knowledge of the engine's build, a generic tune could inadvertently place undue stress on components, leading to premature wear or failure.

Moreover, the environmental factors and driving conditions a vehicle is subjected to play a significant role. Altitude, ambient temperature, fuel quality, and even the type of driving (e.g., track days versus daily commuting) all influence how an engine performs and how it responds to tuning. A pre-programmed chip, by its nature, cannot dynamically adapt to these variables in real-time.

The Superiority of Full Dyno Mapping

Ultimately, we firmly believe that any adjustments related to engine performance demand a comprehensive approach, which can only be achieved through a full dyno map. A dynamometer, or 'dyno,' is a sophisticated piece of equipment that allows us to measure a vehicle's power and torque output directly while it's under controlled load. This is where the true art and science of engine tuning come into play.

Benefits of Dyno Tuning:

When a car is on the dyno, a multitude of advanced sensors can be employed to meticulously monitor the overall health and performance of the engine under full load conditions. These sensors provide critical real-time data, including:

• Air-Fuel Ratio (AFR): Crucial for ensuring the engine is running with the correct mixture of air and fuel. An incorrect AFR can lead to significant performance loss, increased emissions, and potential engine damage.
• Boost Pressure: For turbocharged and supercharged vehicles, precise boost control is paramount. The dyno allows us to fine-tune boost levels to maximise power without exceeding the safe operating limits of the engine and its components.
• Exhaust Gas Temperature (EGT): High EGTs are a strong indicator of excessive combustion temperatures, which can quickly lead to component failure. Monitoring EGTs allows for adjustments to prevent overheating.
• Knock Detection: Knock, or detonation, is a destructive phenomenon where the fuel-air mixture ignites prematurely in the cylinder. Dyno tuning allows for the detection and mitigation of knock through precise ignition timing adjustments.
• Ignition Timing: Optimising ignition timing is key to unlocking both power and efficiency. The dyno enables us to dial in the perfect timing for every operating condition.
• Throttle Position: Understanding how the engine responds to throttle input allows for smoother power delivery and improved drivability.
• Engine Speed (RPM): Monitoring RPM in conjunction with other parameters provides a complete picture of the engine's operational envelope.

By utilising this wealth of data, our expert technicians can create a bespoke engine map tailored specifically to your vehicle. This process involves iteratively adjusting parameters and observing the results on the dyno, ensuring that every modification is made with safety and optimal performance as the primary objectives. This meticulous approach guarantees that your vehicle not only achieves its performance potential but does so reliably and sustainably.

Comparing Tuning Methods: Chip vs. Dyno

To better illustrate the differences, let's consider a comparative table:

Frequently Asked Questions (FAQs)

Q1: Is ECU mapping legal?

The legality of ECU mapping can vary depending on your location and the specific purpose of the modification. In many regions, modifying your vehicle's ECU for performance purposes may affect its emissions compliance and could render it illegal for road use if it no longer meets regulatory standards. It's crucial to consult local regulations and ensure that any modifications comply with roadworthiness requirements.

Q2: Will ECU mapping void my car's warranty?

Yes, in most cases, ECU mapping, especially direct reprogramming, will likely void your manufacturer's warranty, particularly for the powertrain components. This is because the modifications fall outside the manufacturer's approved specifications. Chip tuning, being potentially reversible, might offer a slightly lower risk, but manufacturers can often detect if the ECU has been tampered with.

Q3: Can ECU mapping improve fuel economy?

Yes, ECU mapping can be tailored to improve fuel economy by optimising the air-fuel ratio and ignition timing for more efficient combustion. However, this is often balanced against performance gains. Aggressive performance tunes typically result in decreased fuel economy, while economy-focused tunes can yield improvements, especially under steady-state driving conditions.

Q4: What is the difference between a reflash and a piggyback ECU?

A 'reflash' refers to directly reprogramming the original ECU's software. A 'piggyback ECU' is a separate module that is installed alongside the original ECU, intercepting or modifying signals to influence engine behaviour. Reflashing is generally considered a more integrated and comprehensive approach, while piggybacks are often seen as a more accessible and less invasive option.

Q5: How long does a dyno tuning session take?

A typical dyno tuning session can take anywhere from a few hours to a full day, depending on the complexity of the vehicle, the extent of modifications, and the desired outcome. It involves multiple runs on the dyno, data analysis, and iterative adjustments to the ECU map.

Conclusion: The Path to Optimal Performance

While the allure of quick performance gains through chip tuning is understandable, the long-term benefits and safety of a properly executed dyno map are undeniable. At EKS, our commitment to excellence means we prioritise the health and longevity of your engine while unlocking its true performance potential. By investing in a comprehensive dyno tuning service, you ensure that your vehicle is calibrated with precision, taking into account all its unique characteristics and operating conditions. This meticulous approach not only delivers superior performance but also provides peace of mind, knowing your engine is running optimally and reliably.
