Jayco Wheel Alignment Explained

When it comes to caravan ownership, particularly those from the popular Jayco range, ensuring everything is in tip-top condition is paramount for safety and enjoyment. One area that often causes confusion, especially for those new to towing or performing their own maintenance, is wheel alignment. Specifically, many owners ask about the difference between a standard alignment procedure and what might be termed 'Jayco alignment', and what the critical specifications are. Furthermore, understanding how tight a tyre should be on a Jayco caravan is a fundamental aspect of safe towing.

Understanding Caravan Wheel Alignment

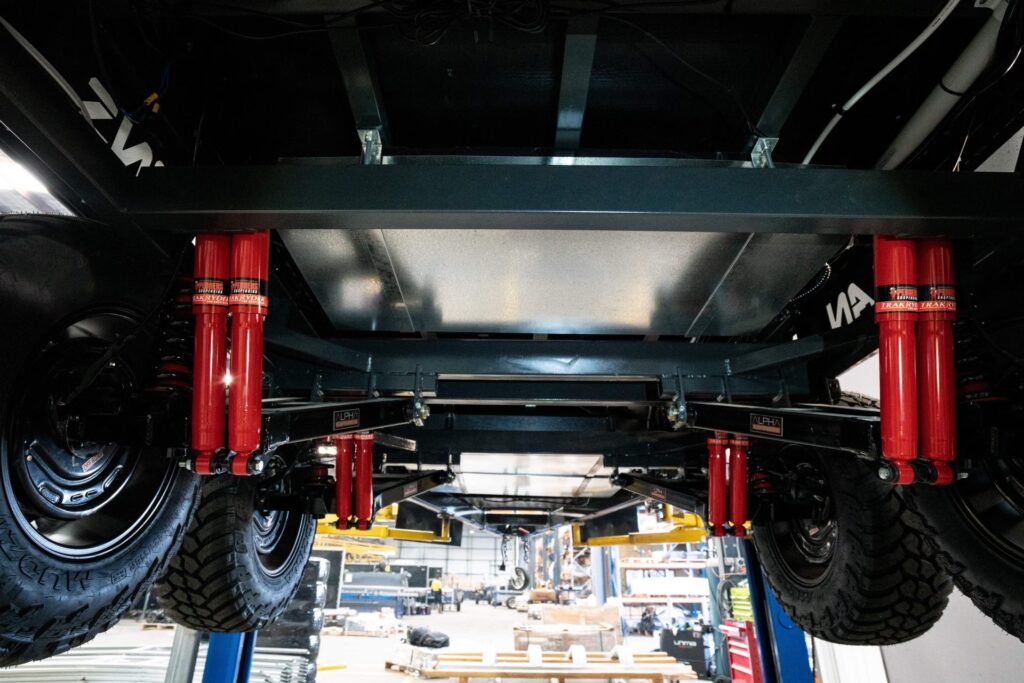

Wheel alignment, in essence, refers to the adjustments made to your vehicle's suspension and steering components to ensure the wheels are positioned correctly relative to each other and the road surface. For cars, this typically involves adjustments to camber, caster, and toe. For caravans, the primary concern is usually toe, which is the angle of the wheels relative to the vehicle's longitudinal axis. When viewed from above, if the front of the wheels are closer together than the back, it's called toe-in; if the back is closer, it's toe-out.

Jayco Alignment vs. Standard Alignment

The provided information highlights a specific aspect of Jayco's alignment procedure, focusing on the measurement of toe-in. The key difference often lies in the measurement point and the specific tolerances set by the manufacturer. While a general wheel alignment might measure toe across the entire wheel diameter or at different points, the Jayco specification mentioned is to set the toe-in from 2mm to a maximum of 5mm for a single axle or the front of a tandem axle setup.

This measurement is crucial because it's taken over a specific distance, implied to be 600mm. This means that over a 600mm length along the caravan's axle line, the front of the wheels should be between 2mm and 5mm closer together than the rear. This specific tolerance is designed to optimise tyre wear, stability, and towing characteristics for Jayco caravans.

Why is Toe-in Important for Caravans?

Correct toe-in on a caravan is vital for several reasons:

• Stability: A small amount of toe-in helps to keep the caravan tracking straight and prevents excessive 'wandering' or 'snaking' when being towed, especially at higher speeds or in crosswinds.
• Tyre Wear: While incorrect toe (either too much in or out) can cause rapid and uneven tyre wear, the specified range for Jayco aims to minimise this. Excessive toe-in can cause the outer edges of the tyres to wear down prematurely, while excessive toe-out can lead to inner edge wear.
• Towing Effort: Proper alignment reduces rolling resistance, making the caravan easier to tow and potentially improving fuel efficiency for the tow vehicle.

Tyre and Wheel Maintenance: The Cornerstone of Safety

As any seasoned caravanner will attest, your caravan's tyres are its only connection to the road. This makes their condition and maintenance absolutely critical for your safety. The ability to accelerate, brake, and steer effectively all depend on the health of your tyres and wheels. Neglecting tyre maintenance can lead to premature failure, including dangerous blowouts.

Essential Tyre Checks for Your Jayco

Regular and thorough tyre checks are not just recommended; they are essential. Here’s what you should be looking for:

1. Tyre Pressure: The Critical Factor

This is arguably the most important aspect of tyre maintenance. The correct tyre pressure ensures:

• Even Wear: Properly inflated tyres distribute the load evenly across the tread, preventing premature wear in the centre or on the shoulders.
• Load Carrying Capacity: Tyres are designed to carry a specific load at a specific pressure. Under-inflation can compromise this, leading to overheating and potential failure.
• Handling and Stability: Correct pressure contributes significantly to stable towing and predictable handling.

Always refer to your Jayco caravan's manual or the tyre placard (usually found on the caravan's chassis or drawbar) for the recommended tyre pressures. These pressures are often higher than those for passenger cars due to the significant loads caravans carry.

2. Tread Depth: Grip and Safety

Adequate tread depth is essential for grip, particularly in wet conditions. The legal minimum tread depth in most regions is 1.6mm across the breadth of the tyre. However, for optimal safety when towing a caravan, it's advisable to replace tyres well before they reach this legal minimum, perhaps when the tread depth reaches 3mm.

3. Visual Inspection: Looking for Damage

Regularly inspect your tyres for:

• Cuts and Cracks: Check the sidewalls and tread for any signs of damage, cuts, or cracking, which can indicate structural weakness.
• Bulges or Blisters: These are serious indicators of internal damage and require immediate tyre replacement.
• Uneven Wear Patterns: As discussed, this can point to alignment issues, incorrect inflation, or suspension problems.

4. Age of Tyres: The Hidden Danger

Tyres degrade over time, even if they appear to have plenty of tread. The rubber compounds can become brittle and lose their integrity. Most manufacturers recommend replacing tyres that are more than 5-6 years old, regardless of their condition. Check the tyre's sidewall for the DOT code, which includes the manufacturing date (the last four digits indicate the week and year of manufacture, e.g., '3521' means the 35th week of 2021).

How Tight Should a Tyre Be on a Jayco?

This question often relates to the tightness of the wheel nuts (lug nuts). It's crucial that wheel nuts are tightened to the correct torque specification. Over-tightening can damage the studs or the wheel itself, while under-tightening can lead to the wheel becoming loose and potentially detaching from the hub – a catastrophic failure.

Torque Specifications for Jayco Caravans

Jayco, like all manufacturers, will have specific torque settings for their wheel nuts. These are typically found in the owner's manual. If you do not have your manual, it is highly recommended to contact Jayco customer support or a qualified caravan service centre to obtain the correct torque value for your specific model.

General guidelines often suggest torque settings in the range of 100-150 Nm (Newton-metres) for caravan wheel nuts, but this can vary significantly. It is imperative to use a calibrated torque wrench to ensure accuracy. After travelling a short distance (e.g., 50-100 km) after fitting or re-fitting a wheel, it is good practice to re-check the torque of the wheel nuts.

Table: Key Jayco Alignment and Tyre Maintenance Points

Frequently Asked Questions (FAQs)

Q1: How often should I get my Jayco's wheel alignment checked?

It's recommended to have your caravan's wheel alignment checked annually, or if you notice any signs of uneven tyre wear, the caravan pulling to one side, or after hitting a significant pothole or curb.

Q2: Can I check my caravan's wheel alignment myself?

While you can visually inspect for obvious issues like severely misaligned wheels, precise alignment requires specialised equipment and expertise. It's best left to a professional workshop experienced with caravans.

Q3: What happens if my Jayco caravan's tyres are over-inflated?

Over-inflated tyres have a reduced contact patch with the road, leading to a harsher ride, reduced grip (especially in wet conditions), and increased wear in the centre of the tread.

Q4: My caravan seems to wander when I tow it. What could be the cause?

Wandering can be caused by several factors, including incorrect tyre pressures, worn tyres, suspension issues, improper weight distribution within the caravan, or incorrect wheel alignment (including tow ball height and hitch setup).

Q5: Where can I find the correct tyre pressure for my Jayco caravan?

The most accurate information will be in your Jayco owner's manual. Alternatively, look for a tyre pressure placard on the caravan's chassis, drawbar, or sometimes inside a cupboard door. Always use the pressures specified by Jayco, not the maximum pressure listed on the tyre sidewall.

By understanding and adhering to the specific alignment requirements for Jayco caravans and maintaining a diligent approach to tyre care, you can ensure safer towing, prolong the life of your tyres, and enjoy many happy miles on the road.
