JAP Engine Rebuild: What You Need

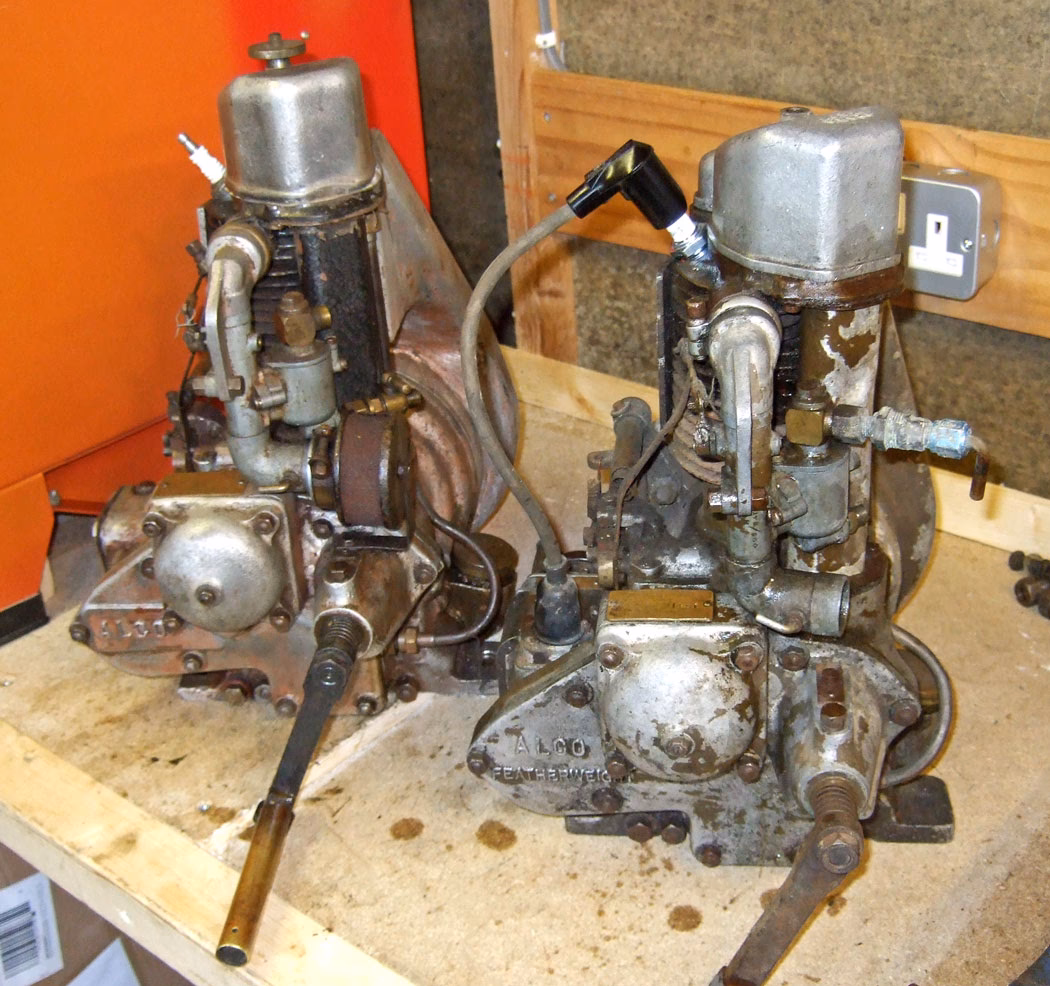

Embarking on a rebuild of a JAP (J.A. Prestwich Industries) engine can be a rewarding yet challenging endeavour, particularly given the limited information readily available for these classic powerplants. These engines, often found in vintage motorcycles and other machinery, were produced for a relatively short period, roughly 10-12 years, which contributes to the scarcity of detailed restoration guides and readily available spare parts. This article aims to demystify the process of rebuilding a JAP engine, focusing on identifying the necessary components and offering insights for a successful restoration. We will primarily focus on the JAP OHV Model 3, noting its distinction from the later side-valve Model 3, which can cause confusion when sourcing parts.

Understanding the JAP Engine Family

JAP engines, particularly the Model 3 variants, were manufactured in significant numbers, likely exceeding 20,000 units. This means they are not inherently rare, although the later side-valve Model 3 is considerably less common. These engines were distributed globally, finding their way into various applications for different armed forces, meaning they can surface anywhere in the world. A peculiar characteristic of these engines is their use of a mixed fastener system, incorporating both Whitworth/BSF (British Standard Fine) and AF (Across Flats, typically associated with American standards) threads. This is likely a legacy of the mixed manufacturing standards adopted during wartime, particularly after the involvement of American forces.

Identifying Your JAP Engine

Before you can begin sourcing parts, it's crucial to correctly identify the specific JAP engine you are working with. The most common point of confusion arises between the early overhead valve (OHV) Model 3 and the later side-valve Model 3. While both share the 'Model 3' designation, their internal components and specifications differ significantly.

Key identification points:

• Valve Configuration: The OHV model will have its valves positioned in the cylinder head, operated by pushrods and rockers. The side-valve model will have the exhaust valve located in the cylinder block.
• Serial Numbers: While serial numbers can range widely (e.g., 600 to over 10,000 for Alco versions), they can offer clues. Researching the specific range for your engine type might be beneficial.
• Application: Knowing what the engine was originally fitted to (e.g., a specific motorcycle model, industrial equipment) can help narrow down the possibilities.

Essential Components for a JAP Engine Rebuild

Rebuilding any vintage engine requires a comprehensive list of parts. For a JAP engine, the scarcity of information means careful sourcing and sometimes adaptation is necessary. Here’s a breakdown of the core components you will likely need:

1. Gaskets and Seals

A full set of engine gaskets is paramount for ensuring a leak-free rebuild. This typically includes:

• Cylinder head gasket
• Base gasket (cylinder to crankcase)
• Exhaust and inlet manifold gaskets
• Timing cover gasket
• Oil seals for crankshaft and any other rotating shafts
• Various smaller seals for oilways and other passages

Tip: Due to the age and specific JAP design, pre-made gasket sets might be difficult to find. You may need to source high-quality gasket paper and cut your own, or find a specialist manufacturer who can produce them based on your old gaskets or precise measurements.

2. Piston and Rings

The piston and piston rings are critical for engine compression and sealing. You’ll need to determine the correct size for your cylinder bore:

• Piston: Ensure you get the correct type (e.g., cast iron, aluminium alloy) and compression height for your specific JAP model. Oversized pistons are common in older engines that have been rebored.
• Piston Rings: A set of rings (compression rings and oil control ring) matched to the piston and bore size is essential.

Action: Measure your cylinder bore accurately. If it's worn beyond standard size, you'll need to source an oversized piston and rings, or consider having the cylinder rebored to a known oversized dimension and then fitting the appropriate piston.

3. Bearings

Bearings are vital for the smooth rotation of the crankshaft and other rotating components.

• Crankshaft Bearings: These are often plain bearings (bushings) in older JAP engines, rather than rolling element bearings. They require precise sizing and lubrication.
• Conrod Big End Bearing: This connects the piston connecting rod to the crankshaft. Again, this might be a plain bearing.
• Small End Bearing: This connects the piston to the connecting rod. This is typically a bronze bushing.

Consideration: The condition and fit of these bearings are critical. If they are worn, they will need to be replaced or, in the case of plain bearings, the crankshaft and bearing housings may need to be machined to accept undersized or oversized bearings.

4. Valves, Springs, and Guides

For the OHV Model 3, the valve train components are crucial for performance:

• Inlet and Exhaust Valves: Check for wear, pitting, or warping. Replacement valves should match the original size and material specifications.
• Valve Springs: Ensure they have the correct tension and are not fatigued.
• Valve Guides: If worn, they will cause excessive oil consumption and poor valve seating. These often need to be replaced.
• Collets/Keepers: The small pieces that hold the valves in place.

5. Timing Components

Accurate valve timing is essential for engine operation:

• Timing Gears/Sprockets: Inspect for worn teeth or damage.
• Timing Chain (if applicable): Check for stretch and wear.
• Camshaft (if applicable): Examine the lobes for wear.

6. Ignition System Components

The ignition system provides the spark to ignite the fuel-air mixture:

• Magneto or Coil: Ensure it is in good working order or consider a rebuild/replacement.
• Spark Plug: Select the correct type and heat range for your engine.
• Ignition Points and Condenser (if applicable): These are wear items and often need replacement.

7. Fuel System Components

While not strictly internal engine parts, a functional fuel system is necessary:

• Carburettor: May require cleaning, rebuilding with new gaskets and jets, or replacement.
• Fuel Lines and Filters: Replace any perished or blocked components.

8. Oil Pump and Filtration

Lubrication is key to engine longevity:

• Oil Pump: Inspect for wear and ensure it is delivering adequate pressure.
• Oil Filter/Strainer: Clean or replace as necessary.

9. Fasteners

As mentioned, JAP engines often use a mix of thread types. You will need:

• Correctly sized bolts, nuts, and washers: Pay close attention to the thread type (Whitworth/BSF or AF) and size for each application. It is highly recommended to use new, high-quality fasteners during a rebuild.

Useful Tools and Supplies

Beyond the specific engine parts, a successful rebuild will also require:

• Workshop Manual: If you can find one specific to your JAP engine model, it will be invaluable.
• Measuring Tools: Calipers, micrometers, bore gauges for accurate measurements.
• Cleaning Supplies: Degreasers, solvents, brushes for thorough cleaning of all components.
• Assembly Lubricants: Assembly grease, oil.
• Torque Wrench: For tightening fasteners to the correct specifications.

Where to Source Parts

Finding parts for JAP engines can be a treasure hunt. Here are some avenues to explore:

Frequently Asked Questions

Q1: What is a JAP 750cc engine?
A JAP 750cc engine would likely refer to a larger displacement engine produced by J.A. Prestwich Industries. Specific models would vary, but it indicates a more powerful unit compared to smaller motorcycle engines.

Q2: What kind of gearbox is often paired with a JAP engine?
Many JAP engines, particularly in vintage motorcycles, were paired with Sturmey-Archer gearboxes. Information on specific Sturmey-Archer models and their production years can help in identifying compatible transmissions.

Q3: How can I identify the specific model of my JAP engine?
Look for any stamped markings on the crankcase, cylinder, or identification plates. Serial numbers, displacement figures, and any model designations (like 'Model 3') are key. Cross-referencing these with known JAP engine types is essential.

Q4: Is it common to need to machine parts for a JAP engine rebuild?
Yes, due to their age, it is very common to need machining services. This can include boring cylinders, grinding crankshafts, or machining custom bearings and gaskets.

Q5: What are the main differences between the JAP OHV Model 3 and the side-valve Model 3?
The primary difference is the location of the valves. The OHV Model 3 has its valves in the cylinder head, operated by pushrods and rockers, while the side-valve Model 3 has the exhaust valve located in the cylinder block itself, with the inlet valve in the head. This fundamental difference affects cylinder head design, camshafts, and valve train components.

Conclusion

Rebuilding a JAP engine is a project that demands patience, research, and a meticulous approach. By understanding the specific model you are working with, identifying the essential components, and knowing where to source them, you can successfully bring your classic JAP engine back to life. The mix of fastener types and the potential scarcity of original parts are challenges, but with careful planning and execution, the reward of a running JAP engine is well worth the effort.
