The Jaguar XJ12, a true icon of automotive luxury and performance, is renowned for its smooth ride and powerful V12 engine. However, equally crucial to its driving experience is its braking system, a sophisticated assembly designed to provide confident stopping power commensurate with its capabilities. Understanding the intricacies of these brakes is vital for any owner aiming to maintain their cherished vehicle in peak condition. This article delves into the types of brakes fitted to the Jaguar XJ12, exploring their technology, key components, and essential maintenance considerations.
Evolution of Braking on the XJ12
Throughout its production run, the Jaguar XJ12 saw refinements in its braking systems, mirroring advancements in automotive safety and performance. Early models, while still featuring advanced technology for their time, might differ slightly from later iterations. However, the core philosophy remained consistent: to provide robust and reliable stopping power for a high-performance luxury saloon.
Disc Brakes: The Dominant Technology
The Jaguar XJ12 exclusively employs disc brakes on all four wheels. This was a forward-thinking choice, as disc brakes offer superior performance over drum brakes, particularly in terms of heat dissipation and consistent stopping power, especially under demanding conditions. The fundamental principle of disc brakes involves a rotating disc (rotor) that is squeezed by brake pads mounted in a caliper. This friction generates the force needed to slow the vehicle.
Front Brakes: Ventilated Discs for Enhanced Cooling
On the front axle, the XJ12 typically features ventilated disc brakes. These discs have internal vanes or fins that allow air to circulate through them as they rotate. This continuous airflow is crucial for dissipating the immense heat generated during braking. High temperatures can lead to brake fade, a dangerous reduction in braking efficiency. Ventilated discs significantly mitigate this risk, ensuring that the brakes perform optimally even during spirited driving or repeated stops. The calipers for the front brakes are usually of a substantial size, housing multiple pistons to exert even pressure on the brake pads.
Rear Brakes: Solid Discs for Balanced Performance
The rear wheels of the XJ12 are generally equipped with solid disc brakes. While solid discs do not offer the same level of internal airflow as ventilated discs, they are still highly effective for the rear axle, which typically handles a smaller proportion of the vehicle's braking load. These discs are designed to provide reliable stopping power and work in conjunction with the front brakes to achieve balanced deceleration.
Brake System Components: A Closer Look
A comprehensive understanding of the XJ12's braking system requires examining its individual components:
Brake Rotors (Discs)
The rotors are the rotating metal discs that the brake pads clamp onto. They are typically made from cast iron, a material known for its durability and heat resistance. Over time, rotors can wear down, develop grooves, or become warped due to excessive heat. Regular inspection for thickness, surface condition, and runout is essential. The availability of specific rotors for certain XJ12 models can sometimes be subject to supply, as highlighted by the "BACK ORDER" status often encountered for classic car parts. This means that while the parts are sought after and eventually available, immediate stock may be limited, requiring owners to plan ahead for maintenance or replacements.

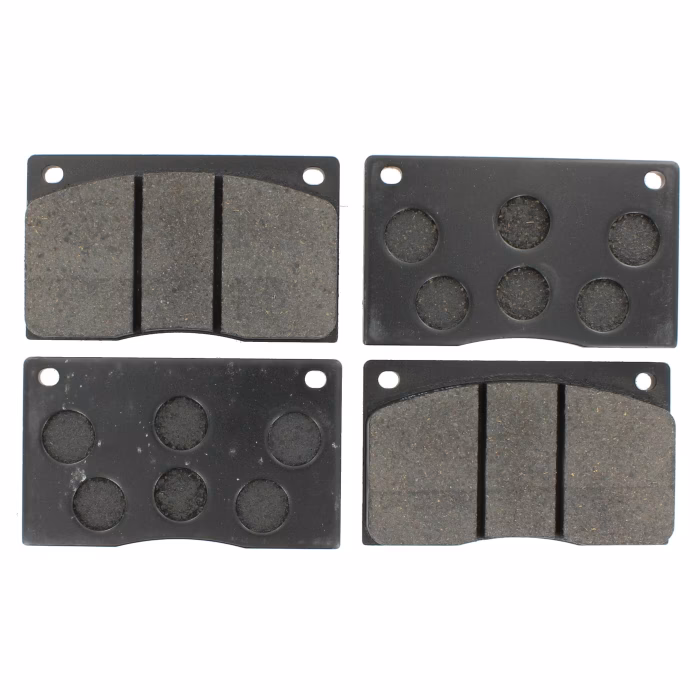

Brake Pads
Brake pads are the friction material that presses against the rotors. They are designed to wear down over time and require periodic replacement. The type of brake pad material can influence performance, noise, and longevity. High-performance or specific classic car brake pads might be in demand, leading to potential back-order situations.
Brake Calipers
The calipers house the brake pads and the pistons that push the pads against the rotors. The XJ12 often uses multi-piston calipers, which provide greater clamping force and more even pressure distribution, leading to improved braking performance. Calipers can sometimes suffer from seized pistons or leaks, necessitating rebuilding or replacement.
Brake Fluid
Brake fluid is the hydraulic fluid that transmits the force from the brake pedal to the calipers. It is crucial to use the correct type of brake fluid (typically DOT 3 or DOT 4, depending on the specific model year and original specifications) and to change it regularly, as it can absorb moisture over time, reducing its boiling point and leading to spongy brakes.
Brake Lines and Hoses
These components carry the brake fluid throughout the system. Rubber brake hoses can degrade over time, becoming brittle or swelling, which can impair braking performance. Many owners opt for braided stainless steel hoses for improved durability and feel.
Brake Booster
The brake booster uses vacuum or hydraulic pressure to multiply the force applied to the brake pedal, making it easier to stop the car. A malfunctioning brake booster will result in a much harder brake pedal.
Master Cylinder
The master cylinder converts the mechanical force from the brake pedal into hydraulic pressure, which is then transmitted through the brake lines.
Maintenance and Care for XJ12 Brakes
Proper maintenance is key to ensuring the longevity and effectiveness of the Jaguar XJ12's braking system. Here are some critical aspects:
Regular Inspections
Visually inspect brake pads for wear, check rotor condition, and look for any signs of fluid leaks from the calipers, hoses, or master cylinder. This should be part of any routine service.
Brake Fluid Changes
Flush and replace the brake fluid every two years or as recommended by Jaguar. This is a relatively inexpensive procedure that can prevent significant long-term damage to the brake system components.
Pad and Rotor Replacement
When brake pads are worn down to their minimum thickness, they must be replaced. It is also generally recommended to replace rotors when replacing pads, especially if the rotors show signs of significant wear or damage.
Caliber Maintenance
Periodically check that the calipers are functioning correctly. If you notice uneven braking or a stiff pedal, the calipers might require attention, such as cleaning, lubrication of slide pins, or even a rebuild.
Addressing Back Orders for Classic Parts
The mention of "BACK ORDER" for parts like brake rotors or pads for a Jaguar XJ12 is not uncommon. This situation arises due to the classic nature of the vehicle. Demand for specific, high-quality parts for these models can outstrip immediate supply. When faced with a back order:
- Plan Ahead: If you know your XJ12 will require brake components soon, order them well in advance to avoid extended downtime.
- Secure Your Place: As the "BACK ORDER - We are temporarily out of stock on this item. By adding to cart, and placing an order, you will secure your place in line when the product arrives. You are never charged for back orders in advance. You will be charged when the item arrives and is shipped." message indicates, placing an order secures your position. You are not charged until the item is ready to ship, which is a standard and secure practice for managing demand for rare or high-demand parts.
- Explore Alternatives: In some cases, specialist suppliers might offer reconditioned parts or compatible alternatives, though it's always best to aim for genuine or high-quality aftermarket parts specifically designed for the XJ12.
Troubleshooting Common Brake Issues
Owners might encounter a few common brake problems:
- Spongy Brake Pedal: Often caused by air in the brake lines or old, contaminated brake fluid.
- Squealing or Grinding Noises: Typically indicates worn brake pads or debris trapped between the pad and rotor.
- Car Pulling to One Side During Braking: Can be due to a stuck caliper, uneven pad wear, or a problem with the brake hoses.
- Hard Brake Pedal: Usually points to a faulty brake booster or a blockage in the brake lines.
Frequently Asked Questions
What type of brake fluid should I use in my XJ12?
Consult your vehicle's owner's manual or a reputable Jaguar specialist. Generally, DOT 3 or DOT 4 fluids are used, but using the specified fluid is crucial for system compatibility and performance.
How often should I change the brake pads on my XJ12?
This depends heavily on driving style and conditions. A visual inspection for wear is the best indicator. However, as a general guideline, brake pads might need replacement every 20,000 to 40,000 miles.
Is it normal for brake rotors to be on back order for an XJ12?
Yes, it can be common for classic car parts, including brake rotors, to experience back orders due to limited production runs and high demand from enthusiasts. Planning ahead is advisable.
What is brake fade?
Brake fade is a temporary loss of braking power that occurs when brake components, particularly the rotors and pads, overheat. Ventilated discs and proper maintenance help to prevent this.
Should I replace rotors and pads at the same time?
It is highly recommended to replace brake pads and rotors together. New pads require a smooth, flat rotor surface to bed in properly and achieve optimal performance. Worn rotors can also accelerate the wear of new pads.
In conclusion, the Jaguar XJ12 is equipped with a sophisticated disc braking system designed for excellent performance. By understanding its components, adhering to a strict maintenance schedule, and being prepared for the occasional back order on specialized parts, owners can ensure that their iconic vehicle remains a safe and exhilarating machine to drive.
