Understanding Rich Running in Your Jaguar XJ6
Your classic Jaguar XJ6, a symbol of British automotive elegance, relies on its Electronic Fuel Injection (EFI) system to deliver a precise blend of fuel and air for optimal performance and efficiency. However, like any sophisticated system, it can occasionally develop issues. One of the most common and potentially detrimental is a 'rich running' condition, where the engine receives too much fuel relative to the amount of air. This imbalance can manifest in various ways, impacting everything from fuel economy to engine longevity. This guide will delve deep into the signs of a rich running XJ6, the underlying causes, and how you can identify and rectify these problems, ensuring your beloved Jaguar continues to perform as it was designed.
The Tell-Tale Signs of a Rich Mixture
Recognising a rich running condition is the first crucial step towards resolving it. Your XJ6 will often give you clear signals that something isn't quite right. Pay close attention to the following:
- Poor Fuel Economy: This is perhaps the most obvious indicator. If you find yourself visiting the petrol station more frequently than usual, and your mileage has noticeably decreased, an overly rich fuel mixture is a prime suspect. The engine is essentially 'drinking' more fuel than it needs to combust efficiently.
- Black Smoke from the Exhaust: A visual cue that's hard to ignore. If you see thick, black smoke billowing from your exhaust pipe, especially during acceleration or at idle, it's a strong indication of unburnt fuel escaping. This is the direct result of an excess of fuel in the combustion chamber.
- Rough Idle and Hesitation: A rich mixture can lead to an unstable and uneven idle. The engine might sputter, shake, or even stall. You might also experience hesitation or a lack of responsiveness when you press the accelerator pedal, as the engine struggles to find the correct air-fuel ratio.
- Misfires: When too much fuel is present, it can foul the spark plugs, leading to misfires. You might feel this as a stumbling or jerking sensation as the engine struggles to fire on all cylinders.
- Fuel Smell: A persistent odour of petrol, particularly around the vehicle when it's running or shortly after it's been switched off, can point to a rich condition. This could be due to unburnt fuel being expelled or even a minor fuel leak exacerbated by the system's attempt to compensate.
- Engine Overheating (Less Common but Possible): While not a primary symptom, in severe cases, an overly rich mixture can contribute to higher combustion temperatures in certain cylinders, potentially leading to localised overheating.
Common Culprits Behind a Rich Mixture

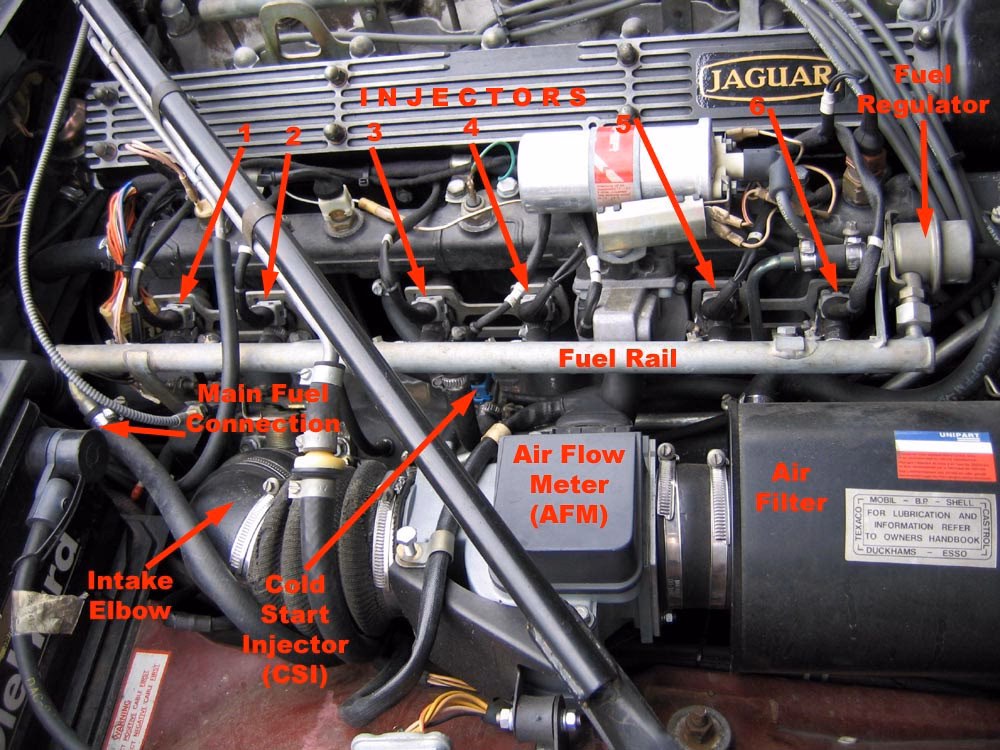

Several components within your XJ6's EFI system can contribute to a rich running condition. Understanding these potential culprits is key to effective troubleshooting:
| Component | How it Can Cause Rich Running |
|---|---|
| Fuel Injectors: | If an injector is stuck open, leaking, or has a faulty solenoid, it will deliver too much fuel into the manifold or cylinder, even when the engine management system is commanding a leaner mixture. Clogged injectors can sometimes spray erratically, leading to poor atomisation and a richer burn in some cylinders. |
| Fuel Pressure Regulator: | This component maintains the correct fuel pressure within the system. If the regulator fails and allows too much fuel pressure to build up, the injectors will spray more fuel than intended, leading to a rich condition across all cylinders. |
| Oxygen (O2) Sensors: | The O2 sensor monitors the exhaust gases and signals the engine control unit (ECU) to adjust the fuel mixture. A faulty or contaminated O2 sensor that incorrectly reads the exhaust as lean will command the ECU to inject more fuel, resulting in a rich mixture. This is a very common cause. |
| Mass Airflow (MAF) Sensor: | The MAF sensor measures the amount of air entering the engine. If it's dirty, faulty, or providing inaccurate readings (e.g., reading less air than is actually entering), the ECU will inject too much fuel based on the incorrect air measurement. |
| Engine Coolant Temperature (ECT) Sensor: | This sensor tells the ECU the engine's temperature. If the sensor fails and incorrectly signals a cold engine, the ECU will enrich the mixture, as it does during a cold start, even when the engine is warm. |
| Throttle Position Sensor (TPS): | While less common for a consistently rich condition, a faulty TPS can send incorrect signals about throttle opening, potentially leading to improper fuel metering during acceleration or deceleration. |
| Vacuum Leaks: | Paradoxically, vacuum leaks can sometimes lead to a rich condition. If a leak occurs *after* the MAF sensor, the unmetered air entering the system can confuse the ECU into thinking there's less air than there is, prompting it to add more fuel. However, vacuum leaks are more commonly associated with lean conditions. |
| ECU (Engine Control Unit): | While rare, a fault within the ECU itself could lead to incorrect fuel calculations and a rich running scenario. |
Troubleshooting Your XJ6's EFI System
Diagnosing the exact cause of a rich running condition requires a systematic approach. Here's a breakdown of common diagnostic steps:
1. Visual Inspection: The First Line of Defence
Begin with a thorough visual check of the engine bay. Look for:
- Obvious Leaks: Check fuel lines, injector seals, and the fuel rail for any signs of fuel leaks.
- Damaged Wiring: Inspect the wiring harnesses connected to the sensors (O2, MAF, ECT, TPS) and injectors for any fraying, corrosion, or loose connections. A damaged wire can lead to erroneous sensor readings.
- Air Intake System: Ensure the air filter is clean and that there are no obstructions or leaks in the air intake tract between the MAF sensor and the engine.
2. Checking for Diagnostic Trouble Codes (DTCs)
If your XJ6 has an OBD-II port (depending on the specific year and model conversion), use a compatible scanner to check for stored fault codes. Codes related to O2 sensors (e.g., P0172 - System Too Rich), MAF sensors, or fuel trim adjustments can provide valuable clues.
3. Testing Key Components
For more in-depth diagnosis, you'll need to test individual components:
- Oxygen (O2) Sensor: A common culprit. You can test its voltage output with a multimeter or oscilloscope while the engine is running. A healthy O2 sensor should fluctuate between approximately 0.1V (lean) and 0.9V (rich). If it stays consistently high or low, or responds very slowly, it may need replacement. It's also worth noting that O2 sensors have a finite lifespan and can become contaminated over time, leading to inaccurate readings.
- Mass Airflow (MAF) Sensor: Clean the MAF sensor using a dedicated MAF sensor cleaner spray. Avoid touching the delicate sensor wires. If cleaning doesn't resolve the issue, testing its output voltage or resistance (refer to your Jaguar's workshop manual for specifications) might be necessary.
- Fuel Pressure: Using a fuel pressure gauge, check the fuel pressure at the fuel rail. Compare the reading to the manufacturer's specifications. If the pressure is too high, the fuel pressure regulator is likely faulty. If it's too low, you might have a weak fuel pump or a clogged fuel filter.
- Fuel Injectors: You can perform a "noid light" test to ensure the injectors are receiving a signal from the ECU. More advanced testing involves checking for consistent resistance across all injectors and, ideally, flow testing them to ensure they are not leaking or clogged. A simple check for a leaking injector can sometimes be done by listening for a clicking sound with a mechanic's stethoscope; a lack of clicking or a continuous 'hiss' might indicate a problem.
- Engine Coolant Temperature (ECT) Sensor: Test the sensor's resistance at different temperatures. As the engine warms up, the resistance should decrease. Compare your readings to the specifications in your service manual.
Preventative Maintenance: Keeping Your XJ6 Running Smoothly
Regular maintenance is your best defence against developing rich running conditions. Prioritise the following:
- Regular Servicing: Adhere to your Jaguar's recommended service schedule. This includes replacing spark plugs, air filters, and fuel filters at the appropriate intervals.
- Use Quality Fuel: Stick to reputable fuel brands. Contaminated fuel can lead to deposits on injectors and sensors.
- Address Minor Issues Promptly: Don't ignore small problems like a slightly rough idle or a faint fuel smell. Early detection and repair can prevent more significant issues down the line.
- Keep the Engine Bay Clean: A clean engine bay makes it easier to spot leaks and perform inspections.
Frequently Asked Questions
Q1: Can a clogged fuel filter cause a rich running condition?
A1: Typically, a clogged fuel filter restricts fuel flow, leading to a lean condition (lack of fuel). However, in some complex EFI systems, the ECU might try to compensate for perceived issues, but a clogged filter is more commonly associated with poor performance due to insufficient fuel delivery.
Q2: How often should I replace my O2 sensor?
A2: O2 sensors have a limited lifespan, generally between 60,000 to 100,000 miles, depending on the type and driving conditions. If you're experiencing symptoms of rich or lean running, testing the O2 sensor is a good starting point, even if it's not yet at its expected replacement mileage.
Q3: Is it safe to drive my XJ6 if it's running rich?
A3: While you might be able to drive it, it's not advisable for extended periods. Rich running leads to excessive fuel consumption, can damage your catalytic converter due to unburnt fuel passing through, and can eventually foul spark plugs, leading to misfires and potential engine damage. It's best to diagnose and fix the issue as soon as possible.
Q4: What's the difference between rich running and lean running?
A4: Rich running means there's too much fuel and not enough air in the air-fuel mixture. Lean running means there's too little fuel and too much air. Both conditions are detrimental to engine performance and longevity, but they have different symptoms and causes.
Owning and maintaining a Jaguar XJ6 is a rewarding experience. By understanding the potential causes and symptoms of a rich running condition and adopting a proactive approach to maintenance, you can ensure your classic Jaguar continues to provide the smooth, powerful, and elegant driving experience it's renowned for. If you're unsure about any of these diagnostic steps, it's always best to consult a qualified mechanic experienced with classic Jaguars.
