Jaguar XK 5.0 Convertible: Demystifying the EPB

For owners of the elegant Jaguar XK 5.0 Convertible, a common question often arises regarding its parking brake system: does it feature a traditional handbrake? The answer, reflective of Jaguar's commitment to modern automotive technology, is no. Instead, your sophisticated machine is equipped with an advanced Electronic Park Brake (EPB). This system offers enhanced convenience and integration into the vehicle's electronics, but it also introduces specific maintenance requirements, particularly when servicing the rear braking components. Understanding how this system works, and crucially, how to properly calibrate it, is paramount for the safety and optimal performance of your beloved Jaguar.

Understanding Your Jaguar's Park Brake: The Electronic Park Brake (EPB)

Unlike the conventional, lever-operated mechanical handbrake found in older vehicles, the Jaguar XK 5.0 Convertible, along with many other modern Jaguars, utilises an Electronic Park Brake (EPB). This system replaces the physical cable and lever with an electrically operated mechanism, typically integrated directly into the rear brake calipers or via a separate actuator that pulls cables. When you activate the EPB switch, an electronic signal is sent to a control module, which then commands small electric motors to engage the rear brakes, holding the vehicle stationary. Disengaging the EPB is just as simple, often happening automatically when you select a gear and press the accelerator, or manually via the switch.

The benefits of an EPB are numerous: it frees up interior space previously occupied by a handbrake lever, often provides automatic engagement on inclines (hill-hold assist), and can be integrated with other safety systems. However, its sophisticated nature means that certain maintenance procedures require careful attention to its electronic calibration. Neglecting this crucial step can lead to significant issues, affecting both the functionality and safety of your vehicle's braking system.

The Critical Role of EPB Calibration

Jaguar specifically recommends that the Electronic Park Brake (EPB) system undergo a calibration procedure following any mechanical service work performed on components directly related to its operation. This includes, but is not limited to, work on the Park brake actuator, the Park brake cables, or the rear brake calipers through which the Park brake operates. Most notably, this procedure is absolutely essential after replacing the rear brake pads. The reason for this is that the EPB system needs to 'learn' the new positions and tolerances of the braking components to ensure it applies the correct clamping force and operates within its designed parameters. Failure to perform this re-calibration may result in incorrect operation of the Park brake, leading to various warning lamps illuminating on your instrument cluster and the storage of specific Diagnostic Trouble Codes (DTCs), such as C1801-00 or C1802-00. These codes indicate a fault within the EPB system that needs immediate attention, highlighting a potential safety concern.

Is Your Jaguar Covered? Applicable Models and VIN Ranges

The calibration procedure detailed here, and taken directly from Jaguar's official Topix system, is a crucial update that supersedes previous bulletins (specifically TSB JTB00208/2010 dated 31 August 2010). This means it applies to a wide range of Jaguar models. For owners concerned about applicability, the following VIN ranges are covered:

• S-TYPE: VIN Range M45255-N91220
• XF: VIN Range R00001 Onwards
• XK: VIN Range B00001 Onwards (This specifically includes the Jaguar XK 5.0 Convertible)
• XJ: VIN Range G00001-H30057
• XJ: VIN Range V00001 Onwards

If your Jaguar falls within these VIN ranges, and particularly if you own an XK 5.0 Convertible, this calibration procedure is directly relevant to you. Always consult your vehicle's specific VIN (Vehicle Identification Number) to confirm its applicability, ensuring you follow the correct maintenance protocols for your model year.

The Official Jaguar EPB Re-Calibration Procedure: A Step-by-Step Guide

Performing the EPB re-calibration is a precise process that must be followed meticulously to ensure correct functionality and avoid potential issues. This procedure aims to reset the EPB module and allow it to re-learn the optimal operating parameters for the newly serviced components. Here's the detailed, step-by-step guide:

1. Reset the EPB Module

This initial step is crucial for clearing any existing fault codes or learned parameters within the EPB control module, preparing it for a fresh calibration.

• a. Switch off the ignition. Ensure the vehicle's electrical system is completely powered down.
• b. Disconnect the battery for 30 seconds. This duration is typically sufficient to allow the control module's capacitors to discharge, fully resetting its memory. Refer to your TOPIx Workshop Manual, section 414-01, for specific battery disconnection procedures for your vehicle to ensure safety and prevent damage to other electronic systems.
• c. Re-connect the battery. Once the 30 seconds have elapsed, safely re-connect the battery terminals.

2. Start the Engine

After re-connecting the battery, start the vehicle's engine. This provides stable voltage to all systems and allows the EPB module to power up in its 'reset' state.

3. Firmly Apply and Release the Footbrake Five Times

This step is vital for the system to recognise the full travel and response of the footbrake pedal. Each application should be firm, reaching the end of the pedal's travel, and then fully released. Performing this five times helps the system establish the mechanical limits and responsiveness of the braking system, which is integral to the EPB's operation.

4. Confirm Calibration Mode Display

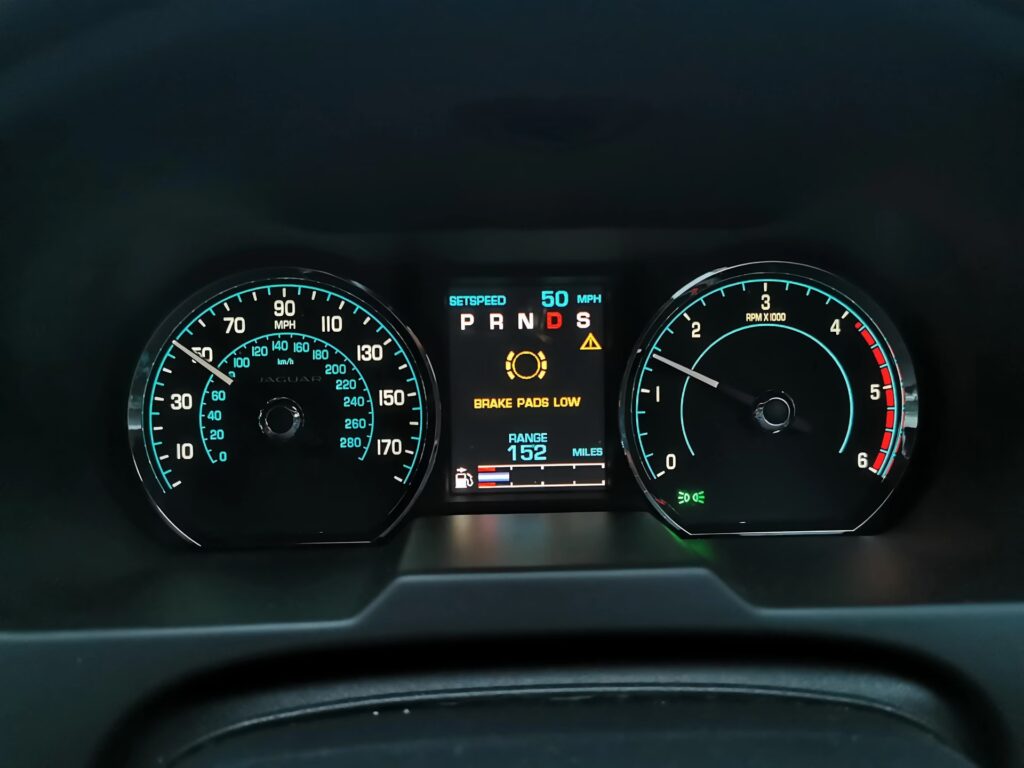

After the previous steps, the instrument cluster message centre should display one of two specific messages. This is your confirmation that the EPB system has successfully entered its calibration mode, ready for the next sequence of inputs.

• Confirm that the message 'NOT CALIBRATED' or 'APPLY FOOT AND PARK BRAKE' is displayed on the instrument cluster message centre. If neither of these messages appears, you may need to re-check the previous steps or consult a Jaguar technician, as the system has not entered calibration mode successfully.

5. Lightly Press the Footbrake Pedal

With the system in calibration mode, lightly press the footbrake pedal. The emphasis here is on 'lightly' – you're not trying to apply full braking force, but merely providing a signal to the system that the footbrake is engaged, which is a prerequisite for the EPB activation in the next step.

6. Apply the Parking Brake Using the EPB Switch

While still lightly pressing the footbrake pedal, apply the parking brake by using the dedicated EPB switch. This action tells the system to engage the EPB actuators while referencing the footbrake's position, allowing it to learn the proper engagement point for the parking brake.

7. Release the Parking Brake

Immediately after applying the parking brake, release it using the EPB switch. This allows the system to learn the disengagement parameters, completing the cycle of application and release during the calibration process.

8. Release the Footbrake

Once the parking brake has been released, you can then release the footbrake pedal. This concludes the primary sequence of calibration inputs.

9. Confirm Calibration Completion

This step is your final confirmation that the calibration has been successful and the system is now operating correctly.

• Confirm that the brake warning lamp is no longer illuminated on the instrument pack and that the 'NOT CALIBRATED' message is no longer displayed in the message centre. If these indicators persist, the calibration may not have been successful, and the procedure might need to be repeated.

10. Apply and Release the EPB Five Times to Ensure No Error

As a final verification, cycle the EPB on and off five times. This ensures that the newly calibrated system operates smoothly and consistently without triggering any latent errors or warning messages, confirming its full functionality.

Common Issues and What They Mean (DTCs)

Understanding the diagnostic trouble codes (DTCs) mentioned – C1801-00 and C1802-00 – is crucial. These codes are specifically related to the Electronic Park Brake system and typically indicate a fault with its operation or a failure in its calibration. While the precise meaning can vary slightly depending on the exact Jaguar diagnostic system, generally:

• C1801-00: Often points to a fault with the EPB actuator or motor itself, or an issue with the control circuit for the parking brake.
• C1802-00: Can indicate a problem with the parking brake cables or a discrepancy in the position feedback from the EPB system, suggesting that the system isn't engaging or disengaging as expected.

If these codes appear after servicing or at any other time, it's a clear signal that the EPB system requires attention. While calibration can resolve issues related to 'learning' new component positions, persistent codes might suggest a deeper mechanical or electrical fault requiring professional diagnosis.

Frequently Asked Questions (FAQs)

EPB Calibration States

Conclusion

The Jaguar XK 5.0 Convertible, a testament to modern automotive engineering, relies on an advanced Electronic Park Brake system rather than a traditional handbrake. While this offers numerous benefits, it also necessitates specific maintenance protocols. Understanding and correctly performing the EPB calibration procedure after relevant service work, such as rear brake pad replacement, is not merely a recommendation – it is a critical step for ensuring the continued safety, reliability, and optimal performance of your vehicle's braking system. By diligently following Jaguar's official guidelines, you can prevent common issues, avoid diagnostic trouble codes, and ensure your luxurious XK remains a pleasure to drive, safely and confidently, for many miles to come.
