The Enigma of the Diesel Lift Pump

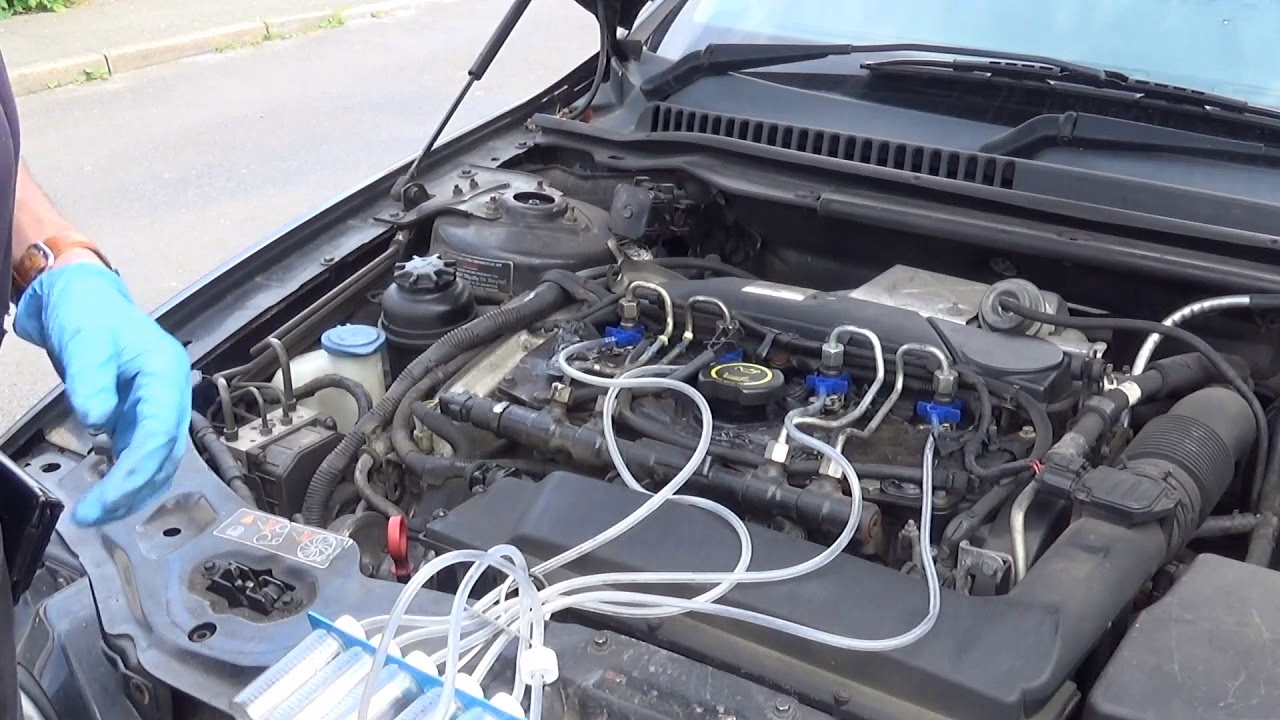

It’s a question that surfaces with a certain regularity amongst diesel car owners, particularly those venturing into the more complex world of modern common rail systems: does my diesel engine, specifically an X-type diesel, have a lift pump? This seemingly simple query often stems from a common set of symptoms – an engine that struggles to start, runs erratically, or even cuts out unexpectedly, sometimes when the fuel gauge still indicates a healthy level of diesel in the tank. The answer, as with many things automotive, isn't a straightforward yes or no, but rather a nuanced exploration of how diesel fuel is delivered from the tank to the high-pressure pump.
In older diesel vehicles, a mechanical lift pump, often driven directly by the engine, was a common sight. Its primary role was to draw fuel from the tank and supply it to the injection pump. However, modern diesel engines, especially those equipped with common rail technology like many X-type models, often employ a more sophisticated system. Instead of a solely mechanical lift pump, many incorporate an electric or in-tank pump. This pump's job is to provide a consistent, albeit lower, pressure feed to the high-pressure fuel pump (HPFP), ensuring it has a steady supply of fuel to pressurise for injection.
Understanding the Fuel Delivery Chain
To truly grasp why the question of a lift pump is so pertinent, we need to understand the entire fuel delivery process. It’s a journey that begins at the fuel tank and ends with the atomised diesel spray entering the combustion chamber. This journey can be broken down into several key stages:
- Fuel Tank: This is where the diesel fuel resides. It’s important to ensure there are no contaminants or blockages within the tank itself.
- In-Tank/Electric Pump: In many modern systems, this is the initial pump responsible for drawing fuel from the tank. It provides the initial low-pressure feed.
- Fuel Filter: Before the fuel reaches the high-pressure pump, it must pass through a fuel filter. This is a crucial component that removes impurities which could otherwise damage the delicate components of the common rail system. A clogged filter is a frequent culprit behind fuel starvation issues.
- High-Pressure Fuel Pump (HPFP): This is the powerhouse of the common rail system. It takes the low-pressure fuel and dramatically increases its pressure, often exceeding 1000 bar, before sending it to the injectors.
- Injectors: These electronically controlled devices spray the high-pressure fuel into the combustion chamber at precisely the right moment.
The Symptoms of Fuel Starvation
When the fuel delivery system isn't functioning optimally, a range of worrying symptoms can manifest. These often mimic issues with other engine components, making diagnosis tricky. Some of the most common signs include:
- Difficulty starting: The engine may crank but refuse to fire up, or take an excessive amount of time to start.
- Hesitation and lack of power: The engine might feel sluggish, particularly under acceleration, as if it’s not receiving enough fuel.
- Intermittent stalling: The engine could cut out without warning, especially at idle or when coming to a stop.
- Rough idling: The engine might run unevenly when at idle.
- Engine stops when fuel indicated in fuel tank: This is a particularly perplexing symptom. If your gauge shows fuel, but the engine dies, it strongly suggests a problem with the fuel pickup or delivery system.

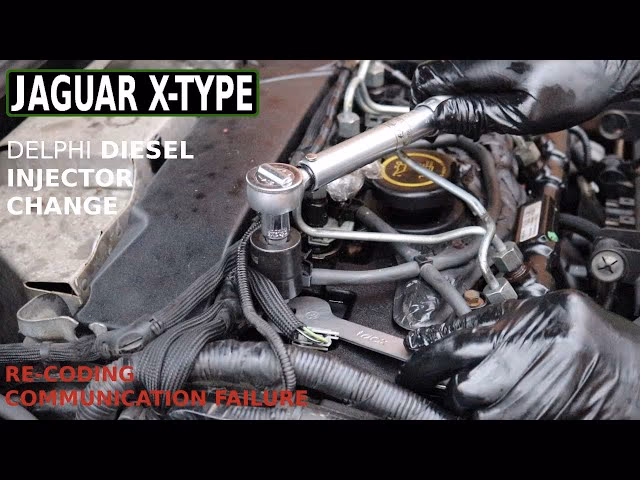

When the Gauge Lies: The Internal Transfer System
The scenario where the engine stops despite the fuel gauge indicating there's fuel in the tank is a significant clue. As mentioned in the provided information, this often points to a fault within the internal transfer system. Modern fuel tanks can have complex designs to ensure fuel can be drawn efficiently, even when the vehicle is on an incline or with a low fuel level. These systems might include baffles or collector boxes to keep fuel around the pump pickup. If this system fails, or if the pickup itself is blocked, the pump may not be able to draw fuel, even if there's a substantial amount in the tank.
In such cases, diagnostic trouble codes (DTCs) related to fuel transfer might be present. For instance, a DTC B2879 might indicate a failure to transfer fuel. The recommended course of action is to carry out specific checks on this internal transfer system, which could involve inspecting the fuel pickup unit, the tank sender unit, and any associated pipework within the tank.
Diagnosing Fuel Delivery Issues: A Step-by-Step Approach
Troubleshooting fuel delivery problems requires a systematic approach. Here’s a breakdown of common checks and potential culprits:
| Potential Cause | Symptoms | Troubleshooting Steps |
|---|---|---|
| Blocked Fuel Filter | Hesitation, lack of power, rough idle, stalling | Inspect and replace the fuel filter. Ensure it's the correct type for your vehicle. Check for any signs of damage or contamination on the old filter. |
| Faulty In-Tank/Electric Pump | Difficulty starting, engine cuts out, no fuel pressure | Listen for the pump priming when the ignition is turned on. Check for voltage at the pump connector. Test the pump's output pressure and flow rate. |
| Air Leaks in the Fuel Lines | Engine runs rough, difficulty starting, air bubbles visible in clear fuel lines | Inspect all fuel lines and connections from the tank to the HPFP for cracks or loose fittings. Use a clear pipe to observe for air bubbles during operation. |
| Problem with the High-Pressure Fuel Pump (HPFP) | Engine cuts out after starting, low common rail pressure, difficulty starting | Check common rail pressure using a diagnostic tool. Inspect the pump for external damage or leaks. The IMV/FMV (see below) on the rear of the pump can also be a failure point. |
| Faulty IMV/FMV (Intake Metering Valve/Fuel Metering Valve) | Similar to HPFP issues, engine may not draw fuel sufficiently | This valve controls fuel flow into the low-pressure side of the HPFP. A faulty valve or its wiring can cause significant issues. Testing can be complex and may require specialist knowledge. |
| Internal Tank Issues (Pickup/Transfer System) | Engine stops when fuel gauge shows fuel, no fuel reaching filter | Inspect the fuel pickup unit and any internal transfer mechanisms within the tank. Check for blockages or damage. Diagnostic codes related to fuel transfer might be present. |
The Case of the Refurbished Pump
The experience shared by one user highlights a common pitfall: the introduction of a new or refurbished component that then causes unexpected problems. In this instance, a refurbished HPFP was fitted, leading to an inability for the pump to draw fuel from the tank, even though it could maintain pressure once primed. The observation of fuel only rising a short distance in a clear pipe from a fuel can is a critical diagnostic point. It indicates a lack of sufficient suction from the HPFP itself or a restriction in the fuel supply *before* it reaches the HPFP.
The user correctly identifies several potential areas:
- The refurbished pump itself: Despite being refurbished, it might have an internal fault preventing it from drawing fuel effectively.
- The IMV/FMV: This valve, located on the rear of the HPFP, regulates the amount of fuel entering the pump. If it’s faulty or if its electrical supply is compromised, it could restrict fuel flow. The user’s suspicion of a broken feed wire to this valve is a valid diagnostic path.
- Blockage upstream of the HPFP: While the fuel filter was mentioned, any kinked or blocked fuel line between the tank and the HPFP could also cause this issue.
The user’s intention to refit the old, albeit tired, pump is a logical step to isolate whether the problem lies with the refurbished unit or something else introduced during the process. This illustrates the importance of a methodical, component-by-component diagnostic approach.
Frequently Asked Questions (FAQs)
Q1: Does my X-type diesel have a separate lift pump like older cars?
Many X-type diesels utilise an electric pump within the fuel tank to provide a low-pressure feed to the high-pressure fuel pump, rather than a mechanically driven lift pump. However, the exact configuration can vary by model year and specification.
Q2: My engine cuts out after starting, even though it starts fine. What could be wrong?
This is a classic symptom of the high-pressure fuel pump not being able to draw sufficient fuel from the tank. Potential causes include a blocked fuel filter, a faulty in-tank pump, air in the fuel lines, or a problem with the high-pressure pump or its associated valves (like the IMV/FMV).
Q3: Can a blocked fuel filter cause the engine to stop when there's still fuel in the tank?
Yes, a severely blocked fuel filter can restrict fuel flow to the point where the engine cannot receive enough diesel to run, regardless of the level in the tank. The pump may be able to draw a small amount to start, but not enough to sustain running.
Q4: I replaced my fuel pump, and now I have these issues. What should I check?
If you've recently replaced a fuel pump (especially the high-pressure one), double-check the installation. Ensure all connections are secure, there are no air leaks, and that the new pump is correctly primed. Also, consider the possibility that the replacement pump itself might be faulty or that the issue lies with a component you disturbed during the replacement, such as the IMV/FMV or its wiring.
Q5: What is the IMV/FMV on a diesel pump?
The IMV (Intake Metering Valve) or FMV (Fuel Metering Valve) is a component, often found on the rear of the high-pressure fuel pump, that controls the amount of fuel entering the pump. It regulates the low-pressure fuel supply to the high-pressure stages. A malfunction in this valve or its control system can lead to significant fuel delivery problems.
Conclusion: A Network of Components
The question of whether a diesel engine has a lift pump is really a gateway to understanding the entire fuel delivery network. Modern diesel systems are intricate, and a failure at any point in the chain – from the tank pickup to the injectors – can result in symptoms that are often mistaken for other issues. By understanding the role of each component, from the in-tank pump to the crucial high-pressure pump and its associated valves, and by employing a systematic diagnostic approach, you can effectively pinpoint and resolve fuel starvation problems, ensuring your diesel engine runs smoothly and reliably.
