ZF Automatic Gearbox Oil Changes

Many vehicle owners, particularly those with sophisticated ZF automatic transmissions, often find themselves pondering a crucial question: "Do ZF automatic transmissions need an oil change?" The straightforward answer is a resounding yes, but the nuances surrounding this maintenance task are vital for the longevity and optimal performance of these highly engineered gearboxes. Ignoring this essential service can lead to premature wear, costly repairs, and a diminished driving experience. ZF, a renowned German automotive parts manufacturer, is a leading supplier of automatic transmissions for a vast array of vehicle manufacturers, including BMW, Audi, Mercedes-Benz, Jaguar, Land Rover, and many more. Their transmissions are celebrated for their smooth shifting, efficiency, and durability. However, like any complex mechanical system, they rely heavily on the quality and condition of their transmission fluid (often referred to as ATF – Automatic Transmission Fluid).

Why is Transmission Fluid So Important?

Transmission fluid is the lifeblood of an automatic gearbox. It performs several critical functions: * Lubrication: It lubricates all the moving parts within the transmission, reducing friction and wear between gears, clutches, and bearings. Without adequate lubrication, metal-on-metal contact would quickly cause catastrophic damage. * Cooling: As components move and friction occurs, heat is generated. The ATF absorbs this heat and carries it away to the transmission cooler, preventing the transmission from overheating, which can degrade the fluid and damage seals. * Hydraulic Medium: In an automatic transmission, ATF is pressurized and used to engage clutches and bands, which in turn select the gears. The precise control of this hydraulic pressure is what allows for smooth gear changes. * Cleaning: The fluid picks up small wear particles and debris from the internal components, keeping the transmission clean. These particles are then usually filtered out. Over time, ATF degrades. This degradation is caused by several factors: * Heat: Prolonged exposure to high temperatures, especially during heavy use like towing or stop-and-go traffic, breaks down the chemical additives in the fluid. * Contamination: Even with filters, microscopic wear particles, clutch material, and moisture can enter the fluid, reducing its effectiveness. * Oxidation: Exposure to air can cause the fluid to oxidize, leading to sludge formation and reduced lubricating properties.

ZF's Stance on Transmission Fluid Changes

Historically, some manufacturers adopted a 'lifetime fill' philosophy for their automatic transmissions, implying the fluid would never need changing. However, with the increasing complexity and performance demands placed on modern transmissions, including those from ZF, this approach is being re-evaluated. While ZF transmissions are built to last, the 'lifetime' of the fluid is often dictated by operating conditions and maintenance practices, rather than the inherent lifespan of the gearbox itself. ZF themselves, while not always explicitly stating fixed mileage intervals for every single transmission model across all vehicle manufacturers, generally recommend a fluid and filter service at regular intervals. These intervals are typically based on mileage or time, whichever comes first. Common recommendations from ZF and vehicle manufacturers utilizing their transmissions often fall within the range of 60,000 to 100,000 miles (approximately 96,000 to 160,000 kilometres), or every 5-7 years. It's crucial to consult your vehicle's owner's manual or a reputable ZF specialist for the precise recommended service interval for your specific model. Factors like driving style (aggressive driving, frequent towing, or extensive city driving) can necessitate more frequent fluid changes.

Signs Your ZF Transmission Might Need Attention

Even if you're within the recommended service interval, there are tell-tale signs that your ZF automatic transmission fluid may be degraded and require a change: * Rough Shifting: If you notice hesitation, jerky movements, or delayed gear changes, it could indicate low or degraded ATF. * Slipping Gears: When the transmission seems to struggle to engage a gear, or the engine revs without a corresponding increase in speed, it's a serious sign. * Unusual Noises: Whining, clunking, or humming sounds coming from the transmission area can point to lubrication issues. * Burning Smell: A burnt odour, often described as burnt toast, is a strong indicator of overheating and fluid breakdown. * Transmission Warning Light: Modern vehicles have sophisticated diagnostics. If a transmission warning light illuminates on your dashboard, it's imperative to get it checked immediately. * Visible Fluid Leaks: Puddles of red or brown fluid under your car indicate a leak that needs addressing, which will inevitably affect the fluid level and condition.

The ZF Transmission Service: What's Involved?

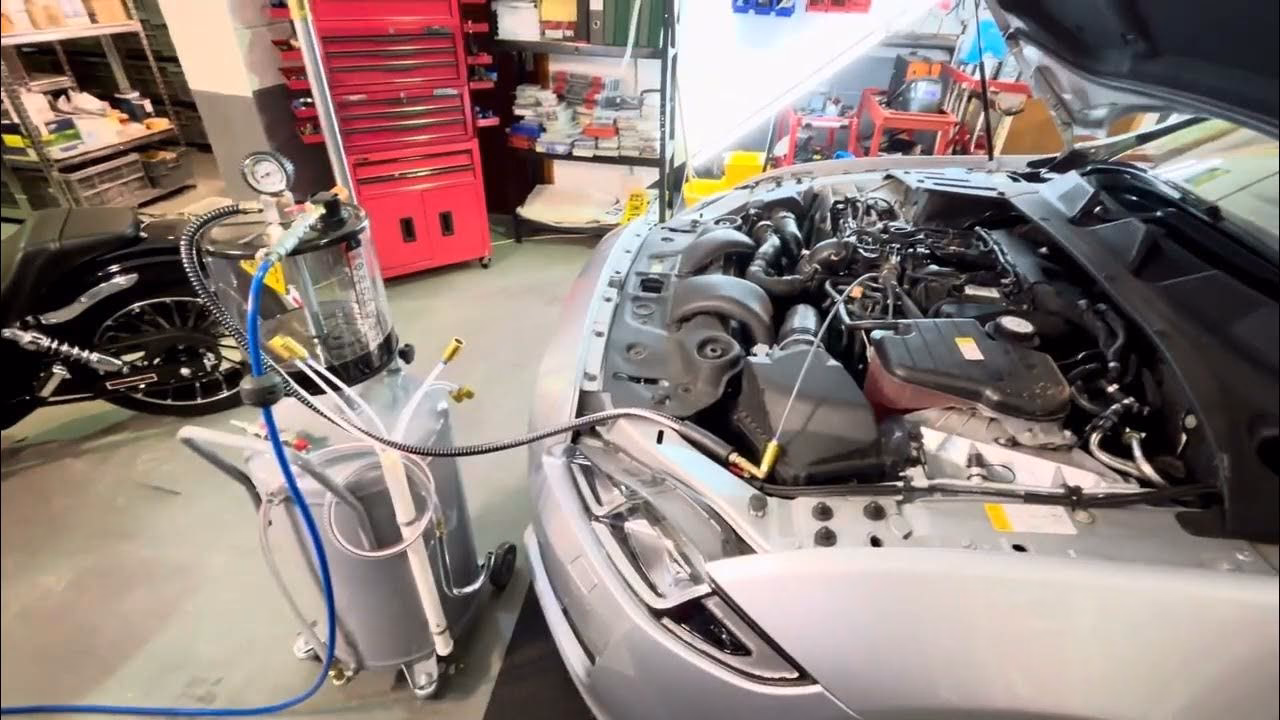

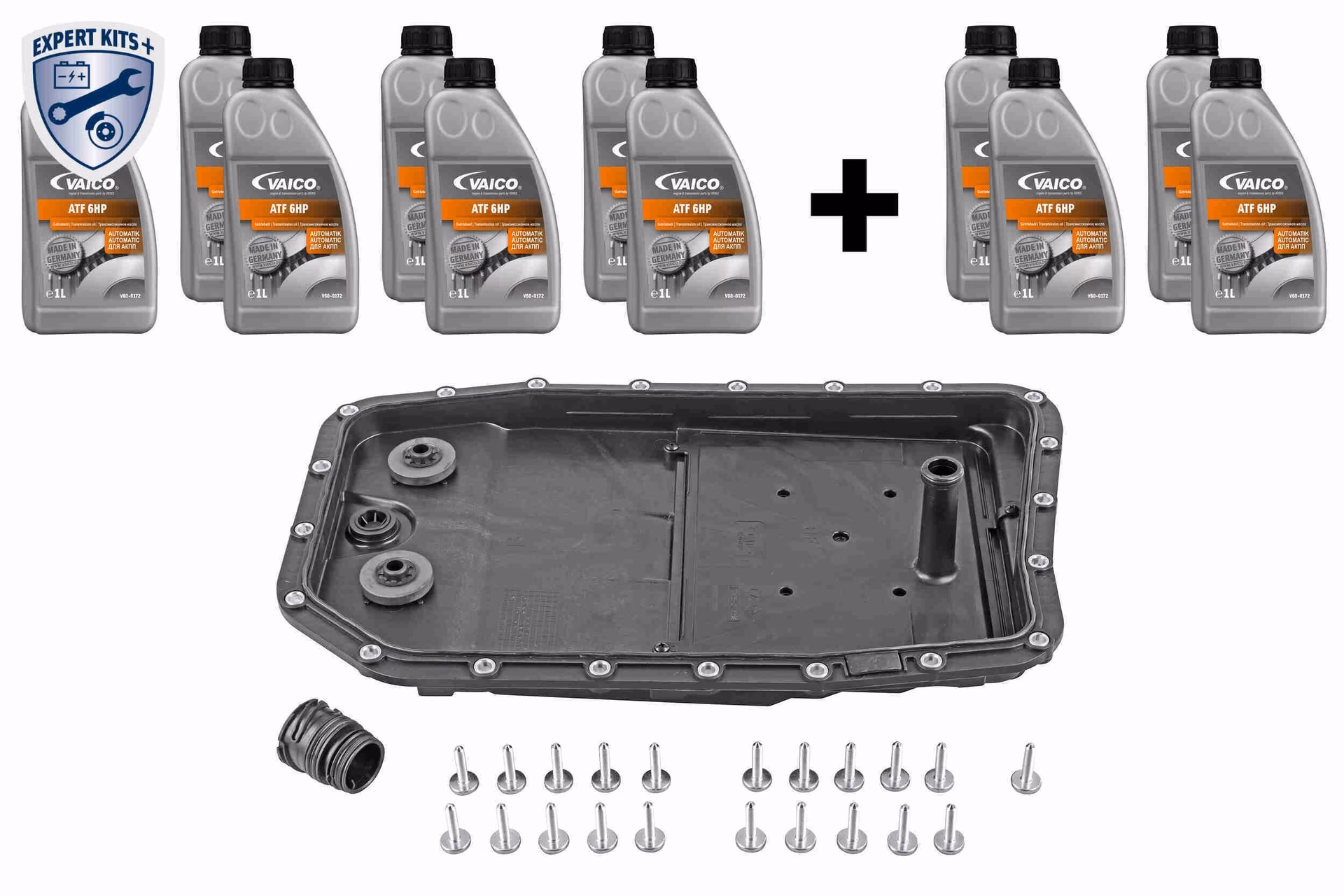

A proper ZF transmission service typically involves more than just draining the old fluid. A comprehensive service will usually include: 1. Fluid Drain and Refill: The old ATF is drained from the transmission sump. It's important to note that not all the old fluid can be drained this way, as a significant amount remains in the torque converter and cooler lines. A simple drain and refill replaces only a portion of the total fluid. 2. Filter Replacement: The transmission filter is designed to trap debris. Replacing this is a crucial part of the service to ensure clean fluid circulation. 3. Gasket Replacement: The sump pan gasket is typically replaced during the service to prevent leaks. 4. Sump Pan Cleaning/Replacement: Depending on the transmission model and the amount of debris found, the sump pan may be cleaned or replaced. 5. Fluid Level Check and Adjustment: The new fluid is added, and the level is meticulously checked and adjusted according to ZF's specifications, often at a specific transmission temperature. Important Consideration: Fluid Flush vs. Drain and RefillWhile a 'flush' might sound more thorough, it's a contentious topic. A high-pressure flush can sometimes dislodge debris that then circulates and causes damage. A drain and refill, often repeated a couple of times with driving in between, is generally considered a safer and more effective method for replacing a significant portion of the old fluid and ensuring the new fluid is not immediately contaminated by remaining old fluid.

Choosing the Right Fluid

Using the correct ATF is paramount for ZF transmissions. ZF specifies particular fluid types for their gearboxes, often with unique formulations. Using a generic or incorrect fluid can lead to shifting problems, increased wear, and potential transmission failure. Always use a fluid that meets the specific ZF specification (e.g., ZF TE-ML 11, ZF TE-ML 04D, ZF TE-ML 17A, etc. – the exact specification depends on the transmission model). Your vehicle manufacturer will also specify the required fluid, which should align with ZF's recommendations.

How Often Should You Change ZF Transmission Fluid?

As mentioned, the typical recommendation is between 60,000 and 100,000 miles (96,000 to 160,000 km) or every 5-7 years. However, consider these factors: * Driving Conditions: If you frequently drive in heavy traffic, tow trailers, or drive aggressively, you might consider halving this interval. * Vehicle Age and Mileage: Older vehicles with higher mileage may benefit from more frequent servicing. * Manufacturer Recommendations: Always prioritize your vehicle manufacturer's service schedule.

Can I Do It Myself?

While it's possible for a mechanically inclined individual to perform a basic drain and refill, servicing a ZF transmission often requires specialized tools and knowledge, particularly for correctly checking and filling the fluid level at the specified temperature. Many modern ZF transmissions have a sealed-for-life design with no external dipstick, requiring a specific procedure to access and fill the transmission. For these reasons, it is highly recommended to have a qualified mechanic or a specialist in ZF transmissions perform the service. They have the correct diagnostic equipment, tools, and knowledge to ensure the job is done correctly.

Conclusion

In summary, ZF automatic transmissions absolutely require regular fluid and filter changes to maintain their performance and longevity. While the exact intervals may vary, neglecting this vital maintenance task is a false economy that can lead to significantly higher repair costs down the line. By staying informed about your vehicle's service needs and addressing any warning signs promptly, you can ensure your ZF gearbox continues to provide smooth and reliable operation for many years to come. Regular maintenance is key to a healthy transmission. Frequently Asked Questions:* Q: What happens if I don't change the transmission fluid in my ZF gearbox?A: Over time, the fluid degrades, losing its lubricating and cooling properties. This can lead to increased wear, overheating, slipping gears, and eventually, catastrophic transmission failure. * Q: How much does a ZF transmission fluid change cost?A: The cost can vary significantly depending on your location, the specific ZF model, and whether you use a main dealer or an independent specialist. Generally, expect to pay anywhere from £200 to £500, but it's best to get a quote from your chosen garage. * Q: Can I use a universal ATF in my ZF transmission?A: It is strongly advised against using universal ATF. ZF transmissions are very specific about the fluid they require. Always use a fluid that meets the exact ZF specification listed for your gearbox. * Q: Is a transmission fluid flush good for my ZF transmission?A: A high-pressure flush can be risky. A more conservative approach, such as a drain and refill (potentially repeated), is often preferred by specialists to avoid dislodging harmful debris. * Q: My car has a 'lifetime' transmission fluid fill. Do I still need to change it?A: While some fluids are designed for long service life, 'lifetime' often refers to the expected life of the transmission under ideal conditions. For most vehicles, especially those used in typical daily driving, changing the fluid at recommended intervals is prudent to ensure long-term reliability.
