Isuzu E-IDSS: Your Commercial Vehicle Diagnostic Solution

In the demanding world of commercial vehicle maintenance, having the right diagnostic tools is paramount. Isuzu, a name synonymous with robust and reliable trucks, offers its technicians and fleet managers a powerful solution: the Isuzu E-IDSS (Engine Diagnostic Service System). This advanced system is not just a piece of software; it's a comprehensive package of hardware and software designed to provide in-depth diagnostics, programming, and service support for a vast array of Isuzu commercial vehicles. From troubleshooting complex engine issues to performing crucial software updates, the E-IDSS is an indispensable asset for ensuring optimal vehicle performance and longevity. This article delves into what makes the Isuzu E-IDSS such a vital tool, exploring its key features, setup requirements, operational capabilities, and the benefits it brings to the automotive service industry.

Understanding the Isuzu E-IDSS System

At its core, the Isuzu E-IDSS is a sophisticated diagnostic platform specifically engineered for Isuzu's commercial vehicle range. It acts as the bridge between a technician's computer and the vehicle's complex electronic control units (ECUs). By facilitating seamless communication, the E-IDSS allows for the retrieval of diagnostic trouble codes (DTCs), the execution of various system tests, and even the programming of new components. Its support for vehicles dating back to 1996 and extending to the latest models makes it a future-proof investment for any workshop dealing with Isuzu trucks and other commercial vehicles. The system's design prioritises efficiency and accuracy, aiming to reduce downtime and improve the overall service experience.

Key Features of the Isuzu E-IDSS

The Isuzu E-IDSS distinguishes itself through a suite of powerful features tailored to the needs of commercial vehicle technicians:

Comprehensive Diagnostics

This is the cornerstone of the E-IDSS. Technicians can expect to perform a wide range of diagnostic tasks, including:

• Reading and Clearing Fault Codes: Identify and resolve engine and system faults with precision.
• Live Data Streaming: Monitor real-time sensor data to understand vehicle behaviour under various operating conditions.
• Component Actuation Tests: Command specific components (e.g., fuel injectors, EGR valves) to operate, verifying their functionality.
• System Tests: Run pre-programmed tests to diagnose complex systems like the DPF regeneration cycle or emission control systems.
• Detailed Reporting: Generate comprehensive reports of diagnostic findings, which are crucial for record-keeping and customer communication.

These capabilities provide a holistic view of the vehicle's health, enabling technicians to pinpoint issues quickly and accurately, leading to faster repairs.

User-Friendly Interface and Guided Procedures

Recognising that diagnostic tools can sometimes be complex, Isuzu has designed the E-IDSS software with an intuitive and user-friendly interface. The software often includes:

• Guided Diagnostics: Step-by-step instructions for specific diagnostic procedures, making it accessible even for less experienced technicians.
• Clear Navigation: A logical layout that allows for easy access to all functions and menus.
• Integrated Help: On-screen assistance and explanations for various features and codes.

This focus on usability ensures that technicians can spend less time navigating the software and more time diagnosing and repairing vehicles.

Regular Software Updates

The automotive industry is constantly evolving, with new vehicle models, updated ECUs, and revised diagnostic protocols. The Isuzu E-IDSS, through its subscription model, ensures that users are always equipped with the latest information. Regular internet-based updates provide:

• Support for new Isuzu vehicle models and engine variants.
• Updates to diagnostic functions and test routines.
• Improvements to software performance and bug fixes.

Staying current with these updates is crucial for maintaining diagnostic accuracy and compatibility with the latest technology.

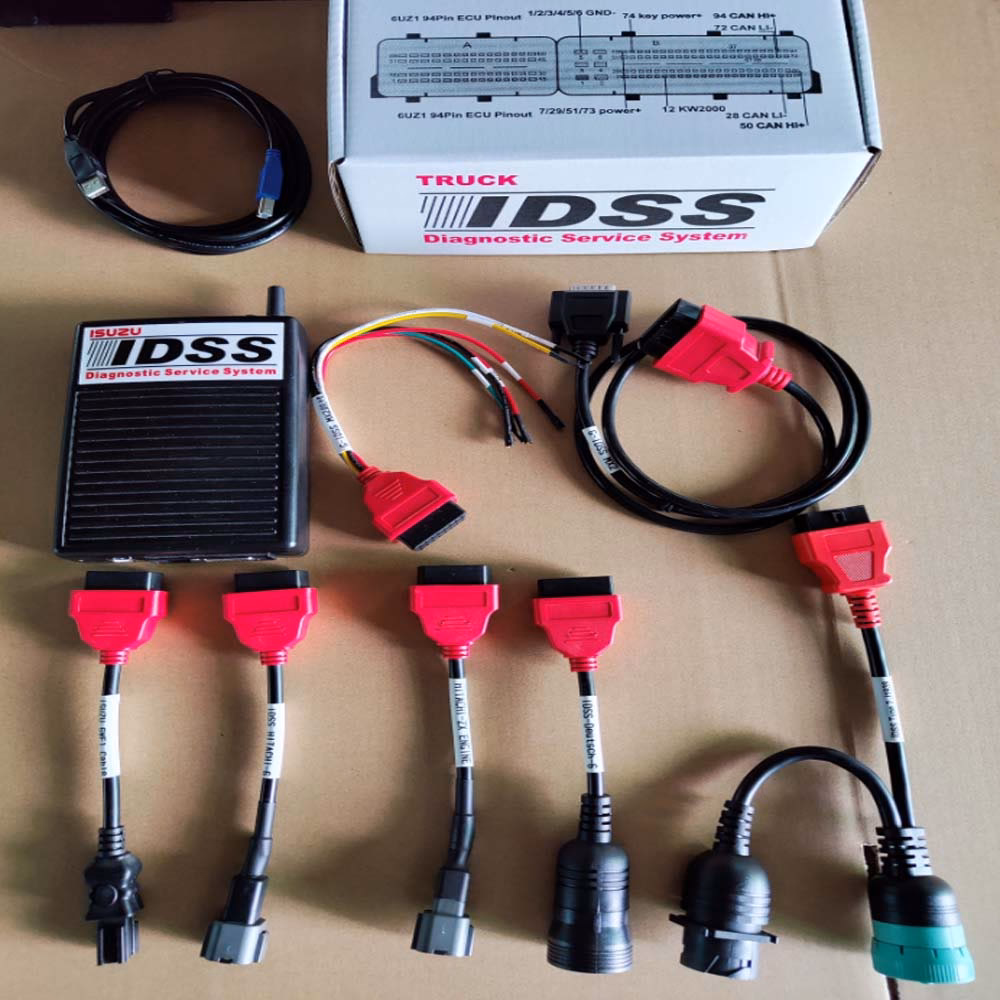

The Isuzu E-IDSS Hardware Kit

To perform its diagnostic functions, the E-IDSS relies on specific hardware components that are typically included in the kit:

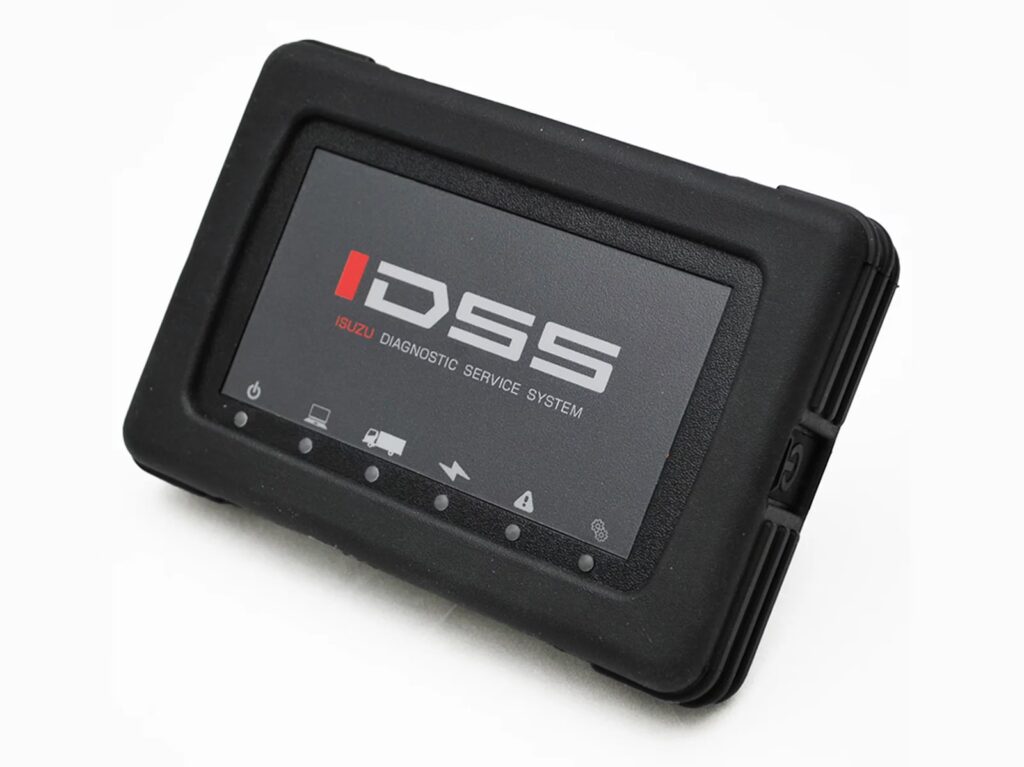

Connecting the IDSS Interface

Proper connection is vital. The IDSS interface device connects to the vehicle's DLC port using the DLC cable. The interface device then connects to the laptop via a USB cable. It's important to note that Isuzu vehicles may have different control module voltages (12V or 24V). Using the correct power connection is essential to prevent damage to the control module. When using service information utility functions, external power connection to the interface may not be necessary.

Setting Up Your Isuzu E-IDSS System

A smooth installation process ensures that the E-IDSS is ready to use without complications. Adhering to the system requirements is key:

System Requirements

To ensure optimal performance and compatibility, your computer should meet the following minimum specifications:

• Operating System: Windows 10 (32-bit or 64-bit). Earlier Windows versions might be supported, but Windows 10 is the standard.
• Processor: Pentium 2.0 GHz or higher.
• RAM: Minimum 2 GB for 32-bit OS, 4 GB for 64-bit OS.
• Hard Disk Space: At least 40 GB free space recommended, with 80 GB preferred for smoother operation and future updates.
• DVD Drive: An 8x DVD drive (single layer) or 6x (dual layer) is required for software installation.
• Connectivity: A stable broadband internet connection is necessary for software updates and online features. At least one USB 2.0 port is required for the interface device.
• Display Resolution: A minimum resolution of 1024x768 pixels is needed for proper display of the software interface.

Installation Process

The installation typically involves the following steps:

1. Insert the provided Installation DVD into your computer's DVD drive.
2. Run the setup executable file to launch the installation wizard.
3. Follow the on-screen prompts, accepting the license agreement and choosing the installation directory.
4. Connect the IDSS Interface Device to your PC using the USB cable. The system may automatically detect and install necessary drivers.
5. Complete the installation. It is often recommended to restart your computer after the installation is finished.

For users who encounter difficulties, Isuzu may offer remote installation support, often via tools like TeamViewer, where a technician can guide you through the process remotely.

Using the Isuzu E-IDSS Software

Once installed and connected, the E-IDSS software becomes your primary interface for interacting with the vehicle's systems.

Navigating the Interface

The main screen of the Isuzu Diagnostic Service System (IDSS) presents several key options:

• Vehicle Selection: Drop-down menus allow you to select the OEM, Model Year, Engine Model, and Engine Type.
• Engine Serial Number (ESN): You can manually enter the ESN, or use the 'Find Engine' or 'Request Serial Number' buttons to automatically retrieve it. The ESN is critical for the system to load the correct engine data and configurations.
• Service Bulletins: Access to recent service bulletins related to your selected engine or vehicle.
• Recent Engines Loaded: A quick way to access recently diagnosed engines.

Performing Key Functions

From the main screen, you can initiate various operations:

• Load Engine: After making selections, click 'Load Engine' to prepare the system for diagnostics specific to that configuration.
• Diagnostics: Navigate to the diagnostic modules to read codes, view live data, and perform tests.
• Controller Programming: Use this function for tasks like injector programming, ECU re-flashing, or resetting learned parameters. This is vital for ensuring new components work correctly with the vehicle's existing systems.
• Utility Functions: Access tools for tasks such as firmware updates for the interface device itself, or other maintenance-related functions.

Understanding Engine Serial Numbers

The Engine Serial Number (ESN) is a unique identifier for each Isuzu engine. The E-IDSS relies heavily on the ESN to load the correct engine control software and diagnostic parameters. You can typically find the ESN printed on a label affixed to the engine block or on a dedicated plate. The system's ability to automatically request or find the ESN simplifies this process significantly.

Compatibility and Supported Models

The Isuzu E-IDSS is designed to cover a broad spectrum of Isuzu commercial vehicles and engines, including those used in various industrial applications. The system supports models from 1996 to the present, ensuring a wide range of coverage. The provided list highlights the extensive compatibility, including specific engine models and emission tiers (e.g., Tier-3, Tier-4) for numerous equipment manufacturers that utilise Isuzu engines, such as:

• Isuzu N-Series, F-Series, C-Series trucks
• Isuzu Reach vehicles
• Isuzu D-MAX pickups
• Various construction and industrial equipment from brands like DENYO, Doosan, Hitachi, JCB, KATO, Kobelko, Sumitomo, and Takeuchi, which commonly use Isuzu engines.

This broad compatibility makes the E-IDSS a versatile tool for workshops that service not only Isuzu branded vehicles but also other equipment powered by Isuzu engines.

Technical Support and Subscription Benefits

To ensure users can maximise the benefits of the E-IDSS, Isuzu offers ongoing technical support and a subscription service. The subscription typically provides:

• Access to Latest Software Updates: Crucial for supporting new models and evolving diagnostic protocols.
• Technical Assistance: Access to Isuzu's support network for troubleshooting and guidance.
• Online Resources: User manuals, FAQs, and troubleshooting guides.

This ongoing support is vital for keeping the diagnostic system up-to-date and effective, ensuring technicians have the resources they need to tackle any issue.

Troubleshooting Common Issues

While the E-IDSS is a robust system, technicians might encounter occasional problems. Common issues and their solutions include:

• Connection Errors: Ensure the DLC cable is securely connected to the vehicle and the interface device. Check USB connections and try a different port. Verify that the correct vehicle model and engine are selected in the software.
• Software Glitches: Ensure the software is updated to the latest version. Restarting the software or the computer can often resolve temporary glitches.
• Installation Problems: Double-check that the computer meets all system requirements. If using the DVD, ensure it's clean and undamaged. For remote installation assistance, contact your Isuzu support provider.

For persistent issues, contacting Isuzu's dedicated technical support is the most effective way to find a resolution.

Frequently Asked Questions

Q1: Does the Isuzu E-IDSS work on older Isuzu trucks?

A1: Yes, the Isuzu E-IDSS system supports Isuzu commercial vehicles from model year 1996 to the present, covering a wide range of older and newer models.

Q2: Can I use the E-IDSS for programming injectors?

A2: Yes, the E-IDSS software includes controller programming capabilities, which often encompass functions like injector programming, re-learn commands, and other critical ECU adjustments.

Q3: What is the importance of the Engine Serial Number (ESN) in E-IDSS?

A3: The ESN is crucial as it allows the E-IDSS software to load the correct engine configurations, parameters, and diagnostic routines specific to that particular engine, ensuring accurate diagnostics and programming.

Q4: How do I get software updates for the E-IDSS?

A4: Software updates are typically provided via the internet and are usually included as part of an active subscription to the E-IDSS service. You can access them through the software's update utility.

Q5: Is the E-IDSS primarily for engines or full vehicle diagnostics?

A5: While the system's name highlights 'Engine Diagnostic Service System', it provides comprehensive diagnostics for Isuzu commercial vehicles, covering engine and related electronic systems.

Conclusion

The Isuzu E-IDSS represents a significant advancement in diagnostic capabilities for Isuzu commercial vehicles. Its comprehensive features, user-friendly design, and continuous support system make it an essential tool for any professional workshop or fleet operator. By enabling precise diagnostics, efficient troubleshooting, and accurate programming, the E-IDSS helps to minimise vehicle downtime, reduce repair costs, and ensure that Isuzu vehicles operate at peak performance. Investing in and maintaining an active subscription to the Isuzu E-IDSS is a strategic decision that pays dividends in service quality and operational efficiency, solidifying its role as a cornerstone of modern Isuzu commercial vehicle maintenance.
