Brake Pad Sensor Faults Explained

The illuminated brake pad warning light on your dashboard can be a cause for concern, often signalling a need for attention to your vehicle's braking system. While it might seem straightforward, resolving a faulty brake pad sensor issue can sometimes be more complex than initially anticipated, often involving a combination of physical replacement and electronic resets. This article aims to demystify the process, drawing on common experiences and providing a thorough guide to help you understand and address this common automotive niggle.

Understanding the Brake Pad Sensor System

Modern vehicles are equipped with sophisticated systems to monitor the wear of critical components, and brake pads are no exception. Brake pad wear sensors are typically small electrical contacts integrated into the brake pads themselves or attached to the brake caliper. Their primary function is to detect when the brake pad material has worn down to a predetermined minimum thickness. When this threshold is reached, the sensor makes contact with the brake disc (or a similar conductive surface), completing an electrical circuit. This completes a circuit, which in turn triggers the brake pad warning light on your dashboard, alerting you to the need for replacement. It's crucial to understand that these sensors are often designed to be sacrificial; once they trigger the warning light, they are typically replaced along with the brake pads.

Common Causes of a Faulty Brake Pad Sensor Light

Several factors can contribute to the brake pad warning light illuminating, even if your brake pads still have life left in them. It's not always a straightforward case of worn-out pads.

1. Worn Brake Pads (The Obvious One)

This is the most common and intended reason for the sensor to trigger. As the brake pad material wears down, the sensor is eventually exposed and makes contact, signalling the need for replacement. It's worth noting that inner brake pads can sometimes wear faster than outer pads due to the caliper design, meaning the sensor on the inner pad might trigger the warning before the outer pad is significantly worn.

2. Damaged or Corroded Sensor Wiring

The wiring connecting the sensor to the vehicle's braking control module can be exposed to harsh road conditions, dirt, moisture, and road salt. This can lead to corrosion or physical damage to the wiring, creating an intermittent or permanent fault in the circuit. A break in the wire or a short circuit can mimic the condition of a worn-out sensor, causing the warning light to illuminate.

3. Faulty Sensor Itself

While designed to be triggered by wear, the sensor itself can fail. This could be due to manufacturing defects, extreme temperatures, or simply reaching the end of its lifespan. A faulty sensor might send an incorrect signal to the vehicle's computer, leading to a false warning.

4. Incorrect Installation

If brake pads have been recently replaced, an incorrect installation of the new sensors or a failure to properly connect them can result in the warning light remaining illuminated. Sometimes, new sensors might not be seated correctly, or the connectors might not be fully engaged.

5. Electronic System Glitches or Other Sensor Failures

In some cases, the warning light might be triggered by a temporary glitch in the vehicle's electronic systems or a fault in another related sensor within the braking system. This is where the complexity of modern vehicle electronics comes into play.

Troubleshooting and Resetting Procedures

Resolving a brake pad sensor fault often involves a two-pronged approach: physical inspection and replacement, followed by an electronic reset. The reset procedure can vary significantly between vehicle manufacturers and models, and as one owner noted, it's not always as straightforward as one might hope. There can be multiple reset points that need to be addressed.

Step 1: Visual Inspection

Before diving into resets, it's essential to physically inspect your brake pads. If you're comfortable doing so, remove the wheels and visually assess the thickness of your brake pads. If they are indeed worn down to the minimum thickness (typically around 3mm or less), then replacement is necessary. Even if they appear to have some life left, consider replacing the sensor if it's a single-wire type, as these are generally sacrificial and designed to be replaced with the pads. If you have multi-wire sensors, they might be reusable if undamaged.

Step 2: Replacing the Brake Pad Sensor(s)

If your inspection reveals worn pads or if you suspect the sensor itself is faulty, replacing it is the next logical step. This usually involves unclipping the old sensor and clipping in the new one. Ensure the new sensor is compatible with your vehicle's make and model. For vehicles with sensors on both front and rear axles, you may need to replace them on both ends.

Step 3: The Reset Procedure – Where it Gets Tricky

This is often the most confounding part. Simply replacing the worn components might not be enough to extinguish the warning light. The vehicle's computer needs to be informed that the issue has been rectified. Here's a breakdown of common reset methods:

a) On-Board Computer (OBC) Reset

Many vehicles allow for certain resets through the dashboard menus. This typically involves navigating through the vehicle's infotainment system or using buttons on the steering wheel or dashboard. The process might involve holding down specific buttons while turning the ignition on, or selecting an option like 'Service Reset' or 'Brake Reset' within the vehicle settings. The exact sequence is critical. For example, some manufacturers require you to reset the mileage-based indicator first, then perform a separate sensor reset.

Example Scenario (Illustrative – Consult your owner's manual):

For some European vehicles, a common procedure might involve:

1. Turn the ignition off.
2. Press and hold the trip reset button.
3. Turn the ignition to the 'on' position (without starting the engine).
4. Continue holding the trip reset button until 'Service Reset' or a similar message appears.
5. Release the button.
6. Press and hold the trip reset button again until the service interval is reset (often indicated by '---' or a mileage value).
7. Repeat for other service items if applicable.

Crucially, there might be a separate procedure specifically for the brake pad sensor reset, which could involve a different combination of button presses or require the car to be in a specific state (e.g., engine running or off).

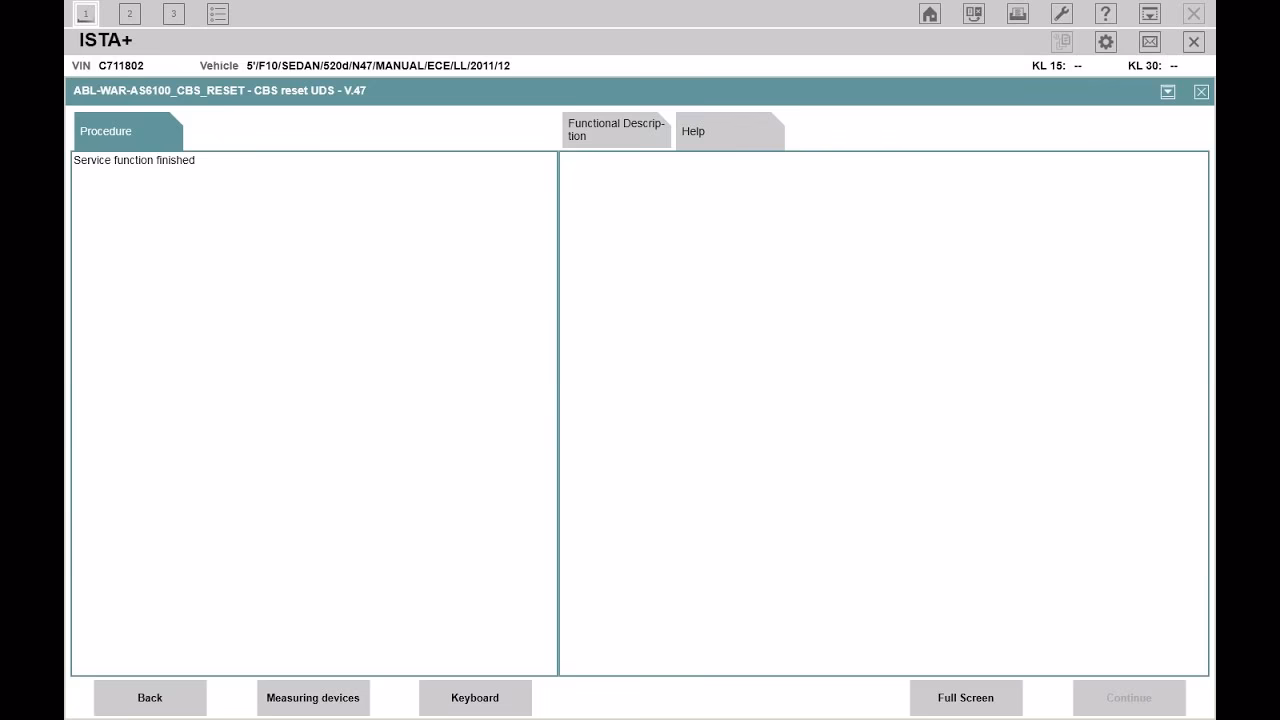

b) Diagnostic Tool Reset

For many modern vehicles, especially those with more complex electronic architectures, a dedicated diagnostic tool or OBD-II scanner is required to reset the brake pad warning light. These tools can communicate directly with the vehicle's control modules and clear fault codes or reset service indicators. As one user experienced, using an app like Carly with a compatible dongle can be effective. These tools often provide specific functions for resetting brake wear indicators.

Important Considerations for Resets:

• Order Matters: As highlighted by user experiences, the order in which you perform resets can be crucial. If there are multiple reset points (e.g., mileage-based service interval and the actual sensor reset), attempting them in the wrong sequence might not clear the light.
• Two Resets Required?: Some systems might genuinely require two distinct reset actions. One might reset the general service reminder, and another specifically targets the brake pad sensor.
• Consult Your Owner's Manual: This is your most reliable source of information. The manual will detail the specific reset procedures for your vehicle's make, model, and year.
• Professional Help: If you're struggling with the reset procedures or are unsure about any step, it's always best to consult a qualified mechanic. They have the necessary tools and expertise to diagnose and resolve the issue correctly.

Table: Common Reset Methods vs. Potential Issues

Frequently Asked Questions (FAQs)

Q1: Can I drive with the brake pad warning light on?

While the light often indicates worn pads, it's a safety system. Driving with significantly worn brake pads can compromise your braking performance, increasing stopping distances. It's advisable to have the system checked and the pads replaced as soon as possible. If the light is accompanied by grinding noises or a spongy brake pedal, stop driving immediately and seek professional assistance.

Q2: Do I need to replace the sensor every time I change the brake pads?

For vehicles with single-wire, sacrificial sensors, it is highly recommended to replace them with new brake pads. These sensors are designed to fail once they trigger the warning. If your vehicle has multi-wire sensors that are not visibly damaged, they may be reusable, but it's always best to check their condition and consult your vehicle's service manual.

Q3: My warning light came on, but the pads look fine. What should I do?

This often points to a faulty sensor itself or an issue with the sensor wiring. Inspect the wiring for damage or corrosion. If the wiring appears intact, the sensor likely needs to be replaced, and then the system reset. It's also possible there's an intermittent fault in the electronic system.

Q4: I replaced the pads and sensor, but the light is still on. Why?

This is a common scenario and usually means the electronic reset procedure has not been performed correctly. Ensure you are following the exact reset sequence for your vehicle, which may involve multiple steps or the use of a diagnostic tool. Double-check that the new sensor is properly connected.

Q5: How much does it typically cost to replace a brake pad sensor?

The cost of a brake pad sensor itself is usually quite affordable, often ranging from £10 to £30 depending on the vehicle. However, the labour involved in replacing it, especially if it's integrated into the brake pad replacement process, can add to the cost. If a diagnostic tool is needed for the reset, this might also incur a fee if done by a garage.

Conclusion

Dealing with a faulty brake pad sensor can be a frustrating experience, often requiring more than just a simple part replacement. Understanding the system, performing thorough visual inspections, and correctly executing the reset procedures are key to resolving the issue. Whether through on-board menus or diagnostic tools, the reset is a critical step often overlooked. Always refer to your vehicle's owner's manual for specific instructions, and don't hesitate to seek professional help if you're unsure. A properly functioning brake system is paramount for your safety on the road.
