Unveiling the ISR 22-048 4-Piston Brake Caliper

When it comes to high-performance braking, every gram counts, and precision is paramount. The ISR 22-048 4-piston brake caliper stands as a testament to this philosophy, offering a meticulously engineered solution for specific applications where lightweight design and robust stopping power are not just desired, but essential. This compact yet potent caliper, originating from the esteemed workshops of ISR, has carved out a niche for itself, serving both the demanding world of motorcycle racing and the intricate requirements of lightweight automotive projects like Formula SAE cars.

Understanding the ISR 22-048: A Masterclass in Compact Performance

At its core, the ISR 22-048 is a high-performance 4-piston caliper, meticulously designed to offer superior braking force and modulation within a remarkably small footprint. Unlike many conventional calipers that prioritise sheer bulk for stopping power, the 22-048 focuses on intelligent design and advanced materials to achieve its impressive capabilities. Its original conception was twofold: to provide a robust braking system for 125cc motorcycles, often in a dual-caliper setup for enhanced performance, and to cater to the specialised needs of lightweight race cars, such as those found in Formula SAE competitions.

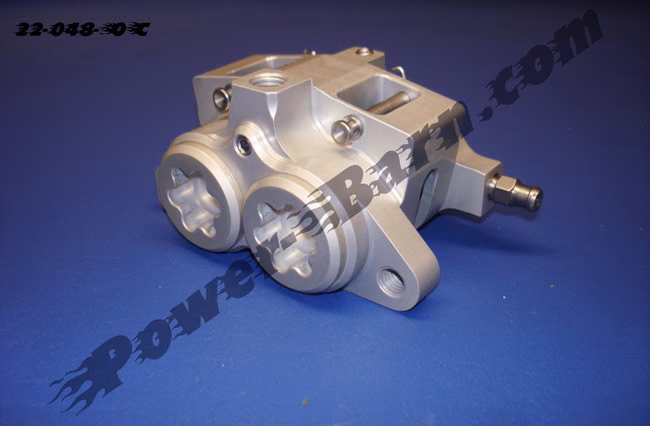

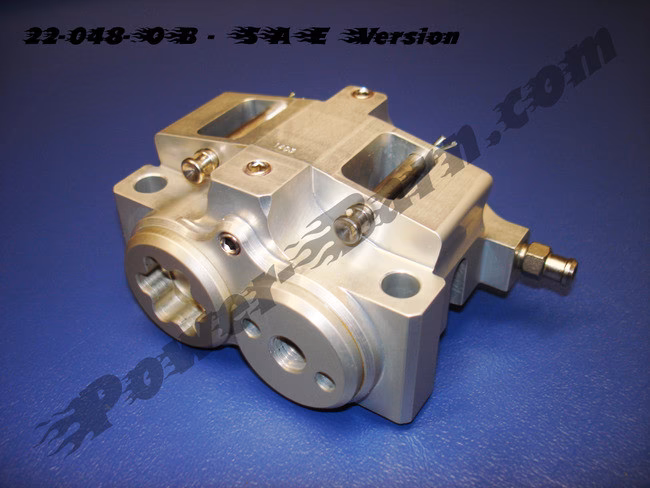

The ingenuity behind the 22-048 is evident in its adaptability. While the motorcycle version might have a standard fluid inlet, the car-specific variant cleverly integrates the brake fluid inlet directly into one of the caliper caps. This subtle yet significant design choice highlights ISR's attention to the diverse packaging requirements of different vehicle types, ensuring optimal hose routing and a cleaner installation, particularly critical in the confined spaces of a racing car's wheel assembly.

Key Technical Specifications and Their Advantages

The performance of any brake caliper is deeply rooted in its technical specifications. The ISR 22-048 boasts a set of figures that collectively paint a picture of a purpose-built, high-quality component:

• Piston Diameter: 25 mm (x4) – Four pistons ensure even pressure distribution across the brake pad, leading to more consistent wear and improved feel at the lever or pedal.
• Piston Material: Tufram coated aluminium alloy – This advanced coating significantly enhances the durability and wear resistance of the pistons, reducing friction and ensuring smooth operation even under extreme thermal loads. It's a testament to ISR's commitment to longevity and consistent performance.
• Pad Type: ISR 29-002 (x4) – Utilising a specific, high-performance pad ensures optimal friction characteristics and thermal stability, crucial for racing applications.
• Pad Area: 14 cm² – A generous pad area for its size, contributing to effective heat dissipation and sustained braking performance.
• Swept Height of Disc: 27 mm – This is a critical dimension. A smaller swept height allows for the use of lighter brake discs, directly reducing unsprung weight. This is a massive advantage in racing, where every gram saved contributes to improved handling and acceleration.
• Disc Size Compatibility: 150 - 250 mm – Offers flexibility in disc diameter, allowing builders to tailor the braking system to specific vehicle requirements and available space.
• Disc Thickness: 4.6 - 5.0 mm – Indicates the caliper's suitability for high-performance discs designed to withstand significant thermal stress without warping.
• Hydraulic Thread: M10 x 1.25 – A standard metric thread, ensuring compatibility with a wide range of brake lines and fittings.
• Weight (incl. pads): 0.46 kg – This is perhaps one of the most striking features. At less than half a kilogram, this caliper is incredibly light, directly contributing to reduced unsprung mass and enhanced vehicle dynamics.
• Surface Finish: Clear anodised – Provides excellent corrosion resistance and a durable, aesthetically pleasing finish that can withstand the harsh conditions of racing.

Optimising Disc Performance with the 22-048

The 27 mm swept height of the disc area is a standout feature of the ISR 22-048. For those unfamiliar, the swept height refers to the radial dimension of the brake pad's contact area on the disc. By keeping this dimension relatively small, ISR has enabled the use of discs that are inherently lighter. A disc with a smaller swept area can be manufactured with less material in its outer circumference while still providing adequate braking surface. This directly translates to a significant reduction in unsprung weight, which is the weight of components not supported by the vehicle's suspension.

Reducing unsprung weight has a profound impact on vehicle dynamics. It allows the suspension to react more quickly and effectively to road imperfections, improving tyre contact with the ground, enhancing grip, and ultimately leading to better handling, faster acceleration, and more responsive braking. For 125cc racing bikes and Formula SAE cars, where every millisecond and every subtle change in handling can make a difference, this design choice is invaluable. The recommended disc sizes of 150-250 mm and thickness of 4.6-5.0 mm further underscore its suitability for high-performance, lightweight disc applications.

Versatility in Application: From Two Wheels to Four

The dual-purpose design intent of the ISR 22-048 highlights its remarkable versatility. On 125cc racing motorcycles, it’s not uncommon to see two of these calipers employed on the front wheel. This dual setup provides a substantial increase in braking force and allows for finer control and heat management, critical during intense race conditions. The compact size of the 22-048 means that even with two calipers, packaging remains manageable, and the overall weight penalty is minimal.

For lightweight cars, particularly in the realm of Formula SAE, the 22-048 is an ideal choice. Formula SAE cars are built with extreme weight-saving measures in mind, and every component is scrutinised for its mass. The 0.46 kg weight of the 22-048, including pads, makes it a prime candidate for these vehicles. Furthermore, the ability to integrate the fluid inlet into a cap on the car version simplifies plumbing in a very tight chassis, a common challenge in bespoke race car construction. This versatility makes the ISR 22-048 a highly sought-after component for custom builders and race teams globally.

Compatibility with ISR Master Cylinders

The importance of a well-matched braking system cannot be overstated. While the specific master cylinder mentioned in the context of ISR compatibility is described as a 'neat little rear master cylinder' intended for sports and racing bikes, the key takeaway is its broad compatibility. ISR designs its components with system integration in mind, and this particular master cylinder is stated to be compatible with all ISR calipers. This simplifies the selection process for builders, ensuring that when you choose an ISR caliper, you can confidently pair it with an ISR master cylinder for optimal performance.

When constructing any brake system, it is always recommended to try and mount the master cylinder higher than the caliper. This basic principle of hydraulics aids in the bleeding process, allowing air bubbles to naturally rise towards the reservoir, making it easier to achieve a firm and consistent brake pedal or lever feel. While specific master cylinder bore sizes need to be matched to the total piston area of the calipers for ideal brake feel and power, ISR's general compatibility across its caliper range offers a strong starting point for system design.

Why Choose the ISR 22-048?

The decision to opt for an ISR 22-048 caliper is driven by several compelling factors:

• Unrivalled Lightweight Design: Its incredibly low weight directly contributes to improved vehicle dynamics and performance.
• Compact Form Factor: Ideal for applications where space is at a premium, without compromising on braking power.
• High-Quality Materials: Tufram coated aluminium pistons and a clear anodised finish ensure durability and consistent performance.
• Precision Engineering: A 4-piston design provides even pad wear and superior modulation.
• Versatility: Proven performance in both motorcycle and lightweight automotive racing environments.
• Optimised for Light Discs: The 27 mm swept height facilitates the use of lighter brake discs, further reducing unsprung mass.

For those building a custom project, restoring a vintage racer, or competing in categories where weight reduction is a key performance differentiator, the ISR 22-048 represents a shrewd investment.

Comparative Glance: ISR 22-048 vs. Standard Calipers

To truly appreciate the ISR 22-048, it helps to consider it in contrast to more conventional brake calipers. While a direct comparison to every caliper on the market is impossible, we can highlight its unique selling points against a 'typical' performance caliper that might be found on a larger road bike or a heavier track car.

This table clearly illustrates the ISR 22-048's dedication to minimalist design and maximum efficiency for weight-critical scenarios.

Frequently Asked Questions About the ISR 22-048

What vehicles is the ISR 22-048 best suited for?

The 22-048 is ideally suited for 125cc racing motorcycles, lightweight race cars such as those in Formula SAE, and custom-built projects where weight reduction and compact dimensions are paramount for performance.

Can I use the 22-048 on a heavier road car or motorcycle?

While technically possible, the 22-048 is designed for lightweight applications. Its compact size and emphasis on minimal swept area are optimised for vehicles where overall mass is low. Using it on a significantly heavier vehicle might lead to accelerated wear, insufficient braking power for sustained use, or excessive heat generation. It's best to stick to its intended lightweight applications.

What brake pads does the ISR 22-048 use?

The caliper is designed to use ISR 29-002 brake pads. Using the specified pad type is crucial for optimal performance, feel, and longevity of the caliper and disc.

Why is the 27 mm swept disc height important?

The 27 mm swept height allows for the use of narrower, and therefore lighter, brake discs. This directly contributes to a reduction in unsprung weight, which significantly improves handling, suspension response, and overall vehicle dynamics, especially in racing scenarios.

What are the benefits of the Tufram coated aluminium alloy pistons?

Tufram coating is a proprietary hard anodising process that enhances the surface hardness, wear resistance, and corrosion resistance of the aluminium pistons. This reduces friction, ensures smoother piston movement, and extends the lifespan of the caliper, even under the high temperatures and pressures of racing.

Is the ISR 22-048 primarily for racing or can it be used for street applications?

Given its design philosophy focusing on extreme lightweighting and high performance for specific racing categories (125cc bikes, Formula SAE), the 22-048 is primarily intended for racing and track use. While it could theoretically be used on a lightweight street-legal custom build, its design priorities are firmly rooted in competition.

What type of master cylinder should I pair with the ISR 22-048?

ISR states that a specific 'neat little rear master cylinder' is compatible with all their calipers. Generally, when selecting a master cylinder, you should match its bore size to the total piston area of the calipers to achieve the desired lever/pedal feel and braking power. For optimal performance with the 22-048, an ISR master cylinder designed for high-performance applications would be the recommended choice, ensuring hydraulic compatibility and system integrity.

Conclusion

The ISR 22-048 4-piston brake caliper is more than just a component; it's a finely tuned instrument for performance. Its thoughtful design, incorporating advanced materials and a relentless pursuit of weight reduction, makes it an exemplary choice for demanding applications where every fraction of a kilogram and every millimeter of space is critical. Whether you're engineering a championship-winning Formula SAE car or optimising a 125cc race bike, the 22-048 offers a compelling blend of lightweight construction, robust performance, and the precision engineering that ISR is renowned for. It stands as a testament to the fact that sometimes, less weight truly does mean more performance.
