Brake Pads vs. Rotors: Your UK Guide to Stopping

When it comes to your vehicle's braking system, there's often a bit of confusion surrounding the various components. Two terms frequently used, sometimes interchangeably, are 'brake pads' and 'brake rotors'. Are they the same thing? Absolutely not, though they are intrinsically linked and work together in perfect harmony to bring your car to a safe stop. Understanding their individual roles and how they interact is crucial for every responsible driver in the UK.

Your vehicle's braking system is a complex network, but at its heart are these two key players. The brake pads are a consumable part, designed to create the necessary friction, while the brake rotors (often called brake discs in the UK) are the robust metal surfaces against which the pads press. This seemingly simple interaction is what allows your car to convert kinetic energy into thermal energy, slowing you down and eventually halting your journey.

Understanding Brake Pads: The Friction Generators

Brake pads are the sacrificial components in your braking system. When you press the brake pedal, hydraulic pressure from the brake fluid forces the brake pads against the spinning brake rotors. This contact generates intense heat and friction, which is the force that resists the motion of your wheels, allowing your vehicle to decelerate. Without effective brake pads, your car simply wouldn't stop.

A Brief History of Brake Pad Materials

In the past, asbestos was a common material used in brake pads due to its excellent heat absorption properties. However, as the pads wore down, microscopic asbestos fibres would become airborne, posing severe health risks when inhaled. Thankfully, modern brake pads have evolved significantly. Today, they are crafted from a variety of safer, more environmentally friendly materials.

• Organic Non-Asbestos Materials (NAO): These pads are typically made from materials like glass, rubber, carbon, and Kevlar, bound together with resins. They are generally quieter and gentler on rotors, making them suitable for everyday driving and offering a smooth braking feel. However, they may wear faster and produce more dust.
• Semi-Metallic Pads: Comprising 30-65% metal (iron, copper, steel, etc.), these pads offer excellent heat transfer and braking performance, especially under heavier use. They are durable but can be noisier and may generate more brake dust than organic pads. They are a popular choice for many vehicles.
• Ceramic Pads: Made from a dense ceramic material mixed with copper fibres, ceramic pads are known for their quiet operation, low dust production, and excellent performance across a wide temperature range. They are often more expensive but offer a clean, consistent braking feel and are very rotor-friendly.

Choosing the right type of brake pad depends on your driving style, vehicle type, and performance expectations. A family saloon might benefit from quiet organic pads, while a performance car would likely require the stopping power of semi-metallic or ceramic options.

Understanding Brake Rotors (Discs): The Braking Surface

While brake pads generate the friction, the brake rotors provide the essential surface for that friction to occur. These are the large, flat, shiny metal discs you can often see through your wheel spokes. They are securely bolted to your wheel hub and rotate with the wheel. When the brake pads clamp down on them, the resistance created slows the rotation of the wheels.

Types of Brake Rotors

• Solid Rotors: Found on older or smaller vehicles, these are a single piece of cast iron. They are simple and effective but can be prone to overheating under heavy use.
• Vented Rotors: The most common type, these have a series of fins or vanes between two disc faces, creating an air channel. This design significantly improves cooling by allowing air to circulate, dissipating heat more effectively and reducing brake fade.
• Drilled Rotors: Featuring holes drilled through the rotor surface, these are designed to improve cooling and help dissipate gasses that can build up between the pad and rotor, which can reduce braking efficiency. They are often seen on performance vehicles but can be prone to cracking under extreme stress.
• Slotted Rotors: These have grooves cut into the rotor surface. Similar to drilled rotors, slots help to vent gasses and wipe away pad material, maintaining a consistent friction surface. They are generally more durable than drilled rotors for track use.

Brake Pads vs. Rotors: A Clear Distinction

To summarise, here's a quick comparison of their fundamental differences:

Understanding Brake Pad Wear: Why and How

Brake pads are designed to wear down. Each time you apply the brakes, a tiny amount of material is scraped off the pad due to the immense friction and heat generated. This material often manifests as fine, dark brake dust on your wheels. Eventually, there won't be enough pad material left to safely stop your vehicle, signalling the need for replacement.

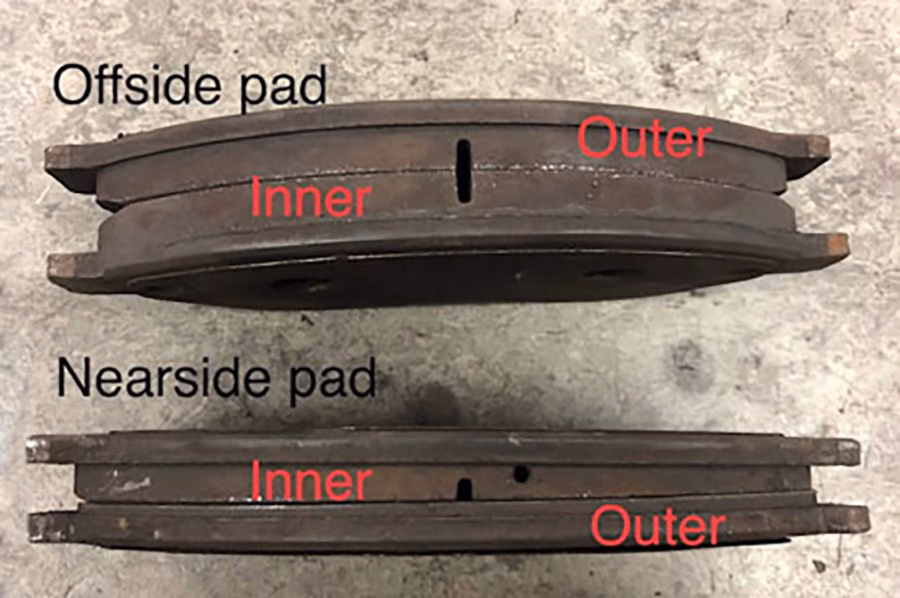

Uneven Brake Pad Wear: A Cause for Concern

While all brake pads wear, uneven wear can indicate an underlying issue in your braking system that requires immediate attention. It's common for front brake pads to wear faster than rear ones because the forward momentum of your vehicle places significantly more stopping force on the front axle during braking. However, if you notice one side of the car's pads wearing significantly faster than the other, or uneven wear across a single pad, here are some potential culprits:

• Sticking Brake Caliper: The brake caliper is responsible for clamping the pads onto the rotor. If a caliper piston or slide pin seizes or gets sticky, it can prevent the pad from fully retracting after you release the brake pedal. This means the pad is constantly, even if subtly, rubbing against the rotor while you drive, leading to rapid and premature wear on that side.
• Rotor Issues (Disc Thickness Variation - DTV): Rotors can sometimes wear unevenly or become warped, leading to what's known as Disc Thickness Variation (DTV). This means the rotor isn't perfectly flat, causing the brake pad to make inconsistent contact, leading to uneven wear patterns on the pad itself and often a pulsating sensation through the brake pedal. DTV can be caused by excessive heat, improper installation, or even severe braking habits.
• Misalignment: If the brake pads or calipers are not perfectly aligned with the rotor, the pad may not make full, even contact. This can cause one edge or corner of the pad to wear down much faster than the rest, reducing overall braking efficiency and potentially leading to premature failure.
• Contamination: Dirt, grit, or even oil on the brake pad or rotor surface can affect friction and cause localised wear.

Warning Signs of Worn Brake Pads

Your vehicle is quite good at telling you when its brake pads are nearing the end of their life. Ignoring these signals can compromise your safety and lead to more expensive repairs down the line. Look out for these common warning signs:

• Squeaking, Squealing, or Grinding Noises: Many modern brake pads incorporate a small metal tab known as a 'wear indicator'. When the pad material wears down to a certain point, this tab makes contact with the rotor, producing a high-pitched squeal or squeak. This is an early warning. If you hear a harsh grinding noise, it typically means the pad material is completely gone, and you're hearing metal-on-metal contact between the backing plate of the pad and the rotor, which can quickly damage the rotor beyond repair.
• Slow Response / Increased Pedal Travel: If you find yourself having to press the brake pedal further down than usual, or if the car takes longer to slow down and stop, it's a strong indicator that your pads are worn thin. There's simply less material to create the necessary friction.
• Spongy or Squishy Brake Pedal: A soft, spongy, or squishy feeling when you press the brake pedal can indicate severely worn pads, but it can also point to issues with brake fluid (low level, air in the system) or a failing master cylinder. If accompanied by other warning signs, worn pads are a likely culprit.
• Burning Smell: A distinct, acrid burning smell, especially after heavy braking or descending a long hill, suggests that your brakes are overheating. This can occur if pads are worn, or if they are being overworked. It's a sign that the components are under extreme thermal stress.
• Vibrations Through the Pedal or Steering Wheel: If you feel a pulsing or vibrating sensation through the brake pedal, or even through the steering wheel, it's often a sign of warped brake rotors (DTV) or severely unevenly worn pads. This indicates inconsistent contact between the pad and rotor.

Why You Can't Just Replace One Brake Pad

It might be tempting to save a few quid by replacing only the worn brake pad or only the pads on one side of the vehicle. However, this is a false economy and, more importantly, a significant safety hazard. Brake pads are designed to wear and perform evenly across an axle. Replacing just one pad or one side will lead to unbalanced braking, where one side of the vehicle brakes more effectively than the other. This can cause your car to pull sharply to one side under braking, leading to a loss of control, especially in emergency situations. Always replace brake pads in axle sets – both front pads, or both rear pads – even if only one appears significantly worn.

Regular Maintenance and Inspection

Given their critical role, regular inspection of your brake pads and rotors is paramount. During routine servicing, your mechanic will check the thickness of your brake pads and the condition of your rotors. If you notice any of the warning signs discussed, do not delay. Get your vehicle inspected by a qualified professional immediately. Early detection of brake issues can prevent further damage to other braking components and, most importantly, keep you safe on the road.

Frequently Asked Questions About Brake Pads and Rotors

Here are some common questions drivers in the UK ask about their braking system:

How often should brake pads be replaced?

The lifespan of brake pads varies significantly depending on driving style, vehicle type, and the type of pads. Generally, front pads might last anywhere from 20,000 to 40,000 miles, while rear pads can last longer, sometimes up to 70,000 miles. Aggressive driving, heavy traffic, and frequent short journeys can accelerate wear. Always refer to your vehicle's manufacturer recommendations and have them checked regularly.

Can I replace brake pads myself?

While it is possible for experienced DIY mechanics, replacing brake pads and rotors requires specific tools, knowledge of brake system hydraulics, and careful attention to detail. Incorrect installation can lead to brake failure. Given the critical safety aspect, it's generally recommended to have brake work performed by a certified mechanic.

What's the average cost of brake pad replacement in the UK?

The cost varies widely based on vehicle make and model, the type of pads used, and whether rotors also need replacing. For just pads, you might expect to pay between £100-£250 per axle. If rotors also need replacing, the cost will be higher, potentially £250-£500 per axle or more. Always get a detailed quote from a reputable garage.

Are brake discs and brake rotors the same thing?

Yes, in the UK, the term 'brake disc' is commonly used interchangeably with 'brake rotor'. They refer to the same component: the spinning metal disc that the brake pads clamp onto.

Why are my new brake pads noisy?

New brake pads can sometimes be noisy during the initial 'bedding-in' period, as the pad material conforms to the rotor surface. This usually subsides after a few hundred miles. However, persistent noise (squealing or grinding) could indicate improper installation, incompatible pad/rotor materials, or an underlying issue that needs professional inspection.

In conclusion, while brake pads and brake rotors are distinct components, they form an inseparable pair crucial for your vehicle's ability to stop safely. Regular maintenance and prompt attention to any warning signs are essential to ensure your braking system remains reliable and effective on every journey. Don't take your brakes for granted – they are your most important safety feature.
