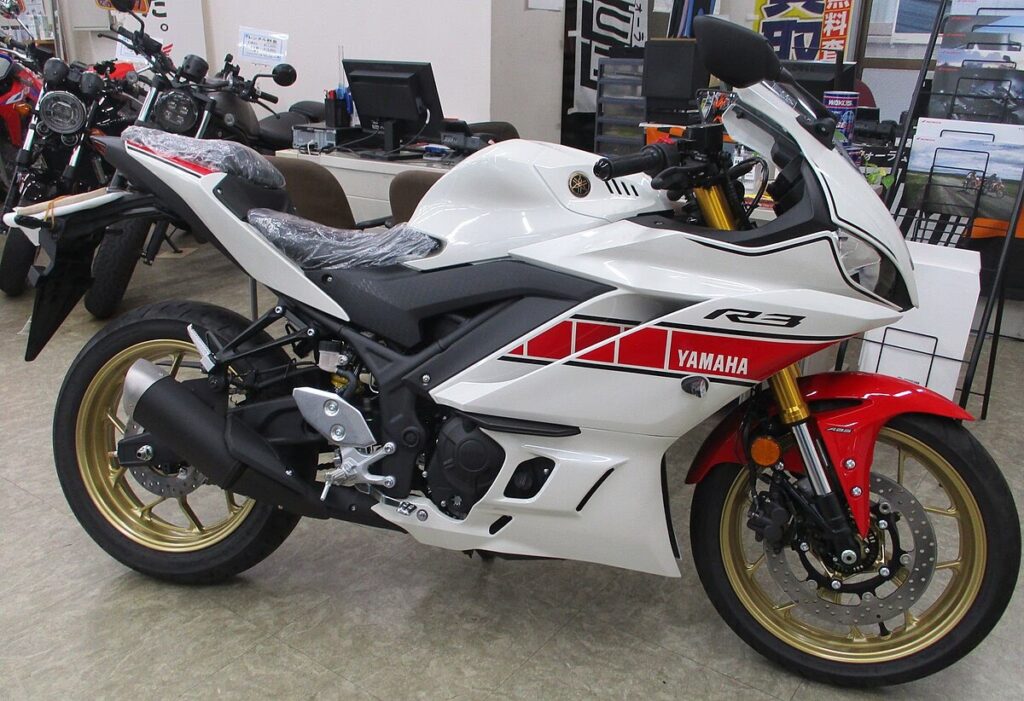

Unveiling the Yamaha YZF-R3: Your Gateway to Supersport Excitement
Yamaha's renowned R-series has long set the benchmark in the supersport motorcycle segment, celebrated for its cutting-edge style, advanced technology, and exhilarating performance. Nestled perfectly within this esteemed lineage, between the perennially popular YZF-R125 and the race-proven YZF-R6, sits the YZF-R3. Whether you're graduating from a smaller displacement machine or embarking on your two-wheeled journey, the YZF-R3 embodies the meticulous attention to detail that defines every R-series motorcycle. A single glance at its aggressive dual-headlight fairing and aerodynamic bodywork reveals the unmistakable R-series DNA. The YZF-R3 is not just a motorcycle; it's a superbike engineered for your everyday adventures.
Engine Prowess: The Heart of the R3
At the core of the Yamaha YZF-R3 lies a potent and sophisticated powerplant. This 321cc, liquid-cooled, DOHC, inline twin-cylinder engine is the driving force behind the R3's impressive performance. Featuring 8 valves (4 per cylinder), it's designed to deliver a robust and enjoyable experience across the entire rev range. The engine boasts a 32mm throttle body with fuel injection, ensuring precise fuel delivery for optimal power output, a linear throttle response, and excellent fuel economy. For 2017, Yamaha enhanced the R3's appeal with the addition of an optional ABS braking system, further bolstering rider confidence.
Key Engine Specifications:
| Engine Type | 321cc liquid-cooled, DOHC inline twin-cylinder; 8 valves |
| Bore x Stroke | 68.0mm x 44.1mm |
| Compression Ratio | 11.2:1 |
| Fuel Delivery | Fuel Injection (32 mm throttle body) |
| Ignition | TCI: Transistor Controlled Ignition |
| Max Power | 30.9 kW (41.4 hp) @ 10750 rpm |
| Max Torque | 29.6 Nm (3.0 kg-m) @ 9000 rpm |
| Lubrication | Wet sump |
| Transmission | 6-speed; multiplate clutch |
Advanced Engine Design for Superior Performance
Yamaha has incorporated high-tech features typically found in their larger R-series models into the R3's engine. This includes lightweight forged aluminium pistons, mirroring those used in the R1 and R6, which contribute to exceptional strength and rapid engine response. The innovative offset cylinder design, which shifts the cylinder 7mm towards the exhaust side relative to the crankshaft, significantly reduces frictional losses between the pistons and cylinder walls during the power stroke, leading to improved power output and better fuel economy. The 180-degree crankshaft with an uneven firing order further enhances maximum power output by reducing pumping losses and contributes to a more engaging exhaust note and reduced engine vibration for improved rider comfort. The engine management system features a 'closed loop' 32mm throttle body fuel injection system with a 12-hole injector for optimal fuel atomisation, ensuring a steady idle, choke-free starting, and excellent rideability with linear throttle control. An oxygen sensor monitors exhaust gases to automatically adjust the fuel/air ratio, reducing emissions and improving fuel efficiency.
Agile Handling and Rider Comfort
The Yamaha YZF-R3's chassis is as impressive as its engine. It features a lightweight diamond-type steel frame, meticulously designed for a balance of rigidity and agility. This contributes to the R3's light, nimble handling characteristics, making it a joy to manoeuvre through urban traffic or twisty roads. The narrow and compact frame, coupled with a low seat height of just 780mm (30.7 inches), makes it incredibly accessible for riders of all sizes, promoting confidence, especially for beginners. Despite its supersport styling, the R3 offers a surprisingly comfortable and upright riding position, thanks to clip-on handlebars mounted above the top triple clamp. This ergonomic design reduces rider fatigue, allowing for longer, more enjoyable rides.
Chassis and Suspension Highlights:
| Frame | Lightweight, diamond-type, high tensile steel |
| Front Suspension | 41mm KYB® telescopic fork; 130 mm (5.1 inches) travel |
| Rear Suspension | Adjustable KYB® single shock, Monocross link-less; 125 mm (4.9 inches) travel |
| Front Brakes | 298 mm hydraulic disc with twin-piston caliper (ABS optional) |
| Rear Brakes | 220 mm hydraulic disc with single-piston caliper (ABS optional) |
| Front Tyre | 110/70-17M/C 54H |
| Rear Tyre | 140/70-17M/C 66H |
| Wheelbase | 1380 mm (54.3 inches) |
| Seat Height | 780 mm (30.7 inches) |
Striking Yamaha R-Series Styling
The YZF-R3 seamlessly blends aggressive supersport aesthetics with everyday usability. Its full fairing, dual headlights, and sharp lines are unmistakably inspired by Yamaha's championship-winning R-series machines. This distinctive styling not only makes the R3 visually appealing but also contributes to its aerodynamic efficiency, helping to reduce windblast for the rider. Available in a range of attractive colour options, the R3 allows riders to express their personal style.
Maintenance and Practicality
Yamaha has also considered the practical aspects of ownership. The YZF-R3 features an easy-access spin-on type oil filter and drain plug, simplifying routine oil changes. The recommended oil change interval is 5,000 km (after the initial 1,000 km break-in service). The engine is equipped with an automatic cam chain tensioner, which reduces mechanical engine noise and maintenance requirements. For added durability and reduced emissions, an Air Induction System (AIS) injects fresh air into the exhaust ports to burn any unburnt fuel. The ignition system is a maintenance-free transistor-controlled ignition (TCI) that provides a strong spark for reliable starting and precise ignition timing for optimal performance.
Frequently Asked Questions (FAQs)
What engine does the Yamaha YZF-R3 have?
The Yamaha YZF-R3 is powered by a 321cc, liquid-cooled, DOHC, inline twin-cylinder engine with 8 valves (4 valves per cylinder).
Is the Yamaha YZF-R3 suitable for beginners?
Yes, the YZF-R3 is widely considered an excellent choice for beginner riders due to its approachable power delivery, lightweight and agile handling, low seat height, and comfortable riding position. The optional ABS further enhances confidence.
What is the fuel capacity of the Yamaha YZF-R3?
The fuel tank capacity of the Yamaha YZF-R3 is 14 litres (approximately 3.7 US gallons).
What type of fuel does the YZF-R3 use?
The YZF-R3 is designed to run on regular 87 octane gasoline.
What is the valve adjustment interval for the YZF-R3?
The valve adjustment interval for the Yamaha YZF-R3 is every 42,000 kilometres.
Does the Yamaha YZF-R3 come with ABS?
For the 2017 model year and onwards, an ABS-equipped version of the Yamaha YZF-R3 is available as an option.
Conclusion
The Yamaha YZF-R3 stands out as a compelling package for anyone looking to enter the world of sportbikes. It masterfully combines spirited performance from its advanced 321cc twin-cylinder engine with the sharp handling and iconic styling that defines the R-series. Its user-friendly nature, comfortable ergonomics, and practical features make it an ideal machine for daily commuting, weekend canyon carving, and even track day enjoyment. The YZF-R3 truly offers a gateway to the thrilling R-world, providing an accessible yet exciting supersport experience that is sure to captivate riders of all levels.
