Understanding your car's fuel system is crucial for appreciating how it performs and identifying potential issues. For decades, the internal combustion engine relied on carburettors to mix fuel and air. However, with advancements in technology and stricter emissions regulations, fuel injection systems emerged as a superior alternative. Among the early innovators were Throttle Body Injection (TBI) and the more sophisticated Multi-Port Fuel Injection (MPFI). While both were significant leaps forward, they operate on fundamentally different principles, leading to distinct characteristics in terms of performance, efficiency, and complexity. Let's delve into these two systems to uncover their intricacies and the impact they have on your driving experience.
What is Throttle Body Injection (TBI)?

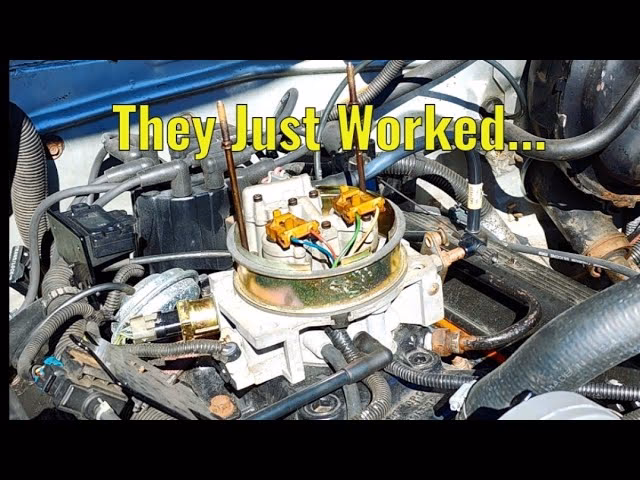

Throttle Body Injection, often referred to as TBI or sometimes 'central fuel injection', was one of the first widely adopted electronic fuel injection systems. It served as a bridge between the old carburettor technology and the more advanced multi-port systems. In a TBI setup, the injectors are centrally located in the throttle body, much like a carburettor, typically above the throttle plate. Instead of a float bowl and venturi, TBI uses one or two fuel injectors that spray fuel directly into the intake manifold, where it then mixes with air before being drawn into the individual cylinders.
The core philosophy behind TBI was its simplified design. Compared to the complex mechanical workings of a carburettor, TBI systems feature fewer components, relying on electronic control for fuel delivery. This simplicity translated into several benefits, including lower manufacturing costs for vehicle manufacturers and, crucially for car owners, easier maintenance. Diagnosis could often be more straightforward due to fewer points of failure compared to later, more intricate systems. While a significant improvement over carburettors in terms of fuel control and emissions, TBI still shared a fundamental limitation with its predecessor: the wet manifold design, where fuel travels a considerable distance through the intake manifold before reaching the combustion chambers.
How TBI Works
When you press the accelerator pedal, the throttle plate opens, allowing more air into the engine. A sensor, typically a Throttle Position Sensor (TPS), detects this change and sends a signal to the engine's Electronic Control Unit (ECU). The ECU, also receiving data from other sensors like the Manifold Absolute Pressure (MAP) sensor and Oxygen (O2) sensor, calculates the precise amount of fuel needed. It then signals the TBI injector(s) to spray fuel into the air stream entering the manifold. This fuel-air mixture then travels through the intake runners to each cylinder.
Advantages of TBI
- Simplicity: Fewer components mean less to go wrong and easier troubleshooting.
- Cost-Effective: Generally cheaper to manufacture and replace parts.
- Easier Maintenance: Simpler design often means more straightforward repairs for mechanics.
- Improved Cold Starts: Offered better cold starting compared to carburettors due to more precise fuel metering.
Disadvantages of TBI
- Fuel Distribution: Since the fuel is injected centrally, it must travel through the intake manifold to reach all cylinders. This can lead to uneven fuel distribution, with some cylinders receiving slightly more or less fuel than others, impacting efficiency and performance. This is known as the 'wet manifold' effect.
- Less Precise: Due to the central injection point, the fuel delivery isn't as precise or atomised as with individual injectors.
- Lower Efficiency/Power: The less precise fuel delivery and wet manifold effect can lead to slightly lower fuel economy and less optimal power output compared to MPFI systems.
- Emissions: While better than carburettors, TBI systems were not as effective at reducing emissions as multi-port systems.
What is Multi-Port Fuel Injection (MPFI)?
Multi-Port Fuel Injection (MPFI), sometimes referred to as Port Fuel Injection (PFI), represents a significant evolution from TBI. Unlike TBI's central injection point, MPFI systems feature individual fuel injectors located in the intake manifold, directly upstream of each cylinder's intake valve. This means that each cylinder receives its own precisely metered spray of fuel just before it enters the combustion chamber. This design eliminates the 'wet manifold' issue seen in TBI systems, leading to far more accurate fuel delivery.
The development of MPFI was driven by the need for greater fuel efficiency, improved performance, and, critically, a dramatic reduction in exhaust emissions. By delivering fuel directly to each intake port, the system can achieve a much finer control over the air-fuel mixture for each cylinder, optimising combustion and reducing waste. This precision is key to MPFI's superior performance characteristics.
How MPFI Works
In an MPFI system, when the driver accelerates, the throttle body still regulates the airflow into a common intake plenum. However, instead of one or two central injectors, each cylinder has its own dedicated fuel injector positioned in the intake runner, very close to the intake valve. The ECU, gathering data from a wider array of sensors (including manifold pressure, throttle position, engine speed, oxygen content, coolant temperature, and more), precisely calculates the optimal amount of fuel for each cylinder for every combustion cycle. It then electronically pulses each injector individually, spraying fuel directly into the intake port just as the intake valve is about to open. This direct and individualised fuel delivery ensures that the air-fuel mixture is perfectly balanced and atomised for each cylinder, leading to more efficient and cleaner combustion.
Advantages of MPFI
- Precision Fuel Delivery: Each cylinder receives an exact, individually tailored amount of fuel, leading to optimal combustion.
- Improved Fuel Efficiency: More precise metering results in less wasted fuel and better miles per gallon.
- Enhanced Performance: Better fuel atomisation and distribution lead to increased horsepower and torque.
- Reduced Emissions: More complete combustion significantly lowers harmful exhaust emissions.
- Better Cold Starts and Drivability: Superior control over the air-fuel mixture, even in varying temperatures and loads.
- Elimination of 'Wet Manifold': Fuel doesn't condense on manifold walls, ensuring consistent delivery.
Disadvantages of MPFI
- Increased Complexity: More injectors, more wiring, and more sophisticated ECU programming mean a more complex system.
- Higher Cost: More components and intricate design lead to higher manufacturing and repair costs.
- More Potential Failure Points: With individual injectors and more sensors, there are more components that could potentially fail.
Key Differences: TBI vs. MPFI
To summarise the distinctions, here's a comparative look at Throttle Body Injection and Multi-Port Fuel Injection:
| Feature | Throttle Body Injection (TBI) | Multi-Port Fuel Injection (MPFI) |
|---|---|---|
| Number of Injectors | Typically 1 or 2 | One per cylinder (e.g., 4 for a 4-cylinder engine) |
| Injector Location | Central, in the throttle body | Individual, in each cylinder's intake port |
| Fuel Delivery | Centralised spray into the manifold | Direct spray into each intake port |
| Fuel Distribution | Less precise, potential for uneven distribution (wet manifold) | Highly precise and even across all cylinders |
| Complexity | Relatively simple | More complex due to individual injectors and sensors |
| Manufacturing Cost | Lower | Higher |
| Performance | Adequate, but less optimal | Superior, higher power and responsiveness |
| Fuel Efficiency | Good (compared to carburettors), but less efficient than MPFI | Excellent, highly efficient |
| Emissions | Better than carburettors, but higher than MPFI | Significantly lower, meets stricter standards |
| Maintenance | Generally simpler and cheaper | Can be more complex and costly due to more components |
Impact on Vehicle Performance and Economy
The differences between TBI and MPFI translate directly into how a vehicle performs and its running costs. Vehicles equipped with TBI systems, typically from the late 1980s to mid-1990s, offer reliable, albeit somewhat less refined, performance. They were a significant step up from carburettors, providing better cold starts and more consistent power delivery. However, their centralised fuel delivery meant they couldn't match the precision of MPFI, particularly under varying loads or engine speeds. This often manifested as slightly lower fuel economy and a less immediate throttle response compared to their MPFI counterparts.
MPFI systems, which became standard in most vehicles from the mid-1990s onwards, revolutionised the driving experience. The ability to precisely meter fuel to each cylinder meant engines could run leaner and more efficiently without sacrificing power. This led to notable improvements in fuel economy, a significant boost in horsepower and torque, and a much smoother, more responsive engine feel. Furthermore, the reduced emissions from MPFI systems were crucial in meeting increasingly stringent environmental regulations worldwide. Modern engines often start more reliably in cold weather and run more smoothly across their entire RPM range thanks to the fine control offered by MPFI.
Evolution of Fuel Injection Systems
The journey from carburettors to advanced fuel injection systems is a testament to automotive engineering progress. TBI served as a vital stepping stone, proving the viability and benefits of electronic fuel control. Its simplicity made it an accessible technology for mass production. However, as demand for better performance, lower emissions, and higher fuel economy grew, the limitations of TBI became apparent. MPFI then emerged as the dominant technology, offering the precision and control needed for modern engines. This evolution didn't stop there; today, many vehicles utilise Gasoline Direct Injection (GDI), an even more advanced form of fuel injection where fuel is sprayed directly into the combustion chamber, rather than the intake port, offering even greater efficiency and power. However, the fundamental principles of individual cylinder control established by MPFI remain crucial.
Common Issues and Maintenance
While both systems are generally robust, they can encounter specific issues:
- TBI Systems: Common problems include clogged injectors (often due to fuel contaminants), faulty throttle position sensors, or issues with the fuel pressure regulator. Symptoms might include rough idle, poor acceleration, or reduced fuel economy. Maintenance often involves fuel system cleaning and throttle body cleaning.
- MPFI Systems: Injector clogging is also common, but due to their finer spray patterns, they can be more susceptible to blockages. Fuel pump issues, sensor failures (e.g., O2 sensors, MAF sensors), or wiring harness problems can also arise. Symptoms are similar to TBI issues but might also include misfires on specific cylinders. Regular fuel system cleaner use and professional injector cleaning can help prolong their life.
Frequently Asked Questions (FAQs)
- Can I upgrade a TBI system to an MPFI system?
- While technically possible, it's a complex and often costly undertaking. It typically involves replacing the intake manifold, adding individual injectors, modifying the fuel system, and installing a new ECU and wiring harness. For most older vehicles, it's rarely a practical or cost-effective upgrade compared to maintaining the existing TBI system or simply purchasing a newer vehicle.
- Is TBI still used in modern vehicles?
- No, TBI systems were largely phased out by the mid-1990s in favour of MPFI, and more recently, GDI. Their limitations in precision and emissions control made them unsuitable for modern automotive standards.
- Which system is more fuel-efficient?
- MPFI systems are significantly more fuel-efficient than TBI systems due to their ability to precisely meter fuel to each individual cylinder, optimising combustion and reducing waste.
- What are common signs of fuel injection problems?
- Common signs include a rough idle, misfires, reduced engine power, poor fuel economy, difficulty starting, a strong fuel smell, or the 'check engine' light illuminating on your dashboard.
- How often should fuel injectors be cleaned?
- There's no strict schedule, but many manufacturers recommend using a good quality fuel system cleaner every 3,000 to 5,000 miles. For more stubborn clogs, professional cleaning (either on-vehicle or off-vehicle ultrasonic cleaning) might be necessary, especially if you notice performance issues.
Conclusion
Both Throttle Body Injection and Multi-Port Fuel Injection represent crucial stages in the evolution of automotive technology. TBI, with its simplicity and cost-effectiveness, provided a vital bridge from carburettors, offering improved control and efficiency. However, it was MPFI that truly revolutionised engine performance and emissions control by providing individual, precise fuel delivery to each cylinder. Understanding the differences between these systems not only enhances your knowledge of automotive mechanics but also helps you appreciate the significant technological advancements that have shaped the vehicles we drive today. Whether your vehicle employs TBI's robust straightforwardness or MPFI's sophisticated precision, knowing its fuel delivery system is key to its proper care and maintenance.
