Rear Diff & Prop Shaft Woes

It's a truly disheartening situation to find yourself in when a recently purchased vehicle develops serious mechanical issues, especially when the seller is unwilling to assist. The scenario described, involving a missing prop shaft, a blown transfer box, and a dealer who is less than cooperative, is unfortunately not uncommon in the used car market. The crucial question at hand is whether a rear differential can be repaired in conjunction with a prop shaft replacement, and more importantly, how to establish fault when a vital component like the prop shaft is demonstrably absent shortly after purchase. This article will delve into the intricacies of these components, the potential for repair, and crucially, strategies for proving your case.

Understanding the Drivetrain: Prop Shaft, Transfer Box, and Rear Differential

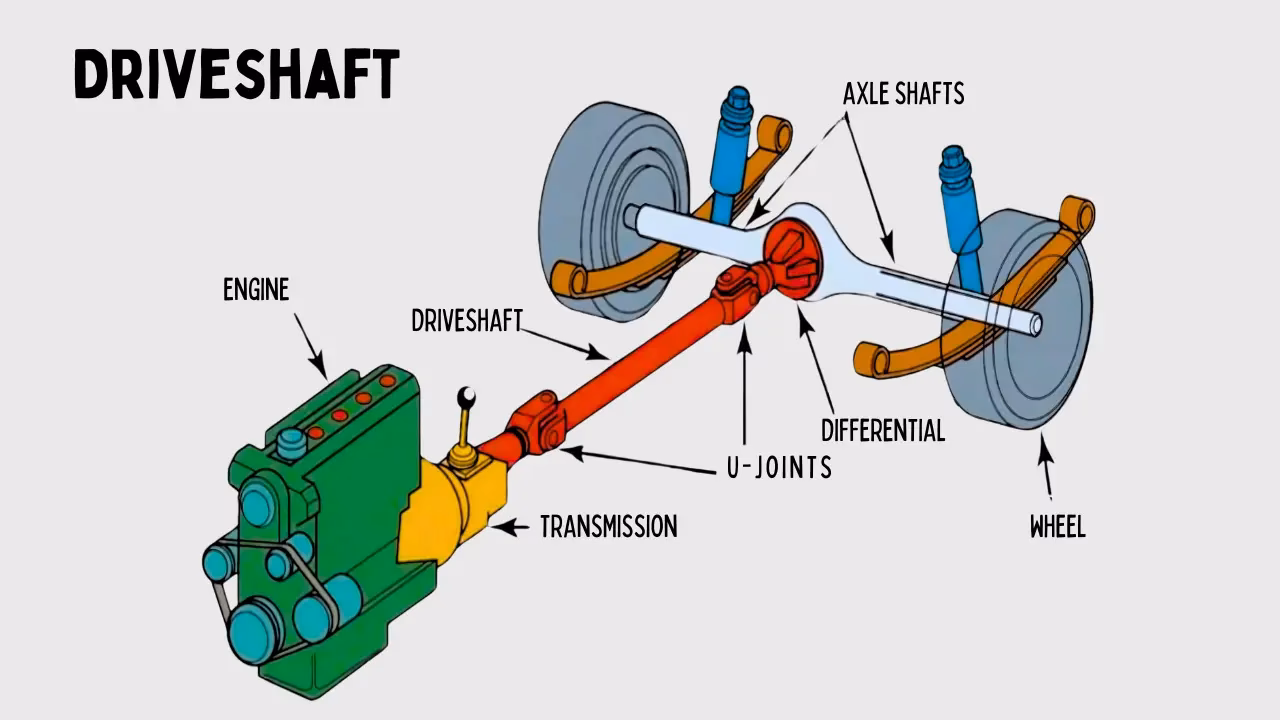

To comprehend the potential for repair and fault, it's essential to understand how these components work together. In a 4x4 vehicle, the prop shaft (also known as the driveshaft or propeller shaft) is the crucial link connecting the transmission or transfer box to the differential. Its primary function is to transmit rotational power from the gearbox to the wheels, allowing the vehicle to move. The transfer box, often found in 4x4 and AWD vehicles, acts as a secondary gearbox that distributes power to both the front and rear axles. It allows the driver to select different drive modes, such as 2WD or 4WD. The rear differential, located within the rear axle assembly, is responsible for allowing the rear wheels to rotate at different speeds when cornering. This is vital for smooth and stable turning, preventing tyre scrub and ensuring efficient power delivery. If one wheel needs to turn faster than the other, the differential allows this to happen.

Can a Rear Differential Be Repaired if a Prop Shaft is Replaced?

The short answer is yes, a rear differential can often be repaired independently of the prop shaft. However, the circumstances surrounding the missing prop shaft are critical here. If the prop shaft was missing due to an external incident (like theft or an accident) and the differential itself is sound, then a new prop shaft can be fitted, and the differential will continue to function as intended.

However, the context provided suggests a more complex issue. If the prop shaft was removed, and subsequently, the transfer box 'blew', it raises questions about why the prop shaft was removed in the first place. Was it removed to facilitate access to another component? Was it damaged and removed, leading to further issues?

Potential Issues Affecting the Rear Diff After Prop Shaft Absence:

• Lubrication: While less likely to directly impact the differential itself, a missing prop shaft means the entire drivetrain isn't functioning. If the vehicle was driven extensively without the prop shaft, and this somehow affected the transfer box, it's worth considering if any unusual stresses were placed on other components.
• Damage During Removal/Theft: If the prop shaft was stolen or removed improperly, there's a possibility that other components, including the differential casing or its mounting points, could have been inadvertently damaged.
• Underlying Mechanical Fault: The most concerning possibility is that the absence of the prop shaft was a symptom of a larger, pre-existing mechanical problem that led to its removal or damage. If the transfer box blew as a consequence of the prop shaft not being present, it implies a significant mechanical failure.

In essence, while the differential itself might be mechanically sound and repairable, the reason for the prop shaft's absence is the key factor. If the prop shaft was removed, and the transfer box blew as a direct consequence or in parallel, it strongly suggests that the vehicle was sold with a significant, undisclosed fault. The garage's claim that you could have removed it yourself or had it stolen is a common deflection tactic when they are trying to avoid warranty responsibilities.

Proving Your Case: Strategies and Evidence

This is where you need to be strategic. The onus is indeed on you to prove the fault existed at the time of sale, but there are ways to build a strong case. The finance company's offer to send a private assessor is a positive step, as an independent expert's report can carry significant weight.

1. The Mechanic's Report

Your mechanic's initial assessment is your primary piece of evidence. Ensure you have a detailed, written report from them stating:

• The exact condition of the prop shaft (missing).
• The condition of the transfer box (blown).
• Their professional opinion on the likely cause and timeline of these failures. Crucially, can they offer an opinion on how long the prop shaft had been missing? (e.g., signs of rust around mounting points, clean mating surfaces, etc.).

2. The Independent Assessor's Report

This is your most valuable tool. Brief the assessor thoroughly on the situation. They should be looking for:

• Evidence of recent removal: Look for fresh marks on bolts or mating surfaces where the prop shaft would have attached. Conversely, a lack of rust or wear on these surfaces compared to surrounding components could suggest it wasn't present for a long time.
• Signs of damage from missing component: Could the absence of the prop shaft have led to other components being damaged or misaligned? For example, if the transfer box was left unsupported or subjected to unusual forces without the prop shaft connected.
• Condition of the transfer box: The assessor might be able to determine if the transfer box failure was sudden and catastrophic, or if there were signs of gradual wear and tear that could have been exacerbated by the missing prop shaft.
• Evidence of tampering: Any signs of the prop shaft being deliberately removed or tampered with.

3. The Dealer's Advertising and Documentation

You mentioned the car was advertised as 4x4. This is crucial. Gather all advertising materials (screenshots of the website listing, brochures, etc.) that explicitly state it is a 4x4 vehicle. The fact that it was sold with a full MOT also implies it was in a roadworthy condition at the point of sale. If the prop shaft was missing, it should not have passed an MOT.

4. The '7 Months of Ownership' Argument

You are within your rights under the Consumer Rights Act 2015 (in the UK) for goods to be of satisfactory quality, fit for purpose, and as described. For goods purchased within the last six months, there is a presumption that the fault was present at the time of sale. This is your strongest legal standing. The garage's argument that you could have removed it yourself is a weak defence, especially within this timeframe. They would have to prove you tampered with it, which is highly unlikely.

5. The Transfer Box 'Blow' Timeline

Your mechanic's point about the transfer box taking months to blow is important. This suggests the issue was developing over time, and the lack of a prop shaft might have been the final straw or a symptom of a deeper problem that existed before you purchased the car. If the transfer box failure is a direct consequence of the missing prop shaft, it points to a significant fault present at the time of sale.

Table: Common Drivetrain Issues and Their Symptoms

Understanding common issues can help you identify potential problems and communicate them effectively to your mechanic or assessor.

Frequently Asked Questions

Q1: If the prop shaft was stolen, is it the dealer's responsibility?

If the prop shaft was stolen after you took ownership and the dealer fulfilled all their obligations at the point of sale, then it would typically be your responsibility. However, the crucial point here is proving it was missing or removed before or at the point of sale. If it was missing at sale, the dealer is responsible for selling you a vehicle that was not as described (i.e., not a 4x4) and not of satisfactory quality.

Q2: Can the MOT certificate prove the prop shaft was present?

An MOT certificate confirms the vehicle met minimum road safety and environmental standards on the date of the test. A missing prop shaft would render a vehicle undrivable and certainly not roadworthy, especially a 4x4. If the car was sold with a recent MOT and the prop shaft was missing, this is a significant failing on the part of the testing station AND the selling dealer, as they are responsible for selling a vehicle that was roadworthy at the point of sale.

Q3: What if the finance company's assessor can't find proof?

This would be disappointing, but not necessarily the end of the road. Continue to rely on your mechanic's report and the legal presumptions under the Consumer Rights Act 2015. You may need to consider legal advice or engaging with a consumer dispute resolution service.

Q4: How long does it take to replace a prop shaft and transfer box?

The time it takes can vary significantly depending on the vehicle model, the availability of parts, and the complexity of the job. Replacing a prop shaft is usually a few hours. A transfer box replacement can be a much longer job, potentially a full day or more, and parts can be expensive. This is why the garage's resistance to covering the cost is so frustrating.

Conclusion: Your Path Forward

Your situation is challenging, but not insurmountable. Focus on gathering concrete evidence. Ensure your mechanic provides a thorough report, and leverage the independent assessor from the finance company. The fact that the car was advertised as 4x4 and was sold with a full MOT, only for you to discover a missing prop shaft and a blown transfer box within months of purchase, strongly suggests the vehicle was sold with pre-existing faults. The garage's claims about theft or self-removal are likely attempts to evade their legal responsibilities. Armed with detailed reports and the legal framework of consumer rights, you have a strong basis to pursue a resolution with the dealer or finance company. Don't let them push you around; persistence and solid evidence are your best allies.
