Honda Civic Fuel Injectors: Your Complete Guide

Are you wondering how many fuel injectors your Honda Civic should have, or perhaps grappling with the intricacies of its fuel delivery system? You've come to the right place. Understanding the heart of your engine's fuel supply is crucial for both daily driving and performance aspirations. This comprehensive guide will demystify the fuel system, detailing its components, how it operates, and what you need to know to keep your Civic running smoothly, or even to upgrade it for more power.

Understanding Your Honda Civic's Fuel Injectors

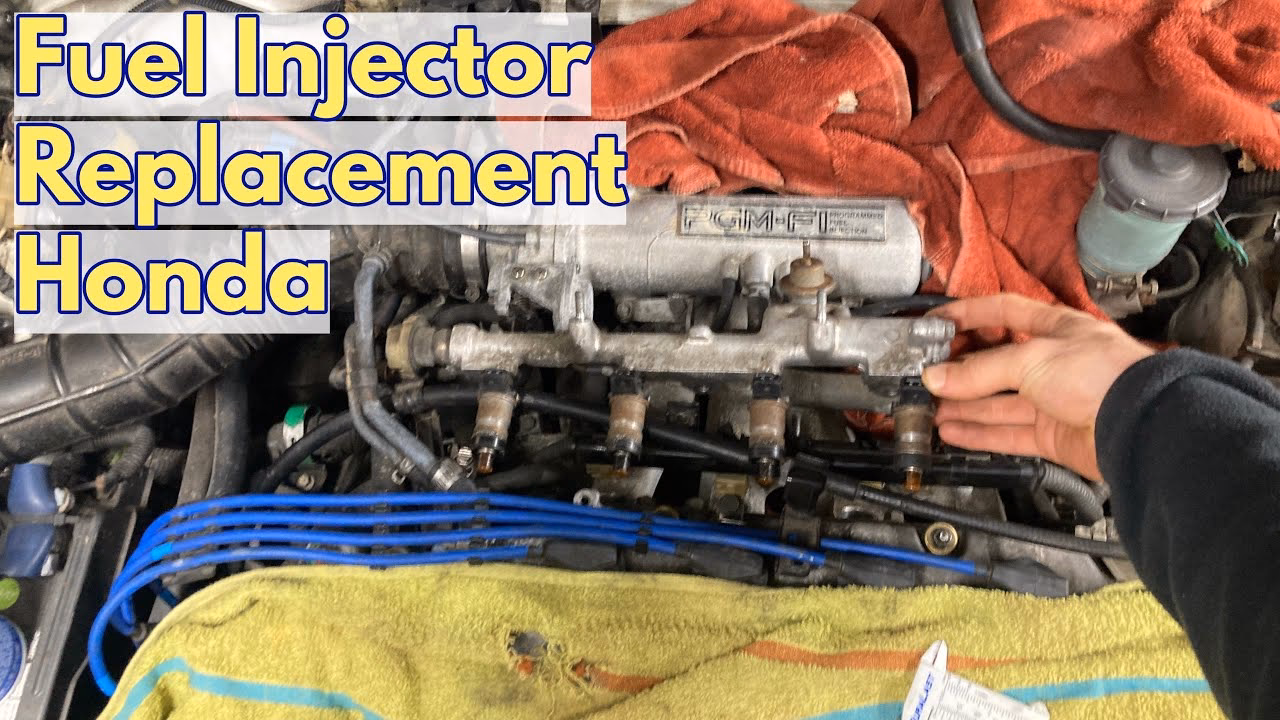

Let's cut straight to the chase: how many fuel injectors should a Honda Civic have? Typically, a Honda Civic, like most modern cars, will have one fuel injector per cylinder. Since the vast majority of Honda Civics are equipped with four-cylinder engines, you will find four fuel injectors in your vehicle. These crucial components are responsible for atomising and spraying the precise amount of petrol into the intake stream, ready for combustion. Each injector is timed to open during the intake stroke of its respective cylinder, ensuring an optimal air-fuel mixture.

The Crucial Role of Your Car's Fuel System

The primary job of your vehicle's fuel system is to maintain a consistent and proper fuel demand throughout the entire system. This ensures that the engine receives the exact amount of petrol it needs at any given moment, which is then sprayed by the fuel injectors into the intake manifold and ultimately into the combustion chamber. Without a well-functioning fuel system, your engine simply wouldn't run, or it would do so very inefficiently, leading to poor performance, increased emissions, and potential damage.

Dissecting the Fuel System: Return vs. Return-less

Modern vehicles utilise one of two main types of fuel systems: a return system or a return-less system. The components vary slightly between the two, primarily concerning how fuel pressure is regulated and how unused fuel is handled.

Components of a Return Fuel System:

• Fuel Tank: Stores the petrol.
• Fuel Pump: Sends petrol from the tank to the engine.
• Sending Fuel Lines: Carry pressurised petrol from the pump to the fuel rail.
• Fuel Rail: Distributes petrol to the injectors.
• Fuel Injectors: Spray petrol into the engine.
• Fuel Pressure Regulator: Controls the pressure in the fuel rail and returns excess petrol.
• Returning Fuel Lines: Carry unused petrol back to the fuel tank.

Components of a Return-less Fuel System:

• Fuel Tank: Stores the petrol.
• Fuel Pump: Sends petrol from the tank to the engine (often variable speed).
• Sending Fuel Lines: Carry pressurised petrol from the pump to the fuel rail.
• Fuel Rail: Distributes petrol to the injectors.
• Fuel Injectors: Spray petrol into the engine.
• (No separate fuel pressure regulator or return lines)

Here's a quick comparison:

How a Return Fuel System Works

The journey of petrol in a return fuel system begins in the fuel tank. The fuel pump, typically located inside the tank, draws petrol and sends it under high pressure through the sending fuel lines towards the fuel rail. As this high-pressure petrol enters the fuel rail, it faces a choice: either flow into the fuel injectors or be sent back to the fuel tank. This is where the fuel pressure regulator comes into play. Positioned at the end of the fuel rail, the regulator determines the amount of petrol that returns to the tank and how much stays within the rail. By restricting the return line, it increases the pressure within the rail, directly influencing the pressure inside the fuel injectors and, consequently, the volume of petrol sprayed during each injector cycle. Petrol not immediately used by the engine is then routed back to the fuel tank via the return fuel lines, where the cycle begins anew. This continuous flow helps to keep the petrol cool and maintain stable pressure.

How a Return-less Fuel System Works

A return-less fuel system operates similarly to its return counterpart but with a key distinction: unused petrol is not circulated back to the fuel tank. Consequently, it lacks a separate fuel pressure regulator and return lines. Instead, petrol pressure is maintained through other means. In some systems, the engine's computer (ECU) directly controls the fuel pump's voltage, allowing it to fluctuate the pump's output based on engine demand. When more petrol is needed, the ECU increases the voltage to the pump; for less demand, it reduces it. Other return-less systems may incorporate a valve within the fuel pump itself that can adjust the flow rate, effectively regulating pressure without a dedicated return line. This design aims to simplify the system and potentially reduce evaporative emissions.

A Closer Look at Each Component

• Fuel Tank: The fundamental storage unit for your vehicle's petrol supply.
• Fuel Pump: An electric pump, usually submerged in the fuel tank, responsible for drawing petrol and delivering it under pressure to the engine.
• Sending Fuel Lines: Durable lines that transport the high-pressure petrol from the fuel pump to the fuel rail.
• Fuel Rail: A manifold-like component that receives pressurised petrol from the sending lines and distributes it evenly to each fuel injector. In return systems, it also serves as the point where excess petrol is routed back.
• Fuel Injectors: Electrically operated valves that precisely spray atomised petrol into the engine's intake ports or directly into the combustion chamber (for direct injection engines). They open and close rapidly during specific engine cycles.
• Fuel Pressure Regulator: (Found only on return systems) A mechanical device, often connected to the intake manifold via a vacuum line, that modulates fuel pressure within the rail. As manifold vacuum drops (indicating higher engine load), an internal spring tightens, restricting petrol return and increasing rail pressure. This ensures optimal pressure for varying engine conditions.
• Fuel Return Lines: (Found only on return systems) Lines that carry excess petrol from the fuel pressure regulator back to the fuel tank, completing the circulation loop.

When to Consider Changing Your Fuel Injectors

Fuel injectors are robust components, but they do have a lifespan. You generally only need to change your fuel injectors when they start to exceed a certain duty cycle. The industry standard recommends a maximum of 80% to 85% duty cycle for an injector to flow efficiently. Operating beyond this threshold significantly increases the risk of overheating due to the kinetic energy produced, which can lead to inefficient opening/closing, erratic fuel delivery, or even complete failure. Symptoms of failing injectors include misfires, poor fuel economy, rough idle, and decreased engine performance.

What is Duty Cycle?

Duty cycle, in the context of fuel injectors, refers to the percentage of time an injector is open, divided by the total time it could possibly be open during two complete engine revolutions (which constitutes a full four-stroke cycle for a single cylinder). For example, an 80% duty cycle means the injector is open for 80% of the available time for fuel delivery.

Sizing Up Your Fuel Injectors for Performance Upgrades

A common question among those looking to modify their Civic is, "What size fuel injectors do I need?" The core purpose of upgrading injectors is to meet the engine's increased fuel demand efficiently and reliably. When shopping for injectors, remember they are rated by fuel pressure. Industry standard for fuel injector rating is approximately 45 PSI (or 3 BAR) of fuel pressure. If an injector is rated at, say, 42 lbs/hr at 40 PSI, but your car runs at 50 PSI, that injector will actually flow more than 42 lbs/hr due to the increased pressure. This is a critical factor to consider when matching injectors to your build.

To determine the approximate size you need, you can use this calculation:

Flow Rate (lbs/hr) = (Horsepower x BSFC) / (Number of Injectors x Max Duty Cycle)

What is BSFC?

BSFC stands for Brake-Specific Fuel Consumption, measured in pounds per hour. It represents how efficiently an engine converts fuel into horsepower. As a general estimation:

• Naturally aspirated engines: approximately 0.45 at full throttle.
• Turbocharged engines: approximately 0.55 at full throttle.

These are estimates, but they provide a solid starting point.

Example: Turbocharging a Honda Civic 2.0

Let's say you have a Honda Civic 2.0 and plan to turbocharge it, aiming for 300 horsepower (flywheel). Your engine is a 4-cylinder, so it has 4 injectors, and you want to ensure they don't exceed an 80% duty cycle.

Flow Rate = (300 HP x 0.55) / (4 x 0.80)

Flow Rate = (165) / (3.2)

Flow Rate = 51.5625 lbs/hr

Based on this, you'd be looking for fuel injectors rated around 51.5 lbs/hr, keeping in mind their specific rating pressure.

High vs. Low Impedance Injectors: What's the Difference?

The distinction between high and low impedance injectors lies in the voltage required to open them. High impedance injectors demand a higher voltage (typically up to 12 Ohms) to open fully and properly. Low impedance injectors, conversely, require less voltage (around 3-5 Ohms). The type of injector your vehicle uses is dictated by its engine management system, so it's crucial to use the correct type for your application.

Nitrous Kits and Your Fuel System: To Upgrade or Not?

When considering a nitrous oxide system, the impact on your fuel system depends on whether you opt for a wet or dry kit.

Wet Nitrous Kit:

A wet nitrous kit injects both nitrous and additional petrol into the intake stream to maintain a balanced air-fuel ratio. The additional petrol comes from an external source, not through your existing fuel injectors. Therefore, you typically don't need to upgrade your fuel injectors. However, your fuel pump might require an upgrade if the demand for the existing injectors and the wet line stresses it too much, potentially leading to fuel starvation.

Dry Nitrous Kit:

With a dry nitrous kit, only nitrous is sprayed into the intake. The engine's existing fuel system is then solely responsible for providing the extra fuel needed to match the increased oxygen. In this scenario, upgrading your fuel system, particularly your fuel injectors and potentially your fuel pump, is highly recommended. Failing to provide adequate fuel during a dry shot can lead to dangerously lean air/fuel mixtures, causing detonation and severe engine damage.

Return vs. Return-less: Which is Better for Performance?

Return-less fuel systems were introduced primarily for manufacturing simplicity, to reduce the number of potential leak points by eliminating return lines, and to allow the computer more direct control over fuel delivery. However, from a high-performance perspective, return fuel systems are generally considered superior.

In a return system, the constant circulation of petrol helps maintain a more consistent temperature and pressure throughout the fuel rail, ensuring that all injectors receive an equal and ample supply of fuel. In contrast, with return-less systems, especially under high demand, the injectors furthest from the fuel pump can sometimes suffer from fuel starvation, leading to lean conditions in those cylinders. This uneven fuel distribution can result in detonation and potential engine damage, particularly in highly tuned or modified engines. For stock or near-stock applications, the difference is often negligible, but for serious performance builds, a return system offers better stability and consistency.

Understanding Rising-Rate Fuel Pressure Regulators

A rising-rate fuel pressure regulator functions similarly to a stock (OEM) regulator but with an enhanced characteristic. OEM regulators on naturally aspirated engines typically raise fuel pressure on a 1:1 ratio with dropping manifold vacuum. If you turbocharge such an engine, the OEM regulator will generally increase fuel pressure by 1 PSI for every pound of boost pressure (1:1 ratio).

A rising-rate fuel pressure regulator, however, offers a much higher ratio, often ranging from 6:1 to 12:1 (e.g., 6 PSI fuel pressure increase for every 1 PSI of boost). This allows for a significant increase in fuel pressure under boost, which in turn forces more petrol through the injectors each time they open. While this can be beneficial for high-horsepower applications, it's crucial to ensure your injectors and fuel pump can handle the increased pressure. Excessive pressure can damage underrated injectors or overwhelm the fuel pump, reducing its effective flow rate as it struggles against higher resistance.

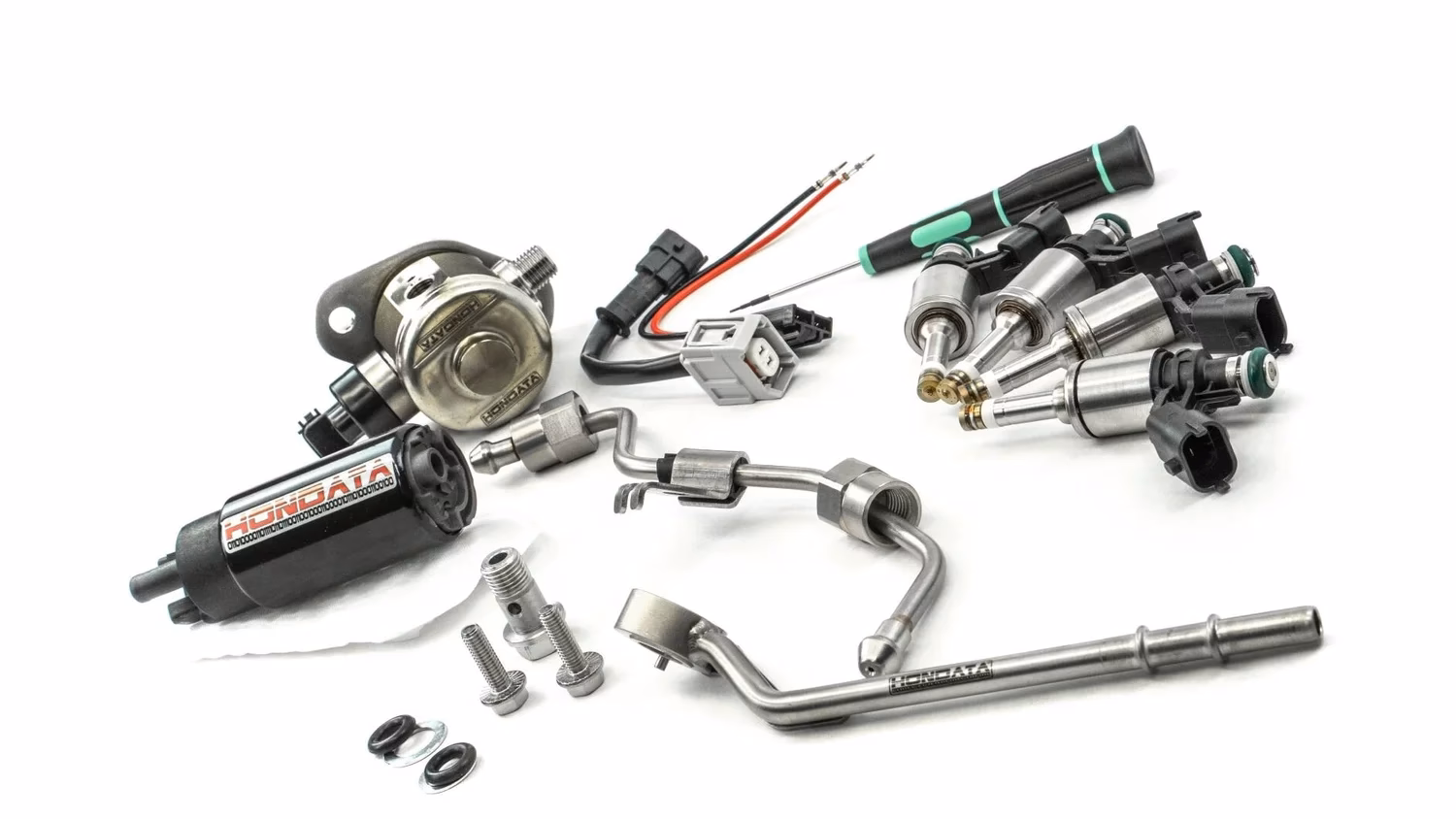

Choosing a High-Flowing Fuel Pump

Upgrading your fuel pump is essential when your engine's fuel demand exceeds the capacity of the stock unit. Fuel pumps are rated by their flow capacity, typically in pounds per hour (lbs/hr) or gallons per hour (GPH), along with their operating voltage and the fuel pressure (PSI) they can consistently supply. When selecting a new pump, you need to match its capacity to your engine's anticipated fuel consumption at its peak performance.

The equation to estimate the required fuel pump flow rate is:

Flow Rate (lbs/hr) = Horsepower x BSFC

Example: Fuel Pump for a Turbocharged Civic

Using our previous example of a Honda Civic 2.0 aiming for 300 flywheel horsepower with a turbocharger (0.55 BSFC), and assuming a constant fuel pressure of 50 PSI:

Flow Rate = 300 HP x 0.55

Flow Rate = 165 lbs/hr

If the pump you're considering is rated in GPH, you can convert lbs/hr to GPH by dividing by 6 (since petrol weighs approximately 6 lbs per gallon):

165 lbs/hr / 6 = 27.5 GPH

So, you would need a fuel pump capable of flowing at least 165 lbs/hr or 27.5 GPH at your system's operating pressure.

The Dangers of Insufficient Fuel Supply

Your engine operates on a precise air-to-fuel ratio. If the fuel system fails to provide enough petrol to match the air entering the engine, it results in a lean condition. A lean mixture burns hotter and can lead to a cascade of serious problems, including:

• Improper Combustion: Incomplete or inefficient burning of fuel.
• Engine Knocking (Detonation): Premature ignition of the air-fuel mixture, causing sharp, metallic sounds and extreme pressure spikes.
• Engine Damage: Prolonged or severe lean conditions can rapidly lead to melted pistons, damaged valves, and catastrophic engine failure.

Ensuring adequate fuel supply is paramount for engine health and longevity.

Frequently Asked Questions (FAQs)

Can I use fuel injectors from another car?

Yes, in many cases, you can. The most common type is the Bosch pintle-type injector. If you can find larger injectors that are physically compatible (same size, connector, and spray pattern) with your vehicle's existing setup, and your engine management system can be tuned to compensate for them, they can often be used.

What manufacturers can I buy brand new injectors from?

Reputable manufacturers for aftermarket and performance fuel injectors include Bosch, Accel, and RC Engineering, among others. Always ensure you purchase from a trusted supplier.

What manufacturers can I buy a new high-flow fuel pump from?

For high-performance fuel pumps, leading names in the industry include Walbro and MSD. These companies offer a range of pumps to suit various applications and horsepower levels.

How do I convert fuel flow rates? What's the calculation?

Here are some common conversion formulas for fuel flow rates:

Note: These are approximate values, as petrol density can vary slightly. The common factor of 10.2 for CC/Min to Lbs/Hr is often used in the performance industry.

Whether you're maintaining a stock Honda Civic or pushing the boundaries with performance modifications, a thorough understanding of its fuel system is paramount. From the number of injectors to the intricacies of fuel pump selection, every component plays a vital role in delivering reliable power and efficiency. By paying attention to these details, you ensure your Civic continues to perform at its best.
