Sub-Base Explained: MOT Type 1 vs Type 2

The Foundation of Your Paving Project: Understanding Sub-Bases

When embarking on any paving project, whether it's a grand driveway, a charming patio, or a functional pathway, the underlying foundation is paramount. This critical layer, known as the sub-base, serves a vital trio of purposes: facilitating essential drainage, providing a stable platform for the surface materials, and preventing undesirable movement caused by environmental factors like frost heave. In essence, a well-constructed sub-base acts as the backbone of your entire paving installation, ensuring its longevity and structural integrity. Without it, your meticulously laid paving is susceptible to sinking, cracking, and deformation under load and the relentless pressures of changing weather conditions.

Why is a Sub-Base So Important?

The sub-base, also referred to as the subgrade, is a compacted layer of aggregate laid beneath the intended surface. Its primary role is to distribute the weight of the surface material and any traffic it will bear down to the natural ground (the subgrade) beneath. This load distribution is crucial for preventing settlement and rutting, especially in areas subjected to regular use. Think of it as a shock absorber for your paving; it absorbs and spreads the impact, preventing direct stress on the underlying soil. This is particularly important in climates where the ground can freeze and thaw, causing expansion and contraction that can wreak havoc on poorly supported structures.

When Do You Need a Sub-Base?

While purely decorative landscaping features, such as simple gravel gardens or ground cover, might not require a formal sub-base, any project that anticipates traffic or significant weight will certainly benefit from, or absolutely require, one. This includes driveways, patios, pathways, and even areas intended for garden furniture. Neglecting a sub-base in these situations will inevitably lead to premature wear and tear, distortion, and a need for frequent repairs, ultimately costing more in the long run.

The Anatomy of a Solid Sub-Base: Layers and Materials

A robust sub-base is often constructed in layers to maximise stability and drainage. Traditionally, this might involve a base of fine gravel, followed by a layer of 'hardcore' (crushed rock), and then the chosen surface material. However, modern construction often utilises specialised blended aggregates, such as MOT Type 1 and MOT Type 2, which combine various grades of crushed materials, from larger stones down to fine dust, in a single, easy-to-install product. These blends are designed for excellent compaction and load-bearing capabilities.

The Role of Geotextile Membranes

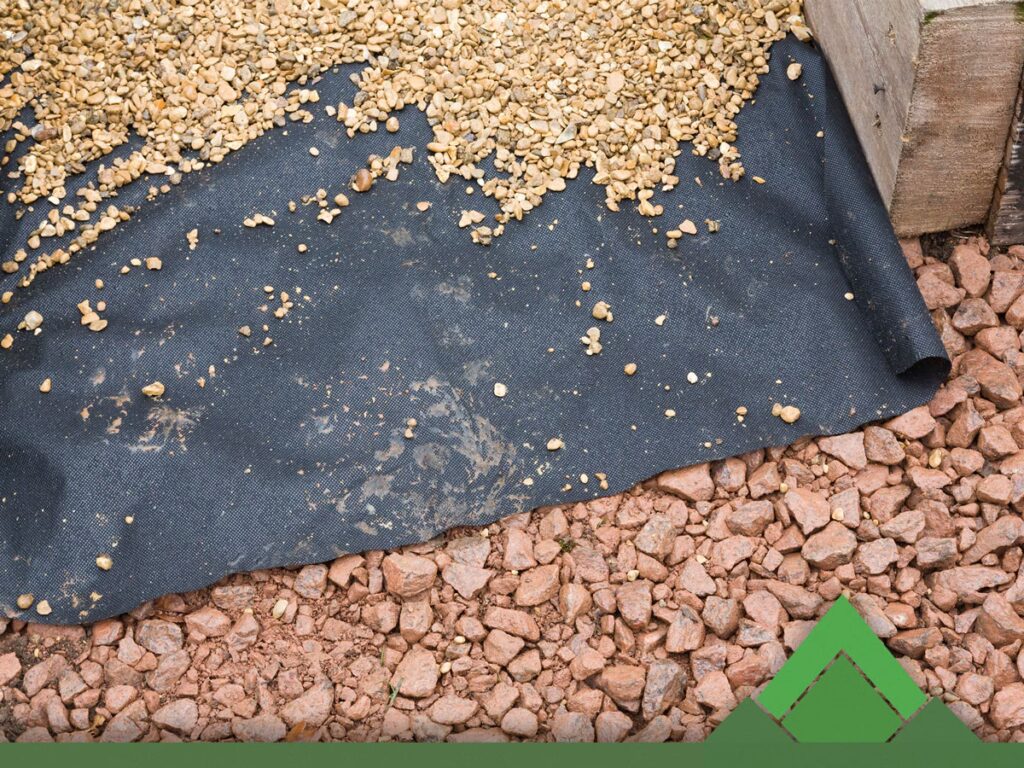

A frequently overlooked but critical component of a sub-base installation is a heavy-duty weed membrane, also known as a geotextile fabric. Laid on top of the prepared subgrade, this membrane acts as a filter. It prevents the finer particles of the sub-base material from migrating downwards into the soil, which could otherwise compromise the drainage capabilities of the sub-base. Furthermore, it provides a crucial separation between the sub-base and the surface layer, offering structural support and acting as an effective barrier against weed growth. Some installers also recommend a thin layer of fine-washed sand on top of the membrane to protect it from sharp, angular aggregate, further enhancing its longevity.

Installation Considerations: Depth and Compaction

The required depth of your sub-base is influenced by several factors, most notably the climate and the intended load. In regions with minimal frost penetration, a shallower excavation might suffice. Generally, a typical driveway might require an excavation of around 150mm to accommodate a 100mm sub-base and a 50mm surface layer. However, in colder climates where frost heave is a significant concern, this depth can increase considerably, often requiring up to 300mm of foundation material. Crucially, sub-base material should be laid in layers, with each layer no more than 150mm thick before being thoroughly compacted. This layered approach is vital for achieving uniform compaction and preventing differential settlement. Compaction is typically achieved using mechanical tools like plate compactors or 'whacker plates', ensuring each layer is densely packed and stable. Maintaining correct levels is also essential; each compacted layer should not deviate from the intended level by more than 10mm to ensure a uniform base for subsequent layers.

Drainage: A Critical Element

A well-constructed, permeable sub-base, especially one used with materials like gravel, inherently aids drainage by allowing water to pass through into the ground below. However, in areas prone to flooding or where water runoff is a concern, additional drainage measures may be necessary. This could include installing soakaways (gravel-filled pits that allow water to disperse) or laying perforated drainage pipes within the sub-base layer. It's far more efficient and cost-effective to incorporate these drainage solutions during the initial excavation rather than attempting to retrofit them later, which would likely involve dismantling the sub-base.

Key Sub-Base Materials: MOT Type 1 and MOT Type 2

Understanding the differences between common sub-base materials is key to selecting the right product for your project. In the UK, the Ministry of Transport (MOT) grading system is widely used to define the quality and suitability of aggregates for road construction and other infrastructure projects. The two most commonly encountered types for general paving are MOT Type 1 and MOT Type 2. It's worth noting that DTp1 (Department of Transport Type 1) is essentially the same as MOT Type 1, with the terminology often used interchangeably.

MOT Type 1 (or DTp1)

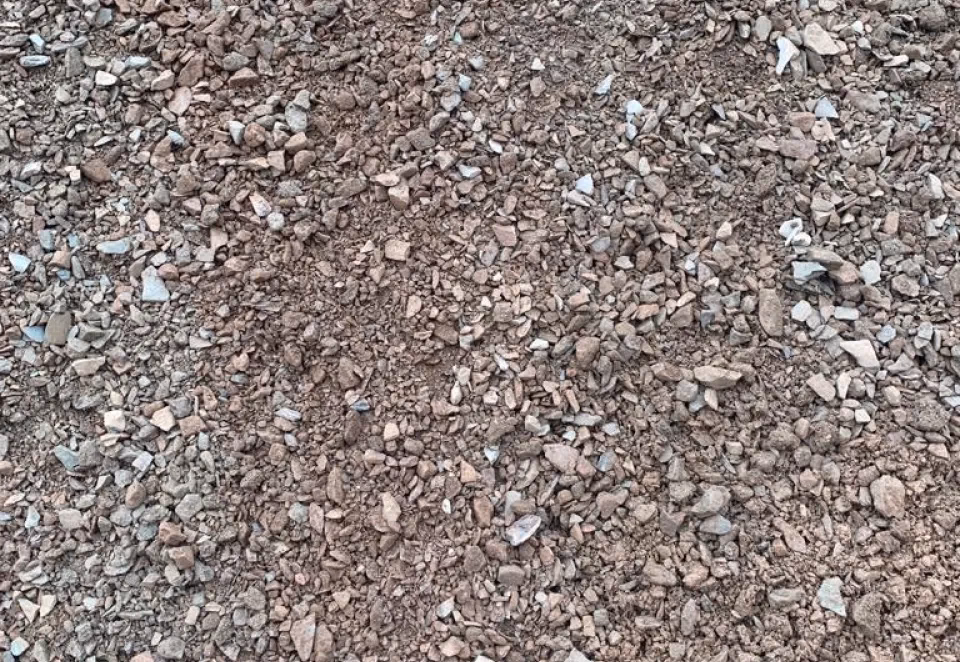

MOT Type 1, often referred to as 'hardcore', is a high-quality, unbound aggregate that forms the cornerstone of many stable foundations. It is specifically graded to ensure excellent load-bearing capacity and compaction. This makes it the go-to choice for a wide range of applications, from major highways and roads to domestic driveways and patios.

MOT Type 2

MOT Type 2 is also an unbound aggregate used for sub-base purposes, but it is generally considered to be of a slightly lower specification than Type 1. While it still offers good compaction and stability, it is typically used in applications where the load-bearing requirements are less demanding.

MOT Type 3

While not directly asked about, it's worth mentioning MOT Type 3. This is a lower-grade material specifically designed for permeable paving surfaces. Its more open grading allows water to pass through more freely, making it ideal for Sustainable Drainage Systems (SuDS) and areas where effective water management is a priority. It typically ranges from 38mm down to dust.

Other Sub-Base Materials

Beyond the MOT classifications, other materials are used for sub-bases, particularly where enhanced strength or specific properties are required:

• CBM (Cement-Bound Material): This is a mixture of aggregates bound together with cement. It provides a much firmer and higher-strength base than unbound aggregates and is less permeable. CBM is used in road bases and surfaces requiring significant durability and resistance to weathering.
• HBM (Hydraulically Bound Material): Similar to CBM, HBM uses hydraulic binders (like cement or lime) and water with aggregates. It gains strength through hydraulic or pozzolanic reactions. HBM is used for road bases, pavements, and soil stabilisation, offering durability and resistance to freeze-thaw cycles.

Quick Step-by-Step Sub-Base Installation

1. Excavation: Dig out the area to the required depth, taking into account the sub-base thickness, surface material thickness, and any necessary drainage layers.
2. Sub-grade Preparation: Compact the exposed natural ground (sub-grade). Consider laying a geotextile membrane at this stage to prevent intermixing of soil and aggregate.
3. Laying the Sub-Base: Add the chosen sub-base material (e.g., MOT Type 1) in layers, typically no thicker than 150mm each.
4. Compaction: Compact each layer thoroughly using a plate compactor or similar vibrating equipment. This is critical for achieving a stable foundation.
5. Levelling: Ensure each compacted layer is level and true to the required gradient.
6. Final Surface Laying: Once the sub-base is complete, level, and compacted, you can proceed with laying your chosen surface material (paving slabs, gravel, asphalt, etc.).

Frequently Asked Questions

Q1: What is MOT sub-base?
MOT sub-base is a type of crushed aggregate that has been graded to meet specific standards set by the Ministry of Transport in the UK. It is used to create stable foundations for various construction projects, ensuring good load-bearing and compaction properties.

Q2: What is sub-base material?
Sub-base material is a layer of granular aggregate placed between the natural soil layer and the final constructed surface. Its purpose is to distribute loads evenly, improve drainage, and prevent settlement or deformation of the overlying paving layer.

Q3: How deep should a driveway sub-base be?
For a residential driveway, a minimum of 100mm of sub-base is recommended. For optimal support, especially for heavier vehicles, 150mm is preferred. The preferred material for this layer is typically MOT Type 1, graded from 40mm down to dust.

Q4: Can sub-base be too thick?
Yes, if not installed correctly, a sub-base can be too thick. The key is to apply it in layers, with each layer compacted and levelled before adding the next. Exceeding the recommended layer thickness (typically 150mm) can lead to uneven compaction and potential settlement issues.

In conclusion, selecting the correct sub-base material and ensuring its proper installation is fundamental to the success and longevity of any paving project. Understanding the nuances between materials like MOT Type 1 and MOT Type 2 empowers you to make informed decisions, ultimately leading to a durable, attractive, and functional outcome for your driveway, patio, or pathway.
