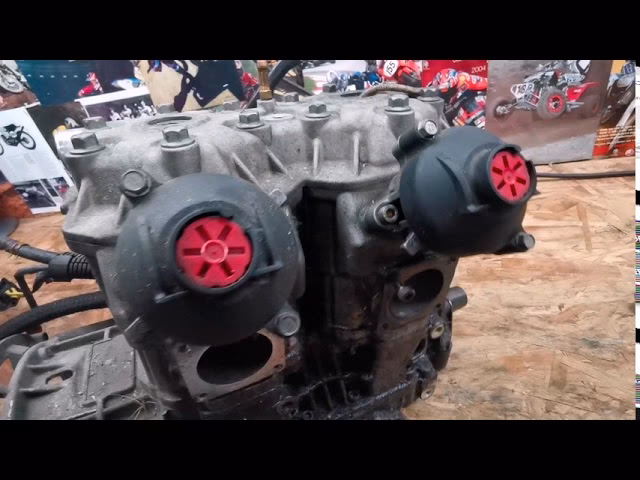

Rebuilding Your Liquid-Cooled Snowmobile Engine

There's a unique satisfaction that comes from bringing a piece of machinery back to life, especially when it's your liquid-cooled snowmobile. A well-executed engine rebuild can extend the life of your sled for many more thrilling seasons, saving you a significant amount compared to buying new. This guide delves into the intricate process, offering insights gleaned from experienced hands and addressing crucial details often overlooked by the novice. Whether you're aiming to refresh a tired powerplant or tackle a more comprehensive overhaul, understanding the nuances of a snowmobile engine rebuild is key to ensuring reliability and peak performance on the snow.

Understanding the Need for an Engine Rebuild

Before you even pick up a wrench, it's vital to assess why your snowmobile engine might need a rebuild. Common indicators include a noticeable loss of power, excessive smoke from the exhaust, unusual knocking or rattling noises, increased fuel consumption, or difficulty starting. For two-stroke engines, a decrease in compression is a tell-tale sign that the piston rings or cylinder bore might be worn. Most manufacturers and experienced riders suggest a top-end rebuild – which typically involves replacing pistons, rings, and inspecting cylinders – at specific mileage intervals, often between 2,000 and 4,000 miles, depending on the model and how it's ridden. Ignoring these signs can lead to more severe and costly damage, potentially resulting in catastrophic engine failure.

New vs. Used Sled: Rebuild Considerations

Many enthusiasts, especially those with mechanical aptitude, often weigh the decision between purchasing a new snowmobile or a used one that might require some attention. The potential for a DIY rebuild can significantly influence this choice, particularly regarding older models. Here's a comparative look at some popular 'modern' 800cc snowmobile models (years reflecting what's generally considered the modern age) and their characteristics concerning reliability and rebuild difficulty, along with their observed used market pricing and typical two-stroke oil mix ratios:

It's important to note that while some models, like the Ski-Doo PTEK, are known for easier rebuilds, others, such as certain Polaris models, present more challenges. The oil mix ratio is crucial for two-stroke longevity, so always adhere to manufacturer specifications, even if the table provides general observations. Four-stroke engines like the Yamaha Nytro or Sidewinder do not require two-stroke oil and are renowned for their extended service intervals, often going 10,000 to 20,000 miles or more without a major engine overhaul, though they are typically heavier.

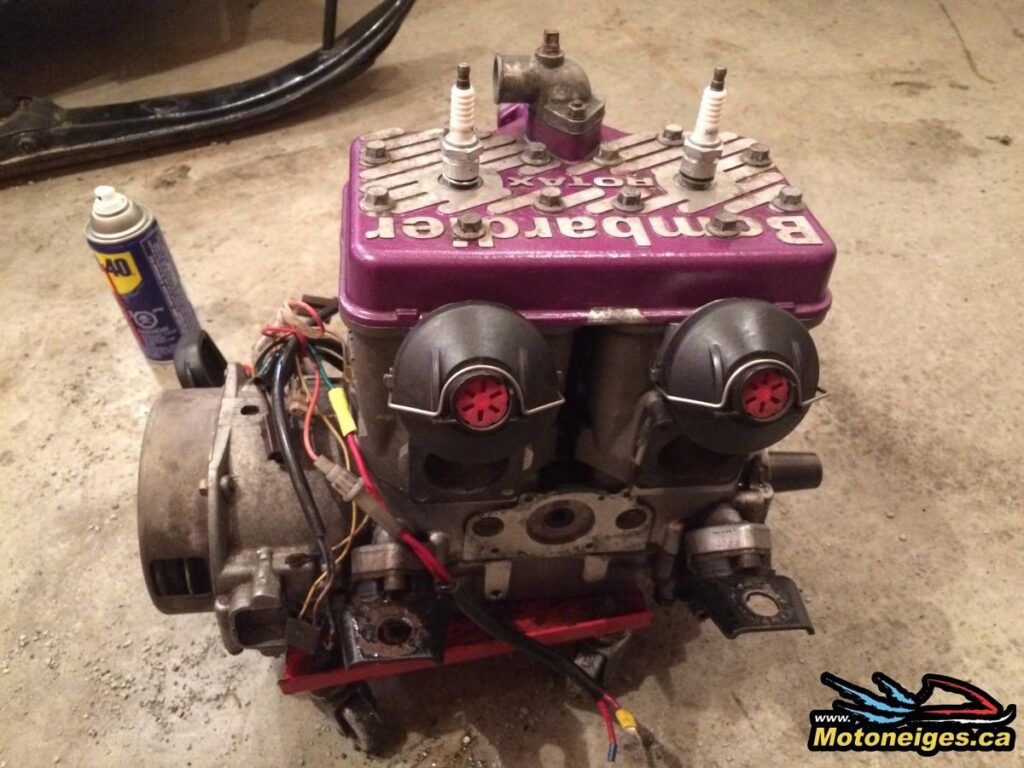

Preparing for the Rebuild: Getting to the Engine

The actual engine rebuild process begins long before you even touch the engine itself. The first significant hurdle, as many riders discover, is gaining access to and removing the engine from the chassis. This can vary wildly between models, with some requiring extensive disassembly of the bodywork, exhaust, airbox, and cooling system components before the engine can be unbolted. Patience and a systematic approach are your best friends here. Document everything: take photos, label wires, hoses, and fasteners, and keep parts organised in separate containers. This meticulous preparation will save you countless headaches during reassembly. Ensure you have a clean, well-lit workspace and all necessary tools, including a comprehensive socket set, various wrenches, screwdrivers, a torque wrench, and specialised tools like a piston ring compressor.

Safety is paramount. Always wear safety glasses, especially when dealing with spring-loaded components like circlips. Laying down clean towels or shop rags in the bottom of the chassis can prevent small, critical parts from falling into inaccessible areas.

Critical Steps: Piston and Circlip Installation

Once the engine is out and disassembled, or if you're performing an in-frame top-end rebuild, attention shifts to the heart of the power production: the pistons and their associated components. Correct installation of the piston rings and the circlip is absolutely vital for engine longevity and performance.

Piston Ring Installation

Before fitting the piston to the connecting rod, install the piston rings onto the piston. This is best done over a workbench, providing a stable surface and preventing parts from falling. Carefully expand the rings just enough to slide them over the piston, ensuring they sit correctly in their grooves and that any 'top' or 'bottom' markings are oriented correctly. Misalignment or over-expansion can damage the rings or piston.

Circlip Installation: A Crucial Detail

The circlip secures the wrist pin within the piston, preventing it from migrating sideways and contacting the cylinder wall – a scenario that almost invariably leads to catastrophic engine failure. There's a specific, often-overlooked, yet critical detail for circlip installation:

• The gap in a circlip should be set at the six or 12 o’clock position on the end of a wrist pin.
• Conversely, if the opening is set at three or nine o’clock, the clip will compress each time the crankshaft reaches top- and bottom-dead center. This compression could allow the clip to pop out of the piston.
• To install, lay a clean towel on the bottom end of the engine (if working in-frame) or workbench and push the circlip into the piston with a finger or a hard, blunt object.
• Never squeeze a circlip with pliers.
• Never wedge a screwdriver under the clip. Doing so could cause the clip to lose its natural tension, making it prone to failure.
• Install the inner circlip in the piston while you're at the workbench, before mounting the piston onto the connecting rod.

If you're new to this, it's a wise investment to buy extra circlips. They are under high tension and can easily deform if mishandled, or worse, fling out and disappear into the abyss of your garage. Remember those safety glasses!

Reassembly and First Start-Up

With new components installed, the reassembly process is essentially the reverse of disassembly. However, it's even more critical to pay attention to cleanliness and proper torque specifications. Consult your snowmobile's service manual for exact torque values for every fastener. Lubricate all moving parts with appropriate engine oil during assembly. Once the engine is back in the chassis and all connections are made, double-check everything: fuel lines, oil lines (for two-strokes), cooling hoses, electrical connections, and exhaust system. Ensure there are no tools left inside the engine bay.

The initial start-up after a rebuild, often referred to as the 'break-in' period, is crucial. Follow manufacturer guidelines precisely. This typically involves running the engine at varying RPMs, avoiding prolonged high-RPM operation or heavy loads for the first few hours of use. This allows new piston rings to seat properly against the cylinder walls, optimising compression and extending engine life. An improper break-in can negate all the hard work of the rebuild.

Common Pitfalls and Troubleshooting

Even with careful work, issues can arise. Common pitfalls include:

• Incorrectly installed circlips: As discussed, this leads to rapid and severe engine damage.
• Improper ring gap or orientation: Causes poor compression, excessive oil consumption (in 2-strokes), and reduced power.
• Contamination: Any dirt or debris introduced during assembly can cause scoring or premature wear.
• Incorrect torque: Under-torqued fasteners can loosen, while over-torqued ones can strip threads or crack components.
• Air leaks: Particularly in two-stroke engines, leaks around the crank seals or intake boots can lead to a lean condition, causing the engine to run hot and seize.

If your engine doesn't start, runs poorly, or exhibits unusual noises after a rebuild, stop immediately. Revisit your steps, check for obvious errors like unplugged wires or disconnected hoses, and perform a compression test to gauge the health of your new top-end.

Frequently Asked Questions (FAQs)

How often should I rebuild my snowmobile engine?

For two-stroke engines, a top-end rebuild is often recommended every 2,000 to 4,000 miles, depending on the model, riding style, and manufacturer's recommendations. Four-stroke engines typically have much longer intervals, often exceeding 10,000 miles.

Can I do a rebuild myself if I'm a beginner?

A top-end rebuild requires mechanical aptitude, patience, and attention to detail. While challenging for a beginner, it's certainly achievable with a good service manual, the right tools, and a willingness to learn. A full bottom-end rebuild is more complex and usually best left to experienced mechanics.

What are the signs I need a rebuild?

Loss of power, difficulty starting, excessive exhaust smoke (especially blue smoke for 2-strokes), unusual knocking or rattling noises, and low compression readings are all indicators that a rebuild might be necessary.

What's the difference between a top-end and full rebuild?

A top-end rebuild typically involves replacing pistons, rings, wrist pins, circlips, and inspecting/honing cylinders. A full rebuild, or bottom-end rebuild, also includes replacing crankshaft bearings, connecting rod bearings, and seals.

What oil mix ratio should I use for my 2-stroke snowmobile?

Always refer to your specific snowmobile's owner's manual for the precise oil mix ratio. Common ratios observed include 50:1 and 100:1, but using the wrong ratio can lead to premature wear or engine seizure. For example, older Ski-Doo PTEK and Arctic Cat M8000 (Suzuki) often use 50:1, while newer Ski-Doo E-TEC and Polaris RMK models typically use 100:1.

Undertaking a liquid-cooled snowmobile engine rebuild is a significant project, but one that offers immense rewards in terms of cost savings, increased knowledge, and the satisfaction of knowing your machine is running perfectly because of your own efforts. By following these guidelines, paying meticulous attention to detail, and respecting the critical installation procedures, you can ensure your snowmobile is ready to conquer the trails for many seasons to come.
