In the dynamic world of automotive engineering, few debates are as enduring and passionate as that between naturally aspirated and forced induction petrol engines. For decades, the choice between these two distinct power delivery philosophies has shaped the character of countless vehicles, influencing everything from the roar of a supercar to the everyday efficiency of a family car. As emissions regulations tighten and technology advances, understanding the fundamental differences and the unique driving experiences each offers becomes ever more crucial for any car enthusiast or prospective owner.
A naturally aspirated engine, often abbreviated to N/A, is perhaps the purest form of internal combustion. In this setup, air for combustion is drawn into the engine's cylinders purely by atmospheric pressure. This occurs as the piston travels downwards towards bottom dead centre during the intake stroke, creating a partial vacuum within the cylinder. Atmospheric pressure then pushes air into this vacuum. However, due to inherent restrictions within the engine's inlet tract, including the intake manifold, a small pressure drop is inevitable as air is drawn in. This phenomenon results in a volumetric efficiency of less than 100 percent, meaning the cylinder receives a less than complete air charge. The density of this air charge, and consequently the engine's maximum theoretical power output, is influenced not only by the induction system's restriction but also by engine speed and, significantly, by atmospheric pressure, which decreases with increasing altitude. This design is celebrated for its linear power delivery and direct connection to the driver's throttle inputs, offering a raw and unadulterated driving experience.
The Rise of Forced Induction: A Different Philosophy
In stark contrast to natural aspiration, forced induction engines employ mechanical assistance to push more air into the cylinders than atmospheric pressure alone could achieve. This technology typically involves either a mechanically driven supercharger or an exhaust-driven turbocharger. Both systems are designed to increase the mass of intake air, thereby allowing for the combustion of more fuel and, consequently, producing greater power from a given engine displacement. Another, albeit less common in production cars, method to artificially increase the mass of oxygen is through the injection of nitrous oxide. Liquid nitrous oxide, when injected into the intake, supplies significantly more oxygen by mass compared to atmospheric air. It also boils at extremely low temperatures, offering substantial cooling from the latent heat of vaporisation, which further aids in increasing the overall air charge density, significantly boosting power output.
The automotive industry has witnessed a significant shift towards forced induction, particularly turbocharging, in recent years. This trend is largely driven by the concept of downsizing, where smaller displacement engines, often with fewer cylinders, are equipped with turbos to achieve power outputs comparable to much larger naturally aspirated engines. The primary motivations behind this widespread adoption are stringent emissions regulations and the pursuit of improved fuel economy. During official consumption tests, and indeed in everyday driving, smaller engines typically consume less fuel than their larger counterparts. They operate more frequently in the efficient part of their load band, and their frictional, thermodynamic, and thermal losses are generally lower. Crucially, reduced fuel consumption directly correlates with lower CO2 emissions, a key metric for both environmental compliance and vehicle taxation. A small, turbocharged engine can behave like an economical, small-displacement unit during gentle driving, only transforming into a powerful, high-output engine when the accelerator is floored, thanks to the turbocharger compressing the intake air and allowing for more fuel to be burned.
The Unparalleled Charms of Natural Aspiration
Despite the undeniable advantages of forced induction in terms of efficiency and power-to-size ratio, naturally aspirated engines retain a dedicated following, cherished for characteristics that turbos often struggle to replicate. One of the most lauded attributes is the instant and proportional throttle response. With an N/A engine, there is no lag between pressing the accelerator pedal and the engine's immediate reaction. The power delivery is linear, building smoothly and predictably with engine speed, providing a direct and intuitive connection between the driver's foot and the car's acceleration. This immediacy is often accompanied by a more visceral and unencumbered exhaust note, as there is no turbine to muffle or alter the sound. Many enthusiasts also appreciate the ability of naturally aspirated engines to rev higher, often producing peak power at elevated RPMs, which can be thrilling and engaging, particularly in performance vehicles.
Fuel Injection: The Precision of Fuel Delivery

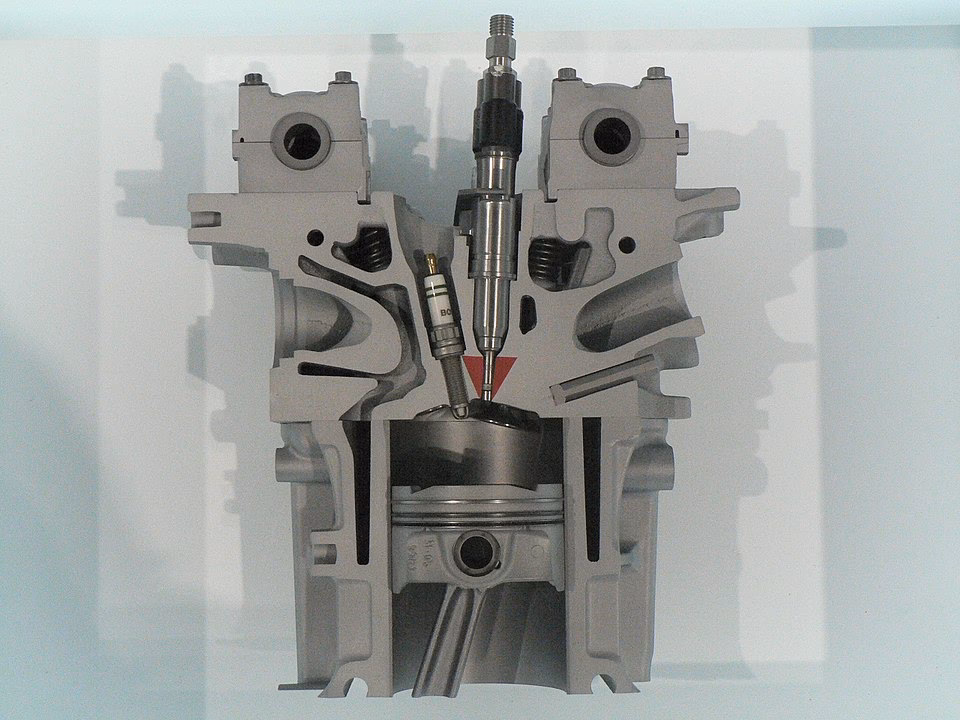

Regardless of whether an engine is naturally aspirated or forced induction, modern petrol engines universally utilise fuel injection systems for precise fuel delivery. For spark ignition engines, a fuel injection system requires both a throttle body, which controls the amount of air entering the engine, and a sophisticated fuel control circuit. This system meticulously manages both the air and fuel amounts, as well as maintaining the optimal air-to-fuel ratio for efficient combustion. In contrast, for normally (naturally) aspirated compression ignition diesel engines, the fuel injection system is primarily responsible for controlling the fuel amount only, as air intake is unregulated. Direct fuel injection (DFI), a more advanced form of fuel injection, involves injecting fuel directly into the combustion chamber of each cylinder, rather than into the intake manifold or port. This allows for even more precise control over the air-fuel mixture, enabling higher compression ratios, improved fuel economy, and reduced emissions, particularly during cold starts and under varying load conditions. DFI systems can also facilitate leaner air-fuel mixtures and more efficient combustion by allowing for stratified charge combustion under certain operating conditions.
The Technical Battle: Innovation and Adaptation
Over the decades, the competition between naturally aspirated and forced induction engines has spurred a remarkable array of technical innovations from both camps, each striving to overcome their inherent weaknesses. Early turbochargers, such as those found in the 1962 Chevrolet Corvair Spyder or the 1974 Porsche 911 Turbo, were often a solution for achieving power in confined spaces or when larger engine capacities were impractical. However, these early designs were notorious for "off-boost lethargy" and significant "turbo lag" – the delay between requesting power and the turbo delivering it. To combat this, the naturally aspirated brigade responded with clever solutions. Volkswagen's VR6 engines, for instance, ingeniously packaged six cylinders into the space typically reserved for a four-cylinder, increasing displacement without a significant footprint. More widespread innovations include variable-cam phasing, which adjusts the inlet/exhaust valve overlap to optimise performance across different engine speeds – aiding high-rev power, mid-rev torque, and low-rev emissions. Systems like Honda's VTEC and Rover's VVC further refined this by using differing cam profiles at various revs, ensuring optimal timing and lift for both mid-range torque and high-end power. BMW's Valvetronic and Fiat's MultiAir systems represent even more sophisticated approaches, controlling valve timing and lift with extreme precision, even allowing the engine to run without a traditional throttle body, thereby reducing pumping losses. Naturally aspirated engines also frequently incorporate variable intake tracts, which introduce different resonant lengths to more effectively charge the cylinders at various engine speeds, enhancing torque delivery.
Meanwhile, the forced induction side continued its relentless pursuit of squashing turbo lag. Solutions for rally engines, like the anti-lag systems in the Mitsubishi Evo, injected air and fuel into the exhaust when the throttle was shut, causing explosions that kept the turbo spinning – a highly effective but impractical and environmentally unfriendly solution for road cars. For road-going engines, smaller turbos were introduced to reduce inertia and improve response, though they often sacrificed top-end power. This led to the development of sequential twin-turbo setups, where a smaller turbo handles low-rev response and a larger one takes over at higher RPMs. Twin-scroll turbos separate the exhaust tracts of cylinders to prevent wasteful interference and improve efficiency. A more complex, yet effective, lateral-thinking solution is the use of a small supercharger for low-rev pick-up, which is then bypassed and declutched at higher revs, handing boosting duties over to a turbocharger, as seen in VW's Twincharged 1.4 engines. More commonly, modern turbo engines utilise variable geometry turbos. These adjust the angle of vanes that guide exhaust gases across the turbine, allowing the turbo to operate efficiently across a wide range of exhaust flow rates, effectively broadening the engine's torque curve and reducing lag. While long used in diesels, the higher heat of petrol engines made their mechanisms prone to failure until new materials, pioneered in cars like the Porsche 997 Turbo, resolved these issues.
Comparative Table: N/A vs. Forced Induction
| Feature | Naturally Aspirated Engine | Forced Induction Engine |
|---|---|---|
| Power Delivery | Linear, predictable, builds with RPM | Potentially sudden, higher peak power from smaller displacement |
| Throttle Response | Instantaneous, direct | Can exhibit 'lag' (though greatly reduced in modern designs) |
| Engine Sound | Often more raw, unencumbered, higher-pitched at revs | Can be muted or have a different character due to turbo/supercharger |
| Fuel Efficiency | Generally lower for comparable power output; consistent across driving styles | Potentially higher in official tests and gentle driving; significantly worse when driven hard |
| Complexity | Simpler mechanical design | More complex (turbo/supercharger, intercooler, additional plumbing) |
| Weight & Size | Often heavier/larger for comparable power | Lighter/more compact for comparable power ('downsizing') |
| Peak Torque | Achieved at higher RPMs | Often achieved at lower RPMs due to forced air delivery |
| Cost to Manufacture | Potentially higher for multi-cylinder, high-power units | Potentially lower for smaller, turbocharged units |
Frequently Asked Questions (FAQs)
Q: Are naturally aspirated engines becoming obsolete?
A: While forced induction engines, particularly turbos, dominate the market due to efficiency and emissions regulations, naturally aspirated engines are not entirely obsolete. Niche manufacturers and high-performance brands still offer them for their unique driving characteristics, though their numbers are dwindling in mainstream production.
Q: What is 'turbo lag' and how is it addressed?
A: Turbo lag is the delay between the driver pressing the accelerator and the turbocharger spooling up to provide full boost. It's caused by the inertia of the turbine. Modern solutions include smaller turbos, twin-scroll designs, variable geometry turbos, and sometimes combining a supercharger with a turbocharger for low-end response.
Q: Do naturally aspirated engines consume more fuel?
A: For a given power output, a naturally aspirated engine might consume more fuel than a modern turbocharged engine, especially under light load conditions. However, when a turbocharged engine is driven hard, its fuel consumption can often surpass that of a larger naturally aspirated engine.
Q: Why do some enthusiasts prefer naturally aspirated engines?
A: Enthusiasts often prefer N/A engines for their linear and immediate throttle response, the unadulterated engine sound, the high-revving nature, and the direct, engaging driving experience that feels more connected to the mechanicals.
Q: What is the main benefit of direct fuel injection?
A: The main benefit of direct fuel injection (DFI) is increased precision in fuel delivery. By injecting fuel directly into the combustion chamber, DFI allows for better control of the air-fuel mixture, leading to improved fuel economy, reduced emissions, higher power output, and greater flexibility in engine design and operation.
The Future Landscape
The automotive industry continues its relentless march towards greater efficiency and lower emissions, a path that has largely favoured forced induction. However, the emotional appeal and unique driving dynamics of naturally aspirated engines ensure they will likely never completely disappear, even if they become increasingly rare, perhaps reserved for high-end sports cars and specialty vehicles. As electric powertrains gain traction, the debate between natural aspiration and forced induction may eventually become a nostalgic one, but for now, it remains a fascinating and evolving aspect of automotive engineering, continuously pushing the boundaries of performance and efficiency.
