Evinrude E-TEC 60: Power, Performance, & Prowess

For decades, the marine world has been captivated by the raw power and compact design of twin-cylinder outboard motors. Back in the seventies and eighties, engines like the Johnson 55, Suzuki DT60C, and even the Tohatsu 70, all with their twin carburettors, were the go-to choices for powering hulls up to five metres. They were straightforward, easy to balance, and delivered a punch, though perhaps not ideally suited for prolonged trolling. My own experience with a 5.2m Stejcraft runabout, powered by a Suzuki DT60C in '83, showcased their capability, hitting a respectable 32 knots with two adults aboard. It was a sophisticated setup for its time, featuring variable-ratio oil injection and the convenience of straight petrol in the tank.

However, the marine industry is always pushing boundaries. The vision for a new generation of big twins, boasting direct fuel injection to slash consumption, curb exhaust emissions, and even smooth out the notorious trolling vibrations of carbie engines, began to take shape. When Bombardier Recreational Products (BRP) acquired Outboard Marine Corporation (OMC) in 2001, they embraced this concept, leveraging common parts across their E-TEC range. This strategic move allowed them to use identical pistons in the 40 to 60 horsepower E-TEC models as in their larger three-cylinder 75 and 90, V4 115 to 130hp, and V6 150 to 200hp engines, significantly streamlining manufacturing costs.

The Heart of the Matter: Evinrude E-TEC 60 Horsepower

So, how much horsepower does an Evinrude E-TEC 60 actually produce? The Evinrude E-TEC 60 outboard motor is officially rated to develop a robust 60.3 horsepower at 5750rpm. Its Wide Open Throttle (WOT) range extends from 5500 to 6000rpm, ensuring ample power delivery across various operating conditions. This compact powerhouse features an 863cc loopcharged powerhead, equipped with a single-stage direct injection system. This innovative design precisely injects fuel directly into the combustion chambers, contributing to the 60's impressive OEDA 3-star emissions rating – a significant leap from the best 1-star rating of older carburetted engines.

The engine's architecture, characterised by a massive 91mm cylinder bore and a relatively short 66mm stroke, is engineered for endurance. This allows the E-TEC 60 to operate at or near WOT for extended periods without risking damage to the powerhead. Despite its robust capabilities, the dry weight of the E-TEC 60 is a manageable 109kg, contributing to better boat performance and handling.

A Legacy Reimagined: From Carburettors to Direct Injection

The journey from the carburettor-fed twins of yesteryear to today's direct-injected marvels is a fascinating one. While the old Johnson 55 and Suzuki DT60C were workhorses, their limitations, particularly regarding fuel efficiency and exhaust emissions, became increasingly apparent with evolving environmental standards. Their high vibration levels at trolling speeds were also a common complaint among boaters.

BRP's commitment to innovation truly shone through with the E-TEC range. By adopting direct fuel injection, they not only drastically reduced fuel consumption and exhaust emissions but also tackled the persistent issue of vibration during low-speed operation. The ability to share core components like pistons across a wide range of horsepower offerings was a manufacturing coup, making the E-TEC series both cost-effective to produce and highly reliable for consumers. This commonality of parts is a testament to the intelligent engineering behind the E-TEC platform, offering a modern solution that retains the simplicity and two-stroke punch loved by many.

Engineering Elegance: The E-TEC Difference

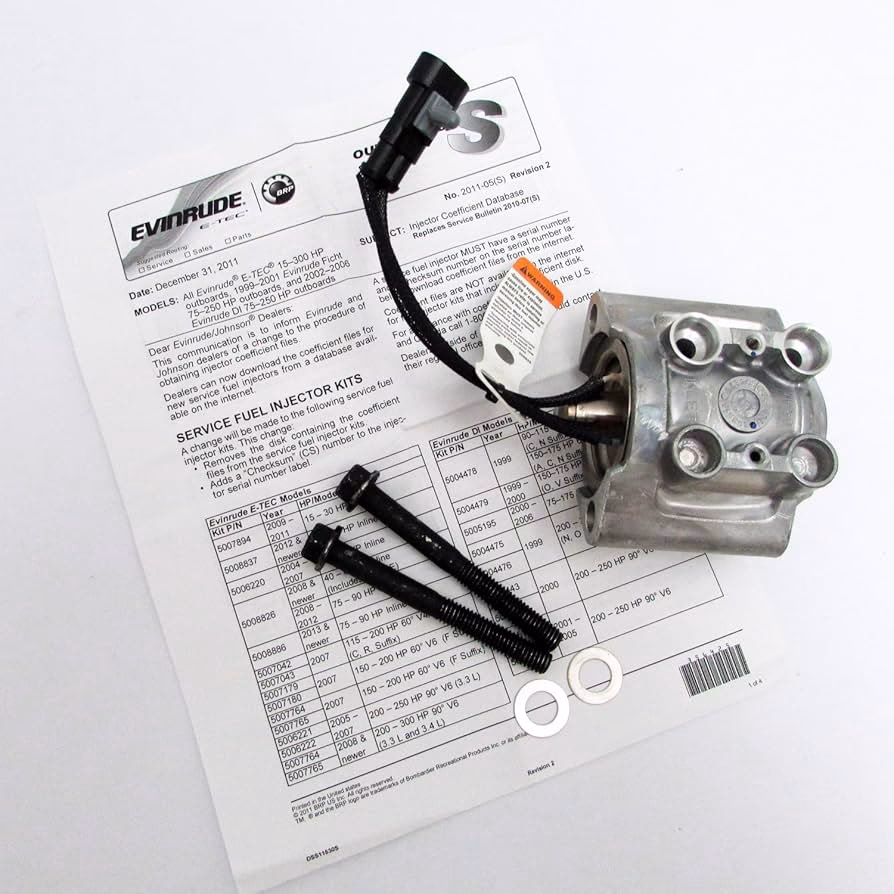

The Evinrude E-TEC's method of direct injection is remarkably uncomplicated and elegantly designed, featuring fewer and smaller components compared to other systems. At its heart, the fuel injectors are founded upon the common Lorentz coil – the permanent magnet and coil winding that forms the core of a loudspeaker. This ingenious application of a Lorentz coil allows for incredibly rapid pushing and pulling actions, with widely variable strength and direction of pulse. This precision enables the E-TEC system to spray fuel into the combustion chamber at pressures up to 600 psi, offering unparalleled control over the fuel plume.

This precise control translates directly into superior engine performance. At low RPMs, small fuel droplets are sprayed directly over the spark plug and ignited as a stratified charge. This critical feature ensures a smooth, clean idle, an essential characteristic for trolling. As the engine revs higher and demands more horsepower, larger droplets are injected, which also serve to cool the top of the piston, thereby building maximum horsepower without wasting fuel. The practical benefits are immediately noticeable on the water: razor-sharp throttle response and exceptionally clean burning. Evinrude E-TEC outboards meet and often exceed the world's most stringent emissions requirements, including the demanding California Three Star certification (CARB).

Unparalleled User Experience and Maintenance

Beyond its impressive power and clean emissions, the Evinrude E-TEC 60 truly excels in its user-friendly operating characteristics. Unlike many other outboards, E-TEC models require no break-in period. You can literally take them out of the box, rig them up, and go. This remarkable feat is achieved through meticulous manufacturing processes, where cylinder bores are precision machined and finished with a boron nitrite hone to amplify surface porosity, allowing the bore to retain oil like a sponge. Coupled with a NASA-developed alloy piston that is three times stronger than conventional aluminium alloys, initial wear is drastically reduced, making traditional break-in unnecessary. This innovation also eliminates the need for the customary 20-hour scheduled check-up, meaning dealers typically don't need to see E-TEC motors until they've logged 300 engine hours – which for most recreational boaters translates to about three boating seasons.

Extended Service Intervals

The concept of minimal maintenance extends across the E-TEC 60. Lubricant only needs topping off after approximately 300 hours of operation. Similarly, gearcase oil, which traditionally requires annual draining and refilling, can also be left until the 300-hour mark. This '300 hours/three years no-servicing' concept (primarily for freshwater use) is supported by a massive gearcase featuring a 2.67:1 gear ratio, directly inherited from the robust Johnson 55 commercial outboard. The substantial volume of oil within the gearcase can absorb some water seepage over three years without compromising the gears. However, for saltwater operation, it's still advisable to change the gear oil and grease the propshaft annually. Recreational usage of the E-TEC 60 is backed by a generous five-year warranty, providing peace of mind.

Self-Winterisation and Electrical Independence

One of the most praised user-friendly features is the E-TEC's self-winterisation routine, initiated by a simple turn of the ignition key. While it's still recommended to treat your fuel tank with stabiliser to prevent souring, you don't need to circulate the stabilised fuel through the engine's lines. The sealed fuel system prevents oxygen entry, keeping the fuel in the engine's filter, delivery rails, and injectors fresh. Furthermore, the E-TEC 60's engine management system is powered by an under-flywheel alternator. This clever design means the engine can be rope-started even if the starter battery is flat, echoing the convenience of older carburetted engines. This also eliminates the need for a massive starter battery, often required by Orbital DFI engines. The voltage-regulated alternator delivers a robust 75 amps, with 25 amps dedicated specifically to battery charging.

Fuel and Oil Management

Regarding fuel, the Evinrude E-TEC 60 can run on either standard (91 RON) or premium (95 RON) unleaded petrol. However, it's crucial to never use 98 RON fuel, as this can literally wash lubricating oil from the cylinder walls, leading to dry bores and potential engine damage. The oil injection ratios vary significantly, from 60:1 at WOT down to an incredibly lean 300:1 when trolling. Evinrude XD50 oil is recommended for extended trolling periods, while XD100 is suitable for general use. The engine's precise oil delivery system targets lubricant directly to critical components like crankshaft roller bearings and piston skirts, ensuring optimal lubrication where it's needed most. This results in incredibly low oil consumption, with average users burning only about two to three litres of oil per year. For even cleaner exhaust and reduced oil consumption, a dealer can programme XD100 burning E-TEC motors to use half the oil.

On-Water Performance: Power Meets Precision

Our review of the Evinrude E-TEC 60, mounted on a 4.8m Stacer 469 Easy Rider bowrider and swinging a 15-inch pitch stainless steel SST prop, demonstrated its impressive capabilities. The engine effortlessly handled a total weight of 830kg, including two adults. Starting was instantaneous, whether hot or cold, with no visible oil smoke – only a faint oil smell when backing upwind. Vibration levels were dramatically lower than the old twin-cylinder carburetted engines, though slightly higher than some three-cylinder carbie competitors. Crucially, the vibration rapidly diminished above 1000rpm, becoming negligible at cruising speeds.

Once warmed up, the E-TEC 60 delivered a rapid holeshot, reaching WOT in approximately 10 seconds. We observed no prop ventilation during tight turns at 4000rpm, showcasing the engine's excellent grip and handling. Having experienced the arm-lengthening torque steer of tiller-steer E-TEC 40 and 50 models, the remote non-feedback steering was a pleasure to use. At WOT, the 60 was marginally noisier than some four-stroke 60s, but not to an extent that would worsen tinnitus, proving its refined acoustic profile. The engine's tonal qualities and loudness were impressive, devoid of the characteristic two-stroke twang, rumble, or piston clatter, thanks to its three-dimensional acoustic enhancer and air silencer.

Dispelling Myths: Is E-TEC Ficht?

A common question among boaters is whether Evinrude E-TEC engines are simply a rebranded version of the earlier Ficht direct-injection system. The definitive answer is no. While both are direct-injected two-stroke outboard motors, E-TEC is fundamentally different from Ficht and its variations. E-TEC's method of direct injection is notably uncomplicated and boasts significantly fewer and smaller components, making it a truly elegant design solution.

As previously mentioned, the core of the E-TEC's injection system lies in the Lorentz coil-based injectors. This technology allows for extremely precise and rapid control over fuel delivery, spraying fuel at pressures up to 600 psi. This level of control enables engineers to dictate exactly how the engine performs, from a mere one horsepower at idle for smooth trolling to maximum output at wide-open throttle. Ficht systems, while innovative for their time, often faced challenges with complexity and reliability. E-TEC, however, was designed from the ground up to be trouble-free, with robust components and a simplified injection process that has proven itself exceptionally reliable on the water. Its ability to provide both clean burning and razor-sharp throttle response underscores its superior design and operational characteristics, setting it distinctly apart from its predecessors.

Built to Last: Robust Design Features

Evinrude engineers designed the E-TEC 60 with longevity and minimal hassle in mind. The engine's robust components contribute significantly to its durability. For instance, both the water pump and the gearcase are oversized, effectively using components typically found in larger motors. Any seasoned marine mechanic will tell you that a majority of their work involves repairing water pumps and gearcases; with the E-TEC's beefed-up parts, mechanics are likely to have more free time on their hands. The powerhead is also self-flushing, a vital feature that prevents silt and salt precipitates from lodging in cooling passages and causing harmful hotspots. Furthermore, the E-TEC design eliminates common maintenance points such as alternator belts, timing belts, and valve lifters, further reducing the need for adjustments and potential points of failure. This focus on durability and reduced maintenance cycles is a cornerstone of the E-TEC philosophy, ensuring years of enjoyable, trouble-free boating.

Evinrude E-TEC 60 Specifications & Performance Data

For those interested in the precise technical details and real-world performance figures, here are the specifications and test data for the Evinrude E-TEC 60 outboard motor:

Evinrude E-TEC 60 Performance on 4.8m Stacer 469 Easy Rider

Average of two-way runs using onboard fuel-flow gear and hand-held Lowrance GPS, calm water conditions:

Frequently Asked Questions (FAQs)

Do Evinrude E-TEC engines require a break-in period?

No, one of the standout features of Evinrude E-TEC engines is that they do not require a break-in period. Thanks to precision machining and advanced piston alloys during manufacturing, initial wear is minimised, allowing you to use the engine at full capacity from day one.

How often does an E-TEC 60 need servicing?

For freshwater use, Evinrude E-TEC 60 motors boast an impressive 300 hours or three years between scheduled dealer services, whichever comes first. For saltwater operation, it's recommended to change the gear oil and grease the propshaft annually, though major engine servicing still adheres to the 300-hour/three-year interval.

What type of fuel and oil should I use for my E-TEC 60?

You can use either standard (91 RON) or premium (95 RON) unleaded petrol. It is critical to avoid 98 RON fuel as it can strip lubrication from the cylinder walls. For oil, Evinrude XD50 is suitable, but for extended trolling periods, XD50 is recommended. The premium synthetic XD100 oil offers enhanced cleanliness and can be programmed by a dealer for even lower oil consumption.

Can I rope-start an Evinrude E-TEC 60 if my battery is flat?

Yes, the Evinrude E-TEC 60 is designed with an under-flywheel alternator that powers the engine management system. This allows for manual rope-starting even if your starter battery is completely flat, providing a reliable backup.

Are E-TEC engines smoky or noisy?

No. E-TEC engines are renowned for their clean burn due to precise, targeted oil delivery, resulting in virtually no smoke at any RPM. They also feature advanced acoustic enhancers and air silencers, providing a pleasant, resonant engine note without the characteristic two-stroke 'twang' or piston clatter, making them remarkably quiet for a two-stroke.

The Final Verdict: A Modern Classic

Bombardier has truly excelled in crafting the Evinrude E-TEC 60. It successfully captures the spirit and punch of the beloved old carburetted twin-cylinder outboards but without any of their drawbacks. Gone are the clouds of oil smoke and the wrestling match with a shaking steering wheel. Instead, boaters get a highly fuel-efficient engine with an excellent holeshot, delivering brisk acceleration and impressive top-end speed.

With its minimal maintenance requirements, robust construction, and user-friendly features like self-winterisation and the ability to rope-start, the E-TEC 60 represents a modern classic. It's an outboard designed for convenience and longevity, promising years of enjoyable and trouble-free boating. Its combination of performance, efficiency, and ease of ownership makes the Evinrude E-TEC 60 a formidable choice for any boater seeking reliable power on the water.
