Oil Pan Damage: Spotting & Solving Leaks

The engine oil pan, often overlooked, plays a profoundly vital role in the health and longevity of your vehicle's engine. Tucked away at the very bottom of the engine, this unassuming component serves as the primary reservoir for the engine oil, the very lifeblood that keeps countless moving parts lubricated and cool. Without a properly functioning oil pan, your engine faces an immediate and severe threat. Understanding its purpose, recognising the signs of damage, and knowing when and why it might need replacing are crucial aspects of responsible car ownership in the UK.

When the engine is running, an oil pump draws oil from the pan and circulates it throughout the engine, ensuring every bearing, piston, and camshaft is bathed in a protective film of lubricant. This constant circulation significantly reduces friction, prevents premature wear, and helps dissipate heat. When the engine is switched off, all that oil drains back into the pan, ready for its next cycle. If this essential component becomes compromised, the consequences can range from minor inconvenience to catastrophic engine failure. A damaged oil pan means your vehicle will lose oil rapidly, leading to insufficient lubrication and, ultimately, significant engine damage.

What Happens When Your Oil Pan Is Damaged?

As the primary container for your engine's oil supply, a damaged oil pan immediately compromises the entire lubrication system. The most direct and obvious consequence is a rapid loss of engine oil. Unlike other components where a leak might be a slow drip, a significant breach in the oil pan can lead to a quick depletion of oil, especially when driving. This rapid oil loss is extremely dangerous because engines require a specific volume of oil to operate safely and effectively. Without adequate oil, metal-on-metal contact occurs within the engine, leading to excessive friction and heat buildup. This can quickly score bearings, damage crankshafts, and even seize the engine entirely, resulting in incredibly expensive, if not irreparable, repairs.

Even a seemingly minor crack or puncture can lead to a steady drip that, over time, depletes your engine's oil supply. Furthermore, oil leaking onto hot exhaust components poses a significant fire risk, adding another layer of danger. It's not just about keeping the oil in; a compromised pan can also allow contaminants like dirt, debris, or water to enter the oil, compromising its lubricating properties and accelerating engine wear. Therefore, any indication of oil pan damage should be addressed with urgency to safeguard your engine's integrity.

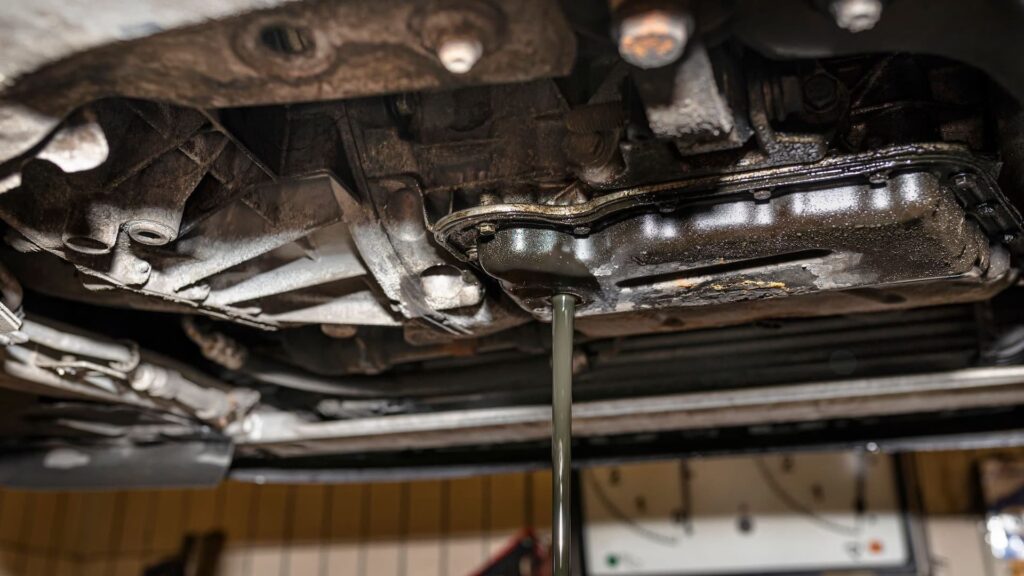

How to Identify a Damaged Oil Pan or Leak

Identifying an oil pan leak can sometimes be straightforward, but other times it requires a bit more detective work. The most common tell-tale sign is, of course, the presence of oil spots on your driveway or where you regularly park your vehicle. However, it's important to remember that oil found on the ground doesn't automatically point to the oil pan. Leaks can originate from various points higher up in the engine, such as valve covers, front or rear main seals, or even oil filter housing gaskets, with the oil then dripping down onto the pan and mimicking a pan leak.

To accurately determine if your oil pan is the source of the leak, a thorough cleaning of the engine is the best approach. Begin by using a reputable engine degreaser or cleaner to meticulously remove all traces of oil from the engine's underside, particularly around the oil pan area. Once clean and dry, take your vehicle for a short drive, typically 10 to 20 minutes. This allows the engine to reach operating temperature and build pressure, which can exacerbate any existing leaks. Upon returning, carefully re-inspect the engine. Caution: Your engine will be hot, so exercise extreme care. If fresh oil is visible directly on the oil pan's mating surface or dripping from the pan itself, it strongly suggests the pan or its gasket is the culprit. If the oil appears to be coming from above the pan, you'll need to trace the leak upwards to find its true origin.

Why Do Oil Pans Need Replacing?

The oil pan's primary function is to store engine oil, both when the engine is running and when it's off. It's securely bolted to the underside of the engine block and sealed with a gasket or sealant to prevent leaks. The pan is designed to be large enough to hold all the engine oil when the engine is not running, and it must also accommodate the oil pickup tube that extends to the oil pump, which circulates oil throughout the engine when it's in operation.

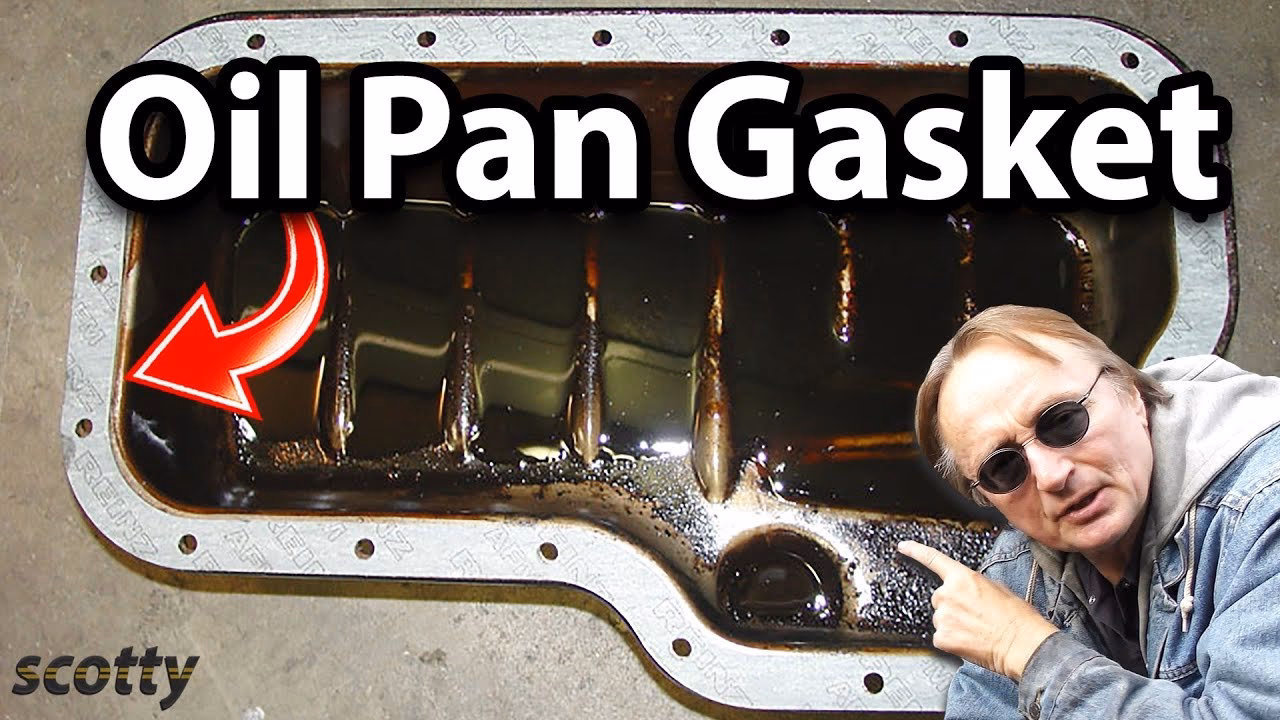

Oil Pan Gasket Failure

One of the most common reasons for addressing the oil pan is a leaking gasket or sealant. Historically, many oil pans used conventional cork, rubber, or neoprene gaskets. While some vehicles still employ these, most modern cars utilise a form of RTV (Room Temperature Vulcanising) silicone or FIPG (Form-In-Place Gasket) sealant. These modern sealants are applied as a liquid and cure to form a custom-fit gasket.

The main reason these gaskets or sealants fail is simply age and exposure to heat cycles. Over time, traditional gaskets can harden, shrink, or crack, losing their sealing integrity. Similarly, RTV or FIPG sealants can become brittle and less pliable after years of exposure to high engine temperatures, leading to microscopic cracks and subsequent oil seepage. When the gasket or mating surface begins to leak, the oil pan must be removed, and the old sealant or gasket replaced with new material.

While most oil pan leaks are not under significant pressure, a poorly functioning PCV (Positive Crankcase Ventilation) system can exacerbate the issue. If the PCV valve is clogged or not operating correctly, it can lead to excessive pressure build-up within the crankcase. This internal pressure can force oil past seals and gaskets, including the oil pan gasket, turning a minor seep into a more significant leak. It's often a good practice to inspect and possibly replace the PCV valve when addressing external oil leaks, as it's typically an inexpensive part with a recommended replacement schedule.

Physical Damage to the Oil Pan

Beyond gasket issues, the oil pan itself can suffer damage that necessitates its replacement. Modern oil pans are typically made from either stamped steel or cast aluminium, each with its own strengths and weaknesses:

• Stamped Steel Pans: Common on older vehicles, these are generally more resistant to punctures from road debris, as they tend to bend or dent rather than crack. However, they are heavier, less rigid, and susceptible to rust, which can eventually lead to leaks or weak spots.
• Cast Aluminium Pans: Prevalent in newer vehicles, these are lighter and more rigid, contributing to better engine noise and vibration characteristics. However, they are more prone to cracking or shattering upon impact with road debris.

The two most common causes for oil pan replacement due to physical damage are:

1. Stripped Drain Plug Threads: This is arguably the number one cause of oil pan replacement. It typically occurs when the drain plug is overtightened during an oil change, stripping the threads within the oil pan itself. Without intact threads, the drain plug cannot create a proper seal, leading to persistent leaks. While oversized drain plugs or 'Time-Sert' repairs (which involve enlarging and re-threading the hole to install a special insert) can sometimes offer a temporary or even permanent fix, especially for aluminium pans, the cost of these repairs can often approach that of a full pan replacement, making the latter a more straightforward solution.
2. Road Debris Impact: As the lowest point of the engine, the oil pan is highly vulnerable to impacts from road debris such as rocks, potholes, or discarded objects. As mentioned, steel pans may dent, potentially obstructing the internal oil pickup tube, while aluminium pans are more likely to crack or shatter on impact, leading to an immediate and significant oil loss.

Cost of Oil Pan & Gasket Replacement in the UK

The cost of replacing an oil pan gasket or the oil pan itself varies significantly depending on the make and model of the vehicle. This is primarily due to the varying degrees of difficulty involved in accessing and removing the oil pan. Some vehicles require extensive disassembly, such as partially removing the front subframe, to gain access, which dramatically increases the labour time.

While gaskets and liquid sealants are generally inexpensive, the bulk of the repair cost comes from labour. Labour rates in the UK vary by region and garage, but assuming an average shop rate, we can look at some examples:

Estimated Costs for Oil Pan & Gasket Replacement

(Note: These are estimated costs based on a hypothetical UK shop rate of £150 per hour and example parts pricing. Actual costs may vary.)

As the table illustrates, the labour component is by far the most significant factor in the overall cost. For vehicles like the Honda Pilot or Chevrolet Camaro, where subframe removal is necessary, the repair quickly becomes a substantial investment. If the oil pan itself needs replacing due to damage (e.g., stripped threads or impact), the cost of the new pan is added on top, though the labour for pan replacement is essentially the same as for gasket replacement, as the pan must be removed either way. Most garages will also charge for an oil and filter change on top of the oil pan gasket or replacement price, as the oil will be drained during the repair. This typically adds around £50-£100 to the overall estimate, depending on the type of oil required for your vehicle.

Frequently Asked Questions About Oil Pan Issues

How can I tell if my oil pan is leaking?

The most common indicator is oil spots appearing where you park your vehicle. However, it's crucial to first inspect the top and front of the engine, as oil leaks from higher up will often drip down and coat the bottom, including the oil pan. If leaks are found above the oil pan, address those first. After addressing any upper leaks and thoroughly cleaning the engine, drive the vehicle for a short period (10-20 minutes) and then re-inspect. If fresh oil is visible directly on the oil pan or its mating surface, it confirms an oil pan leak. For a definitive diagnosis, the vehicle usually needs to be lifted for a clear view of the pan.

How long should an oil pan gasket last?

On average, you can expect an oil pan gasket to last around ten years or 100,000 miles. However, this can vary greatly depending on the vehicle, driving conditions, and the type of gasket material used. A minor oil seep that isn't forming noticeable drips or affecting the oil level might not require immediate attention, but it's always wise to monitor it closely.

Can I drive with a leaking oil pan gasket?

It depends entirely on the severity of the leak. If oil is dripping significantly, it poses a severe risk. Dripping oil can blow back onto hot exhaust components, potentially causing a fire, which is extremely dangerous. Furthermore, a significant leak can quickly deplete your engine's oil supply, leading to insufficient lubrication and catastrophic engine damage. If it's a minor seep that isn't causing drips, isn't affecting the oil level between changes, and isn't coating other components, it might be manageable for a short period, but it's a problem that should be addressed as soon as possible to prevent escalation.

Can I replace my own oil pan gasket?

In most cases, replacing an oil pan gasket is not a suitable DIY job for the average home mechanic. Many vehicles require specialist equipment, such as engine support cradles, and the job often necessitates lifting the vehicle high enough to access the subframe, which can be partially removed. While a few older or simpler vehicles might allow for replacement without a lift, even these are significantly more challenging to do correctly and safely without proper workshop equipment and experience. It's generally best left to professional mechanics.

What else should be looked at when replacing the oil pan gasket?

Since the oil pan will be removed during the gasket replacement, it's an ideal opportunity to inspect the drain plug threads. If they show any signs of wear, stripping, or damage, it would be highly beneficial and cost-effective to replace the oil pan at the same time. This saves you from potentially needing to repeat the labour-intensive process solely for a stripped drain plug in the near future.

Do I need to change the oil when replacing the oil pan gasket?

While not strictly 'necessary' to use brand new oil, it is highly recommended. The existing oil will be drained during the repair, and attempting to save and re-use it carries a significant risk of introducing contamination (dirt, debris) into your engine. This contamination could potentially cause more harm than good. When new oil is installed, it's also customary and good practice to replace the oil filter, allowing you to start fresh with your oil change schedule and ensure optimal engine health.
