Honda CBR125R Engine Explained

Unveiling the Heart of the Honda CBR125R

The Honda CBR125R has long been a staple in the learner-legal motorcycle market, offering a blend of sporty styling and accessible performance. For many riders, particularly those new to two wheels, understanding the core components of their machine is crucial. At the forefront of this is the engine, the very lifeblood of the motorcycle. This article delves deep into the engine of the Honda CBR125R, tracing its development and detailing its key characteristics, with a particular focus on the 2008 model year.

Engine Evolution: From Carburettors to Fuel Injection

Honda's approach to powering the CBR125R saw significant evolution over its production run. Initially, models produced between 2004 and 2006 adopted a design that mirrored the larger CBR600F4i. Crucially, these earlier iterations relied on a carburettor for fuel delivery, a system that was more traditional and, for some enthusiasts, offered a more raw riding experience. In 2005, a distinctive Repsol colour scheme was introduced, adding a racing pedigree visual to the range, though it was limited to specific models.

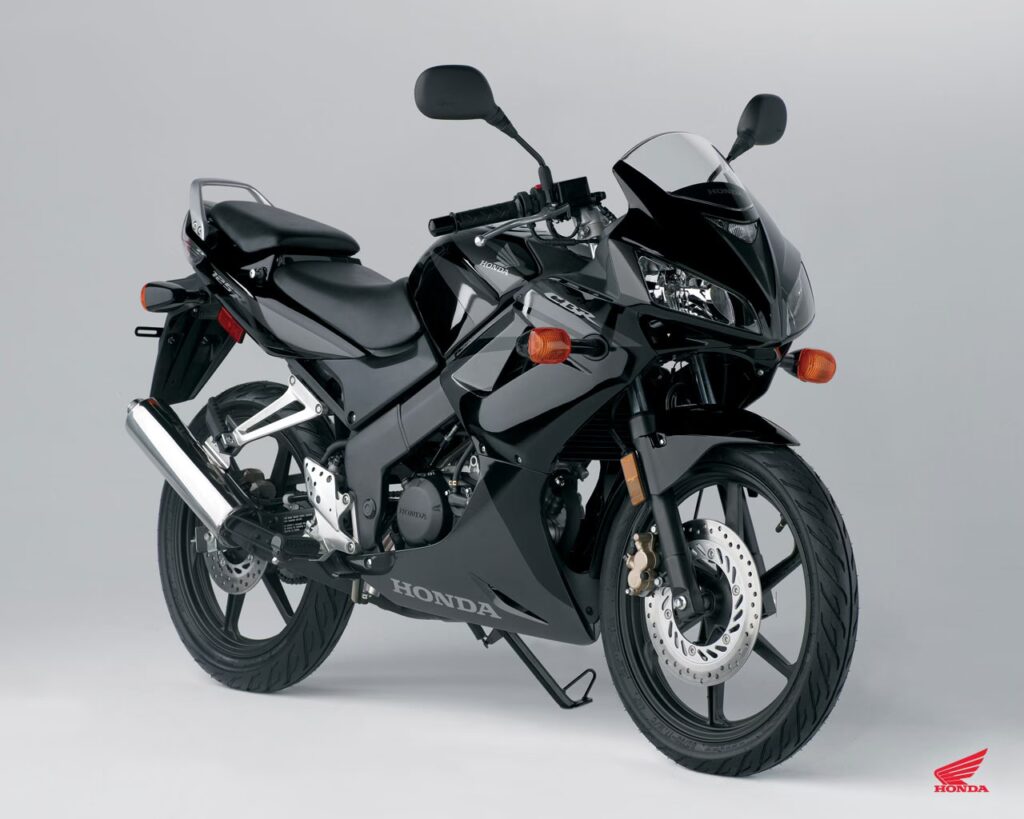

A pivotal year for the CBR125R was 2007. This model year marked a substantial revision, not just aesthetically, but also in its mechanical heart. The front fairings were redesigned to echo the aggressive lines of the CBR600RR, and the bike received a more modern aesthetic with a blacked-out swingarm and front forks. More importantly, the engine department underwent a significant upgrade. The 2007 and subsequent models embraced modern technology with the introduction of a PGM-FI fuel injection system. This system, coupled with an Idle Air Control Valve (IACV) and a HECS3 oxygen sensor, was implemented to meet stricter EURO3 emission standards, offering improved fuel efficiency and smoother power delivery.

The 2008 Honda CBR125R: A Refined Package

The 2008 Honda CBR125R built upon the advancements of the 2007 model, presenting a lightweight, nimble, and rider-friendly package. It was, and remains, an excellent choice for beginner riders seeking an entry-level sports bike that looks the part and is forgiving to learn on. The changes introduced in 2007 were carried forward, making the 2008 model a refined version of its predecessor.

2008 Engine Specifications at a Glance

The performance heart of the 2008 Honda CBR125R is its 124cc four-stroke, single-cylinder engine. This liquid-cooled unit is fed by the aforementioned fuel injection system, contributing to its efficient operation. The engine is tuned to deliver an output power of approximately 14 hp (10.4 kW) at 10,000 rpm. The peak torque figure stands at around 11 Nm (8 lb-ft) available at 8,250 rpm. These figures, while modest by larger bike standards, are perfectly suited for a 125cc machine, offering a usable and predictable powerband ideal for learning and navigating urban environments.

Understanding the Technology: PGM-FI and Emissions

The adoption of the PGM-FI (Programmed Fuel Injection) system was a significant step forward for the CBR125R. Unlike older carburetted systems that rely on mechanical jets and vacuum-operated slides to meter fuel, fuel injection uses electronic sensors and an ECU (Engine Control Unit) to precisely control the fuel-air mixture. This results in several benefits:

• Improved Fuel Economy: By optimising the fuel-air ratio under all riding conditions, fuel injection generally offers better miles per gallon.
• Smoother Throttle Response: The precise fuel delivery leads to a more consistent and responsive throttle, making the bike easier to manage, especially for new riders.
• Easier Starting: Cold starts are often improved, as the ECU can enrich the mixture as needed without manual choke adjustments.
• Reduced Emissions: The integration of an oxygen sensor (HECS3) allows the ECU to fine-tune the mixture for cleaner exhaust gases, helping the bike comply with stringent emissions regulations like EURO3.

The Idle Air Control Valve (IACV) plays a vital role in maintaining a stable idle speed, particularly when the engine is cold or when electrical loads are applied. It works in conjunction with the fuel injection system to ensure the engine doesn't stall.

Riding Experience and Engine Characteristics

The Honda CBR125R's engine is designed with accessibility and ease of use in mind. The single-cylinder configuration is known for its simplicity and torquey nature at lower revs, making it forgiving for those still honing their clutch and throttle control. The liquid cooling ensures consistent operating temperatures, contributing to reliability and performance longevity. While it may not possess blistering top-end power, the engine's strength lies in its predictable power delivery and the manageable rev range, which makes it a safe and confidence-inspiring machine for learners.

The gearbox, often based on Honda's off-road heritage, can sometimes feature a noticeable jump between first and second gear. However, this is a characteristic that most riders adapt to quickly. The overall riding experience is further enhanced by the chassis and suspension, which are designed to complement the engine's capabilities, offering stable handling and confident braking.

Common Questions About the CBR125R Engine

Q1: What type of engine does the 2008 Honda CBR125R have?
The 2008 Honda CBR125R is powered by a 124cc, liquid-cooled, four-stroke, single-cylinder engine with a SOHC (Single Overhead Camshaft) and two valves per cylinder. It features PGM-FI electronic fuel injection.

Q2: Was the CBR125R always fuel injected?
No, the earlier models produced between 2004 and 2006 used a carburettor for fuel delivery. The PGM-FI fuel injection system was introduced in the 2007 model year and continued thereafter.

Q3: What is the power output of the 2008 CBR125R engine?
The 2008 model typically produces around 14 hp (10.4 kW) at 10,000 rpm.

Q4: Is the CBR125R engine reliable?
Yes, Honda engines are generally known for their reliability. The CBR125R engine is no exception, provided it receives regular maintenance, including oil changes with the correct grade of oil (typically 10W/30 semi-synthetic).

Q5: What is the engine capacity of the CBR125R?
The engine capacity is 124.7 cc (often rounded to 124cc or 125cc).

Maintenance and Longevity

To ensure the longevity and optimal performance of your CBR125R's engine, regular maintenance is paramount. This includes:

• Regular Oil Changes: Adhering to the recommended service intervals for engine oil and filter changes is crucial. Using the correct grade of oil (e.g., 10W/30 semi-synthetic) is vital.
• Coolant Checks: As a liquid-cooled engine, maintaining the correct coolant level and condition is important for preventing overheating.
• Air Filter Cleaning/Replacement: A clean air filter ensures the engine receives adequate air for efficient combustion.
• Spark Plug Maintenance: Regular inspection and replacement of the spark plug ensure strong and consistent ignition.
• Valve Clearances: While not as frequent as oil changes, checking and adjusting valve clearances at the recommended intervals will maintain engine performance and prevent damage.

By understanding the engine's specifications and adhering to a diligent maintenance schedule, owners can enjoy their Honda CBR125R for many years and miles to come, appreciating its blend of performance, efficiency, and Honda's renowned engineering excellence.
