Cracked Cylinder Head: UK Mechanic's Insights

A cylinder head is a vital component of your vehicle's engine, and like many mechanical parts, it is not immune to wear, tear, and eventual failure. One of the most severe forms of damage a cylinder head can suffer is cracking. This isn't just a minor inconvenience; a cracked cylinder head can lead to significant engine problems, potentially leaving you stranded and facing substantial repair bills. Understanding what a cylinder head is, why it might crack, and what symptoms to look out for is crucial for any responsible vehicle owner in the UK.

What Exactly is a Cylinder Head?

To appreciate the severity of a cracked cylinder head, it helps to understand its fundamental role. An engine, stripped down to its core, primarily consists of two major components: the engine block and the cylinder head. The engine block houses the crankshaft, connecting rods, and pistons, with the pistons moving within individual cylinders. The cylinder head, positioned atop the engine block, effectively seals these cylinders. Crucially, a cylinder head gasket sits between the head and the block, ensuring a perfect seal for the combustion process and preventing leaks of coolant and oil as they circulate through the engine for cooling and lubrication. While there are different engine types, such as Overhead Valve (OHV) and Overhead Camshaft (OHC), the cylinder head's fundamental role in sealing the combustion chambers and managing valve operation remains paramount.

Understanding Cylinder Head Failure and Damage

Cylinder heads can succumb to damage in a variety of ways, ranging from common issues to more unusual circumstances. Being aware of these potential causes can help in prevention and diagnosis.

Most Common Causes of Cylinder Head Damage:

• Cracking: This is arguably the most frequent and severe form of cylinder head failure. It often occurs due to extreme thermal stress.
• Internal Mechanical Failure: Components within the cylinder head, such as valves, camshafts, or lifters, can suffer mechanical breakdown.

Less Common, Yet Significant, Causes:

• Warping: The face of the cylinder head, which mates with the engine block, can become warped, particularly due to overheating. While sometimes repairable by 'skimming' (machining the surface flat), repeated warping or excessive material removal can render it irreparable.
• Pre-combustion Chamber Issues (Diesel Engines): In some diesel engines, pre-combustion chambers can sink or protrude. If these chambers are made of materials like ceramic, they often cannot be skimmed, necessitating a full cylinder head replacement.
• Corrosion: The metal of the cylinder head can corrode due to factors like over-fuelling or the use of old or ineffective coolant.

Delving Deeper: Why Do Cylinder Heads Crack?

Cracking is a direct result of immense stress placed upon the metal. The primary culprits behind cylinder head cracking are:

• Extreme Overheating: When an engine overheats significantly, the metal of the cylinder head expands beyond its designed limits. This can cause internal stresses that lead to cracks.
• Thermal Shock: This is a particularly damaging scenario. If an engine has severely overheated and cold water is immediately introduced into the cooling system (e.g., pouring cold water into a hot radiator), the rapid and uneven cooling can cause the metal to contract suddenly and erratically, leading to immediate cracking. Think of a hot glass cracking when cold water is poured into it.
• Metal Fatigue: Over extended periods, sustained variations in thermal and mechanical stress, even within normal operating temperatures, can lead to metal fatigue. This weakens the material over time, eventually resulting in cracks.

What Causes Mechanical Failure Within the Cylinder Head?

Mechanical failures can be devastating, often leading to widespread damage that can affect pistons and even necessitate engine replacement. Common causes include:

• Timing Component Failure: In 'interference' engines, a failure of the timing belt or chain can cause pistons to collide with valves, bending or breaking them. This impact can severely damage the cylinder head, camshafts, and other components.
• Dropped Valves or Valve Seats: A valve can break free and 'drop' into the cylinder, causing catastrophic damage to the piston and potentially embedding itself back into the cylinder head. Similarly, a valve seat can dislodge, leading to debris and severe damage.
• Loose Mechanical Components: Over time, nuts, bolts, or shims within the valve train can loosen or become dislodged, leading to component interference and damage.
• Auxiliary Engine Part Failure: Issues like insufficient oil lubrication, perhaps due to a failing oil pump or blocked passages, can lead to components seizing, causing immense stress and damage to the cylinder head's moving parts.
• Poor Maintenance: Neglecting regular oil changes can lead to oil degrading into a thick sludge, blocking lubrication passages and causing excessive wear and potential seizure of cylinder head components.

Why Do Cylinder Heads Warp or Sinking of Combustion Chambers Occur?

While distinct from cracking, warping and sinking are also serious forms of cylinder head damage:

• Warping: Typically affecting the 'face' of the cylinder head where it meets the gasket and block, warping is almost exclusively caused by overheating. Instead of cracking, the metal distorts and loses its essential flatness. While skimming can sometimes rectify this, a head that has been skimmed multiple times may not have enough material left for further repair, mandating replacement.
• Sinking of Pre-Combustion Chambers: This issue, primarily seen in some diesel engines, also stems from overheating. If the cylinder head and its pre-combustion chambers are made of different materials (e.g., aluminium head with ceramic chambers), their differing rates of expansion and contraction during extreme temperature fluctuations can cause the chambers to become loose and 'sink' into their bores. As ceramic chambers cannot typically be skimmed, this often means a full cylinder head replacement.

Understanding Corrosion in the Cylinder Head

Corrosion or 'pitting' of the cylinder head's metal surfaces can weaken the material and compromise seals:

• Over-fuelling (Running Rich): If the engine is consistently receiving too much fuel, perhaps due to a faulty fuel regulator or leaking injectors, the excess fuel can lead to corrosive by-products that attack the cylinder head's material.
• Coolant Degradation: Engine coolant contains vital anti-corrosion properties. If the coolant is old, of poor quality, or not changed according to the manufacturer's schedule, these protective properties diminish, leaving the cylinder head's internal passages vulnerable to corrosion.

Identifying the Symptoms of a Cracked Cylinder Head

Spotting the warning signs early is paramount. A cracked cylinder head will often exhibit a range of symptoms, indicating a serious underlying issue. If you notice any of these, it's crucial to seek professional inspection immediately:

Common Symptoms to Look Out For:

• Coolant in the Oil: One of the most definitive signs. If your engine oil has a milky, frothy, or light brown appearance, it indicates that coolant is mixing with the oil, a clear sign of an internal leak, most likely from a cracked head or blown head gasket.
• White Smoke from the Exhaust: Persistent white smoke, especially if it's thick and has a sweet smell, suggests that coolant is burning in the combustion chambers. This happens when coolant leaks into the cylinders through a crack.
• Overheating Engine: Even if your cooling system appears otherwise functional, a cracked cylinder head can compromise its efficiency, leading to the engine consistently running hotter than usual or the temperature gauge frequently entering the red zone.
• Misfiring Engine: A crack can allow coolant or oil into the combustion chamber, or cause a loss of compression, leading to an inconsistent burn or complete misfire in one or more cylinders. This results in rough idling, poor acceleration, and a generally uneven engine performance.
• Visible Cracks: In some cases, particularly with external cracks or those around accessible areas like valve springs or spark plug holes, you might be able to visually identify the crack on the cylinder head's surface.
• Loss of Engine Power: A cracked cylinder head can lead to a significant loss of compression in one or more cylinders. Reduced compression means less power generated during combustion, resulting in a noticeable decrease in engine performance and acceleration.
• Poor Fuel Economy: Related to the loss of compression and potential misfires, the engine has to work harder to produce power, leading to a noticeable increase in fuel consumption.

Evaluating the Severity of a Cracked Cylinder Head

Once symptoms appear, a mechanic will use various diagnostic tests to confirm the presence and severity of a crack:

• Compression Test Results: This test measures the pressure within each cylinder. Significantly lower compression in one or more cylinders strongly suggests a leak, often due to a crack or a failed head gasket.
• Leak-Down Test Findings: This more advanced test introduces compressed air into each cylinder and measures how much air escapes. The location of the escaping air (e.g., into the cooling system, exhaust, or crankcase) can pinpoint the exact nature and severity of the crack.
• Visual Inspection Outcomes: While not always conclusive for internal cracks, a thorough visual inspection can sometimes reveal external cracks or signs of coolant/oil leaks around the cylinder head mating surfaces.

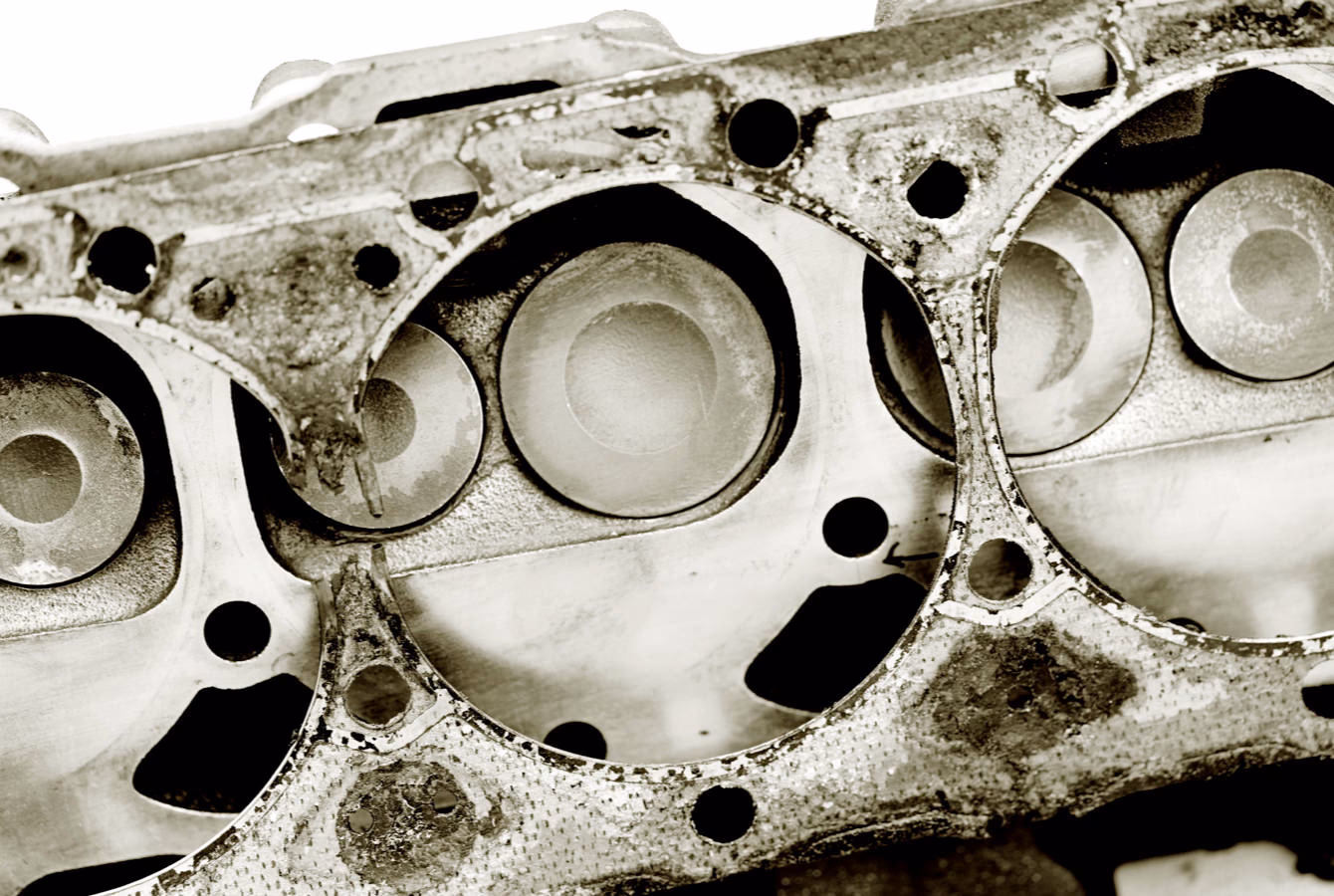

Repair or Replace: Making the Critical Decision

Once a cracked cylinder head is confirmed, the tough decision arises: repair or replace? The answer largely depends on the crack's severity, location, and the overall economics.

Welding and Machining Options:

For small, non-critical cracks, welding might be an option. This requires a highly skilled welder experienced with automotive castings, as improper welding can cause further distortion or weaken the metal. Sometimes, machining can involve removing the damaged area and inserting a metal plug or patch, but this also requires precision and adherence to manufacturer specifications. While potentially cheaper initially, the long-term reliability of such repairs can be questionable, especially if the crack is under significant thermal or mechanical stress.

Considering Cylinder Head Replacement:

For severe cracks, or those in critical areas like valve seats or combustion chambers, replacement is almost always the recommended course of action. While new cylinder heads represent a significant investment, they offer peace of mind and guaranteed integrity. Used cylinder heads are an option to save money, but they come with risks: hidden damage, unseen wear, or a history of overheating that could lead to premature failure. If choosing replacement, always opt for a high-quality part that meets or exceeds original manufacturer specifications to ensure long-term engine reliability.

Here's a comparison to help weigh the options:

Preventive Measures: Keeping Your Cylinder Head Healthy

Prevention is always better than cure, especially when it comes to expensive engine components. Adhering to good maintenance practices can significantly reduce the risk of a cracked cylinder head:

• Regular Maintenance: Follow your vehicle manufacturer's recommended service schedule diligently. This includes timely oil changes, filter replacements, and general engine inspections. Regular servicing helps identify minor issues before they escalate into major problems.
• Engine Cooling System Upkeep: The cooling system is your engine's first line of defence against overheating. Regularly check coolant levels and ensure they are topped up with the correct type of coolant. Adhere to coolant flush and replacement intervals as per your vehicle's manual. Inspect the radiator, hoses, and water pump for any signs of leaks, damage, or wear. A healthy cooling system is paramount.
• Using Quality Fuel and Oil: Always use the grade and type of fuel and oil recommended by your vehicle's manufacturer. Low-quality or incorrect fluids can lead to deposits, increased engine temperatures, and accelerated wear, all of which contribute to cylinder head stress.

Frequently Asked Questions About Cracked Cylinder Heads

Can I drive with a cracked cylinder head?

While your vehicle might still run with a cracked cylinder head, it is strongly advised against driving it. Continuing to drive will almost certainly lead to more severe and costly engine damage, as coolant and oil contamination can destroy bearings, and overheating can warp or seize other engine components. It's best to have the vehicle towed to a mechanic.

How long does a cylinder head repair typically take?

The time taken for a cylinder head repair can vary significantly. It depends on the extent of the damage, whether the head is being repaired or replaced, and the availability of parts. Typically, this is a multi-day job, often ranging from 2-5 working days, as it involves significant disassembly, precise work, and reassembly of the engine.

Is it always better to replace than repair a cracked cylinder head?

Not always, but often. If the crack is minor, superficial, and in a non-critical area, a professional repair might be viable. However, for severe cracks, or those affecting critical areas like valve seats or combustion chambers, replacement is generally the more reliable and long-term solution, despite the higher initial cost. A qualified mechanic will be able to advise on the best course of action after a thorough inspection.

In conclusion, a cracked cylinder head is a serious engine problem that demands prompt attention. By understanding its causes, recognising the warning signs, and taking appropriate preventive measures, you can significantly prolong the life of your engine and avoid costly breakdowns. Always consult a qualified mechanic if you suspect your cylinder head is compromised; their expertise is invaluable in diagnosing and rectifying such complex issues.
