Ironhead Sprocket Shaft Bearing Replacement

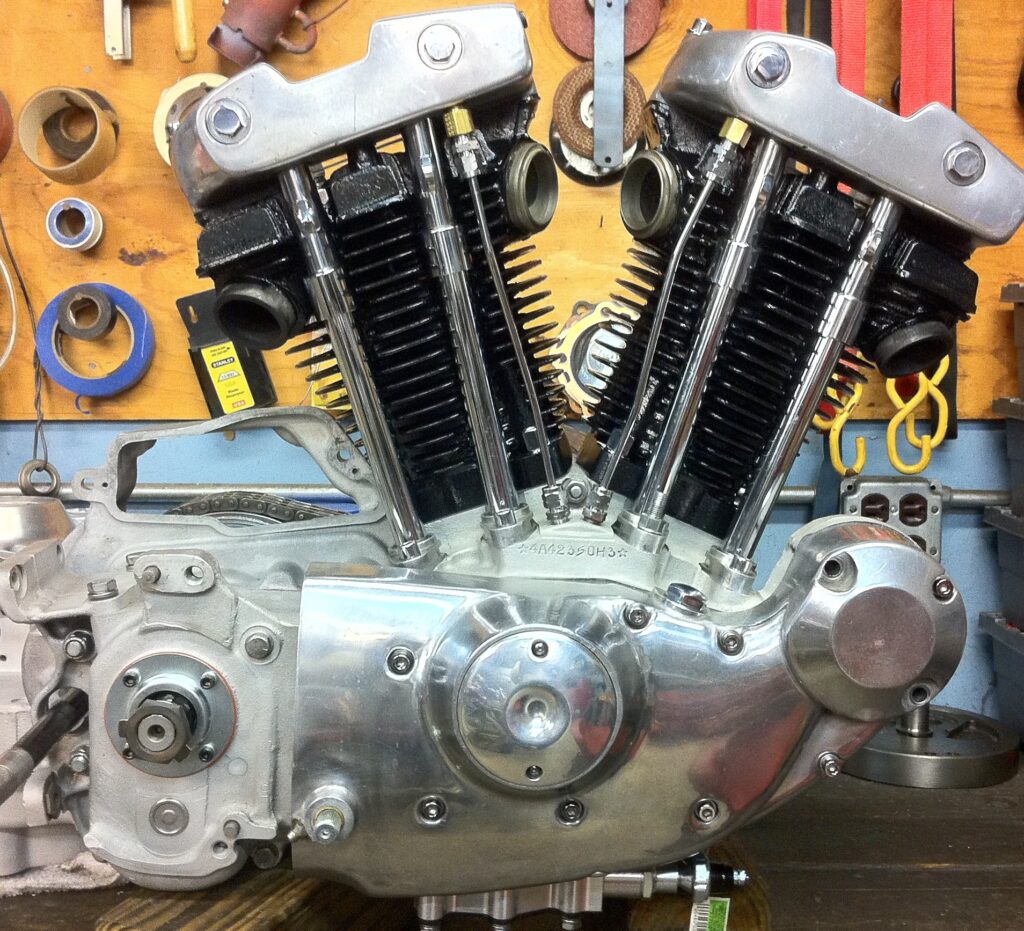

Embarking on an engine rebuild is a journey of meticulous attention, a dance between precision and patience. For owners of 1977 to 1985 Ironhead Sportster motorcycles, understanding the nuances of their engine's internal workings is paramount. These specific model years saw significant revisions, particularly concerning the engine cases, oil pump, and pivotal bearing assemblies. While the spirit of the Ironhead remains timeless, the assembly procedures for these later models diverge from their earlier counterparts, demanding a tailored approach to ensure optimal performance and longevity.

This comprehensive guide delves deep into the critical aspects of reassembling your 1977-1985 Ironhead engine, with a keen focus on the often-overlooked yet incredibly important sprocket shaft bearings. Proper installation of these components, alongside other key elements like the pinion bearing and engine case sealing, is not merely a recommendation but a critical requirement for a successful and durable rebuild. We’ll navigate through each step, offering insights and best practices to help you achieve a robust and reliable powerplant.

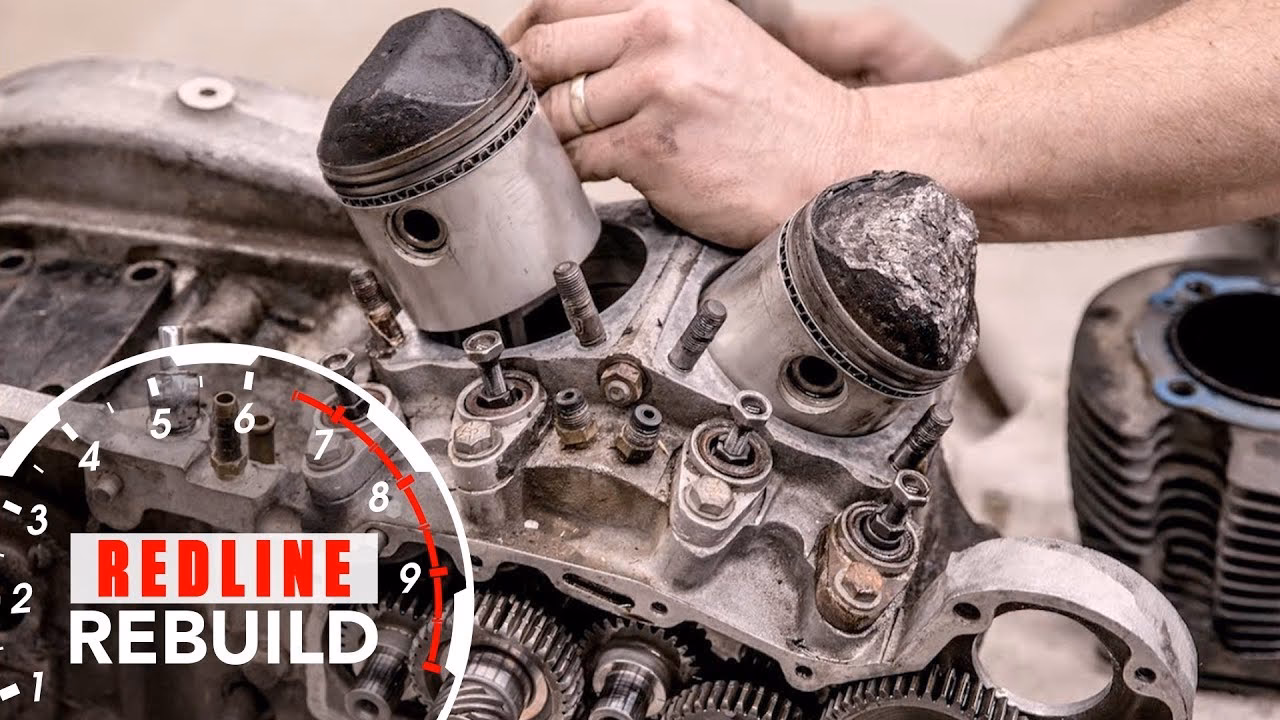

Understanding Sprocket Shaft Bearings: A Foundational Element

The sprocket shaft bearings are the unsung heroes of your Ironhead's lower end, facilitating the smooth rotation of the crankshaft and ensuring power transmission. In 1977, Harley-Davidson introduced revisions that notably impacted these components. Crucially, both the inner and outer sprocket shaft bearings are identical across all Ironhead models, from 1957 right through to 1985. However, their installation context changed significantly.

Whereas earlier Sportster engines (1957 through 1976) utilised a design featuring a single bearing race and two distinct bearings, the 1977 and later engines adopted a system with two separate races and two individual bearings. Despite this design evolution, one principle remains unwavering: both the inner and outer sprocket shaft bearings should be replaced as a set. This ensures uniform wear, proper clearances, and maximises the lifespan of your engine's bottom end. Neglecting to replace them as a pair can lead to premature wear, excessive play, and ultimately, costly failures down the road.

Inner Sprocket Shaft Bearing Installation: Precision is Key

The journey begins with the inner sprocket shaft bearing. If you're undertaking a rebuild, chances are this bearing has already been removed. Its removal can be accomplished through various methods, often involving specialised pullers or careful heat application. However, the installation process demands a particularly precise touch.

To install the inner bearing, the most widely accepted and recommended method involves a shop press. The bearing must be pressed onto the shaft until it firmly bottoms out against the shaft shoulder. This point of contact is absolutely crucial for proper alignment and function. A common alternative, particularly for the home mechanic without access to a press, involves carefully heating the bearing. By gently warming the bearing, it expands marginally, allowing it to slip more easily over the shaft. If employing this method, extreme caution is advised to ensure even heating and to prevent overheating, which could damage the bearing. Regardless of the technique chosen, verifying that the bearing is fully seated against the shoulder is non-negotiable for the integrity of the assembly.

Installing the Flywheel Assembly and Outer Sprocket Shaft Bearing

With the inner bearing secure, attention turns to the flywheel assembly and the outer sprocket shaft bearing. This stage requires a stable workspace and methodical execution.

1. Secure the Flywheel: Begin by placing the flywheel assembly securely in a sturdy vice. Orient it so that the sprocket shaft points directly upwards. This vertical alignment is essential for the subsequent steps.
2. Position the Left Engine Case: Carefully lay the left engine case over the sprocket shaft. It's often necessary to prop up the back end of the case with blocks of wood to maintain stability and alignment during the installation of the following components.
3. Spacer and Outer Bearing: Once the case is in position, install the spacer, followed by the outer sprocket shaft bearing. This sequence is vital for correct spacing and fitment within the engine.

Installing the outer bearing is a task where the right tool truly makes a difference. The factory-type tool, identified as #97081-54 (or a high-quality equivalent), is specifically designed for this purpose. This tool allows you to apply controlled pressure, cranking it down until you can distinctly feel the new bearing 'bottom out' on the shoulder of the sprocket shaft. This tactile feedback is invaluable, providing definitive confirmation that the bearing is fully seated and correctly positioned.

While some DIY mechanics might opt to heat the outer bearing and slip it on, similar to the inner bearing, this method carries a significant drawback: it's incredibly difficult to ascertain if the bearing has fully seated. Without the positive feedback of the tool, there's a risk of the bearing not being completely home, which can lead to misalignment and premature failure. For this reason, investing in or borrowing the correct tool is highly recommended for precision and peace of mind.

Outer Sprocket Seal: The Guardian Against Leaks

With the outer sprocket shaft bearing securely in place, the outer sprocket seal is the next component to be installed. This seal plays a crucial role in preventing oil leaks from the sprocket shaft area. Conveniently, the same factory-type tool used for the outer bearing installation can also be employed to seat the outer sprocket seal. Ensure it is pressed in squarely and evenly to create an effective barrier.

Once the flywheel assembly is installed back into the left engine case, it's beneficial to prop the entire assembly up on blocks of wood. This provides a stable base for the subsequent steps of joining the engine cases.

Right-Side Engine Case and Pinion Bearing (1977-1985)

The 1977 Sportster revisions weren't limited to the sprocket shaft side; the pinion shaft bearing assembly on the right-side engine case also received a significant update. The 1977-1985 assembly (HD #24648-77) is a 'caged' bearing design. This was a welcome improvement over the earlier 1957-1976 engines, which relied on 13 loose roller bearings – a notoriously fiddly and time-consuming component to install correctly. The caged design of the later models makes installation considerably easier and more reliable.

When replacing the pinion bearing, it is pressed in and out of the right-side engine case. The critical aspect here is ensuring the bearing is flush with the inside boss of the case once installed. This flush fitment is essential for proper alignment and function of the pinion shaft within the engine.

Pinion Shaft Race (1979-Early 1981 Specifics)

A specific detail for 1979 through early 1981 Sportsters involves a distinct pinion race that is pressed onto the pinion shaft. When replacing this component, a precise measurement is required: the pinion race should be positioned exactly .031" from the edge of the pinion shaft shoulder. This tiny yet significant measurement dictates the correct end play and alignment of the pinion shaft, directly impacting the smooth operation of the valvetrain and oil pump drive. Missing this specification can lead to excessive wear or binding, compromising engine longevity.

Engine Case Sealant: Choosing Wisely for a Leak-Free Build

Sealing the engine cases correctly is paramount to preventing oil leaks, which are not only unsightly but can also lead to serious engine damage if oil levels drop too low. The market is flooded with various sealants, but it's crucial to understand that many automotive-grade products are simply not suitable for motorcycle engine cases, especially for an Ironhead.

For several compelling reasons, an anaerobic gasket sealant is the preferred choice for sealing Ironhead engine cases. Unlike RTV (Room Temperature Vulcanizing) silicones often found in automotive stores, anaerobic sealants cure in the absence of air, typically when clamped between two close-fitting metal surfaces. They fill microscopic imperfections, creating a perfect seal without squeezing out into the engine's oil passages, which RTV can do, potentially clogging oilways. Anaerobic sealants are also highly resistant to oil and fuel, providing a durable and long-lasting seal.

When applying, spread a thin, even coat of the anaerobic sealant on both mating surfaces of the crankcase halves. After application, allow a few minutes for the sealant to become slightly 'sticky' before joining the cases. This tackiness helps to hold the sealant in place and ensures better adhesion as the cases are brought together.

Assembling the Engine Cases and Bolts

With the sealant applied and ready, the engine cases can now be joined. This step requires care and attention to detail.

The Rear Motor Mount: A Crucial Pre-Step

If you, like many mechanics, opted not to remove the three rear motor mount studs from the case during disassembly, you must install the rear motor mount *before* placing the right case on top of the left case. Forgetting this seemingly minor step will force you to partially disassemble the cases again to install the mount, proving to be a frustrating and time-consuming oversight. Always double-check this before mating the case halves.

Installing Crankcase Bolts: Even Torque for Even Pressure

Once the cases are carefully together, begin installing the crankcase bolts. Start by threading them in by hand, just until they are finger-tight. This ensures that all bolts are engaged and that the cases are loosely aligned. Once all bolts are in place, the critical phase of tightening begins. It is imperative to tighten them evenly, following a specific pattern (often a criss-cross or spiral pattern) to ensure uniform pressure across the mating surfaces. This prevents warping of the cases and ensures a perfect, leak-free seal. Refer to your service manual for the exact torque specifications and tightening sequence for your specific model year.

It's worth noting the bolt types: on 1979 and later motors, one engine case bolt is an Allen-head, while the others are typically 7/16" and 1/2" six-point hex head bolts. Being aware of these variations helps in having the correct tools readily available.

Lubrication: The Lifeblood of Your Engine

Before final assembly and certainly before the first start-up, proper lubrication of internal components is vital. This pre-lubrication ensures that critical moving parts are not operating dry during the initial moments of engine operation, when oil pressure is still building.

Pour a generous amount of engine assembly lube inside the connecting rods, on bearing surfaces, and anywhere else it can reach moving parts. This heavy, sticky lubricant provides immediate protection. Additionally, it's an excellent practice to lubricate the pinion shaft bearing with fresh engine oil. A light coat of oil on all moving parts prior to final assembly helps prevent scuffing and wear during the critical break-in period.

Engine Stands: A Workshop Essential (or Clever Alternatives)

At this stage of reassembly, with the engine cases joined, placing the motor onto an engine stand can significantly ease the remaining assembly steps. An engine stand provides a stable, elevated, and rotatable platform, allowing for comfortable access to all sides of the engine. This ergonomic advantage can save hours of backache and frustration.

If an engine stand isn't within your budget or immediate reach, don't despair. You can certainly continue assembling the motor on sturdy blocks of wood. Four-by-fours (4x4s) work exceptionally well, providing a stable and elevated base. While perhaps not as convenient as a dedicated stand, this method is entirely viable for the home mechanic.

Pinion Gear Installation (1977 and Later Ironheads)

The installation of the pinion gear on 1977 and later Ironhead Sportsters is notably straightforward. Unlike some earlier designs that required special procedures, these later models feature a slip-fit pinion gear, meaning no pressing or special tools are typically needed for its installation. A key detail to remember is that these gears are colour-marked from the factory to correspond with a particular pinion shaft, ensuring proper mating and function.

The oil pump spiral gear (#26318-75) was in use from 1977 through 1985 and is integral to the oiling system. Once the pinion gear is slipped into place, a lock washer and a locknut are used to secure it firmly. Ensure these fasteners are torqued to specification to prevent any loosening during operation.

Key Differences: Early vs. Late Ironhead Oil Pump Installation

An important distinction between early (1957 through 1976) and later (1977 and beyond) Ironhead motors lies in the oil pump installation sequence relative to the frame. On early Ironheads, the oil pump must be installed on the motor before the engine is mounted into the frame due to clearance issues. Conversely, on 1977 and later motors, the oil pump can be installed after the motor has been secured within the frame. This flexibility is a minor but significant convenience for the later models.

Final Considerations and Inspection

No two engine builds are exactly alike. The exact tools and specific skills you'll require will often only become fully apparent after a complete disassembly and a thorough, careful inspection of all parts. This initial inspection phase is arguably the most important, as it dictates what needs replacement, repair, or simply cleaning. Thoroughness at the beginning saves immense time and expense later on.

Always consult your factory service manual for specific torque values, clearances, and detailed procedural steps for your particular model year. This guide provides a general overview and highlights critical areas, but the manual is your ultimate authority for a successful rebuild.

Comparative Table: Ironhead Engine Revisions (Pre-1977 vs. 1977+)

Frequently Asked Questions (FAQs)

Q1: Why is it crucial to replace both inner and outer sprocket shaft bearings as a set?

Replacing both bearings as a set ensures uniform wear and eliminates any pre-existing wear patterns that might cause issues if a new bearing is paired with an old one. It guarantees optimal clearances and helps prevent premature failure of either bearing, contributing to the overall longevity of your engine's bottom end.

Q2: Can I use a standard automotive gasket sealant for my Ironhead engine cases?

It is strongly recommended to avoid standard automotive gasket sealants, especially RTV silicone, for Ironhead engine cases. These can squeeze out into oil passages, potentially causing blockages and oil starvation. Anaerobic gasket sealants are superior as they cure in the absence of air, provide a precise seal without excess, and are highly resistant to petroleum products.

Q3: What happens if the sprocket shaft bearings aren't properly seated?

If the sprocket shaft bearings are not fully seated against their respective shoulders, it can lead to several serious issues. These include incorrect crankshaft end play, misalignment of components, excessive vibration, premature wear of the bearings themselves, and potential damage to the crankshaft or engine cases. Proper seating is paramount for the integrity of the engine.

Q4: Is an engine stand truly necessary for this assembly?

While an engine stand is not strictly 'necessary' in the sense that the job cannot be done without one, it significantly improves the ease, comfort, and often the quality of the assembly process. It allows for better access, reduces fatigue, and provides a stable platform for precise work. If unavailable, sturdy wood blocks (like 4x4s) can serve as a viable alternative.

Q5: How do I know if my Ironhead engine is a pre-1977 or 1977+ model if I'm unsure of the year?

The easiest way to determine this is by inspecting the engine cases and pinion bearing assembly. 1977 and later engines have visibly reworked cases and, more definitively, feature a 'caged' pinion bearing assembly (HD #24648-77) as opposed to the 13 loose roller bearings found in earlier models. Checking the engine's serial number against production year guides is also a definitive method.

Q6: What is the significance of the .031" measurement for the pinion race on 1979-E1981 models?

This precise measurement is critical for setting the correct end play and alignment of the pinion shaft. The pinion shaft drives the oil pump and the valvetrain components. If the race is not positioned correctly, it can lead to excessive friction, premature wear of the pinion shaft and its associated bearings, and potentially affect oil pressure or valve timing, compromising overall engine performance.
