The Farmall/International TD6, a true workhorse from International Harvester, has cemented its legacy as a robust and reliable crawler tractor. Whether you're a seasoned enthusiast dedicated to restoration or a practical farmer relying on its enduring power, understanding the vital components that keep your TD6 running is paramount. This comprehensive guide will delve into the essential parts you need, from the engine's core to the undercarriage's intricate mechanisms, ensuring your classic machine remains a formidable asset on any terrain. Keeping such a vintage piece of machinery in top condition requires not just dedication, but also a thorough knowledge of its unique requirements and where to source the correct parts.
- The Heart of the Beast: Engine Components
- Sparking Life: Electrical & Ignition Systems
- Grip and Go: Undercarriage & Drivetrain Components
- The Helping Hand: Hydraulic System Parts
- Sourcing Parts for a Vintage Legend
- The Prudence of Quality: Why It Matters
- Frequently Asked Questions About TD6 Parts
- Is the International TD6 compatible with International Harvester parts?
- Where can I find specific part numbers for my TD6?
- Are 12-volt conversions common for TD6s, and what parts are affected?
- How often should I replace common wear parts like filters and fluids?
- What are the most common parts to wear out on a TD6?
- Conclusion
The Heart of the Beast: Engine Components
The engine is, without doubt, the lifeblood of your International TD6. Its smooth operation hinges on a multitude of interconnected parts, each playing a critical role. Regular maintenance and timely replacement of worn components are key to preserving its power and efficiency. When considering engine parts, you'll typically be looking at several main systems:
Fuel System Essentials
For a diesel engine like the TD6, the fuel system is crucial. This includes the fuel tank, fuel lines, fuel pump, and, most importantly, the fuel injectors. Clogged or faulty injectors can significantly impact performance, leading to rough running, reduced power, and increased fuel consumption. Don't forget the fuel filters; these are your first line of defence against contaminants damaging more sensitive components. Regularly changing these filters is a non-negotiable aspect of routine maintenance.
Cooling System Vitality
Overheating can be catastrophic for any engine. The TD6's cooling system comprises the radiator, water pump, thermostat, and various hoses. A failing water pump can lead to inadequate coolant circulation, while a blocked radiator restricts heat dissipation. Inspect hoses for cracks or leaks and ensure the thermostat is functioning correctly to regulate engine temperature. Using the correct coolant mixture is also essential to prevent corrosion and freezing.
Internal Engine Components

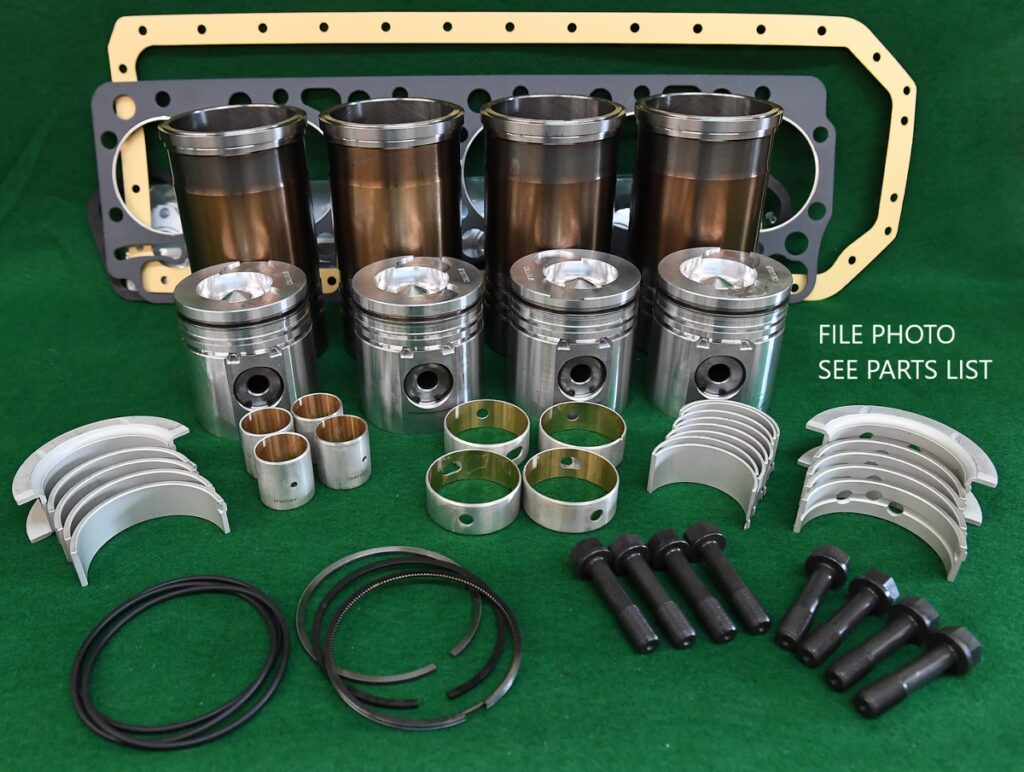

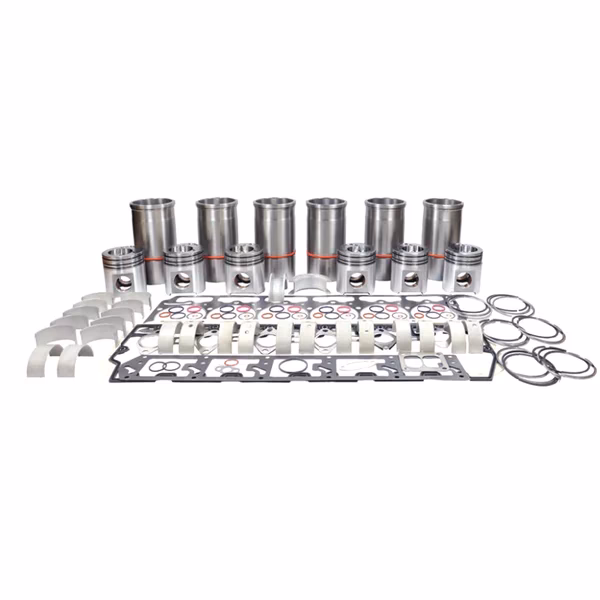

Deeper within the engine, components like pistons, piston rings, cylinder liners, connecting rod bearings, and main bearings are subject to wear over decades of operation. While these are less frequently replaced than filters or hoses, signs of excessive oil consumption, loss of compression, or unusual engine noises can indicate a need for a more comprehensive engine overhaul. Gaskets and seals throughout the engine are also critical for maintaining fluid integrity and preventing leaks, requiring careful attention during any engine work.
Sparking Life: Electrical & Ignition Systems
Modern conveniences might make us forget the simplicity and robustness of older electrical systems, but they are no less critical. The TD6, being an International Harvester machine, often shares common electrical components across the brand. The original information confirms that the TD6 is indeed an International Harvester model, and parts like an Ignition Tune Up Kit designed for International Harvester horizontal distributors are relevant. This kit typically includes points, condenser, rotor, and distributor cap – all crucial for a reliable spark if your TD6 is petrol-powered, or for the starting circuit if it's a diesel with a magneto ignition.
Starting and Charging
A healthy battery is fundamental for starting your TD6. Connected to this are the starter motor, which cranks the engine, and the generator (or alternator, if upgraded), which recharges the battery while the engine runs. Wiring harnesses can deteriorate over time, leading to intermittent electrical faults. Inspecting these for fraying or corrosion is a good practice.
Gauges and Lighting
The original text specifically mentions that an Ammeter replaces Farmall Cub parts as well as A, B, C, H, M & more, indicating its commonality across the International Harvester line, including likely the TD6. This gauge monitors the charging system's output. Beyond the ammeter, ensure your oil pressure gauge, temperature gauge, and any warning lights are operational. Functional headlights and tail lights are not just for night work but also essential for safety, especially if operating near public roads.
12-Volt Conversions
Many vintage tractors, including the TD6, originally operated on a 6-volt electrical system. A common upgrade is a 12-volt conversion, which often involves replacing the battery, generator/alternator, starter solenoid, and sometimes even the starter motor itself, along with updating lights and gauges. This conversion can offer more reliable starting and brighter lighting, but it’s crucial to ensure all components are compatible with the new voltage.
Grip and Go: Undercarriage & Drivetrain Components
As a crawler tractor, the TD6's ability to traverse challenging terrain relies heavily on its undercarriage and drivetrain. These components are designed for heavy-duty use and constant friction, making them prime candidates for wear and tear.
Undercarriage Essentials
The undercarriage of a crawler includes several key parts. The track chains, often referred to as the "tracks" themselves, are made up of individual links and pins. These can stretch and wear, leading to misalignment and potential derailing. Track shoes, bolted to the chains, provide the necessary traction. Track rollers (bottom rollers) support the tractor's weight and guide the track, while carrier rollers (top rollers) support the upper part of the track. The idlers, located at the front, guide the track and allow for tension adjustment. Finally, the drive sprockets, at the rear, are powered by the drivetrain and engage with the track chains to propel the tractor. Wear on any of these components can lead to poor performance, increased fuel consumption, and costly repairs if neglected.
Drivetrain Mechanics
The drivetrain transmits power from the engine to the tracks. This system typically includes the clutch, pressure plate, transmission gears, and final drives. The clutch allows for engagement and disengagement of power, while the transmission provides various gear ratios for different tasks. The final drives reduce speed and increase torque to the sprockets. Steering clutches and brakes are unique to crawler tractors, allowing individual control over each track for steering. These components are subjected to immense stress and require robust parts for reliable operation.
The Helping Hand: Hydraulic System Parts
Many TD6 models would have been equipped with a hydraulic system to operate various implements, such as blades, rippers, or loaders. The hydraulic system consists of a pump, control valves, hydraulic cylinders, and hoses. The pump generates the necessary fluid pressure, which is then directed by the control valves to the cylinders, causing them to extend or retract. Leaking hoses or failing seals in cylinders can lead to loss of hydraulic power, making tasks difficult or impossible. Regular inspection for leaks and ensuring the hydraulic fluid is clean and at the correct level are essential for system longevity.
Sourcing Parts for a Vintage Legend
Finding the right parts for a machine like the Farmall/International TD6, which ceased production decades ago, can be a challenge. However, a dedicated community and specialist suppliers exist to keep these magnificent machines alive.
Your options generally fall into a few categories:
- New Old Stock (NOS): These are original, unused parts that were manufactured at the time the tractor was produced but never sold. They offer perfect fit and original quality but can be rare and expensive.
- Aftermarket parts: These are newly manufactured parts designed to fit the TD6, often by companies specialising in vintage tractor components. Quality can vary significantly, so it's wise to research reputable suppliers.
- Used or Salvaged Parts: Sourced from dismantled tractors, these can be a cost-effective option for less critical components or for parts that are no longer manufactured. Their condition, however, is often unknown and comes without a warranty.
Consulting with knowledgeable specialists is highly recommended. These experts often have extensive inventories, access to hard-to-find parts, and invaluable advice on compatibility and installation. While we can't provide specific contact details, many reputable vintage tractor parts suppliers exist across the UK and beyond, ready to assist with your specific needs.
The Prudence of Quality: Why It Matters
When it comes to maintaining your TD6, the temptation to opt for the cheapest available part can be strong. However, investing in quality parts, whether NOS or reputable aftermarket, pays dividends in the long run. Inferior components can lead to premature failure, further damage to interconnected systems, and ultimately, more downtime and expense. Reliability, performance, and safety are all directly tied to the quality of the parts you install. Don't underestimate the impact of a well-fitting, durable component on the overall longevity and operational efficiency of your cherished machine.
Part Sourcing Comparison
To help you decide, here's a brief comparison of common part sourcing options:
| Part Type | Pros | Cons | Best For |
|---|---|---|---|
| New Old Stock (NOS) | Original fit and quality, historical accuracy, often superior materials. | Rare, expensive, may have degraded slightly in storage, limited availability. | Restorations, critical engine/drivetrain components, collectors. |
| Aftermarket parts | More readily available, often cheaper, modern manufacturing techniques. | Quality varies significantly, fit might not be exact, brand reputation is key. | Common wear items (filters, gaskets), budget-conscious repairs, non-critical parts. |
| Used / Salvaged | Cheapest option, original components, good for hard-to-find unique parts. | Condition uncertain, no warranty, limited availability, requires careful inspection. | Non-critical items (sheet metal, brackets), temporary fixes, rare components. |
Frequently Asked Questions About TD6 Parts
Is the International TD6 compatible with International Harvester parts?
Absolutely, yes. The International TD6 is a product of International Harvester. Many parts, especially common wear items and electrical components like the Ammeter or parts for the horizontal distributor, were often standardised across various International Harvester models, including the Farmall line. Always cross-reference part numbers with a reliable catalogue or specialist.
Where can I find specific part numbers for my TD6?
The most accurate source for specific part numbers is the original parts manual for your particular TD6 model and serial number. These manuals provide detailed diagrams and corresponding part numbers. Specialist suppliers also often have extensive databases and can help identify the correct parts based on your tractor's details.
Are 12-volt conversions common for TD6s, and what parts are affected?
Yes, 12-volt conversions are quite common for many vintage 6-volt tractors, including the TD6, to improve starting reliability and lighting. Parts typically affected include the battery, starter motor, generator/alternator, voltage regulator, and all light bulbs. Some gauges might also need replacement or modification to function with 12 volts.
How often should I replace common wear parts like filters and fluids?
Referencing your TD6's original operator's manual is the best guide for maintenance intervals. However, as a general rule, engine oil and filter should be changed every 100-150 operating hours or annually. Fuel filters should be checked and replaced more frequently, perhaps every 50-100 hours. Hydraulic and transmission fluids typically have longer intervals but should be checked regularly for contamination and level. Air filters should be inspected and cleaned/replaced as needed, especially in dusty conditions.
What are the most common parts to wear out on a TD6?
Given the TD6's nature as a working crawler, the undercarriage components are often the first to show significant wear. This includes track chains, rollers, idlers, and sprockets. Engine consumables like filters, belts, hoses, and gaskets are also frequent replacement items. Electrical components, especially wiring, points, and condensers (if applicable), can also degrade over time.
Conclusion
Maintaining your Farmall/International TD6 is a rewarding endeavour that ensures this piece of agricultural and construction history continues to perform its duties. By understanding the various systems and the parts they comprise, from the intricate engine components to the robust undercarriage, you're well-equipped to keep your TD6 in prime condition. Always prioritise quality, seek expert advice when needed, and remember that consistent, preventative maintenance is the true secret to the enduring power and longevity of your classic International Harvester crawler.
