26/08/2016
Understanding the INOKIM OxO's Braking System
When considering an electric scooter, especially one in the premium performance category like the INOKIM OxO, the braking system is paramount. It's not just about reaching top speeds; it's about having the confidence and control to stop safely and effectively. The INOKIM OxO is equipped with a braking system designed to match its robust performance, offering riders a reliable and responsive stopping experience.
The Core of the System: Zoom Hydraulic Brakes
At the heart of the INOKIM OxO's stopping power are its Zoom hydraulic brakes. Hydraulic brakes are widely considered superior to mechanical or drum brakes in electric scooters due to their efficiency, power, and modulation. Unlike cable-actuated brakes which rely on mechanical linkage, hydraulic systems use fluid pressure to operate the brake calipers. This means that a small input at the lever translates into significant and consistent force at the wheel.
The benefits of hydraulic brakes are numerous:
- Superior Stopping Power: The fluid transmission of force allows for much greater braking torque, enabling shorter stopping distances.
- Excellent Modulation: Riders can precisely control the amount of braking force applied by how gently or firmly they squeeze the levers. This allows for smooth deceleration and prevents abrupt stops that could lead to loss of control.
- Reduced Lever Effort: Hydraulic systems require less force at the lever to achieve maximum braking, reducing rider fatigue, especially on longer rides or during frequent braking situations.
- Self-Adjustment: As brake pads wear down, hydraulic systems automatically adjust to maintain optimal pad-to-rotor distance, ensuring consistent performance over time.
Performance in Practice: Stopping Distances
The effectiveness of the INOKIM OxO's braking system is best illustrated by its performance metrics. In rigorous testing, the OxO demonstrated an impressive ability to come to a complete stop from 15 mph in just 2.7 meters. This is a significant figure when compared to the average performance scooter, which typically requires between 3.0 to 3.4 meters to achieve the same stop.
This shorter stopping distance is a direct result of the powerful Zoom hydraulic brakes combined with the scooter's overall design, including its pneumatic tyres that provide good traction. Having a reliable braking system that can stop you quickly is a critical safety feature, especially when navigating urban environments with unpredictable traffic or sudden obstacles.
Comparing with Competitors
To further contextualise the OxO's braking prowess, it's useful to compare it with other scooters in its class. While the OxO excels with its 2.7-meter stopping distance from 15 mph, some other high-performance scooters might offer alternative braking technologies or configurations.
For example, scooters like the Wolf Warrior or Mantis Pro might feature anti-locking braking systems (ABS). While ABS is beneficial in preventing wheel lock-up and maintaining steering control during hard braking, it's important to note that the OxO's Zoom hydraulic brakes, without ABS, require a more nuanced approach from the rider.
Important Note for Riders: If you are transitioning to the INOKIM OxO from a scooter equipped with ABS, you need to be mindful of the difference. The OxO's brakes, while powerful, can cause the wheels to lock up and skid if the brake levers are pulled too aggressively. This is a common characteristic of scooters without ABS. Therefore, it's crucial to practice and learn to feather the brake levers for smooth and controlled deceleration, especially in challenging conditions.
| Scooter Model | Braking System | Stopping Distance (15 mph) | ABS Feature |
|---|---|---|---|
| INOKIM OxO | Zoom Hydraulic Brakes | 2.7 meters | No |
| Wolf Warrior (Example) | Hydraulic Brakes (Type may vary) | Approx. 3.0 - 3.4 meters | Often Yes |
| Mantis Pro (Example) | Hydraulic Brakes (Type may vary) | Approx. 3.0 - 3.4 meters | Often Yes |
Rider Experience and Lever Feel
The design of the brake levers themselves contributes significantly to the rider's experience. The OxO features grippy brake levers, which are essential for maintaining a secure hold, especially during emergency braking situations or when riding in wet conditions. The feel of these levers is responsive; a light touch is all that's needed to initiate braking action. This excellent modulation allows riders to maintain control and confidence, even when braking from higher speeds.
Braking and Stability: The Role of the Deck and Tyres
While the hydraulic brakes are the primary component, other aspects of the INOKIM OxO's design also play a supporting role in its braking performance. The scooter's oversized deck, measuring 20 inches in length and 8.5 inches in width, provides ample space for riders to adjust their stance. The tapered kickplate at the rear, which extends the deck by an additional 4 inches, is particularly beneficial. By allowing riders to shift their weight rearward, it applies more pressure over the rear wheel. This increased weight distribution enhances traction, which in turn leads to more effective braking.
Furthermore, the 10 x 2.5-inch pneumatic tyres contribute to the overall stability and grip. While they are noted as being slightly narrower than some competitors, their air-filled nature absorbs road imperfections, ensuring better contact with the ground. Even in wet conditions, these tyres offer good traction, complementing the braking system.
Maintenance and Considerations
Like all hydraulic brake systems, the Zoom brakes on the INOKIM OxO will require periodic maintenance to ensure optimal performance. This typically includes:

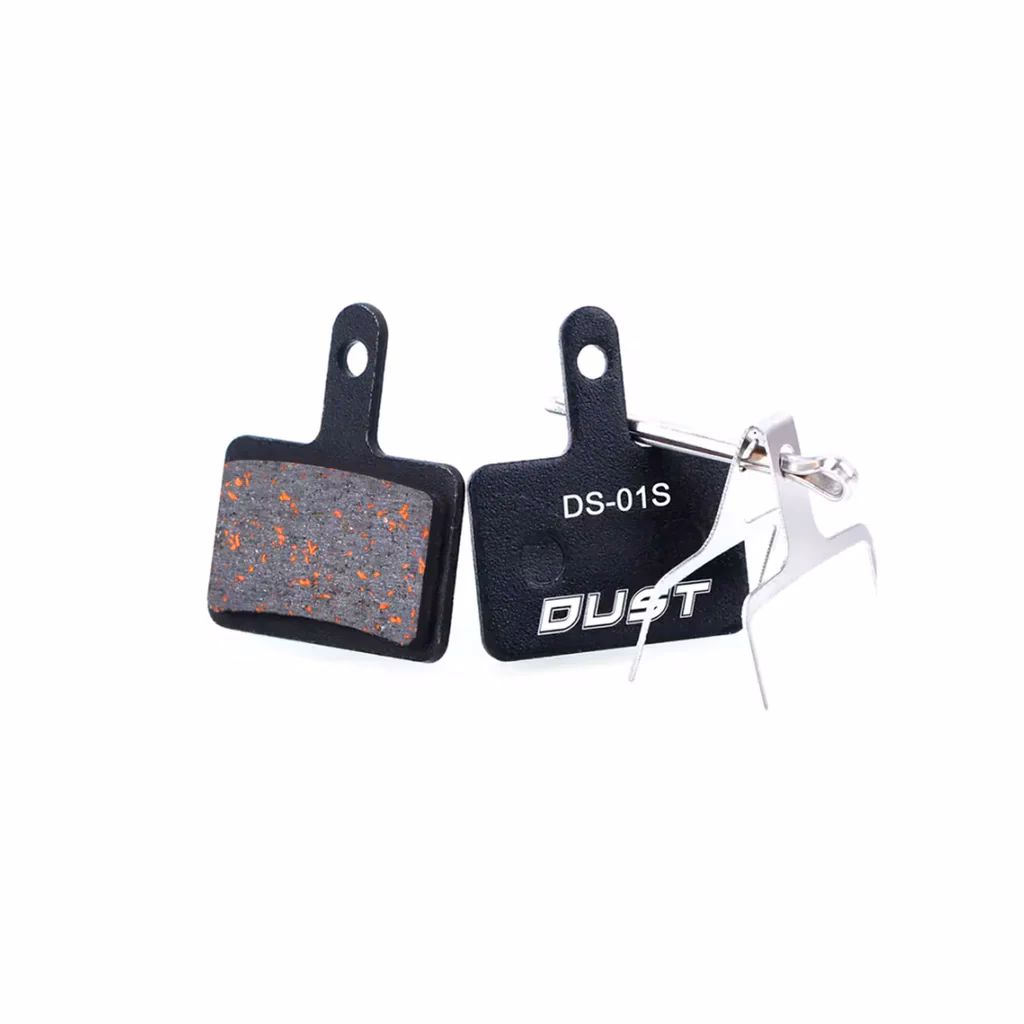

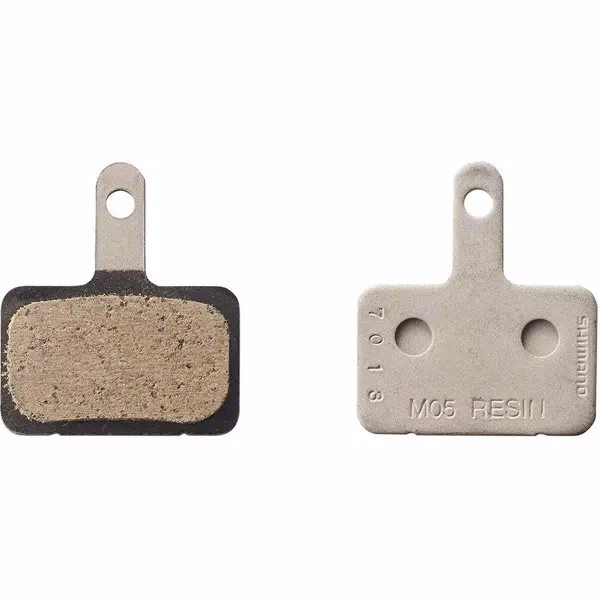

- Checking Brake Pad Wear: Over time, brake pads will wear down and need replacement. Inspecting them regularly is crucial.
- Brake Fluid Levels: While less frequent, checking and potentially topping up the brake fluid may be necessary.
- Bleeding the System: If the brake levers feel spongy or less responsive, the hydraulic system may need to be bled to remove any air bubbles.
It's always recommended to consult the INOKIM OxO's user manual for specific maintenance instructions or to seek professional assistance from a qualified technician if you are unsure about performing these tasks.
Frequently Asked Questions (FAQs)
Q1: What type of brakes does the INOKIM OxO have?
A1: The INOKIM OxO is equipped with Zoom hydraulic brakes.
Q2: How effective are the INOKIM OxO's brakes?
A2: They are highly effective, allowing the scooter to stop from 15 mph in just 2.7 meters, which is shorter than the average performance scooter.
Q3: Does the INOKIM OxO have ABS on its brakes?
A3: No, the INOKIM OxO does not come with an ABS feature. Riders need to be cautious to avoid wheel lock-up during hard braking.
Q4: Are the brake levers easy to use?
A4: Yes, the OxO features grippy and responsive brake levers that require minimal effort for effective braking.
Q5: What maintenance is required for the hydraulic brakes?
A5: Regular checks of brake pad wear and potentially maintaining brake fluid levels are recommended. Bleeding the system might be necessary if responsiveness decreases.
In conclusion, the INOKIM OxO's braking system, centred around its powerful Zoom hydraulic brakes, provides a significant safety advantage and contributes to a confident riding experience. While the lack of ABS requires rider awareness, the performance and modulation offered by these brakes place the OxO among the top contenders for scooters prioritising stopping power and control.
