Understanding the Innova 3640 Fuel Injection Pressure Tester

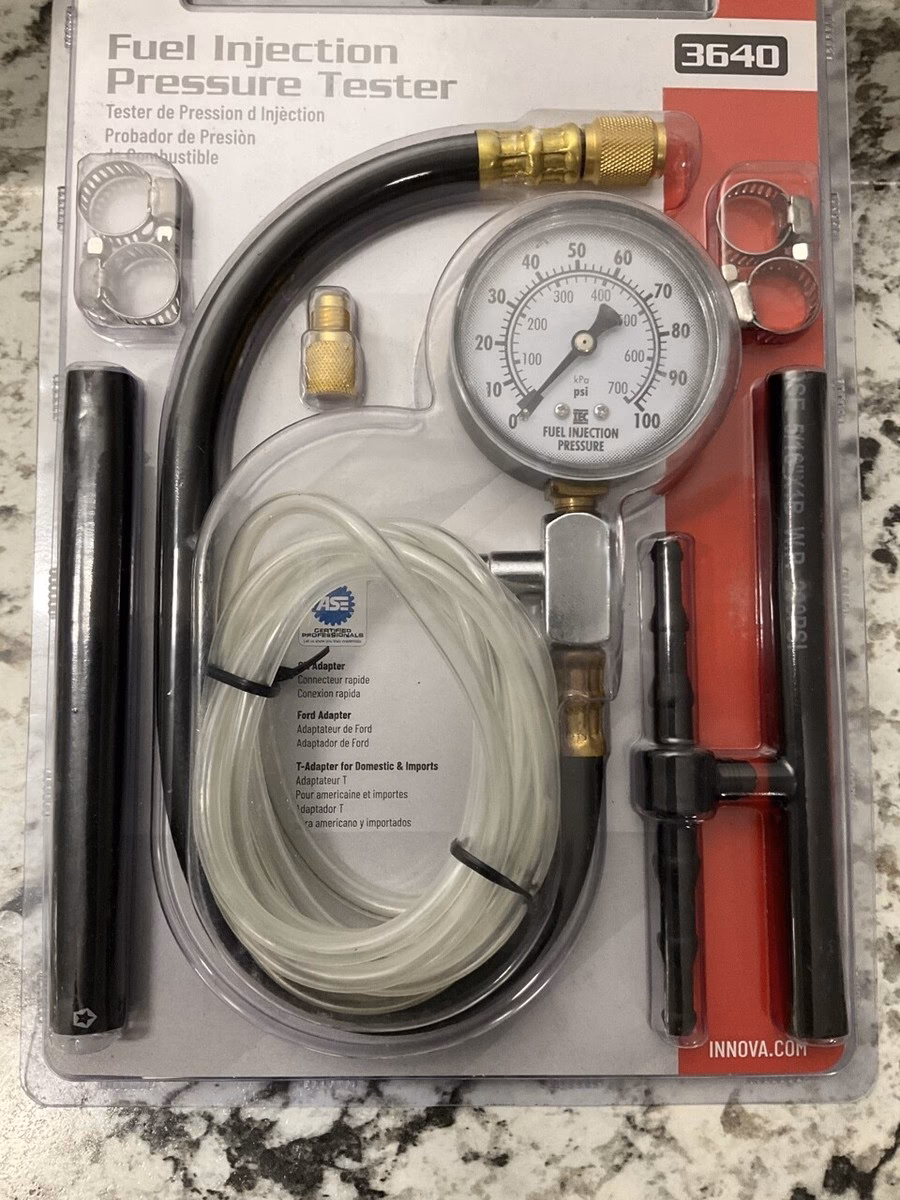

The Innova 3640 Fuel Injection Pressure Tester is a vital diagnostic tool for any mechanic, whether professional or a keen DIY enthusiast. Its primary function is to accurately measure the fuel pressure within your vehicle's fuel injection system. This is crucial because the correct fuel pressure is paramount for optimal engine performance, fuel efficiency, and emissions control. When fuel pressure is too low, the engine may experience hesitation, poor acceleration, or even stalling. Conversely, excessively high fuel pressure can lead to a rich fuel mixture, potentially causing fouled spark plugs, poor fuel economy, and increased emissions. The Innova 3640 allows you to pinpoint these issues by providing a clear, real-time reading of the fuel pressure, enabling you to diagnose problems with the fuel pump, fuel pressure regulator, or any blockages in the fuel lines.
Key Features and What They Mean

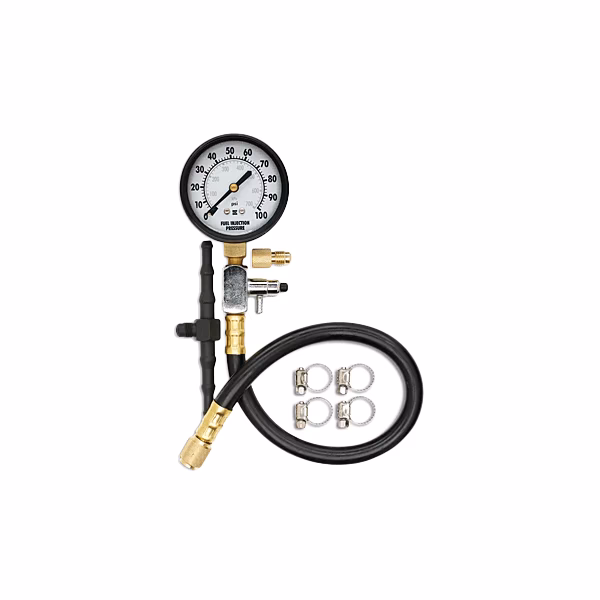

The Innova 3640 comes equipped with a range of features designed for ease of use and accurate results. The central component is a high-quality pressure gauge, typically with a range that covers most common automotive fuel pressure requirements. It includes a selection of adapters and hoses to ensure compatibility with a wide variety of vehicles. Crucially, the kit often includes a tee adapter, which is indispensable for connecting the tester into the fuel line without causing leaks. The gauge itself is usually housed in a robust casing, designed to withstand the rigours of a workshop environment. Some models may also feature a built-in pressure release valve, allowing for safe depressurisation of the fuel system after testing.
How to Use the Innova 3640: A Step-by-Step Approach
Before you begin, it is absolutely essential to consult your vehicle's specific service manual. This document contains crucial information regarding procedures, specifications, and safety precautions unique to your car. Attempting to test a fuel system without understanding these specifics can lead to damage or injury.
- Safety First: Ensure the engine is cool and parked in a well-ventilated area. Wear appropriate safety glasses and gloves. Disconnect the negative battery terminal to prevent accidental starting.
- Locate the Fuel Rail/Test Port: In most gasoline fuel injection systems, there will be a designated test port, often resembling a Schrader valve (similar to a tyre valve). Consult your service manual to find its exact location.
- Connect the Tester: If your vehicle has a Schrader valve, the appropriate adapter from the Innova 3640 kit will screw directly onto it. If your vehicle *does not* have a Schrader valve, you will likely need to use the provided tee adapter. This involves carefully disconnecting a section of the fuel line (following your service manual's instructions precisely) and inserting the tee adapter between the disconnected fuel line ends, then connecting the tester to the tee.
- Depressurise (if necessary): Some systems may require bleeding off residual fuel pressure before disconnection. Again, refer to your service manual.
- Reconnect Battery and Start Engine: Reconnect the negative battery terminal. Start the engine and let it idle.
- Read the Gauge: Observe the pressure reading on the Innova 3640 gauge. Compare this reading to the manufacturer's specified fuel pressure for your vehicle, as found in the service manual.
- Test Under Load (Optional but Recommended): For a more comprehensive diagnosis, you may need to test the fuel pressure under different engine loads (e.g., while someone else gently presses the accelerator). Refer to your service manual for specific testing procedures.
- Shutdown and Disconnect: Turn off the engine. Safely depressurise the fuel system if required by the manual. Carefully disconnect the tester and reassemble the fuel system, ensuring all connections are secure and leak-free.
Diesel Engines and the Innova 3640
It is critical to understand that the Innova 3640 Fuel Injection Pressure Tester is specifically designed for gasoline engines. Diesel fuel injection systems operate under vastly different and significantly higher pressures compared to their petrol counterparts. Using this tester on a diesel engine could not only yield inaccurate readings but also potentially damage the tester and even the vehicle's fuel system. For diesel engine diagnostics, you will require specialised diesel fuel pressure testing equipment. Always confirm the type of engine you are working on before selecting your diagnostic tools.
Where to Find Vehicle Specifications
As repeatedly stressed, the vehicle's service manual is your ultimate authority for all specifications. This includes the correct fuel pressure readings your system should maintain, the location of test ports, and the precise procedures for connecting and disconnecting fuel lines. Generic online forums or manuals may offer some guidance, but for accuracy and safety, the official service manual provided by the vehicle manufacturer is indispensable. You can often purchase these manuals from dealerships, specialised automotive book retailers, or online.
Troubleshooting Common Issues
If the Innova 3640 indicates a fuel pressure reading that is consistently outside the manufacturer's specifications, here are some common culprits:
- Weak Fuel Pump: A fuel pump that is failing will not be able to supply the required pressure.
- Clogged Fuel Filter: A dirty or blocked fuel filter can restrict fuel flow, leading to low pressure.
- Faulty Fuel Pressure Regulator: This component controls the fuel pressure. If it's malfunctioning, it can cause pressure to be too high or too low.
- Leaking Fuel Injectors or Lines: A leak anywhere in the system will cause a drop in pressure.
- Kinked or Blocked Fuel Lines: Physical damage or obstructions in the fuel lines can impede flow.
Frequently Asked Questions
Q1: Can I use the Innova 3640 on any car?
A1: The Innova 3640 is designed for gasoline (petrol) fuel injection systems. It is not suitable for diesel engines or older carbureted systems.
Q2: What if my car doesn't have a Schrader valve?
A2: Many modern vehicles are equipped with specific test ports that may not look like a Schrader valve, or some may not have an easily accessible port. In such cases, the tee adapter included in the kit is crucial. You will need to carefully splice it into the fuel line as per your service manual's instructions.
Q3: How do I know what the correct fuel pressure should be?
A3: The exact fuel pressure specification for your vehicle can only be found in its official service manual. This is a critical piece of information for accurate diagnosis.
Q4: Is it safe to leave the tester connected while driving?
A4: Generally, it is not recommended to leave the tester connected for extended periods or while driving under normal conditions, as it introduces a potential leak point. Testing under load usually involves specific procedures outlined in the service manual, often with a helper.
Q5: What safety precautions should I take?
A5: Always work in a well-ventilated area, wear eye protection and gloves, ensure the engine is cool, and disconnect the battery. Be aware that fuel is highly flammable.
Conclusion
The Innova 3640 Fuel Injection Pressure Tester is an invaluable tool for diagnosing fuel system issues in gasoline-powered vehicles. By understanding its function, following correct procedures, and always referring to your vehicle's service manual, you can effectively test your fuel pressure, identify potential problems, and keep your engine running smoothly and efficiently. Remember, safety and accuracy are paramount, so never compromise on consulting the official documentation for your specific vehicle.
