JEGS Inline Fuel Pumps: A Comprehensive Guide

When it comes to upgrading or maintaining your vehicle's fuel system, especially for those venturing into the world of electronic fuel injection (EFI), the choice of a fuel pump is paramount. JEGS offers a range of components, including inline fuel pumps, designed to meet various automotive demands. But are they a good fit for your project, and how do they stack up against other options? This comprehensive guide will explore the nuances of inline fuel pumps, their installation, and their role within a sophisticated EFI setup, ensuring you have all the facts to make an informed decision for your vehicle.

Understanding Electronic Fuel Injection (EFI) and Fuel Pumps

Modern vehicles predominantly feature electronic fuel injection systems, a significant advancement over traditional carburettors. EFI systems offer numerous benefits: easier starting in colder weather, improved fuel economy, sharper throttle response, prevention of rich or lean cylinder conditions, and significantly lower emissions. The continuous monitoring of the air/fuel ratio by an EFI system also contributes to enhanced engine longevity.

Converting to an EFI system might sound daunting, requiring specialist expertise. However, with basic mechanical skills, such a conversion can often be completed within a weekend. A critical component in any EFI system is the fuel pump, which can be either an in-tank or an inline unit.

Return-Style vs. Returnless Fuel Systems

One of the primary decisions when setting up an EFI system is whether to opt for a return-style or returnless fuel system. This choice directly influences the fuel pump's operation and system complexity.

Return-Style Fuel Systems

In a return-style system, fuel is continuously pumped from the tank, circulated through the engine, and any excess fuel is returned to the fuel tank. A fuel pressure regulator is employed to maintain consistent fuel pressure within this circuit.

Many technicians favour return-style systems for their consistent fuel pressure and flow. The constant circulation of fuel helps to dissipate heat, keeping the pump cooler and preventing the formation of gas bubbles (vapor-lock) that can disrupt engine operation. However, the downside is that routing heated fuel back to the tank can increase evaporative fuel vapour emissions.

Returnless Fuel Systems

A returnless fuel system operates as a one-way trip for the fuel. The pump draws fuel from the tank and sends it directly to the engine, with no excess fuel returning. Fuel pressure is controlled directly at the pump, often by varying the pump's speed. These are sometimes referred to as 'on-demand' systems.

Returnless systems simplify plumbing considerably. Placing the pump inside the tank (common for returnless) helps isolate it from engine heat, potentially extending its life. However, these systems often operate at higher pressures to mitigate the risk of fuel boiling and vapor-lock in the supply line during hot weather. While both types are viable, many experts, such as those at FAST, often recommend return-style systems for their overall benefits, though returnless options are readily available.

Inline vs. In-Tank Fuel Pumps: The Core Decision

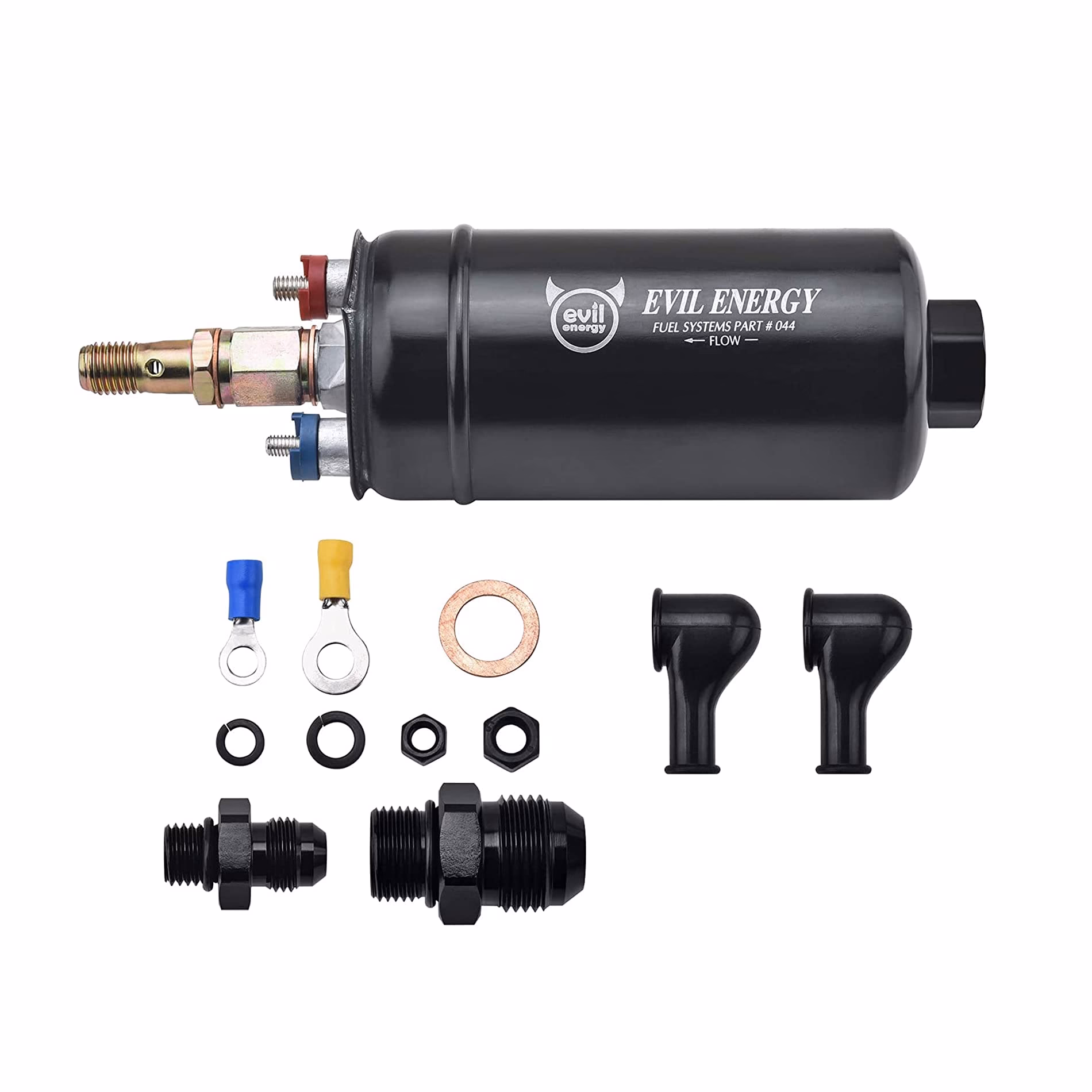

This brings us to the fundamental choice regarding fuel pump placement: in-line or in-tank. As the names suggest, an in-tank pump resides inside the fuel tank, a common setup in most modern vehicles. An inline pump, conversely, is mounted in the main fuel supply line, typically between the fuel tank and the engine.

Experts generally prefer in-tank pumps for several compelling reasons. Firstly, the fuel surrounding an in-tank pump acts as a coolant, significantly extending its operational life. Secondly, electric fuel pumps are inherently more efficient at pushing fuel through a system than at drawing it from a tank. An in-tank pump, being submerged, is always 'pushing' fuel, leading to more efficient delivery and fewer priming issues. This efficiency means the pump can supply more fuel more effectively.

While inline pumps can be simpler to install in many situations, they are highly sensitive to their mounting location. For an inline pump to draw the correct amount of fuel from the tank, it must be mounted as close to the tank as possible and, crucially, lower than the lowest point of the fuel tank. Failure to do so can lead to priming difficulties and inconsistent fuel delivery.

Furthermore, if you're working with an older fuel tank, there's a good chance it contains some dirt and rust. This debris can eventually clog the fuel filter or restrict fuel flow, prematurely shortening the life of even 'lifetime' filters found in many EFI applications. If you opt for an inline pump with an old tank, it is strongly recommended to drop, clean, and inspect the tank thoroughly, or ideally, replace it. This preventative measure ensures the longevity of your fuel system components.

Are JEGS Inline Fuel Pumps Good?

Given the choice between inline and in-tank pumps, and the general preference for in-tank solutions, the question remains: are JEGS inline fuel pumps a good option? The answer is nuanced. While in-tank pumps are often the ideal choice for performance, efficiency, and longevity, there are specific scenarios where an inline pump, such as those offered by JEGS, becomes a necessary and perfectly viable solution.

For instance, if modifying your existing fuel tank for an in-tank pump is impractical, or if you're undertaking a conversion on a classic car where original tank integrity is paramount, an inline pump provides a practical alternative. JEGS, like other reputable suppliers, offers inline pumps that are capable of supporting EFI applications. For example, Holley universal inline fuel pumps, often available through JEGS, are externally mounted for easy installation and can be used for both street and racing vehicles. These pumps are noted for their ability to deliver significant pressure (e.g., 40psi or 60psi editions) and are typically lightweight and compact, making them suitable for various installations.

The trade-off for their ease of installation and versatility can be increased noise compared to an in-tank pump, and potentially a shorter lifespan due to higher operating temperatures and the 'drawing' effort required. However, for their intended applications, where an in-tank solution isn't feasible, a well-chosen and correctly installed JEGS or Holley inline pump can provide the necessary performance and precise fuel flow for your EFI system.

How To Install A JEGS Inline Fuel Pump

The specific steps for installing a JEGS electric fuel pump will vary slightly depending on the exact model, but the core principles remain consistent across most applications. Proper installation is crucial for performance, longevity, and safety.

1. Location, Location, Location: The fuel pump must be installed as close to the fuel tank or fuel cell as possible. This maximises the pump's efficiency by allowing it to 'push' fuel rather than 'draw' it over a long distance, which electric pumps are less efficient at.
2. Optimal Height: The height of the fuel pump needs to be located between the top and bottom of the fuel tank. This positioning ensures proper siphoning and aids in consistent fuel delivery.
3. Vibration and Noise Reduction: Utilise cushion clamps to mount the fuel pump securely. These clamps are designed to absorb vibrations, which not only reduces unwanted pump noise but also protects the pump from potential damage caused by excessive movement.
4. The Essential Pre-Filter: A pre-filter is an absolute necessity. This filter must be installed between the fuel tank and the fuel pump inlet. Its purpose is to capture any contaminants – such as dirt, rust, or debris – that could otherwise enter and damage the delicate internal components of the fuel pump. Neglecting this step is a common cause of premature pump failure.
5. Fuel Line Plumbing and Connections: Once the pump and pre-filter are securely mounted, the fuel line plumbing and connections can be completed. It is vital to use the proper style of fuel line and fittings, selected according to the pressure that will be flowing through them. Using incorrect lines or connections can lead to dangerous leaks or even a fire hazard. Always ensure all connections are tight and leak-free before operating the vehicle.

The Mechanics Behind the Flow: How EFI Systems Work

Once the fuel system is plumbed, whether as a return-style or returnless setup, the operation of an EFI system becomes remarkably simplified for the user. One of the greatest features of electronic fuel injection systems is their self-tuning capability, eliminating the need for constant adjustments typically associated with carburettors. Many EFI systems, like the FAST EZ-EFI 2.0 mentioned in industry discussions, can even self-correct for changes in altitude and weather, optimising fuel economy regardless of environmental conditions.

At the heart of the EFI system is the Electronic Control Unit (ECU). While its internal processes are complex, in simple terms, the ECU contains data tables with values for all sensors at different operating parameters. It constantly monitors various sensors (e.g., airflow, engine load, oxygen sensors) and matches these values to appropriate fuel delivery parameters in its memory. The primary goal is to maintain an air/fuel ratio near 14.7:1, known as stoichiometric – the ideal ratio for complete fuel combustion.

Fuel is precisely metered through fuel injectors, which are essentially electronically controlled valves. The ECU rapidly pulses these injectors, opening and closing their internal valves at an incredibly fast pace, measured in milliseconds (ms). The ECU continuously adjusts the injector's open-to-close time, known as the pulse width (PW), and the time between pulses, or pulse interval (PI), based on real-time sensor data. As engine demand for fuel fluctuates, the sensors relay this requirement to the ECU, which then instantly adjusts the injector pulse width and interval to meet the demand. This infinite adjustability ensures optimal fuel flow under virtually any operating condition.

Modern EFI systems often integrate advanced features such as fuel pulse dampers, which regulate fuel oscillation caused by the rapid opening and closing of injectors. This ensures an extremely precise, stable, and smooth fuel flow, enhancing overall system performance and longevity.

Frequently Asked Questions About Inline Fuel Pumps

Q1: Can I use an inline fuel pump with a carburettor?

A1: Yes, low-pressure inline electric fuel pumps are commonly used with carburettors, especially for performance applications or as replacements for mechanical pumps. However, ensure the pump's pressure rating is appropriate for your carburettor to avoid flooding.

Q2: How do I know what pressure fuel pump I need?

A2: The required fuel pump pressure depends on your engine's fuel delivery system. EFI systems typically require higher pressures (e.g., 40-60 psi for many applications, potentially higher for specific setups), while carburettor systems generally operate at much lower pressures (e.g., 4-7 psi). Always consult your engine's specifications or the EFI system manufacturer's recommendations.

Q3: What are the signs of a failing inline fuel pump?

A3: Common signs include difficulty starting, engine sputtering or stalling (especially under load or at high speeds), a noticeable drop in fuel economy, a whining noise from the pump, or a sudden loss of engine power. These symptoms indicate inconsistent fuel delivery.

Q4: Do inline fuel pumps require a fuel pressure regulator?

A4: For most EFI applications, yes, a fuel pressure regulator is essential to maintain the precise fuel pressure required by the injectors. In return-style systems, the regulator is typically located near the engine, returning excess fuel to the tank. For returnless systems, pressure control is often integrated into the pump or controlled by varying pump speed.

Q5: How often should I replace my fuel filter with an inline pump?

A5: While some EFI applications use 'lifetime' filters, it's generally advisable to inspect and replace fuel filters periodically, especially the pre-filter before the pump. If you're using an older fuel tank or suspect contaminants, more frequent replacement may be necessary. A clogged filter can quickly damage your fuel pump and impair engine performance.

Conclusion

Converting from a carburetted system to electronic fuel injection is becoming increasingly accessible and offers significant benefits in performance, economy, and reliability. While in-tank fuel pumps are often the preferred choice for their efficiency and longevity, JEGS inline fuel pumps, including those from brands like Holley sold by JEGS, provide a robust and practical solution for many applications, particularly when an in-tank conversion isn't feasible. Understanding the distinctions between return-style and returnless fuel systems, and the critical importance of correct installation for inline pumps, will empower you to build a reliable and efficient fuel system. By following the guidelines for proper pump placement, utilising a pre-filter, and ensuring secure, leak-free connections, you can confidently integrate a JEGS inline fuel pump into your vehicle's setup, ensuring dependable fuel delivery for years to come.
