Fuel Injection Pumps: Inline vs. Distributor

In the intricate world of diesel engines, few components are as vital to performance and efficiency as the fuel injection pump (FIP). Often considered the 'heart' of the fuel system, this sophisticated device is responsible for delivering fuel to the engine's cylinders with extreme precision. Without its flawless operation, proper combustion – and indeed, the very running of the engine – would be impossible. This article delves deep into the fascinating realm of fuel injection pumps, shedding light on their fundamental role, exploring the distinct types, and providing crucial insights into their maintenance and potential issues. Whether you're a seasoned mechanic or a curious car owner, understanding these pumps is key to appreciating the power and reliability of diesel technology.

What is a Fuel Injection Pump (FIP)?

At its core, a Fuel Injection Pump (FIP) is a mechanical device engineered to pump fuel from the tank to the engine's injectors under high pressure. Beyond merely pumping, it meticulously controls the timing, quantity, and distribution of fuel to each individual cylinder in a multi-cylinder engine. This precision is paramount for optimal combustion, ensuring that the right amount of fuel is delivered at the exact moment the piston approaches Top Dead Centre (TDC) during the compression stroke.

In older, purely mechanical diesel systems, the FIP was a comprehensive unit that handled pressure generation, metering, and distribution. However, in modern, ECU-controlled vehicles, the FIP's role often shifts primarily to pressurising the fuel line, with electronic injectors and the Engine Control Unit (ECU) taking over the finer points of fuel distribution and metering. Regardless of the system's complexity, the FIP remains a critical link in the fuel delivery chain, driven by the engine's crankshaft or camshaft to synchronise its operation with the engine cycles.

The Crucial Functions of Your FIP

The fuel injection pump performs several critical functions that are indispensable for the efficient operation of a diesel engine. These include:

• Pumping Fuel at High Pressure: This is arguably its most fundamental role. The FIP draws fuel from the tank and elevates its pressure significantly – often to thousands of bar – before sending it to the injectors. This incredibly high pressure is necessary to atomise the diesel fuel into a fine mist as it enters the combustion chamber, allowing for rapid and complete combustion when it mixes with compressed, hot air. In electronic systems, this high-pressure generation is its primary task.
• Metering of the Fuel: The FIP precisely controls the exact amount of fuel supplied to each injector per combustion cycle. This metering function is crucial for fuel economy and emissions control. Delivering too much fuel results in incomplete combustion, black smoke, and wasted fuel, while too little leads to a lack of power and potential misfires.
• Distribution of Fuel: In multi-cylinder engines, the FIP ensures that fuel is delivered to each cylinder in the correct firing order and at the precise moment. This synchronisation is vital for smooth engine operation and balanced power output across all cylinders. Different FIP designs achieve this distribution in various ways, as we'll explore shortly.
• Cooling of Fuel Injectors: Diesel injectors are subjected to extreme temperatures within the combustion chamber. The continuous flow of relatively cooler fuel through the injector body, facilitated by the FIP, helps to dissipate some of this heat, preventing the injectors from overheating and ensuring their longevity.

Delving into Fuel Injection Pump Types

While the fundamental purpose of an FIP remains consistent, their internal mechanisms and designs vary significantly. The three primary types you'll encounter in diesel engines are the Inline, Distributor, and Continuous fuel injection pumps.

Inline Fuel Injection Pump: The Robust Workhorse

The inline fuel injection pump is a classic design known for its robustness and reliability, particularly in heavy-duty applications. As its name suggests, it features multiple pumping elements (plungers and fuel barrels) arranged in a single line, with one plunger dedicated to each engine cylinder. This means an inline pump for a four-cylinder engine would have four plunger-barrel assemblies.

How it Works:

Each plunger reciprocates within its corresponding fuel barrel, driven by a camshaft located beneath them. This camshaft is synchronised with the engine's crankshaft, ensuring precise timing. As a plunger moves downwards, fuel is drawn into the barrel through an inlet valve. During the upward stroke, the plunger compresses the trapped fuel, generating immense pressure. This high-pressure fuel then forces open an outlet valve and travels to its respective injector.

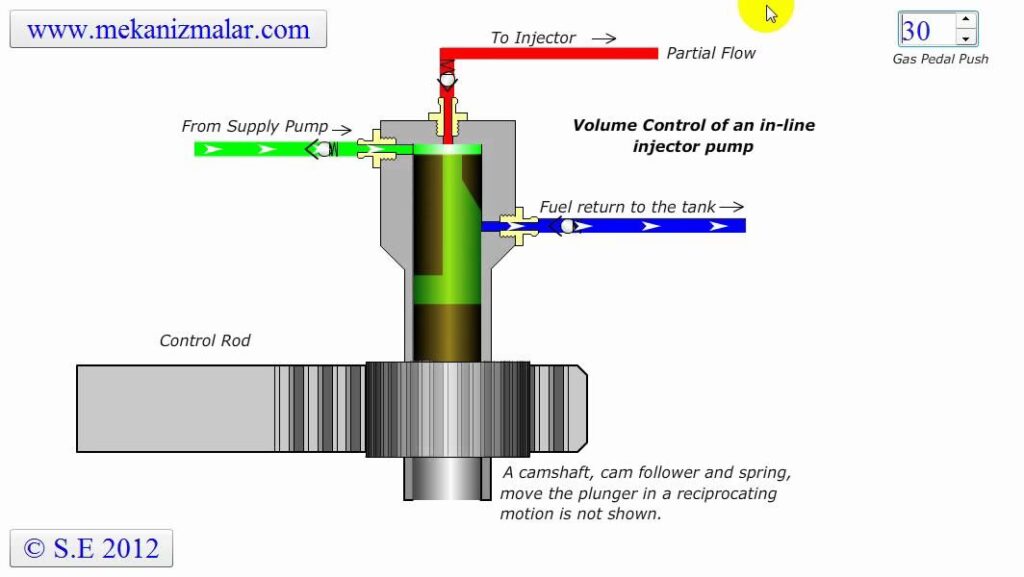

The amount of fuel delivered is meticulously controlled by a combination of a helical groove on the plunger and a rack and pinion arrangement. By rotating the plunger via the rack, the effective pumping stroke can be altered, thereby varying the quantity of fuel injected. A 'spill hole' in the barrel also plays a role in relieving pressure and ending the injection cycle.

Advantages:

• Highly durable and long-lasting.
• Excellent for large, powerful engines.
• Individual cylinder calibration is relatively straightforward.
• Less sensitive to fuel quality variations compared to some other types.

Disadvantages:

• Large and heavy, requiring significant engine bay space.
• More complex to manufacture and often more expensive.
• Slower response to rapid changes in engine speed due to inertia.

Distributor Fuel Injection Pump: The Compact Innovator

In contrast to the inline pump's multi-plunger design, the distributor type pump employs a single pumping mechanism that then uses a rotary distributor to send fuel to the multiple injectors. This makes it significantly more compact and lighter, making it a popular choice for smaller and medium-sized diesel engines found in passenger cars and light commercial vehicles.

How it Works:

The heart of a distributor pump is its rotor, which rotates inside a stationary body (stator). The rotor typically contains a central control passage and multiple suction and discharge passages. The stator body has a single suction port and a number of discharge ports equal to the number of engine cylinders.

Two reciprocating plungers, often diametrically opposed, are used to generate pressure. These plungers are actuated by a cam ring that surrounds the rotor. As the rotor turns, its suction passages align with the stator's suction port, allowing fuel to be drawn into the control passage as the plungers move apart. Subsequently, as the rotor continues to turn, its discharge passage aligns with one of the stator's discharge ports, and the plungers are forced together by the cam ring, injecting the high-pressure fuel into the aligned port and onwards to an injector.

The distribution is achieved sequentially as the rotor aligns its discharge passage with each cylinder's discharge port in the correct firing order. Fuel metering is typically controlled by an internal valve or by varying the effective stroke of the plungers, often through electronic control in modern versions.

Advantages:

• Significantly more compact and lighter than inline pumps.
• Capable of operating at higher engine speeds, offering smoother performance.
• Often more cost-effective to manufacture.
• Better suited for variable timing control.

Disadvantages:

• Can be more sensitive to fuel contamination due to tighter tolerances.
• Repair can be more complex due to integrated design.
• Less precise individual cylinder metering compared to inline pumps.

Continuous Fuel Injection Pump: The Modern Supporter

The continuous fuel injection pump, often found in Common Rail Direct Injection (CRDI) systems, operates differently from the inline and distributor pumps. Unlike the previous types which also handle metering and distribution, the primary function of a continuous pump is to maintain a consistently high pressure in a common rail that supplies all the injectors. It does not meter or distribute fuel to individual cylinders.

In these systems, the ECU (Engine Control Unit) precisely controls the opening and closing of individual electronic injectors, thereby managing the timing and quantity of fuel injected into each cylinder. The continuous pump simply ensures there's always a reservoir of highly pressurised fuel available in the common rail for the injectors to draw upon. This allows for multiple injection events per combustion cycle, leading to improved combustion efficiency, lower emissions, and reduced noise.

Inline vs. Distributor: A Head-to-Head Comparison

To summarise the key differences between these two prevalent mechanical fuel injection pump types, here's a comparative table:

Spotting a Faulty Fuel Injection Pump: Warning Signs

A failing fuel injection pump can manifest in several noticeable symptoms, impacting your vehicle's performance and potentially leading to more severe engine damage if ignored. Being aware of these signs can help you address the issue promptly.

• Engine Sputtering or Misfires: One of the most common indicators of a struggling FIP is an engine that sputters, struggles, or misfires, especially under acceleration or at higher RPMs. This often stems from inconsistent or insufficient fuel delivery to the cylinders, leading to incomplete combustion.
• Whining Noise from the Fuel Tank Area: While some fuel pump noise is normal, an unusually loud or persistent whining sound coming from the vicinity of the fuel tank (where the lift pump, sometimes integrated, might be) can indicate a straining or failing FIP. This could be due to blockages, low fuel levels making the pump work harder, or internal wear.
• Lack of Power When Vehicle is Loaded: If your vehicle struggles to maintain speed or accelerate when carrying a heavy load or going uphill, it could point to a fuel delivery issue. A faulty FIP might not be able to supply the necessary volume or pressure of fuel required for the engine to produce adequate power under increased demand.
• Difficulty Starting or Stalling: A common symptom of a failing FIP is an engine that is difficult to start, takes a long time to crank, or starts briefly only to stall immediately. This indicates that the pump isn't building or maintaining sufficient fuel pressure in the lines for proper ignition.
• Smoky Exhaust and Reduced Fuel Economy: An FIP that is over-fuelling can lead to excessive black smoke from the exhaust, a clear sign of incomplete combustion. Conversely, under-fuelling can also cause smoke (though often grey or white) and a noticeable drop in fuel economy, as the engine struggles to perform efficiently with inadequate fuel.
• Increased Engine Vibration: An FIP that isn't distributing fuel evenly to all cylinders can cause an imbalance in combustion, leading to noticeable engine vibration or roughness, particularly at idle.

If you experience any of these symptoms, it's crucial to have your vehicle inspected by a qualified mechanic. Early diagnosis can prevent more extensive and costly repairs.

Precision Tuning: Phasing and Calibration of Fuel Injection Pump

For mechanical fuel injection pumps, particularly the inline type, two critical adjustment procedures ensure optimal engine performance: phasing and calibration.

Phasing of the Fuel Injection Pump

Phasing refers to the process of adjusting the fuel injection timing for each individual cylinder relative to the engine's crankshaft position. The goal of phasing is to ensure that fuel is injected at the precise moment required for optimal combustion in each cylinder, thereby minimising torque fluctuations. If one cylinder injects fuel too early or too late compared to the others, it can lead to uneven power delivery, rough running, and increased stress on engine components. Proper phasing helps to smooth out the engine's power impulses, reducing noise (like 'gear impact noise') and extending the life of drivetrain components. This procedure is typically performed before calibration.

Calibration of the Fuel Injection Pump

Calibration, on the other hand, is the procedure of adjusting the fuel injection pump to ensure that the exact same quantity of fuel is delivered to all cylinders of a multi-cylinder engine at a given operating condition. Even slight variations in fuel quantity between cylinders can lead to imbalances in power output, increased emissions, and premature wear on specific engine parts. Calibration is vital after any repair, rebuilding, or significant maintenance work on the fuel injection pump to restore its original performance specifications. It ensures that each cylinder contributes equally to the engine's power, leading to smoother operation, better fuel economy, and lower emissions.

Both phasing and calibration require specialised equipment and expertise. They are complex procedures that should only be carried out by trained technicians to ensure the longevity and efficiency of your diesel engine.

Frequently Asked Questions (FAQs)

Can I repair my fuel injection pump myself?

Repairing a fuel injection pump is a highly specialised task that requires specific tools, diagnostic equipment, and a deep understanding of intricate mechanical and hydraulic systems. Attempting a DIY repair without the necessary expertise can lead to further damage, costly mistakes, and potentially unsafe operation. It's always recommended to have FIP issues diagnosed and repaired by a qualified diesel mechanic or a specialist fuel injection shop.

How long do fuel injection pumps typically last?

The lifespan of a fuel injection pump varies greatly depending on the type of pump, engine application, maintenance history, and fuel quality. Mechanical inline pumps are known for their extreme durability, often lasting hundreds of thousands of miles. Distributor pumps tend to have a slightly shorter lifespan dueishing to their more intricate design and sensitivity to contaminants. Modern common rail pumps are also built to last but can be vulnerable to impurities. Proper maintenance, regular fuel filter changes, and using clean, high-quality fuel are crucial for maximising their lifespan.

What causes fuel injection pump failure?

The most common causes of FIP failure include:

• Contaminated Fuel: Water, dirt, or other debris in the fuel is a leading cause of damage, especially to the precision components within the pump.
• Lack of Lubrication: Diesel fuel itself provides lubrication for the pump's internal moving parts. Poor fuel quality or running out of fuel can lead to insufficient lubrication and premature wear.
• Wear and Tear: Like any mechanical component, internal parts of the FIP will eventually wear out over time.
• Overheating: Prolonged operation at high temperatures can degrade seals and internal components.
• Incorrect Maintenance: Skipping fuel filter changes or using incorrect filters can allow contaminants to reach the pump.

Is a fuel injection pump expensive to replace?

Yes, replacing a fuel injection pump can be one of the most expensive repairs on a diesel engine. The cost varies significantly based on the type of pump, the vehicle make and model, and whether you opt for a new, reconditioned, or used unit. Labour costs can also be substantial due to the complexity of the job. It's often a repair that warrants careful consideration of the vehicle's overall value.

Does fuel quality affect the FIP?

Absolutely. Fuel quality is paramount for the health of your FIP. Poor quality fuel, or fuel contaminated with water, dirt, or other impurities, can cause rapid wear to the pump's precision-machined components. Water can cause corrosion, while abrasive particles can score internal surfaces, leading to a loss of pressure and eventual failure. Always use reputable fuel sources and ensure your fuel filter is changed according to the manufacturer's recommendations.
