Inline Fuel Pump: A Visual Guide

The hum of a healthy engine often goes unnoticed, a testament to the seamless operation of its many complex parts. Among these, the fuel pump plays a critical, albeit often unseen, role. Specifically, the inline fuel pump, a common fixture in many modern vehicles, is responsible for precisely delivering fuel from the tank to the engine's combustion chambers. But how exactly does this vital component function? A detailed inline fuel pump diagram is the key to unlocking this understanding. This visual blueprint illustrates the intricate dance of components that ensure your car receives the fuel it needs to perform at its best.

Understanding the Fuel Delivery System

Before delving into the specifics of the inline fuel pump, it's essential to grasp the broader context of the fuel delivery system. This system is a carefully orchestrated network designed to store, filter, and deliver fuel to the engine under the correct pressure. Key components typically include:

• Fuel Tank: The reservoir for the fuel.
• Fuel Lines: Tubing that carries fuel from the tank to the engine.
• Fuel Filter: Removes impurities from the fuel before it reaches the pump and injectors.
• Fuel Pump: The heart of the system, responsible for pressurising and moving the fuel.
• Fuel Pressure Regulator: Maintains the correct fuel pressure within the system.
• Fuel Injectors: Atomise and spray fuel into the engine's combustion chambers.

The inline fuel pump is strategically placed within this system, typically between the fuel tank and the engine, or sometimes within the fuel tank itself (though these are often referred to as in-tank pumps, the principle of operation can be similar). Its primary function is to create the necessary pressure to overcome resistance in the fuel lines and ensure a consistent supply of fuel.

What is an Inline Fuel Pump Diagram?

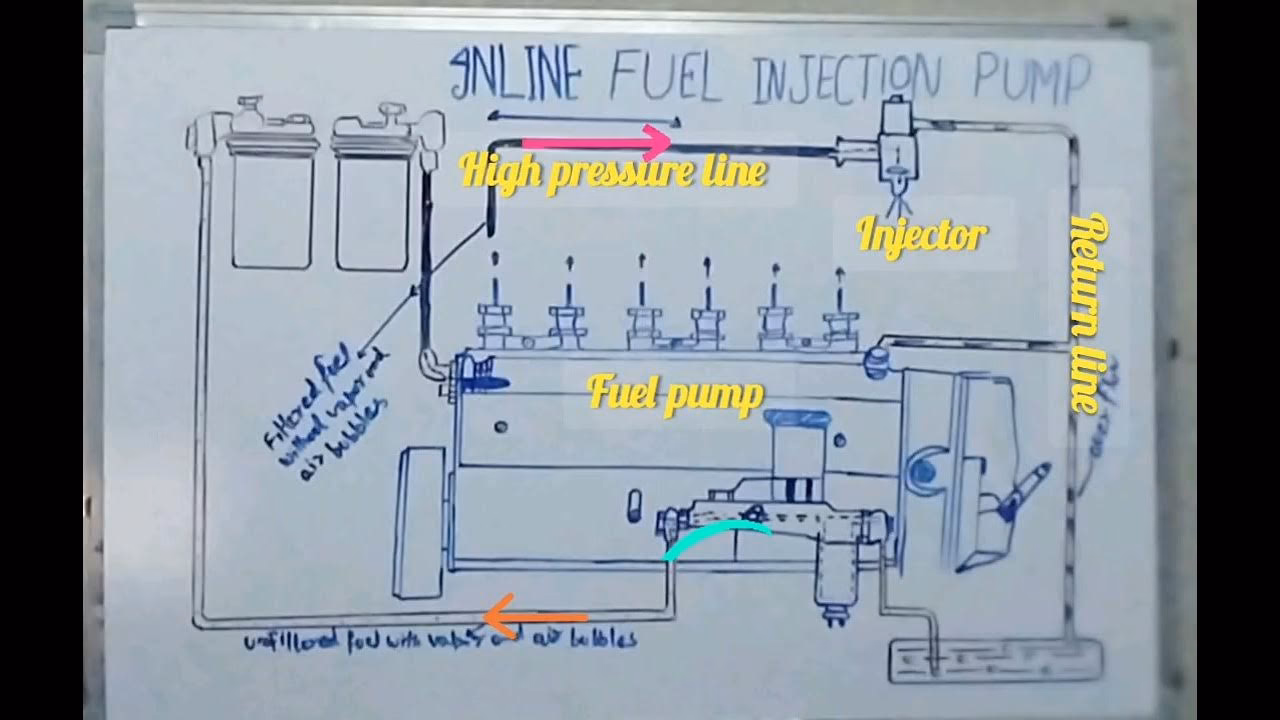

An inline fuel pump diagram is a schematic drawing that visually represents the internal construction and external connections of an inline fuel pump. It serves as an invaluable tool for mechanics, technicians, and even DIY enthusiasts to:

• Identify the various internal components of the pump.
• Understand how these components work together to move and pressurise fuel.
• Trace the flow of fuel through the pump.
• Diagnose potential issues and pinpoint faulty parts.
• Guide installation and replacement procedures.

These diagrams often utilise standardised symbols to represent electrical connections, fluid pathways, and mechanical parts, making them universally understandable within the automotive industry.

Key Components of an Inline Fuel Pump (as depicted in a diagram)

While specific designs can vary between manufacturers and vehicle models, most inline fuel pumps share a common set of internal components. A typical diagram would highlight:

1. Electric Motor

This is the driving force behind the pump. The electric motor, usually a DC motor, receives power from the vehicle's electrical system (typically via a relay and fuse). When energised, it spins at a high speed, powering the pumping mechanism.

2. Impeller/Turbine

Connected to the motor's shaft, the impeller is a rotating component with vanes. As the motor spins, the impeller rotates, drawing fuel into its centre and expelling it outwards due to centrifugal force. This action generates the flow of fuel.

3. Pump Housing/Casing

This is the outer shell of the pump that encloses the motor and impeller. It's designed to withstand the pressure generated by the pump and is typically made of durable materials like plastic or metal. The housing also directs the fuel flow from the impeller to the outlet port.

4. Inlet Port

This is where fuel enters the pump. It's usually connected to the fuel line coming from the fuel tank or a pre-filter. The diagram will show how fuel is drawn into the pump's internal mechanism.

5. Outlet Port

This is where the pressurised fuel exits the pump. It's connected to the next component in the fuel delivery line, typically the fuel filter or directly to the engine's fuel rail.

6. Electrical Connections

Diagrams will clearly show the points where the pump connects to the vehicle's electrical system. This usually involves positive (+) and negative (-) terminals for the motor. Understanding these connections is crucial for proper installation and troubleshooting electrical faults.

7. Internal Seals and Gaskets

These are vital for preventing leaks and ensuring the pump operates efficiently. While not always explicitly detailed in simple diagrams, more complex ones might indicate their presence to maintain pressure integrity.

8. Strainer/Filter (sometimes integrated)

Some inline pumps may have a small, integrated strainer at the inlet to catch larger debris before it enters the pump mechanism. This is a first line of defence against contamination.

How an Inline Fuel Pump Works: A Flow Diagram Perspective

Imagine a simplified flow diagram. Fuel is drawn from the tank, passes through a primary filter, and then enters the inlet port of the inline fuel pump. Inside the pump, the electric motor activates, spinning the impeller. As the impeller rotates, it creates a low-pressure area at its centre, drawing fuel in. The spinning vanes then force the fuel outwards, increasing its velocity and pressure. This pressurised fuel is then directed through the pump housing to the outlet port, where it travels through the fuel lines towards the engine. A pressure regulator, often located elsewhere in the system, ensures that the fuel pressure doesn't exceed a safe operating limit, often by returning excess fuel to the tank.

Common Inline Fuel Pump Issues and Troubleshooting

Understanding an inline fuel pump diagram can be instrumental in diagnosing common problems:

Symptoms of a Failing Inline Fuel Pump:

• Engine sputtering or hesitation: Insufficient fuel pressure leads to an inconsistent fuel supply.
• Difficulty starting: The engine may not receive enough fuel to ignite.
• Reduced engine power: The engine struggles to perform under load due to fuel starvation.
• Engine stalling: Especially when the engine is hot or under acceleration, indicating the pump can't keep up.
• Whining noise from the fuel tank area: While often associated with in-tank pumps, a failing inline pump can sometimes produce unusual noises.

Troubleshooting with a Diagram:

When faced with these symptoms, a technician might consult the inline fuel pump diagram to:

• Check electrical connections: Verify that the pump is receiving the correct voltage and that there are no loose or corroded wires. The diagram will show the polarity of the connections.
• Test fuel pressure: Using a fuel pressure gauge, the pressure can be measured at the fuel rail. If it's low, the pump is a prime suspect. The diagram can help identify the correct ports for testing.
• Inspect fuel filter: A clogged fuel filter can restrict fuel flow, mimicking a failing pump. The diagram shows the pump's position relative to the filter.
• Listen for pump operation: While not always definitive, hearing the pump engage (often a brief hum when the ignition is turned on) can indicate it's receiving power.
• Check for leaks: The diagram can help identify potential leak points in the fuel lines connected to the pump.

Inline vs. In-Tank Fuel Pumps

It's worth noting the distinction between inline and in-tank fuel pumps. While both serve the same fundamental purpose, their placement and design differ:

Frequently Asked Questions

Q1: Can I replace an inline fuel pump myself?

Yes, if you have some mechanical aptitude and the correct tools. However, it's crucial to disconnect the battery, relieve fuel system pressure, and follow a reputable service manual or diagram for your specific vehicle. Safety is paramount when working with fuel systems.

Q2: How long does an inline fuel pump typically last?

The lifespan of an inline fuel pump can vary significantly depending on driving conditions, fuel quality, and maintenance. However, many can last for 100,000 miles or more. Regular replacement of the fuel filter is essential to prolong the pump's life.

Q3: What are the signs of a clogged fuel filter affecting the fuel pump?

A clogged fuel filter will restrict the flow of fuel to the pump, leading to symptoms similar to a failing pump, such as hesitation, reduced power, and difficulty starting. The pump may also work harder, potentially leading to premature failure.

Q4: Is there a specific type of fuel recommended for inline fuel pumps?

Always use the fuel type recommended by your vehicle manufacturer. Using the wrong octane or contaminated fuel can damage the fuel system, including the fuel pump.

Conclusion

The inline fuel pump is a sophisticated piece of automotive engineering, and understanding its operation through a detailed diagram is key to effective maintenance and troubleshooting. By familiarising yourself with the components and their functions, you can better diagnose issues, ensure proper repairs, and keep your vehicle running smoothly. Whether you're a seasoned mechanic or a curious car owner, the humble inline fuel pump diagram is an indispensable resource for maintaining the heart of your vehicle's performance.
