Fixing Leaking Fuel Injector Pumps

A leaking fuel injector pump or injector is a common concern for many vehicle owners, particularly those with higher mileage vehicles. While the injector pump itself often boasts a good reputation, leaks originating from its vicinity are frequently attributed to worn-out or damaged O-rings and seals. These components are typically inexpensive to replace and can effectively resolve the issue. However, addressing these leaks, whether from the pump or the injectors themselves, requires a systematic approach to ensure proper diagnosis and repair. This guide will delve into the common causes, symptoms, and repair procedures for leaking fuel injection systems, providing you with the knowledge to tackle this problem head-on.

Understanding the Injector Pump Leak

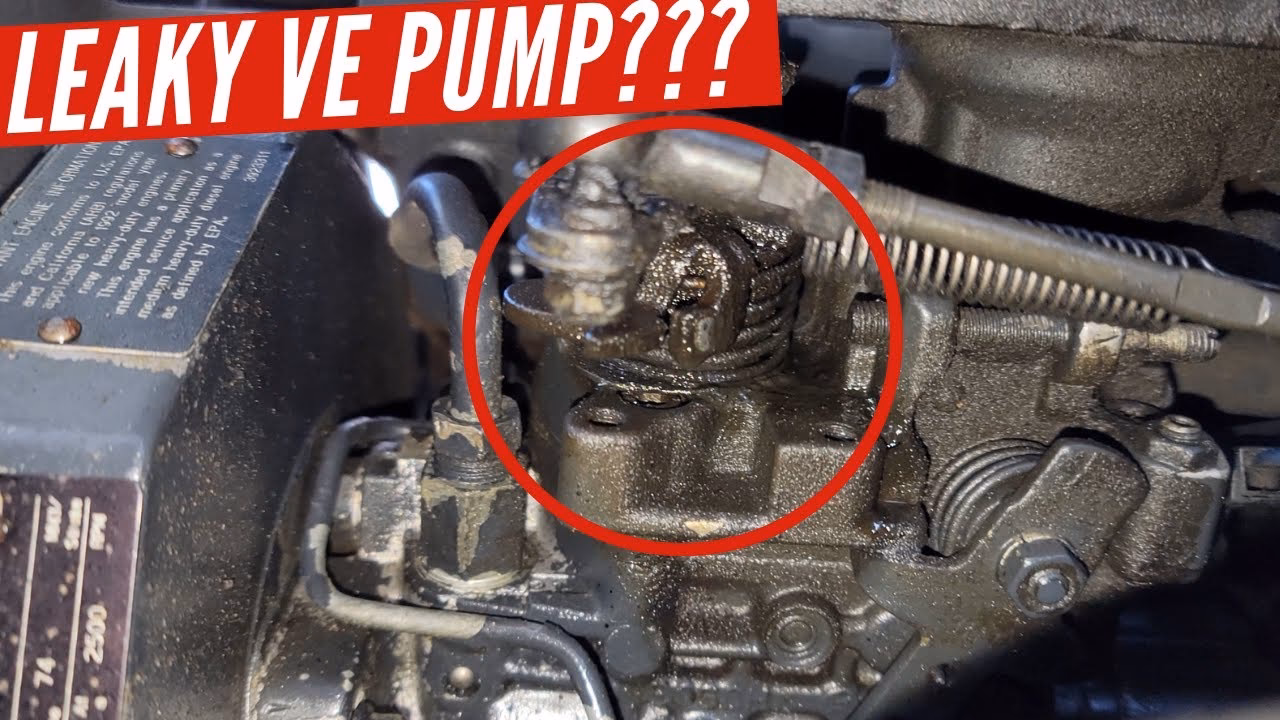

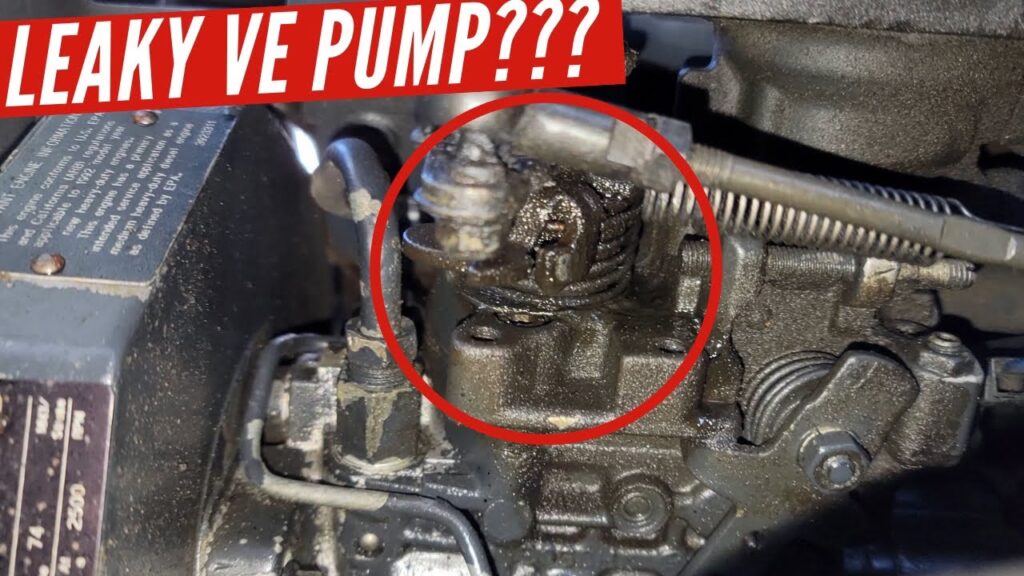

When you notice a leak around your injector pump, the most probable culprit is a failure of the O-rings or seals that are integral to its operation. These rubber seals are designed to prevent fuel from escaping the pump assembly, but over time and with exposure to heat and pressure, they can degrade, crack, or become compressed. This degradation allows fuel to seep out, creating a visible leak and potentially leading to more serious problems if left unaddressed. In some cases, the leak might not be directly from the pump body but from the connections where the fuel lines attach. This could indicate issues with the fittings or the copper crush washers used to seal these connections.

Common Causes of Injector Pump Leaks:

• Worn O-rings and Seals: The most frequent cause, due to age, heat, and chemical exposure.
• Loose Fittings: Connections where fuel lines attach to the pump may become loose over time, allowing fuel to escape.
• Cracked Pump Housing: Though less common, a physical crack in the pump housing can lead to leaks.
• Sealant Failure: Gaskets and sealants used during assembly can degrade, allowing leaks.

The Role of Fuel Injectors

Fuel injectors are critical for the precise delivery of fuel into the engine's combustion chambers. They atomise fuel into a fine spray, ensuring an efficient air-fuel mixture for optimal combustion. When a fuel injector begins to leak, it disrupts this delicate process, leading to a range of performance issues and potential damage.

Symptoms of Leaking Fuel Injectors:

Identifying a leaking fuel injector is crucial for timely repair. Here are the common signs to look out for:

• Fuel Smell: A distinct petrol or diesel odour in the engine bay or cabin is a primary indicator of a fuel leak. This is a serious safety concern due to the flammability of fuel.
• Rough Idle or Stalling: An uneven fuel supply caused by a leaking injector can lead to an unstable idle, with the engine shaking or even cutting out.
• Excessive Exhaust Smoke: A leaking injector can cause an overly rich fuel mixture, leading to unburnt fuel exiting the exhaust, often visible as black or blue smoke.
• Engine Misfires: When injectors don't deliver fuel consistently, some cylinders may receive too much or too little fuel, resulting in misfires, a loss of power, and a rough-running engine.
• Poor Fuel Economy: A leaking injector essentially wastes fuel, leading to a noticeable decrease in your vehicle's miles per gallon (MPG).
• Difficulty Starting: If fuel leaks into the cylinders when the engine is off, it can make starting more difficult.
• Engine Knocking: Excessive fuel in the cylinder can lead to pre-ignition or detonation, causing an audible knocking sound.

Causes of Fuel Injector Leaks:

Several factors can contribute to fuel injector leaks:

• Corrosion and Wear: Over time, the internal components of injectors, including seals and valves, can wear down due to constant use, high temperatures, and fuel pressure fluctuations.
• Contaminants and Debris: Impurities in the fuel can accumulate within the injector, preventing seals from seating properly and causing leaks.
• Mechanical Stress and Vibration: Constant engine vibrations can cause injector components to shift or misalign, affecting seal integrity.
• High Pressure and Temperature Fluctuations: The extreme pressures and temperature cycles within a fuel system can fatigue injector components, leading to leaks.
• Installation Errors: Improper installation, such as incorrect torque on the fuel rail, can prevent a proper seal, allowing fuel to escape.
• Clogged or Broken Injectors: A clogged injector might not atomise fuel correctly, leading to dripping. A physically broken injector will obviously leak.

DIY Repair of a Leaking Injector Pump

While it's possible to tackle injector pump leaks yourself, it requires precision and a clean working environment. If you're not comfortable with this level of mechanical work, it's best to consult a professional.

Step-by-Step Guide to Fixing Injector Pump Leaks:

1. Clean the Engine: Thoroughly clean and degrease the engine bay, especially around the injector pump. Doing this the day before allows ample time for drying. This prevents dirt and debris from entering the fuel system during the repair.
2. Access the Injector Pump: This step varies significantly by vehicle. You may need to remove components like the intake manifold and disconnect vacuum lines. Consult your vehicle's service manual or online forums for specific instructions.
3. Remove Injection Lines: Using a flare nut wrench, carefully disconnect the fuel injection lines from the pump's delivery valves. If you have steel lines, you might need to gently bend them to gain access. Be cautious not to over-bend them, as they will need to be returned to their original shape for reassembly.
4. Remove Delivery Valves: Once the lines are disconnected, you'll need a special splined socket (often available from manufacturers like Bosch) to unscrew the delivery valves from the top of the pump. Keep track of the small spring located inside each valve.
5. Clean the Area: With the valves removed, clean the surrounding area thoroughly using a carb cleaner and a toothbrush. Carb cleaner dries quickly and is ideal as it leaves no residue and prevents water contamination of the fuel system.
6. Replace O-rings and Copper Seats: Carefully remove the old O-ring from around each delivery valve and replace it with a new one. The copper seat, located beneath the spring, should also be replaced. Use tweezers for precise placement.
7. Reassemble: Reassemble the components in the reverse order of removal, ensuring all parts are correctly seated and tightened.

DIY Repair of Leaking Fuel Injectors

Replacing faulty fuel injectors is a common repair that many DIY mechanics can undertake. The process involves careful handling of the fuel system and precise reassembly.

Step-by-Step Guide to Fixing Leaking Fuel Injectors:

1. Identify the Leaking Injector: Inspect the engine for fuel smells or visible leaks around the injectors. Sometimes, diagnostic codes can point to a specific cylinder misfire, helping to pinpoint the faulty injector.
2. Gather Tools and Parts: You will need a set of wrenches, rags, a fuel injector repair kit (containing new O-rings and seals), and potentially new injectors if the current ones are beyond repair.
3. Relieve Fuel System Pressure: Before disconnecting any fuel lines, it's crucial to relieve the pressure in the fuel system. This is typically done by removing the fuel pump fuse or relay and running the engine until it stalls.
4. Disconnect Components: Carefully detach any components that obstruct access to the fuel rail and injectors, such as the air intake system or electrical connectors to the injectors.
5. Remove Fuel Rail and Injectors: Loosen the bolts securing the fuel rail, then gently lift it to expose the injectors. Unplug the electrical connectors from the injectors and carefully pull the injectors out of their mounting ports.
6. Replace Seals/O-Rings: If you are replacing seals or O-rings on existing injectors, carefully remove the old ones and install the new ones, ensuring they are properly seated. If installing new injectors, they usually come with new seals.
7. Install New Injector: Insert the new or refurbished injector into its port, ensuring it is correctly oriented. Reinstall the fuel rail, tightening the mounting bolts evenly.
8. Reassemble Components: Reconnect all electrical connectors, the fuel rail, and any other components that were removed. Ensure all connections are secure.
9. Reconnect Battery and Test: Reconnect the battery, start the engine, and carefully inspect for any fuel leaks around the injectors and fuel rail. Listen for smooth engine operation and check for any illuminated warning lights.

Important Considerations and Potential Consequences

Can you drive with a leaking fuel injector? While you might be able to drive for a short period, it is strongly discouraged. Leaking fuel is a significant fire hazard. Furthermore, the disrupted fuel delivery will negatively impact engine performance, leading to reduced efficiency, potential misfires, and eventual engine damage. The unburnt fuel can also wash away lubricating oil from cylinder walls, leading to increased wear and lower compression. It can also damage the catalytic converter.

Consequences of Ignoring Leaks:

• Catalytic Converter Damage: Unburnt fuel entering the catalytic converter can cause it to overheat and fail, a costly repair.
• Engine Oil Dilution: Fuel leaking into the crankcase dilutes the engine oil, reducing its lubricating properties and accelerating engine wear.
• Reduced Engine Life: Persistent misfires and poor lubrication can significantly shorten the lifespan of your engine.
• Fire Hazard: Leaking fuel in a hot engine bay is a serious fire risk.

Professional Diagnosis and Repair:

If you are unsure about diagnosing or repairing fuel system leaks, it is always best to seek professional assistance. Mechanics have specialised tools and knowledge to accurately pinpoint the source of the leak and perform the necessary repairs safely and effectively. They can also perform a thorough inspection of the entire fuel system to identify any other potential issues.

Frequently Asked Questions

Q1: What happens if a fuel injector leaks into the cylinder?

A1: If a fuel injector leaks into the cylinder, it can cause poor fuel atomisation, leading to engine misfires, rough idling, reduced power, and increased fuel consumption. It can also wash oil from the cylinder walls, leading to increased wear and potential engine damage. Unburnt fuel can also damage the catalytic converter.

Q2: Can you swap fuel injectors between cylinders to test them?

A2: In many modern vehicles, fuel injectors are electronically coded to specific cylinders and the Engine Control Unit (ECU). Swapping them can lead to incorrect fuel delivery and potential engine running issues. It's generally not recommended unless you are certain your vehicle's ECU can adapt or if you plan to re-code the injectors, which requires specialised diagnostic equipment.

Q3: What is the difference between a leaking injector pump and a leaking injector?

A3: A leaking injector pump typically refers to leaks originating from the pump assembly itself, often due to worn seals or fittings on the pump. A leaking injector refers to a fault within the individual injector unit, causing it to drip or spray fuel incorrectly.

Q4: How can I tell if my injector pump is leaking?

A4: Signs include a visible fuel leak around the injector pump, a strong fuel smell, and potentially a rougher-running engine or performance issues. Regular visual inspections of the pump area are recommended.

Q5: Are fuel injector cleaning additives effective?

A5: While some additives may offer minor cleaning benefits for very light deposits, they are generally not effective for repairing leaks or addressing significant injector issues. For serious problems or to resolve leaks, professional cleaning or replacement of the injectors is usually required.

Comparative Table: Injector Pump vs. Injector Leaks

Addressing fuel leaks in your vehicle's injection system is paramount for safety, performance, and the longevity of your engine. Whether it's the injector pump or an individual injector that's the source of the problem, a timely and accurate diagnosis, followed by appropriate repair, will prevent more significant and costly issues down the road. Regular maintenance and awareness of these potential problems are key to keeping your vehicle in optimal condition.
