Understanding Your Car's Diagnostic System

That dreaded moment when a warning light illuminates on your dashboard can send a shiver down any driver's spine. Is it serious? Is it expensive? For many years, deciphering such cryptic signals required a mechanic's intuition or laborious, costly troubleshooting. However, thanks to the advent of sophisticated car diagnostic systems, understanding what ails your vehicle has become far more precise and efficient. These systems act as your car's digital health monitor, capable of pinpointing issues long before they escalate into major breakdowns.

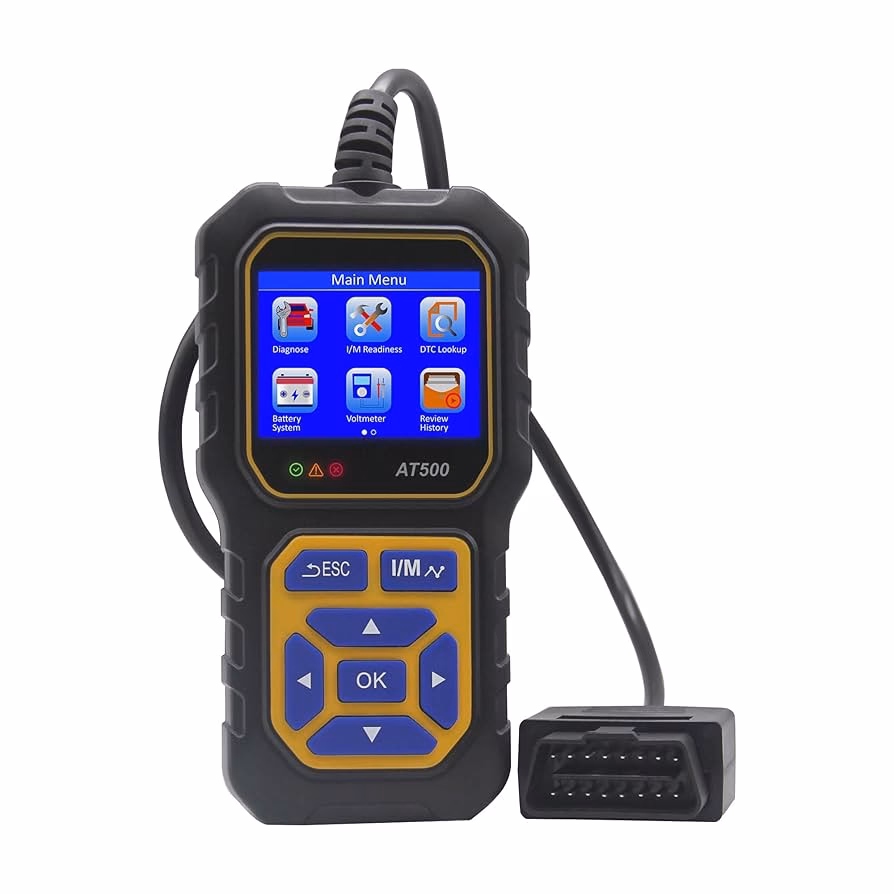

A car diagnostic system, at its core, is a sophisticated electronic tool designed to interface with your vehicle's onboard computer systems. Modern cars are veritable networks of electronic control units (ECUs) – tiny computers that manage everything from the engine and transmission to the brakes, airbags, and even the infotainment system. These ECUs constantly monitor a vast array of sensors, collecting data on performance, emissions, and the operational status of various components. When a sensor detects a reading outside of its predefined parameters, or a component malfunctions, the relevant ECU logs a fault and often illuminates a corresponding warning light on the dashboard. This is where the diagnostic system comes into play: it connects to the car's diagnostic port, retrieves these stored fault codes and live data, and translates them into understandable information for a mechanic or an informed car owner.

The Evolution of On-Board Diagnostics (OBD)

The journey of car diagnostic systems began in a much simpler form. Early attempts at automotive diagnostics were primarily proprietary, with each manufacturer developing their own unique systems. This made troubleshooting a complex affair, requiring specialised tools for every brand. The real revolution began with the standardisation of On-Board Diagnostics, commonly known as OBD.

• OBD-I: Introduced in the 1980s, OBD-I systems were a rudimentary step towards standardisation, primarily focusing on emissions-related issues. While they offered some basic fault codes, they lacked uniformity in their connectors and code definitions across different manufacturers, still presenting challenges for universal diagnostics.
• OBD-II: The true game-changer arrived in the mid-1990s with OBD-II. Mandated for all cars sold in the USA from 1996 onwards (and subsequently adopted globally, including the UK), OBD-II established a universal set of diagnostic trouble codes (DTCs), a standardised connector (the 16-pin J1962 connector), and common communication protocols. This standardisation allowed for the development of universal diagnostic tools capable of reading generic codes from virtually any OBD-II compliant vehicle. It's the foundation upon which almost all modern car diagnostic systems operate.

Beyond OBD-II, some manufacturers have developed even more advanced, proprietary diagnostic protocols that run concurrently with the standard OBD-II. These often require dealer-level tools or specialised aftermarket software, such as Esys Psdzdata for BMW vehicles, to access deeper layers of control module information, perform coding, or update software.

How Car Diagnostic Systems Work

The process of a car diagnostic system is fascinatingly intricate, yet follows a logical flow:

1. Sensor Data Collection: Hundreds of sensors are strategically placed throughout your vehicle. These sensors constantly monitor parameters such as engine RPM, oxygen levels in the exhaust, coolant temperature, vehicle speed, brake pressure, steering angle, and countless others.
2. ECU Processing: The data from these sensors is fed into the relevant Electronic Control Units (ECUs). For example, the Engine Control Unit (ECU or PCM - Powertrain Control Module) manages engine performance, while the Transmission Control Unit (TCU) handles gear changes, and the Anti-lock Braking System (ABS) module controls braking. Each ECU has pre-programmed thresholds and operational logic.
3. Fault Detection and Code Storage: If an ECU detects a reading outside of its normal operating range, or if a component fails to respond as expected, it registers a Diagnostic Trouble Code (DTC). These codes are alphanumeric sequences (e.g., P0420 for Catalyst System Efficiency Below Threshold) that correspond to specific problems. The ECU then stores this code in its memory and often illuminates a warning light on the dashboard (most famously, the Check Engine Light).
4. Communication Protocol: When a diagnostic tool is connected to the vehicle's OBD-II port, it communicates with the ECUs using one of several standardised protocols (e.g., CAN, ISO 9141, KWP2000).
5. Data Retrieval and Interpretation: The diagnostic tool requests information from the ECUs. This includes stored DTCs, 'freeze frame' data (a snapshot of sensor readings at the exact moment a fault occurred), and live data streams (real-time sensor readings). The tool then displays this information in a user-friendly format, often providing descriptions for the generic DTCs. More advanced tools can also perform bi-directional controls, allowing technicians to activate components (like fuel pump relays or cooling fans) or perform calibrations.

Types of Diagnostic Tools

The market offers a wide spectrum of diagnostic tools, catering to different needs and budgets:

• Basic OBD-II Code Readers: These are the simplest and most affordable tools. They can read and clear generic OBD-II DTCs and sometimes display basic live data. They are ideal for quick checks when a warning light comes on, but offer limited functionality beyond that.
• Mid-Range Diagnostic Scanners: Stepping up, these tools provide more extensive features. They can access manufacturer-specific codes in addition to generic ones, offer more comprehensive live data streams, graph data, perform some bi-directional tests (e.g., resetting service lights, performing battery registrations), and access modules beyond just the engine (e.g., ABS, SRS - Supplemental Restraint System).
• Professional/Dealer-Level Diagnostic Systems: These are the most powerful and expensive tools, often proprietary to specific manufacturers or capable of deep dives into multiple brands. They offer complete access to all vehicle modules, advanced coding and programming capabilities (e.g., coding new injectors, updating ECU software), guided diagnostics, oscilloscope functions, and detailed wiring diagrams. Examples include the aforementioned Esys Psdzdata for BMW, or manufacturer-specific systems used in garages like VCDS for VAG group vehicles. These tools require significant training to operate effectively.

Comparison of Diagnostic Tool Types

Understanding Common Diagnostic Trouble Codes (DTCs)

DTCs are standardised, but their meaning can sometimes be complex. Most OBD-II codes follow a specific structure:

• First Character (System):
  • P: Powertrain (Engine, Transmission, Emissions) - Most common.
  • B: Body (Airbags, Power Seats, Central Locking)
  • C: Chassis (ABS, Traction Control, Steering)
  • U: Network Communication (Between ECUs)
• Second Character (Code Type):
  • 0: Generic (SAE standard)
  • 1: Manufacturer-specific
• Third Character (Sub-system): Indicates the specific area within the system (e.g., 1 for fuel/air metering, 2 for fuel injection, 3 for ignition, 4 for emissions, etc.).
• Fourth and Fifth Characters: Provide the specific fault identification.

For example, a P0301 code indicates a generic (0) powertrain (P) issue in the ignition system (3), specifically a misfire on cylinder 1 (01).

The Benefits of Utilising Car Diagnostic Systems

Integrating diagnostic checks into your vehicle maintenance routine offers numerous advantages:

• Early Fault Detection: Diagnostic systems can often detect problems before they manifest as noticeable symptoms or cause significant damage. Catching issues like a failing oxygen sensor early can prevent more costly repairs down the line.
• Accurate Problem Identification: Gone are the days of guesswork. A diagnostic scan provides specific fault codes, significantly narrowing down the potential causes of a problem, saving time and labour costs.
• Cost Savings: By accurately identifying the root cause, you avoid replacing parts unnecessarily. Preventative maintenance, guided by diagnostic insights, can also prolong the life of components and improve fuel efficiency.
• Improved Safety: Issues with critical safety systems like ABS or airbags can be immediately flagged, allowing for prompt repair and ensuring your vehicle remains safe to drive.
• Enhanced Performance: Correcting underlying issues identified by diagnostics can restore optimal engine performance, fuel economy, and overall drivability.
• Emissions Compliance: Diagnostic systems play a crucial role in monitoring emissions-related components, helping vehicles pass MOT tests and comply with environmental regulations.

When Should You Use a Diagnostic System?

While the most obvious time to use a diagnostic system is when a warning light appears, there are other scenarios where a scan can be beneficial:

• Illuminated Warning Lights: Any dashboard warning light (Check Engine, ABS, Airbag, Battery, etc.) warrants an immediate diagnostic scan.
• Performance Issues: If your car is exhibiting unusual symptoms like reduced power, poor fuel economy, rough idling, stalling, or strange noises, a diagnostic scan can help uncover the cause.
• Pre-Purchase Inspection: Before buying a used car, a diagnostic scan can reveal hidden fault codes or intermittent issues that might not be immediately apparent during a test drive. This can be a vital step to avoid purchasing a vehicle with underlying problems.
• Post-Repair Verification: After a repair, a diagnostic scan can confirm that the fault has been cleared and that no new codes have appeared, ensuring the repair was successful.
• Routine Maintenance: Some modern vehicles benefit from regular diagnostic checks as part of their service schedule, allowing for proactive maintenance and software updates.

DIY Diagnostics vs. Professional Service

The choice between performing diagnostics yourself or taking your car to a professional depends on the complexity of the issue and your comfort level with automotive repair.

• DIY Diagnostics: For basic warning lights and general troubleshooting, a simple OBD-II code reader can be incredibly useful. It allows you to quickly identify generic codes, research potential causes online, and sometimes clear the code if it's a transient issue. This can save you a trip to the garage and provide peace of mind. However, interpreting codes correctly and performing repairs based solely on a code can be risky without proper knowledge. A code merely points to a symptom, not always the root cause.
• Professional Service: For complex issues, manufacturer-specific codes, or problems requiring advanced testing, coding, or programming, a professional mechanic with high-end diagnostic equipment is indispensable. They possess the expertise to accurately interpret data, perform deeper diagnostic tests, and execute the necessary repairs. While it incurs a cost, it often prevents misdiagnosis and ensures the job is done correctly, ultimately saving money and frustration in the long run.

Frequently Asked Questions About Car Diagnostic Systems

Q: Can a diagnostic tool fix my car?
A: No, a diagnostic tool itself does not fix your car. It identifies the problem by reading codes and live data. The actual repair involves addressing the component or system that is faulty. Think of it as a doctor's stethoscope; it helps diagnose, but doesn't perform surgery.

Q: What does the Check Engine Light (CEL) mean?
A: The Check Engine Light, also known as the Malfunction Indicator Lamp (MIL), indicates that the vehicle's onboard diagnostic system has detected a fault within the engine, transmission, or emissions system. It can be triggered by anything from a loose fuel cap to a major engine malfunction. A diagnostic scan is necessary to determine the specific code and its meaning.

Q: Are all diagnostic tools the same?
A: Absolutely not. They vary significantly in price, features, and capabilities. Basic code readers are limited to generic codes, while professional systems offer deep dives into manufacturer-specific data, bi-directional controls, and coding functions. The more advanced the tool, the more comprehensive its diagnostic capabilities.

Q: How much does a diagnostic scan cost at a garage?
A: The cost of a diagnostic scan can vary widely depending on the garage and the complexity of the issue. A basic scan for generic codes might be relatively inexpensive or even free at some service centres, while a full diagnostic session requiring specialist equipment and technician time could range from £50 to £150 or more, especially for complex or intermittent faults that require extensive testing.

Q: Can I diagnose my car at home?
A: Yes, for basic issues and generic OBD-II codes, you can use an affordable code reader at home. This is great for initial checks. However, for deeper diagnostics, manufacturer-specific issues, or complex problems requiring advanced analysis, professional tools and expertise are usually required.

Q: Will clearing a code fix the problem?
A: Clearing a code simply erases it from the ECU's memory and turns off the warning light. It does not fix the underlying problem. If the fault that triggered the code is still present, the code will reappear, often after a certain number of driving cycles. Clearing codes without addressing the root cause is merely a temporary concealment.

In conclusion, car diagnostic systems are indispensable tools in modern automotive maintenance. They empower both professional mechanics and informed car owners to understand the complex internal workings of vehicles, moving beyond guesswork to precise problem identification. By embracing these systems, we can ensure our vehicles remain reliable, safe, and efficient on the road, ultimately saving time, money, and preventing minor issues from escalating into major headaches.
