Your Car's Fuel System: Pumps & Injectors Explained

In the intricate world of automotive mechanics, few systems are as critical yet often overlooked as the fuel delivery system. It’s the unsung hero responsible for getting the precise amount of fuel from your tank to the engine's combustion chambers, ensuring your vehicle runs smoothly, efficiently, and reliably. Understanding its core components – the fuel feed pump, filters, injection pump, governor, and injectors – is key to appreciating the engineering marvel that powers your daily commute or adventurous road trip.

The Fuel Feed Pump: Your Engine's Initial Fuel Supplier

Every journey begins with a single step, and for your engine's fuel, that step is taken by the fuel feed pump. Its primary role is to draw fuel from the main fuel tank and deliver it at a relatively low-pressure to the next stage of the system, typically the fuel filter and then the injection pump. Without this initial push, the complex high-pressure system further down the line would simply starve.

Historically, many vehicles, particularly older diesel engines and carburetted petrol engines, utilised mechanical fuel feed pumps. These pumps are often mounted on the engine block and are driven by the camshaft, using a diaphragm or piston to create the necessary suction and pressure. As automotive technology evolved, electric fuel pumps became the standard. Found either inside the fuel tank (in-tank pump) or along the fuel line (in-line pump), electric pumps offer consistent pressure, are quieter, and can be precisely controlled by the vehicle's engine control unit (ECU). Symptoms of a failing fuel feed pump can include difficulty starting, a noticeable whining noise from the fuel tank area, stalling at high speeds, or a general loss of engine power, as the engine isn't receiving an adequate supply of fuel.

Fuel Filters: The Unsung Heroes of Purity

Imagine trying to run a highly sensitive machine with dirty, abrasive particles constantly flowing through it – it wouldn't last long, would it? This is precisely why fuel filters are an indispensable part of your vehicle's fuel system. Their crucial role is to prevent dust, rust, debris, and other abrasive particles from entering and damaging the delicate and precisely engineered components further downstream, such as the fuel injection pump and the fuel injectors. Fuel contamination, even microscopic, can lead to significant wear and tear, reducing efficiency and ultimately causing costly failures.

Most fuel systems employ at least one, and often two, types of filters. A primary filter, usually coarser, might be located near the tank or before the feed pump, designed to catch larger particles. A secondary, finer filter is typically situated between the feed pump and the injection pump, ensuring that only highly purified fuel reaches the high-precision components. For diesel engines, fuel filters often also incorporate a water separator, as water contamination can be particularly damaging to diesel injection systems. Regular replacement of fuel filters, as per your vehicle's service schedule, is paramount. Neglecting this simple maintenance task can lead to reduced fuel flow, engine hesitation, loss of power, and ultimately, premature failure of expensive components like the injection pump or injectors.

The Injection Pump: Precision at High Pressure

If the fuel feed pump is the initial supplier, the injection pump is the heart of the fuel delivery system, especially in diesel engines and older direct-injection petrol systems. Its dual role is to precisely metre the exact amount of fuel required by the engine for each combustion cycle and then to pressurise that fuel to incredibly high-pressure levels – often hundreds or even thousands of bars. This immense pressure is necessary to overcome the high compression pressures within the engine cylinders and to ensure the fuel can be effectively atomised by the injectors.

Historically, various types of injection pumps have been used. In-line pumps feature a separate pumping element for each cylinder, driven by a camshaft within the pump itself. Rotary distributor pumps, on the other hand, use a single pumping element and a distribution mechanism to send fuel to each cylinder in sequence. Modern diesel engines predominantly use Common Rail (CR) systems, where a high-pressure pump continuously supplies fuel to a common rail (a high-pressure accumulator) that feeds all the injectors. The injection pump's operation is synchronised with the engine's crankshaft and camshaft, ensuring that fuel is delivered at the exact right moment for optimal combustion. A malfunctioning injection pump can lead to severe performance issues, including misfires, excessive smoke, poor fuel economy, and engine stalling.

The Governor: Orchestrating Fuel Delivery

While the injection pump handles the precision and pressure, the governor acts as the conductor of the fuel system orchestra. Its vital function is to ensure that the amount of fuel supplied to the engine is precisely in accordance with the variation in load and desired engine speed. In simpler terms, it prevents the engine from over-speeding when there's no load (e.g., when idling) and ensures sufficient fuel is delivered to maintain power when under heavy load (e.g., climbing a hill).

Governors can be mechanical, electronic, or a combination of both. Mechanical governors use weights and springs that react to engine speed, physically adjusting the fuel rack or control sleeve within the injection pump. Electronic governors, prevalent in modern vehicles, utilise sensors to monitor engine speed, throttle position, and other parameters, sending signals to the engine's ECU, which then controls the fuel injection system (including the injection pump and injectors) to maintain the desired speed and power output. The governor is crucial for smooth engine operation, fuel efficiency, and preventing engine damage from excessive RPMs. A faulty governor can result in erratic engine speeds, unstable idling, or a lack of response to accelerator pedal input.

Fuel Injectors: The Atomisation Specialists

The final act in the fuel delivery play belongs to the fuel injectors. These sophisticated nozzles are responsible for taking the high-pressure fuel from the injection pump (or common rail) and precisely spraying it into the engine's combustion chambers or intake manifold. The key to efficient combustion is not just getting fuel into the engine, but delivering it in a finely atomised mist. This atomisation creates a large surface area for the fuel to mix thoroughly with air, leading to more complete and efficient burning.

Fuel injectors can vary significantly depending on the engine type. In older diesel engines, mechanical injectors open when fuel pressure reaches a certain point. In modern petrol engines, port fuel injection (PFI) involves injectors spraying fuel into the intake manifold, while direct injection (DI) systems spray fuel directly into the combustion chamber. Modern diesel common rail injectors are highly sophisticated electronic devices (solenoid or piezoelectric) that can open and close multiple times per combustion cycle (multi-shot injection) for optimal combustion, emissions, and noise reduction. A clogged or faulty injector can lead to a myriad of problems: misfires, rough idling, reduced fuel economy, increased emissions, loss of power, and even engine damage if not addressed promptly. Symptoms might include black smoke from the exhaust (unburnt fuel), a strong fuel smell, or persistent engine warning lights.

The Symphony of Fuel Delivery: How They All Work Together

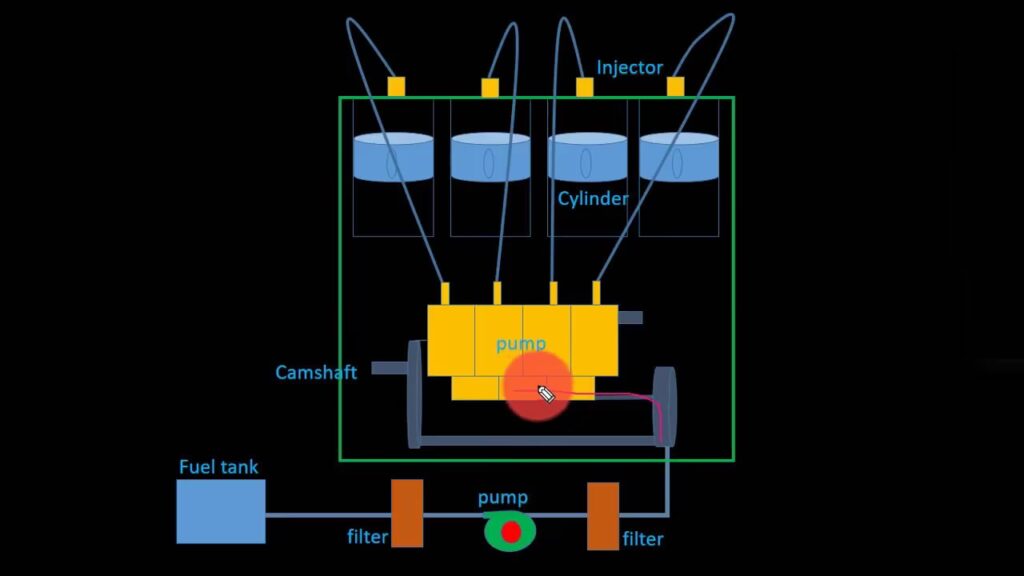

Understanding each component individually is one thing, but appreciating how they harmonise is another. The process begins with the fuel feed pump drawing fuel from the tank. This fuel then passes through the fuel filters, ensuring it's free of harmful contaminants. The clean fuel is then delivered to the injection pump, which precisely metres the required amount and then elevates its pressure significantly. The governor constantly monitors engine load and speed, instructing the injection pump to adjust the fuel quantity accordingly. Finally, the high-pressure, precisely metered fuel is delivered to the injectors, which atomise it into a fine spray directly into the engine's cylinders (or intake manifold), ready for ignition and power generation. Each component's precise operation is vital for the entire system's efficiency, reliability, and the engine's overall performance.

Comparative Overview of Fuel System Components

To summarise the distinct yet interconnected roles of these critical components, let's look at their primary functions:

Common Issues and Maintenance Tips

A properly maintained fuel system is crucial for your vehicle's longevity and performance. Here are some common issues and essential maintenance advice:

• Fuel Filter Clogging: The most common issue. Symptoms include reduced power, hesitation, poor fuel economy, and difficulty starting. Always adhere to manufacturer-recommended replacement intervals, especially for diesel vehicles where water separation is also critical.
• Fuel Pump Failure: Can manifest as complete engine failure, hard starting, or a noticeable whine from the fuel tank. Often requires replacement, as internal components wear out.
• Injector Clogging/Failure: Leads to misfires, rough idling, increased emissions (smoke), and reduced fuel economy. Using quality fuel and occasional use of reputable fuel system cleaners can help, but severe clogging often requires professional cleaning or replacement.
• Injection Pump Wear: Less common but more severe. Can cause major performance issues and significant repair costs. Often linked to poor fuel quality or neglected filter changes.
• Governor Malfunctions: Leads to erratic engine speed, poor throttle response, or inability to maintain consistent RPMs. Often electronic in modern vehicles, requiring diagnostic tools.

The best defence against these issues is proactive maintenance. Always use high-quality fuel from reputable suppliers, as cheap or contaminated fuel is a primary cause of system breakdown. Adhere strictly to your vehicle's service schedule for fuel filter replacements. If you notice any changes in your vehicle's performance related to fuel delivery, seek professional diagnosis promptly to prevent minor issues from escalating into major repairs.

Frequently Asked Questions (FAQs)

What are the signs of a failing fuel feed pump?

Common signs include the engine cranking but not starting, difficulty starting when the engine is warm, sputtering or hesitation at high speeds, a noticeable whining noise coming from the fuel tank, or a sudden loss of power while driving. If you suspect an issue, it's best to have it checked by a qualified mechanic.

How often should fuel filters be changed?

The replacement interval for fuel filters varies significantly by vehicle manufacturer and fuel type. For petrol engines, it might be every 30,000 to 60,000 miles, or even 'lifetime' in some modern designs (though this is debatable). For diesel engines, replacement is typically more frequent, often every 10,000 to 20,000 miles, due to the higher sensitivity of diesel injection systems to contaminants and water. Always consult your vehicle's owner's manual or service schedule for the precise recommendation.

Can I clean dirty fuel injectors myself?

While various 'fuel injector cleaner' additives are available and can help with minor carbon build-up or as a preventative measure, they are often insufficient for heavily clogged injectors. For significant blockages, professional ultrasonic cleaning or even replacement by a mechanic is usually required. Attempting to manually clean injectors without proper tools and knowledge can damage them.

What's the difference between a fuel feed pump and a high-pressure (injection) pump?

The fuel feed pump (or lift pump) is responsible for drawing fuel from the tank and delivering it at relatively low pressure (e.g., 2-5 bar) to the front of the engine, typically to the fuel filter and then the high-pressure pump. The high-pressure pump (often referred to as the injection pump in older systems, or the high-pressure pump in common rail systems) then takes this low-pressure fuel and significantly increases its pressure (e.g., 200-2000+ bar) while also precisely metering the amount, before sending it to the injectors for combustion.

How does the governor affect my vehicle's performance and fuel economy?

The governor is crucial for maintaining consistent engine speed and optimising fuel delivery based on load. A well-functioning governor ensures that your engine doesn't over-rev or stall, provides smooth acceleration, and maintains efficient operation across various driving conditions. A faulty governor can lead to erratic engine speeds, poor throttle response, and negatively impact fuel economy as it might not be delivering the optimal amount of fuel for the given load.

Why is fuel quality so important for these components?

Poor quality fuel often contains higher levels of contaminants, water, and impurities that can quickly clog fuel filters, corrode internal components of pumps, and lead to carbon build-up or blockages in injectors. Using high-quality, clean fuel is the single most effective preventative measure against premature wear and failure of your vehicle's entire fuel delivery system, saving you potentially significant repair costs.

In conclusion, the fuel feed pump, filters, injection pump, governor, and fuel injectors form a sophisticated and interconnected system that is fundamental to your vehicle's performance. Each component plays a vital, distinct role in ensuring that fuel is precisely delivered, metered, pressurised, and atomised for optimal combustion. Regular maintenance, including timely filter replacements and the use of high-quality fuel, is not just recommended but essential for the longevity and efficient operation of this critical automotive system. Understanding these components empowers you to recognise potential issues early, contributing to a safer and more reliable driving experience.
