Wheel Alignment Rack Essentials

Ensuring your vehicle's wheels are correctly aligned is paramount for optimal driving performance, tyre longevity, and overall vehicle safety. At the heart of this crucial maintenance task lies the wheel alignment rack. But what exactly constitutes a wheel alignment rack, and what are the essential parts that keep these sophisticated systems running efficiently? This article delves into the intricacies of wheel alignment racks, exploring their components, the types of alignments they facilitate, and why understanding their function is vital for any car owner.

Understanding Wheel Alignment

Before we dive into the hardware, it's important to grasp what wheel alignment actually is. It's the process of adjusting the angles of the wheels so that they are set to the manufacturer's specifications. These angles – specifically camber, caster, and toe – affect how your tyres make contact with the road. Improper alignment can lead to uneven tyre wear, poor fuel economy, and compromised handling, making a precise alignment a cornerstone of good car maintenance.

Do Alignment Racks Need to Be Attached to All Four Wheels?

The question of whether an alignment rack needs to attach to all four wheels is a common one, and the answer depends on the type of alignment being performed. Traditionally, many alignment systems focused on the front wheels, performing what is known as a two-wheel alignment. This addresses issues primarily related to the steering and front suspension. However, modern vehicles often require a four-wheel alignment, which adjusts the angles of all four wheels. This is because rear-wheel steering or misalignment in the rear axle can significantly impact a vehicle's stability and tyre wear. Therefore, while not all alignment *procedures* require all four wheels to be adjusted, the advanced alignment racks designed for comprehensive diagnostics and adjustments are indeed equipped to interact with and measure all four wheels simultaneously. This allows for a complete picture of the vehicle's geometric state.

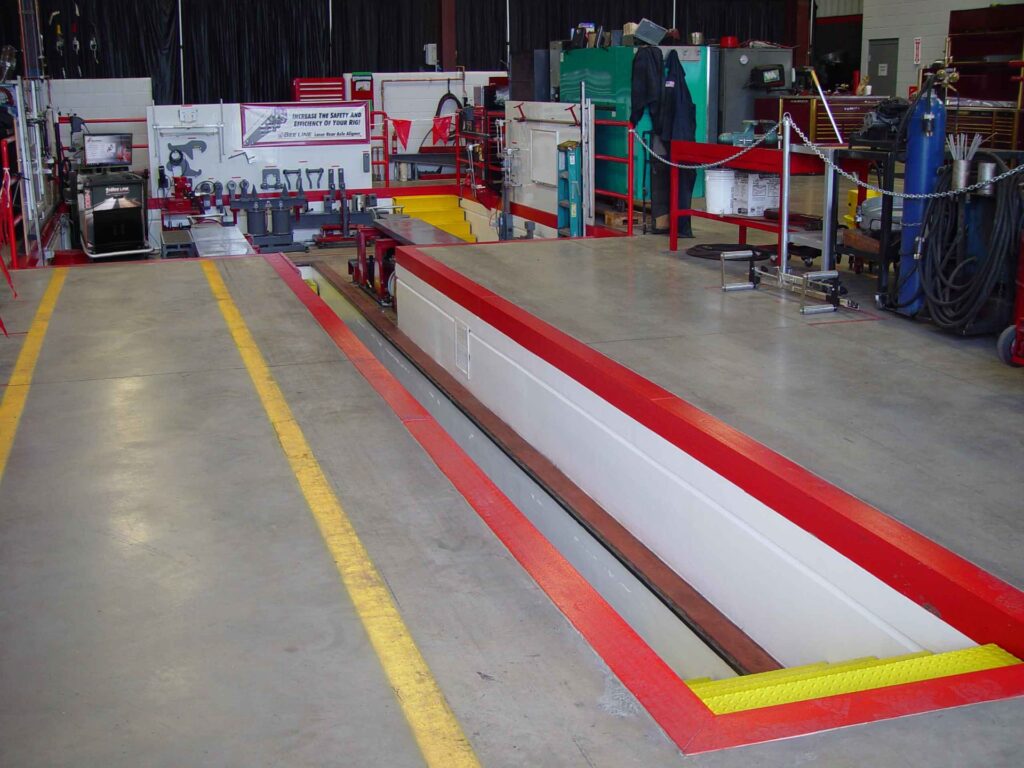

Key Components of a Wheel Alignment Rack

A wheel alignment rack is a complex piece of equipment, but several key components work in harmony to achieve accurate measurements and adjustments. Understanding these parts can help you appreciate the technology involved and the importance of maintaining the rack itself:

1. Slip Plates (Slip Plates Tops)

Slip plates, often referred to as slip plate tops, are a critical part of the alignment rack system. These are typically positioned at the front and rear of the alignment rack's lifting platforms. Their primary function is to allow the wheels to move laterally and longitudinally with minimal resistance during the alignment process. This 'slipping' action is essential for accurately measuring the toe and thrust angles, as it allows the wheels to self-center when the steering wheel is held straight. Without smooth-functioning slip plates, the readings could be skewed, leading to an inaccurate alignment.

The availability of specific slip plate tops is crucial for maintaining the integrity of the alignment process. For instance, Quality Service Products offers specialised slip plate tops designed for specific, well-known alignment rack manufacturers like Hunter. Examples include:

• Slip Plate Top, Stainless Steel, for Hunter model L401 and 404 Racks (Quality Service Products: Model 51-930-S): This specific part is designed to fit Hunter's L401 and 404 rack models, ensuring compatibility and optimal performance. The stainless steel construction often implies durability and resistance to corrosion.
• Slip Plate Top, Stainless Steel, for Hunter RL and D Racks (Quality Service Products: Model 51-669-S): Similarly, this slip plate top is engineered for Hunter's RL and D series racks, guaranteeing a precise fit and function for those particular models.

The availability of these specific parts highlights the need for precision in automotive repair equipment. Using the correct, high-quality components is essential for the accuracy and reliability of the alignment service.

2. Turntables

Often integrated with or working in conjunction with slip plates, turntables are circular platforms that allow the front wheels to be turned left and right during the alignment process. This is vital for measuring caster and kingpin inclination (KPI). The smoothness and accuracy of the turntable’s rotation directly impact the precision of these measurements.

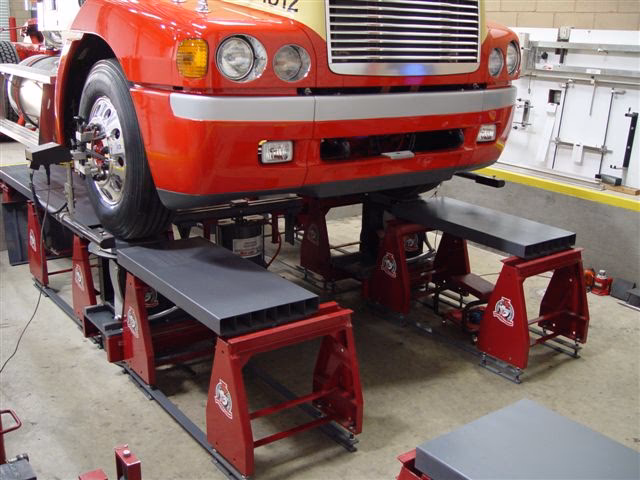

3. Wheel Clamps/Adapters

These are the devices that securely hold the measuring heads or targets onto the vehicle's wheels. They need to be robust, adjustable, and designed to grip the wheel rim without causing damage. Modern systems often use sophisticated clamps that accommodate a wide range of wheel sizes and types, including alloy wheels.

4. Electronic Measuring Heads/Sensors

These are the 'eyes' of the alignment system. Mounted on the wheel clamps, they house sensors and cameras that measure the angles of the wheels relative to the vehicle and the ground. They communicate wirelessly or via cables with the main computer system, which displays the alignment data.

5. Lifting Mechanism

Most alignment racks are part of a lifting system, typically a two-post or four-post lift. This mechanism raises the vehicle to a comfortable working height, allowing technicians access to the suspension components for adjustment. The stability and levelness of the lift are critical for accurate readings.

6. Computer and Software

The brain of the operation. The alignment system's computer stores vehicle specifications and processes the data from the measuring heads. The software provides a user-friendly interface to guide the technician through the alignment process, displaying current angles and highlighting deviations from the factory specifications.

Four-Wheel vs. Two-Wheel Alignment: A Deeper Look

The distinction between a two-wheel and a four-wheel alignment is significant:

As you can see, a four-wheel alignment offers a far more comprehensive solution for modern vehicles, addressing the interplay between the front and rear axles for optimal vehicle dynamics. The equipment used for four-wheel alignment, including advanced racks with precise slip plates and measuring systems, is designed to handle this complexity.

Why Regular Alignment Checks Are Important

Your vehicle's alignment can be knocked out of specification by a variety of common occurrences:

• Hitting potholes or curbs.
• Driving over rough roads.
• Minor collisions or fender benders.
• Wear and tear on suspension components like ball joints, bushings, and tie rod ends.

Even small deviations can have a cumulative negative effect. Regularly checking and adjusting your wheel alignment ensures:

• Maximized Tyre Life: Even alignment significantly extends the lifespan of your tyres by ensuring they wear evenly.
• Improved Fuel Efficiency: Misaligned wheels create more rolling resistance, forcing your engine to work harder and consume more fuel.
• Safer Driving Experience: Proper alignment contributes to better steering response, stability, and overall vehicle control, especially during braking and cornering.
• Reduced Strain on Suspension: Correct alignment reduces unnecessary stress on your vehicle's suspension components.

Frequently Asked Questions

Q1: How often should I get my wheel alignment checked?

It's generally recommended to have your wheel alignment checked annually, or every 10,000-12,000 miles. However, you should also consider a check if you notice any of the following: uneven tyre wear, the vehicle pulling to one side, or if you've recently hit a significant obstacle like a large pothole.

Q2: What are the main angles adjusted during an alignment?

The three primary angles are: Camber (the inward or outward tilt of the top of the tyre), Caster (the forward or backward tilt of the steering axis), and Toe (the inward or outward angle of the tyres when viewed from above).

Q3: Can I adjust my own wheel alignment?

While some basic toe adjustments might be possible for DIY enthusiasts with the right tools and knowledge, achieving a professional-grade alignment requires specialised equipment like alignment racks and a deep understanding of vehicle geometry. It's best left to trained technicians.

Q4: What's the difference between alignment and balancing?

Wheel balancing addresses the uneven weight distribution within a tyre and wheel assembly, which can cause vibrations at speed. Wheel alignment addresses the angles of the wheels relative to the vehicle and the road. Both are important for tyre and driving performance.

Conclusion

The wheel alignment rack is a sophisticated tool essential for maintaining your vehicle's health and your driving safety. Understanding its core components, such as the crucial slip plates, and the difference between two-wheel and four-wheel alignments, empowers you to make informed decisions about your vehicle's maintenance. Investing in regular, professional alignment checks, performed with the right equipment, is a wise choice that pays dividends in tyre life, fuel economy, and overall driving enjoyment.
