In-Frame vs. Overhaul Engine Rebuilds

When it comes to maintaining your diesel engine, understanding the different types of rebuild kits available is crucial. Two terms you'll frequently encounter are 'in-frame' and 'overhaul' (or 'out-of-frame overhaul') kits. While both aim to restore engine performance, they address different levels of wear and tear and involve distinct repair processes. Knowing which one your engine needs can save you significant time, money, and unexpected downtime. Whether you're a seasoned mechanic or a fleet manager, this guide will break down the essential differences, helping you make informed decisions for your Cummins, Caterpillar, Detroit Diesel, John Deere, or any other heavy-duty engine.

What Exactly is an In-Frame Engine Rebuild Kit?

An in-frame engine rebuild kit is designed for repairs that can be carried out while the engine remains installed within the vehicle's chassis or frame. This type of rebuild typically focuses on the internal components that are more prone to wear, such as the cylinders, pistons, and associated bearings. It's often performed as a form of preventive maintenance or to resolve specific internal issues without the need for a complete engine teardown. The 'in-frame' designation means the engine's core structure, including the crankshaft and its position within the block, is not disturbed. This makes it a less invasive and generally quicker repair process.

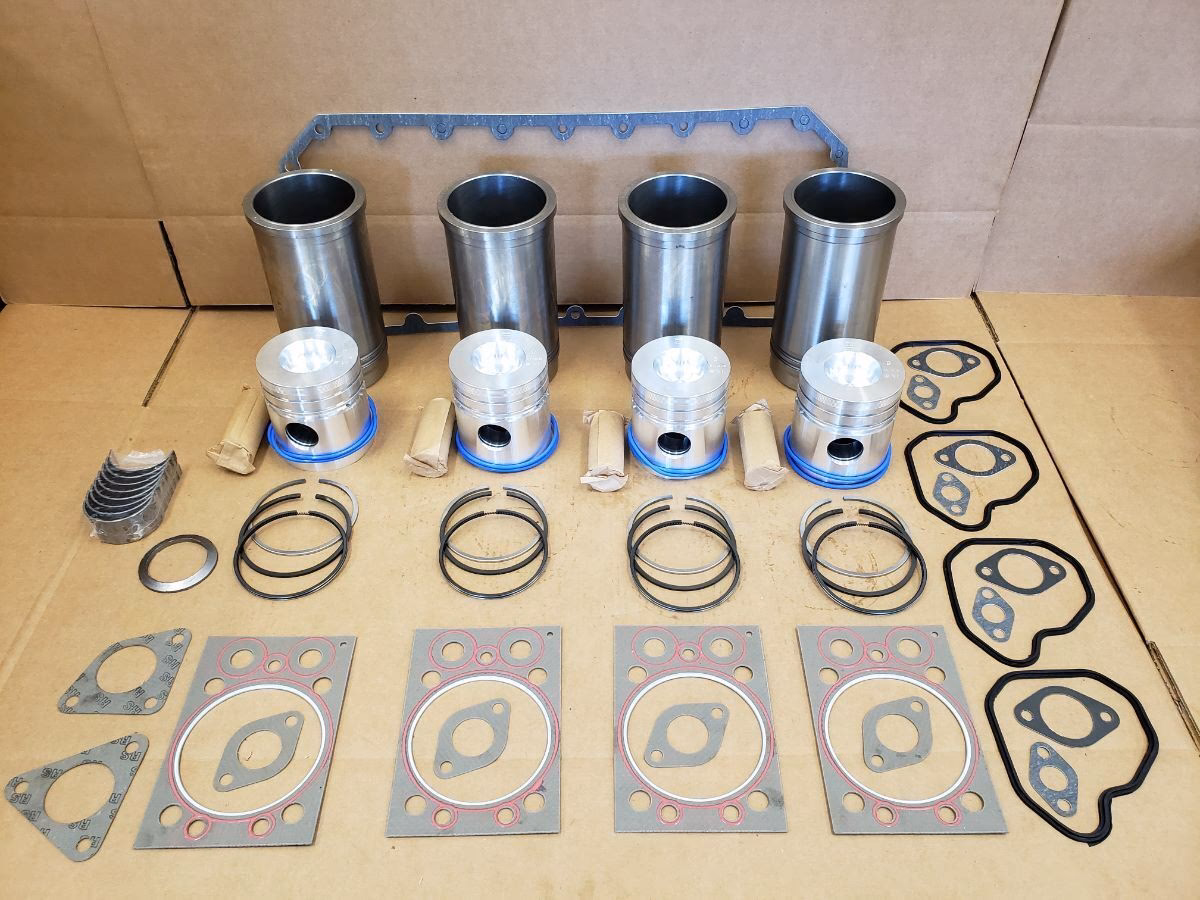

What Components Are Typically Found in an In-Frame Kit?

An in-frame kit is a comprehensive package for refreshing the heart of your engine's rotating assembly. The core components usually include:

• Cylinder Kits: This is the most critical part of an in-frame rebuild. It includes new pistons, precision-engineered piston rings, and cylinder liners (also known as sleeves). These are the components that work together to ensure proper combustion and sealing within the cylinders.
• Main Bearings: These bearings support the crankshaft in the engine block, allowing it to rotate smoothly. Replacing them is essential for reducing friction and wear.
• Rod Bearings: Connecting rod bearings sit between the connecting rod and the crankshaft, facilitating the transfer of power from the pistons. Their replacement is vital for the health of the rotating assembly.
• Thrust Washers: These small but important components manage the crankshaft's end play, preventing it from moving too far forward or backward within the block.
• Upper Gasket Set: This set typically includes the cylinder head gasket, intake and exhaust manifold gaskets, turbocharger gaskets, and other seals and O-rings necessary for reassembling the top end of the engine after the cylinder kits have been installed.
• Oil Pan Gasket: Essential for sealing the oil pan to the engine block, preventing oil leaks.

It's important to note what an in-frame kit does not usually include. Typically, you won't find front and rear crankshaft seals or a complete gasket set for full engine disassembly. This is because the front and rear covers, which house these seals, are not removed during an in-frame procedure.

When Should You Opt for an In-Frame Rebuild?

Choosing an in-frame rebuild is a strategic decision based on the engine's overall condition and the nature of the required repairs. Consider an in-frame kit when:

• The engine is still in generally good condition: If the engine hasn't suffered catastrophic failure and major components like the crankshaft and block are structurally sound.
• There are no cracks in the block or significant structural damage: In-frame repairs assume the integrity of the engine block and crankshaft.
• Minimising downtime is a priority: Since the engine remains in the chassis, the repair time is significantly reduced compared to an overhaul.
• You're performing routine top-end work or replacing liners: This is often the primary driver for an in-frame service.

Understanding the Out-of-Frame Overhaul Kit

An out-of-frame overhaul kit, often referred to as a major engine rebuild kit, is for a much more comprehensive engine restoration. This process involves completely removing the engine from the vehicle. Once out, the engine is disassembled down to its bare components. This allows for thorough inspection, cleaning, and often machining of critical parts like the crankshaft, connecting rods, and the engine block itself. An overhaul is typically undertaken when an engine is severely worn, has suffered significant internal damage, or when a complete lifecycle renewal is desired.

What Components Are Included in an Overhaul Kit?

An overhaul kit builds upon the contents of an in-frame kit, providing everything needed for a complete engine teardown and rebuild:

• Cylinder Kits: Just like in an in-frame kit, this includes new pistons, rings, and liners.
• Main Bearings: Replacement main bearings for the crankshaft.
• Rod Bearings: Replacement connecting rod bearings.
• Thrust Washers: To manage crankshaft end play.
• Complete Overhaul Gasket Set: This is a key differentiator. It includes every gasket, seal, and O-ring the engine will need for a full rebuild, including those for the front and rear crankshaft seals, oil pump, water pump, and any other external covers.
• Front and Rear Crankshaft Seals: These are vital for preventing oil leaks at the front (where the fan belt is) and rear (where the transmission connects) of the crankshaft.

This comprehensive nature allows for the replacement or refurbishment of virtually every wear item within the engine, ensuring maximum reliability.

When is an Out-of-Frame Overhaul the Right Choice?

An out-of-frame overhaul is necessary in more severe situations:

• Rebuilding a worn-out or seized engine: When components have reached the end of their service life.
• Internal damage requiring machining: If a component failure (like a dropped valve or broken connecting rod) has caused damage to the block, crankshaft, or cylinder head.
• Preparing for a new lifecycle: For engines destined for resale, restoration, or extended service, an overhaul ensures a robust foundation.
• Maximising reliability: When the goal is to replace as many wear items as possible for long-term, dependable performance.

Cost and Downtime Comparison: In-Frame vs. Overhaul

The choice between an in-frame and an overhaul kit has significant implications for both your budget and your operational schedule. Here's a general comparison:

Pro Tip: Remember that kit costs are only part of the equation. Labour is a substantial expense, and machine shop work (like crankshaft grinding, block honing, or cylinder head resurfacing) can add considerably to the total cost of an overhaul. Always factor these potential costs into your decision.

A Closer Look at Engine Rebuild Kit Variations

Beyond the main categories, you might encounter other specific kit types:

Expert Advice: Matching the Kit to the Job

Making the correct choice is paramount. If you're uncertain about the best kit for your specific engine and the symptoms it's displaying, don't hesitate to consult with diesel parts specialists or refer to your engine's official service manual. Experts can guide you through identifying the exact components needed and whether an in-frame refresh or a complete overhaul is the most cost-effective and reliable solution for your situation.

The Importance of Machine Work and Component Inspection

A critical aspect of any engine rebuild, especially an overhaul, is the quality of the machine work performed on key components. For example:

Block and Crankshaft Preparation

Reputable remanufacturers subject engine blocks to rigorous cleaning and inspection processes. This includes magnafluxing (to detect hairline cracks) and precise measurements to ensure the block is straight and the cylinder bores are within specification. Similarly, crankshafts undergo extensive cleaning, inspection, and often grinding to restore them to OEM specifications. Services like micro-polishing bearing surfaces, chamfering oil passages for better lubrication, and shot-peening for added hardness are common in professional remanufacturing.

Cylinder Head Checks

Even during an in-frame rebuild, it's wise to have the cylinder head inspected. A cracked head or worn valve seats can negate the benefits of a bottom-end rebuild. Professional shops can repair common issues like cracks in the casting, damaged stud holes, and perform valve seat and guide replacements.

Ancillary Component Checks

Don't overlook other vital components while the engine is down. Consider having fuel injectors tested, the turbocharger inspected for wear, and other systems checked. Addressing these items concurrently can prevent future failures and ensure the overall health and efficiency of the rebuilt engine.

Conclusion

Choosing between an in-frame and an overhaul engine rebuild kit is a decision that hinges on the condition of your engine, the extent of the necessary repairs, and your priorities regarding cost and downtime. An in-frame rebuild offers a cost-effective solution for addressing common wear in the cylinders and bearings, typically with less downtime. An out-of-frame overhaul, while more intensive and costly, provides a comprehensive restoration, ensuring maximum reliability and longevity by replacing or refurbishing nearly all internal components. By understanding these differences and consulting with experts, you can ensure your diesel engine receives the right treatment to keep it running strong for years to come.
